Name: Carters Shocksafe Insulated Clay Grafter Treaded Spade BS8020
Brand: Richard Carter Tools
SKU: 24728
Price: 55.57 GBP
Availability: InStock

Carters Shocksafe Insulated Clay Grafter Treaded Spade BS8020

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

You may also need the following:

£46.31 excl. VAT

£55.57inc. VAT

Top features

155mm Wide Blade Design
Extra Wide Handle
BS8020:2011 Compliant

Description

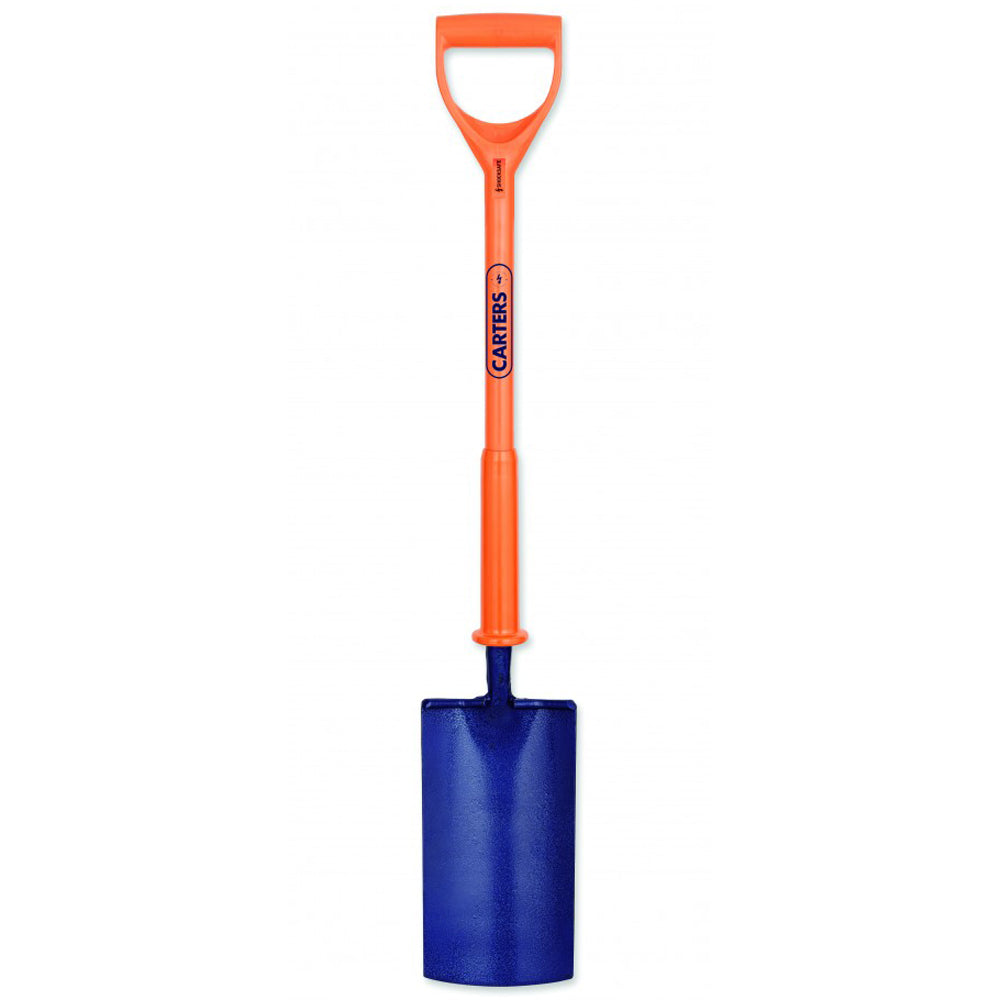

Carters Shocksafe Insulated Clay Grafter Treaded Spade BS8020

This insulated clay grafter spade features a slightly dished blade designed to cut through heavy soil such as clay. The leading edge is slightly rounded, allowing you to easily break ground, making it suitable for heavy groundbreaking.

The handle of the Shocksafe clay grafter is insulated up to 10,000V, offering significant protection against electric shocks for workers operating in areas with live conductors or with risks of buried live cables. The handle features an extra wide grip suitable for use with gloves, and the shaft features a solid fiberglass core with a durable polypropylene shell, making it lightweight and exceptionally durable.

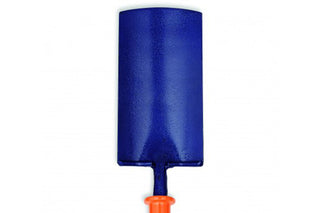

The blade of this insulated clay grafter spade is made from a single piece of forged steel with welded forward facing treads. This method of manufacturing not only makes the blade exceptionally strong but also allows it to be made lighter weight as the treads increase the strength of the blade, allowing thinner material to be used. The forward-facing treads also make the shovel more ergonomic by increasing the space for feet to engage with the shovel, spreading the load and giving greater precision whilst working.

Key features

155mm Wide Blade Design

With a blade only 155mm wide, this spade is made to cut through heavy clay and compacted soils easily. The curved leading edge helps the spade cut more efficiently than a flat-fronted design.

Extra Wide Handle

Suitable for use with gloves on during winter months and comfortable for those with larger hands.

BS8020:2011 Compliant

BS8020:2011 Compliant - Suitable for live working and use around like cables, it will keep you protected from buried cables carrying up to 10,000V.

Forward-Facing Treads

Forged forward-facing treads reinforce the blade without adding extra weight. They provide more surface area for feet, offering greater stability whilst working.

240N Handle Torsion Test

Ensures the handle will not twist and fail when loads up to 240N are applied.

10,000V Electrical Test

The most important figure for this Shocksafe range is that tools are flash tested to 10,000 to ensure they will perform as required on site.

Individual Serial Number

This tool has an individual serial number showing that it has passed testing and conforms with BS8020 2011.

ABS Hand Guard Shell

A durable ABS shell offers protection for hands and offers excellent insulation against shocks.

Specialist Shaft Seal

The joint between the handle and the blade feature a specially developed seal to prevent moisture and water ingress that could impact conductivity.

Ultra Durable Blade

The blade has been forged and tested to withstand loads up to 95kgs, exceeding the requirements of BS3388.

Handle Bend Test

A solid fibreglass core encapsulated in a blended polypropylene outer shell make this handle able to withstand 750n in a bend test whilst also having great insulative properties.

Lightweight Design

Weights only 2.8kg, making it easy to work with all day with the spade head and handle, both saving weight and not adding to your working load.
