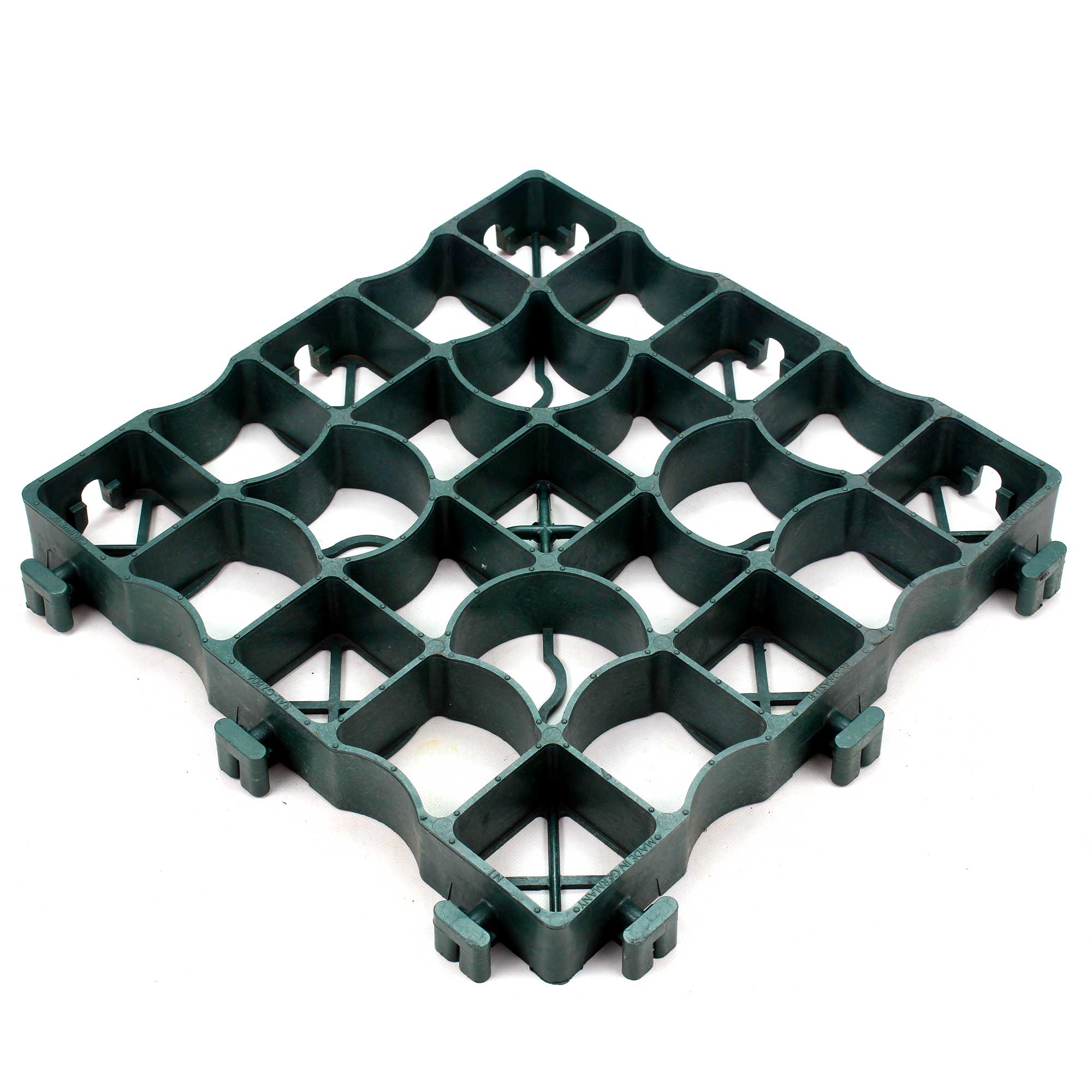

EcoGrid E40 Medium Duty Ground Reinforcement Grid System (Green)

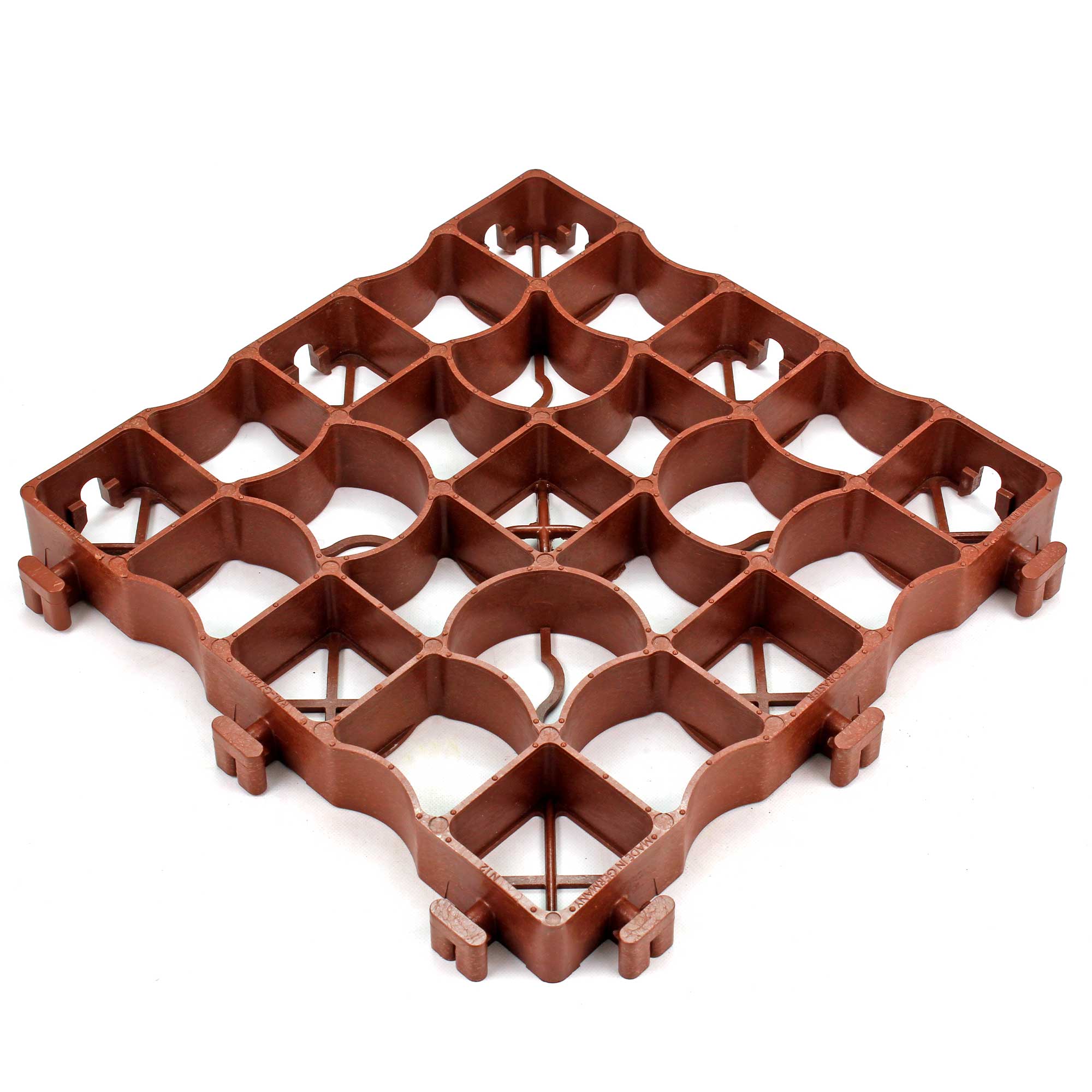

EcoGrid E40 Medium Duty Ground Reinforcement Grid System (Brown)

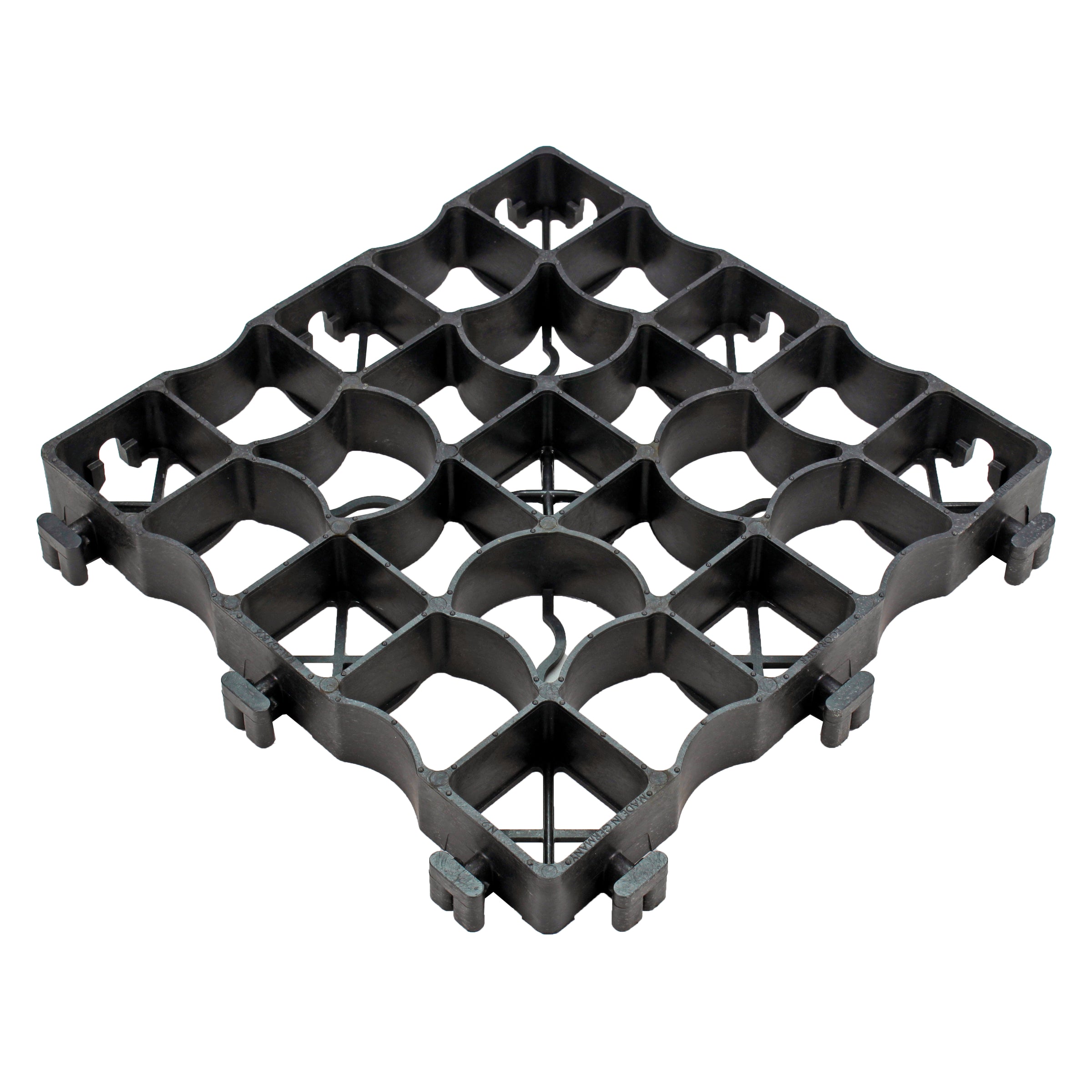

EcoGrid E40 Medium Duty Ground Reinforcement Grid System

EcoGrid E40 Medium Duty Ground Reinforcement Grid System

Product code: 13744-BK
EcoGrid
In Stock

£1.84 excl. VAT

£2.21inc. VAT

Buy in bulk and save

624 or more £1.82 excl. VAT
624 or more £2.18 inc. VAT
1048 or more £1.80 excl. VAT
1048 or more £2.16 inc. VAT

Colour: Black

Black
Green
Brown

Specification

Size guide

If you’re looking to order large quantities, call us on (0)1905 794875 for more information.
View the product details below to learn more about this product.

You may also need the following:

EcoGrid E40 Universal Ground Reinforcement System

Whether it be pathways and pavements or LGV parking, the Ecogrid E40 is the most versatile of the EcoGrid range. Made from 100% recycled polyethylene with a 40mm height, the E40 is a more durable big brother to the Ecogrid E30. It is also a more cost-effective version to the E50 for applications where a very high load-bearing capacity is not needed.

Known as the universal grid, the E40 balances performance and budget giving great value for money, whilst still being capable of dealing with medium loads, it is, therefore, one of the most popular cellular paving grids we offer.

Each E40 tile is 330mm x 330mm and 40mm high with a wall thickness of 5mm making the E40 suitable for a range of jobs such as garden edging, vehicle parking and horse paddock.

EcoGrid E40 Key features

The most cost-effective the EcoGrid range - As it’s so versatile, the EcoGrid E40 is great value for money given its wide range of capabilities.
Widely recyclable - If you’re using the E40 temporarily, there’s no need to worry about disposing of it as it is widely recyclable.
Buy Ecogrids in bulk - EcoGrid E40’s come in pallets of 624 tiles which covers 69.33Sqm.
Load distributing interlocking design - The interlocking design of the Ecogrid improves installation speed and efficiency as it is easy enough for a single worker to lay quickly reducing staff costs. The interlocking system allows up to 500 tonnes to be evenly distributed across the EcoGrid, so unless HGV’s and Large plant equipment are going to be used on there, no worries about overloading the grid.
Heavy-duty - When filled the E40 can withstand a load of 500 tonnes p/sqm making it a solid option for car parks, caravan parks and van parking.
Sustainable drainage - A valuable characteristic of EcoGrids is that when used in large spaces, there’s no concern about the potential build-up of rainwater or flooding.
Resin-bound stone base - Resin-bound stone is becoming a more popular choice by the day and the EcoGrid is the optimal base for it.

Common Uses for the EcoGrid E40

As the most versatile of the three, the E40 is a multipurpose system, most commonly used for;

Shed & Garden office bases
Parking areas
Access routes

Construction sites
Equestrian arenas
Grassed parking

Animal compounds
Resin stone bases
Access roads

Effortless Installation

Large quantities of EcoGrids are delivered in sheets of 9/12 which improves the installation speed (100sqm/hr per person) and reducing fitting costs, with a patented interlocking system you don’t need to worry about having to order extra fitting components as all of that has been taken care of, just drop, lock and fill. Each square metre weighs approximately 5.22kg, making it easy enough for a single worker to lay, reducing the cost of fitting massively.

Attractive concrete substitute with natural drainage

When filled with an aggregate of your choice, the E40 is capable of withstanding a 20-tonne axle load, making it a great and cost-effective replacement for concrete. This is a valuable substitute for permanent flooring as it’s less harmful than the more common alternatives such as tarmac, resin or concrete, but also gives you more freedom with what you fill it with. This will also give you a permeable surface for large areas like parking and animal compounds, reducing the risk of flooding by providing sustainable drainage.

A Choice of colours to suit your needs!

Whatever your intended of the EcoGrid, there is a choice of four colours for you to choose from, giving you the option of adding small details to your flooring solution.

Need more help finding the right ground grid solution?

Call our sales team on 01905 794 875 today! They will be happy to assist you in getting the best E40 Ecogrid price. We have experienced and friendly staff who will ensure you get the best product for your needs.
