Cable Ramps

Cable Ramps

It is quite often necessary to run a cable across areas where either pedestrians or heavy vehicles are passing by. The cables may be audio cable at a concert, or high voltage power running from a generator. Either way, the cable needs protection from the passing traffic.

Read more
Traffic-Line Single Hose / Cable Ramp Roll Out - 10m

Traffic-Line Single Hose / Cable Ramp Roll Out - 10m

£118.08 excl. VAT
£141.70inc. VAT
Start Traffic
  • In Stock
  • Traffic-Line 2 Channel Cable Ramp

    Traffic-Line 2 Channel Cable Ramp

    £45.49 excl. VAT
    £54.59inc. VAT
    Start Traffic
  • In Stock
  • 3 Channel Traffic-Line Cable Protector

    3 Channel Traffic-Line Cable Protector

    £79.73 excl. VAT
    £95.68inc. VAT
    Start Traffic
  • In Stock
  • Traffic-Line Mini Drop Over Cable Ramp

    Traffic-Line Mini Drop Over Cable Ramp

    £69.35 excl. VAT
    £83.22inc. VAT
    Start Traffic
  • In Stock
  • 5 Channel Guard Dog Cable Protector GD5X125 Cable Ramp

    5 Channel Guard Dog Cable Protector GD5X125 Cable Ramp

    £178.65 excl. VAT
    £214.38inc. VAT
    Checkers Safety
  • In Stock
  • 5 Channel Guard Dog Cable Protector GD5X125-ADA Cable Ramp
    Checkers Safety
  • In Stock
  • 5 Channel "Low Profile" Guard Dog Cable Protector GD5X75

    5 Channel "Low Profile" Guard Dog Cable Protector GD5X75

    From £220.10 excl. VAT
    From £264.12inc. VAT
    Checkers Safety
  • Call For Availability
  • Traffic-Line 5 Channel Cable Ramp

    Traffic-Line 5 Channel Cable Ramp

    £79.82 excl. VAT
    £95.78inc. VAT
    Start Traffic
  • In Stock
  • 3 Channel Traffic-Line Cable Protector Angled Section Left
    Start Traffic
  • In Stock
  • 3 Channel Traffic-Line Cable Protector Angled Section Right
    Start Traffic
  • In Stock
  • 5 Channel Linebacker Cable Ramps - Heavy Duty CP5X125

    5 Channel Linebacker Cable Ramps - Heavy Duty CP5X125

    £215.27 excl. VAT
    £258.32inc. VAT
    Checkers Safety
  • Dispatches in 1-3 Days
  • 3 Channel Traffic-Line Cable Protector End Section

    3 Channel Traffic-Line Cable Protector End Section

    £20.17 excl. VAT
    £24.20inc. VAT
    Start Traffic
  • In Stock
  • 3 Channel "Low Profile" Guard Dog Cable Protector GD3X75

    3 Channel "Low Profile" Guard Dog Cable Protector GD3X75

    From £169.05 excl. VAT
    From £202.86inc. VAT
    Checkers Safety
  • Call For Availability
  • Traffic-Line Dual 75mm Hose Ramp With Reflectors

    Traffic-Line Dual 75mm Hose Ramp With Reflectors

    £107.70 excl. VAT
    £129.24inc. VAT
    Start Traffic
  • In Stock
  • 3 Channel Yellow Jacket Cable Protector Ramp YJ3-225

    3 Channel Yellow Jacket Cable Protector Ramp YJ3-225

    £418.03 excl. VAT
    £501.64inc. VAT
    Checkers Safety
  • Call For Availability
  • 5 Channel Yellow Jacket Cable Protector Ramp YJ5-125

    5 Channel Yellow Jacket Cable Protector Ramp YJ5-125

    £233.69 excl. VAT
    £280.43inc. VAT
    Checkers Safety
  • Call For Availability
  • 1 Channel "Low Profile" Guard Dog Cable Protector GD1X75-ST
    Checkers Safety
  • Call For Availability
  • 5 Channel Linebacker General Duty Cable Protector CP5X125-GP
    Checkers Safety
  • Call For Availability
  • 3 Channel Linebacker Heavy Duty Cable Protector CP3X225

    3 Channel Linebacker Heavy Duty Cable Protector CP3X225

    £306.06 excl. VAT
    £367.27inc. VAT
    Checkers Safety
  • Dispatches in 1-3 Days
  • Checkers Grip Guard 3 Channel Cable Ramp

    GG3X225-Y/GRY Grip Guard 3 Channel Cable Ramp

    £258.26 excl. VAT
    £309.91inc. VAT
    Checkers Safety
  • Dispatches in 1-3 Days

  • Cable Protectors For Heavy Duty Applications

    It is quite often necessary to run a cable across areas where either pedestrians or heavy vehicles are passing by. The cables may be audio cable at a concert, or high voltage power running from a generator. Either way, the cable needs protection from the passing traffic.

    Our cable protection range is one of the best there is, with a huge selection to choose from. Within this selection, there is drop over cable covers, and ramps that can withstand up to 18,300kg per axle! So whether you need to protect several small cables or one giant one, we have you “covered”.

    Our range is produced primarily by Checkers International. Checkers produce some of the best industrial cable ramps and wheel chocks in the market. They have an established and well-supported product range and produce quality high-density, ultra-strong cable protectors.

    Tractor Crossing Checkers Cable Ramps

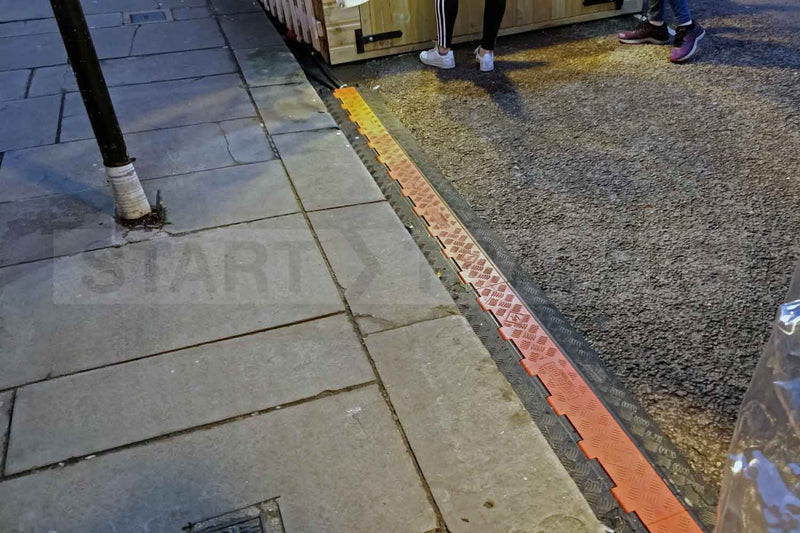

    Cable Protector in pedestrian area

    It’s Not Just About Cable Protection

    The people walking over the cables need protection just as much as the cable underneath. Health and safety guidelines dictate that you should make every effort to remove trip hazards. All of the cable protectors we provide have brightly coloured options. This makes them easy for pedestrians to see and stops them tripping over cables.

    The channels and lids are made from non-conductive materials, so the ramp also helps reduce any risk of electrocution from the cable within.

    Cable Protectors That Securely Stay Locked Together

    Our range of cable protectors has interlocking lugs that ensure each section stays fastened to the next. This again improves safety ensuring that trip risks cannot be created by units becoming unhitched. It also prevents cables from being damaged by becoming exposed and getting run over without protection.

    Cable Protector Interlocking Connectors

    Not just for Cables But For Hoses too!

    All of these ramps are available with different channel sizes, some of them can be used to accommodate hoses, such as high-pressure lines at a car wash for instance. When used in this application they are commonly known as a “hose bridge”.

    Different Weight Capacities

    These ramps come in designs ranging from pedestrian grade to HGV grade, whichever type you need we will have something to suit your needs.

    Drop-over Or Drop-in

    There are two key styles of ramp, the drop in and the drop over. The drop over simply lay over the top of a cable and offer protection simply by acting as a bridge. No load from above is passed to the cable

    The drop in has a lid that is lifted, the cables are then laid securely inside of the channels within before the lid is closed. The benefit of the drop over protection is the speed that it can be installed. The benefit of the drop in protection is that it surrounds the cable 360 degrees.

    Single Channel Cable Protectors

    Max Weight (per axle) Channel Size Model No. Wheelchair Friendly
    18,200kg 19mm GD1X75-ST x

    Twin Channel Cable Protectors

    Max Weight (per axle) Channel Size Model No. Wheelchair Friendly
    11,792kg 19mm GD2X75-ST x
    20,864kg 19mm GD2X75

    Three Channel Cable Protectors

    Max Weight (per axle) Channel Size Model No. Wheelchair Friendly
    12,892kg 57mm CP3X225 x
    12,892kg 58mm GD3X225 x
    15,422kg 19mm GD3X75-ST x
    24,492kg 19mm GD3X75
    12,892kg 54mm YJ3-225 x
    4,534kg 57mm GG3X225 x

    Five Channel Cable Protectors

    Max Weight (per axle) Channel Size Model No. Wheelchair Friendly
    18,280kg 34mm CP5X125 x
    9,526kg 33mm CP5X125-GP x
    9,526kg 33mm GD5X125 x
    9,526kg 33mm GD5X125-ADA x
    21,772kg 19mm GD5X75-ST x
    30,844kg 19mm GD5X75
    14,787kg 25mm YJ5-125 x
    4,534kg 31mm GG5X125 x
    5,444kg 31mm BB5-125-D x
