ST EVO-N Self Righting Retro-Reflective Traffic Bollard

The ST EVO-N is part of our new range of passive safety traffic bollards. These bollards are seen all over the UK traffic network at islands and roundabouts. They are retro-reflective requiring no power, making them very cost-effective to install and maintain.

The EVO-N is suitable for all locations, be that rural or in a town centre. This passive safety bollard is compliant with all relevant standards including;

  • BS 8442:2015 in relation to Retroreflective self-righting bollards (RSRBs).
  • BS EN 12767:2007
  • Reflective Material Meets BS 8408:2005

All reflective material is backed by a 3M 12-year delamination guarantee. Giving peace of mind and further enhancing the value of this product.

Profile image of EVO-N Bollard

What Faces Are Available For the ST EVO-N

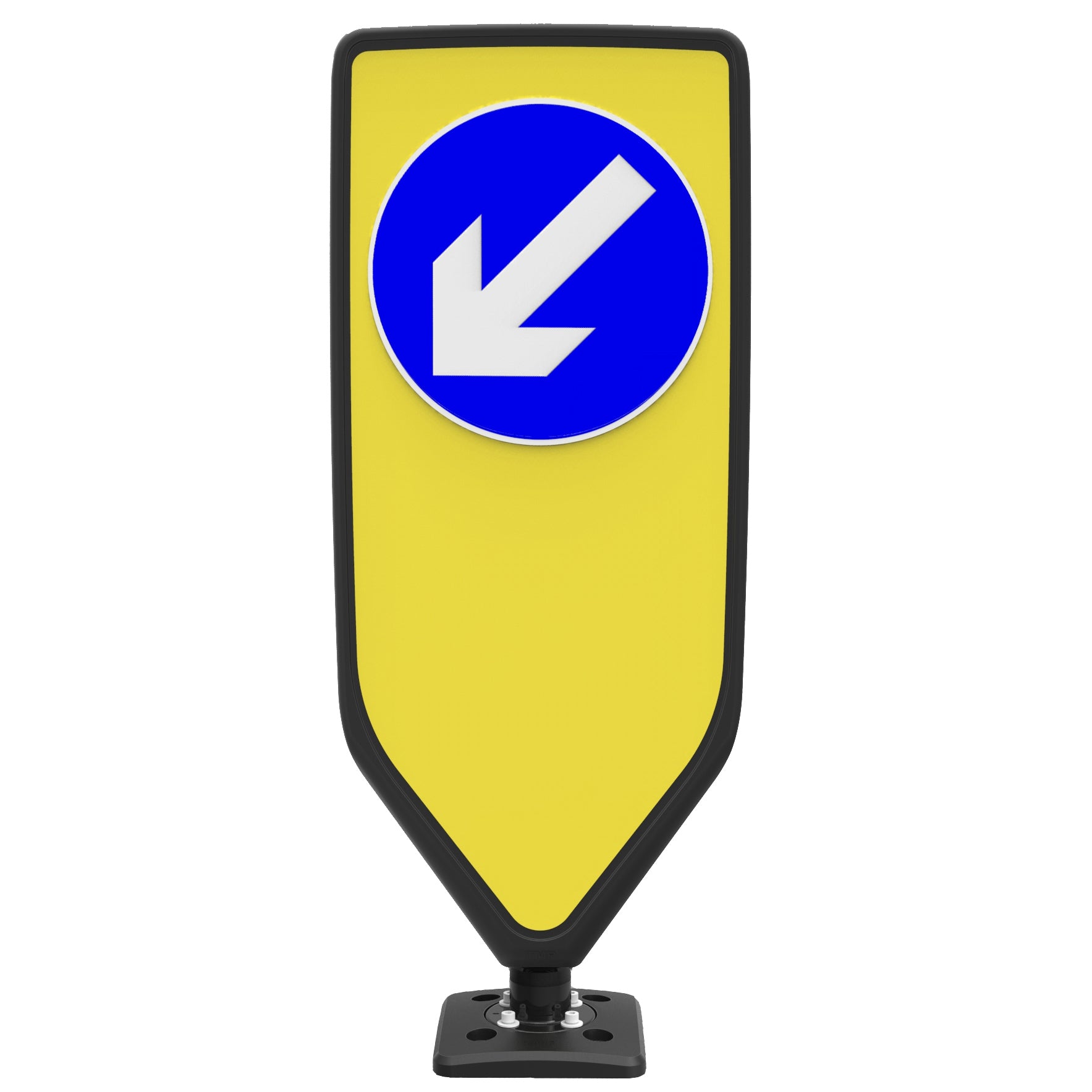

The EVO-N is available in various configurations, as standard it comes with a keep left face (D610). This symbol is installed on a 3M Diamond Grade DG3 background in yellow. We are also able to supply it with a number of other faces including;

  • Keep Right D610

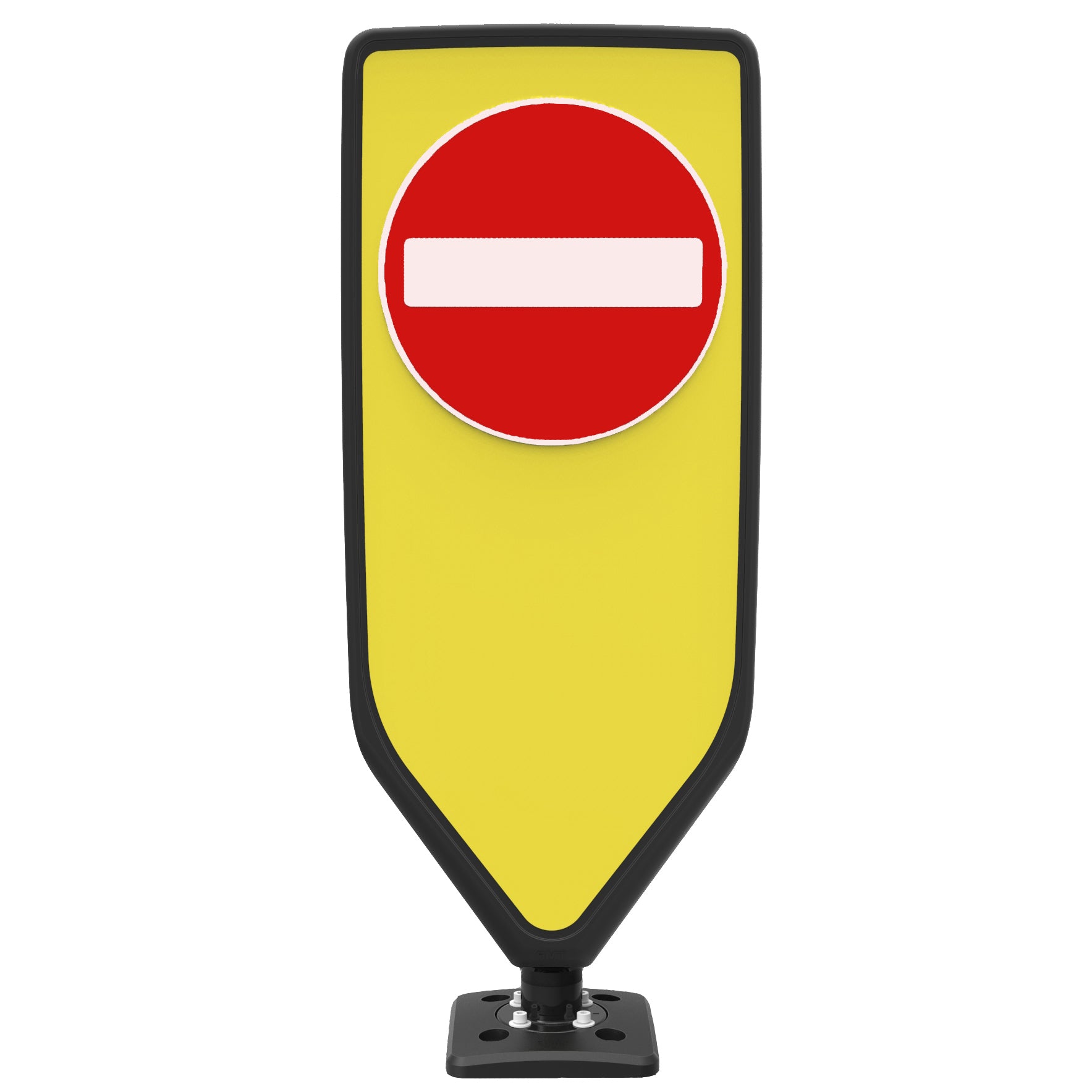

  • No Entry D616

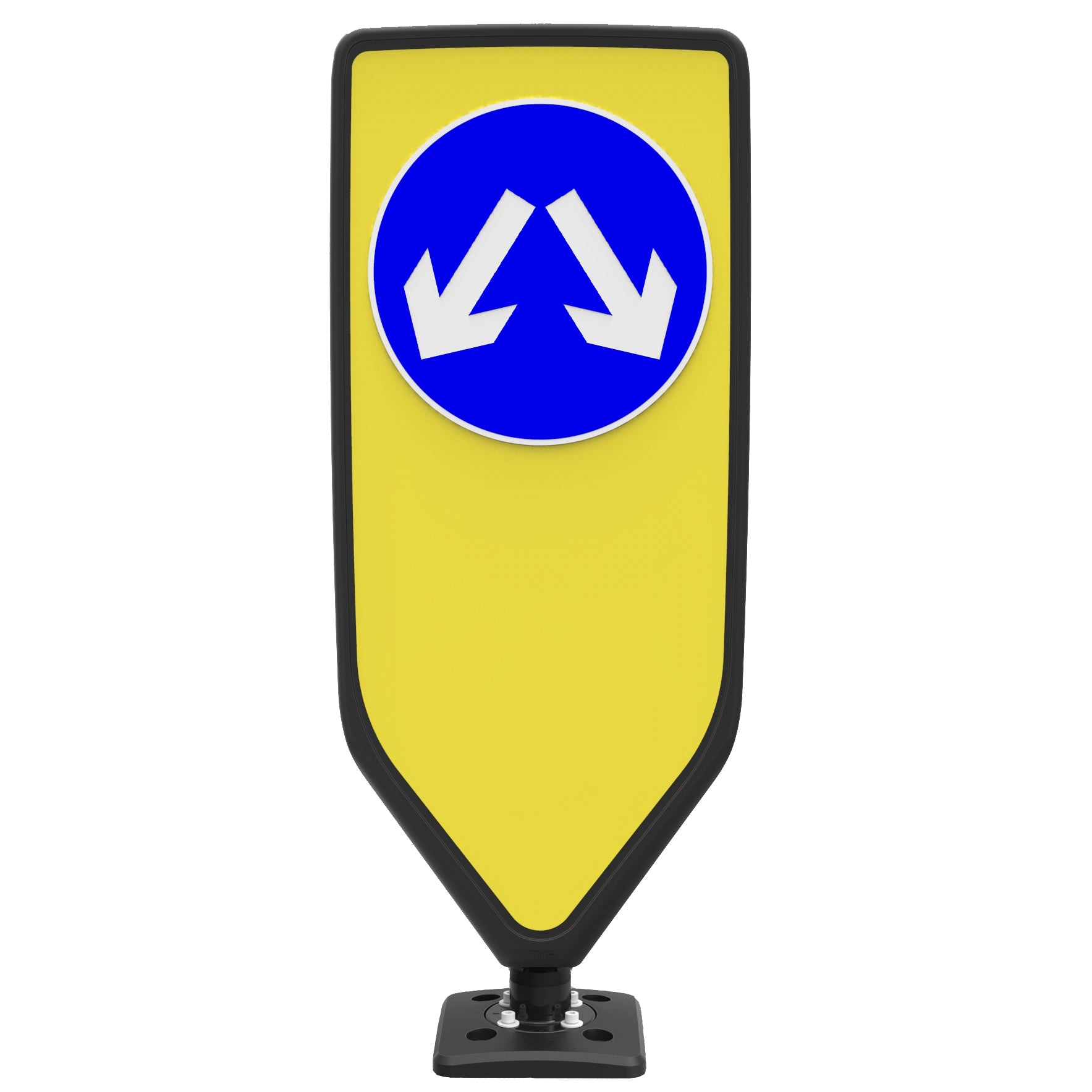

  • Pass Either Side D611

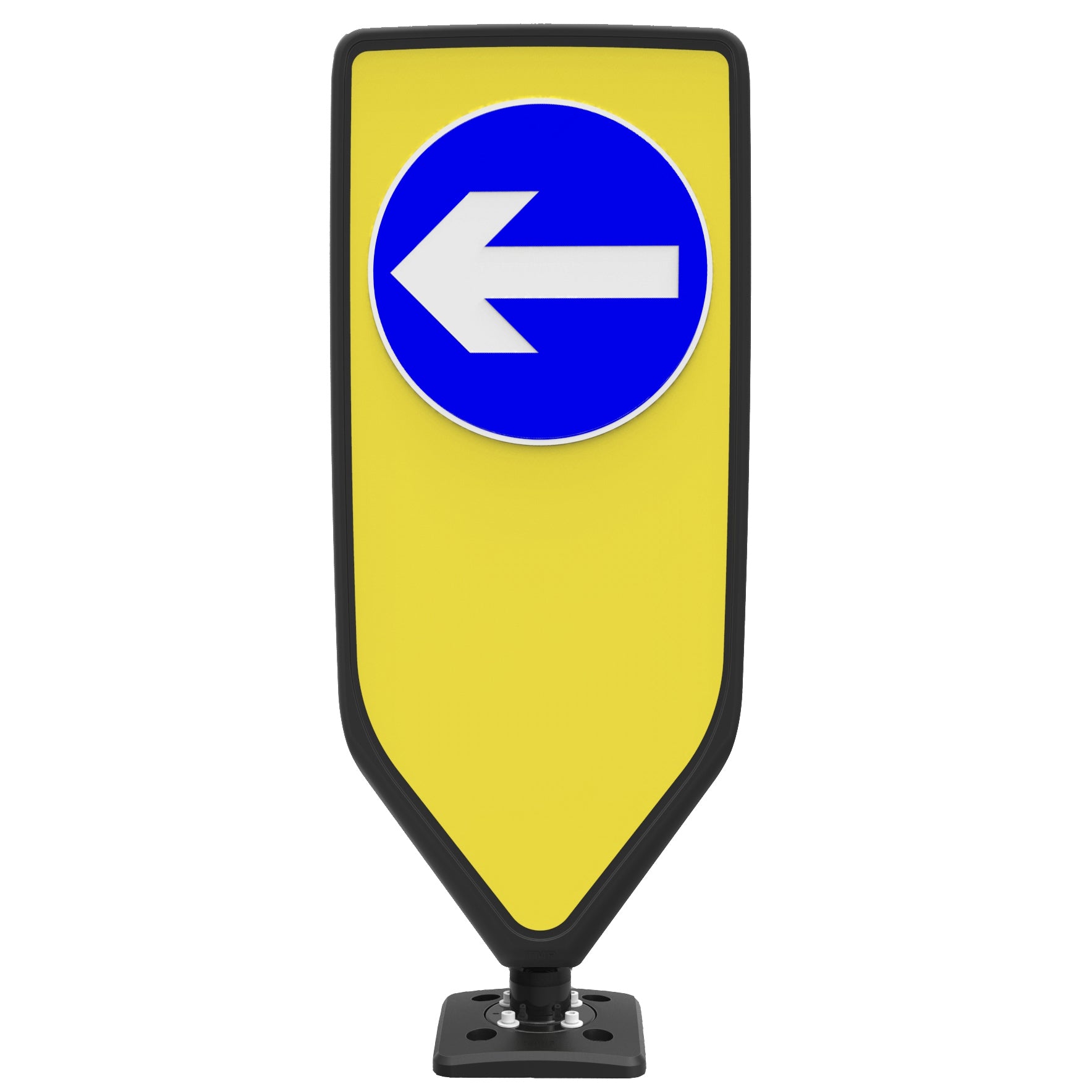

  • Go Left D606

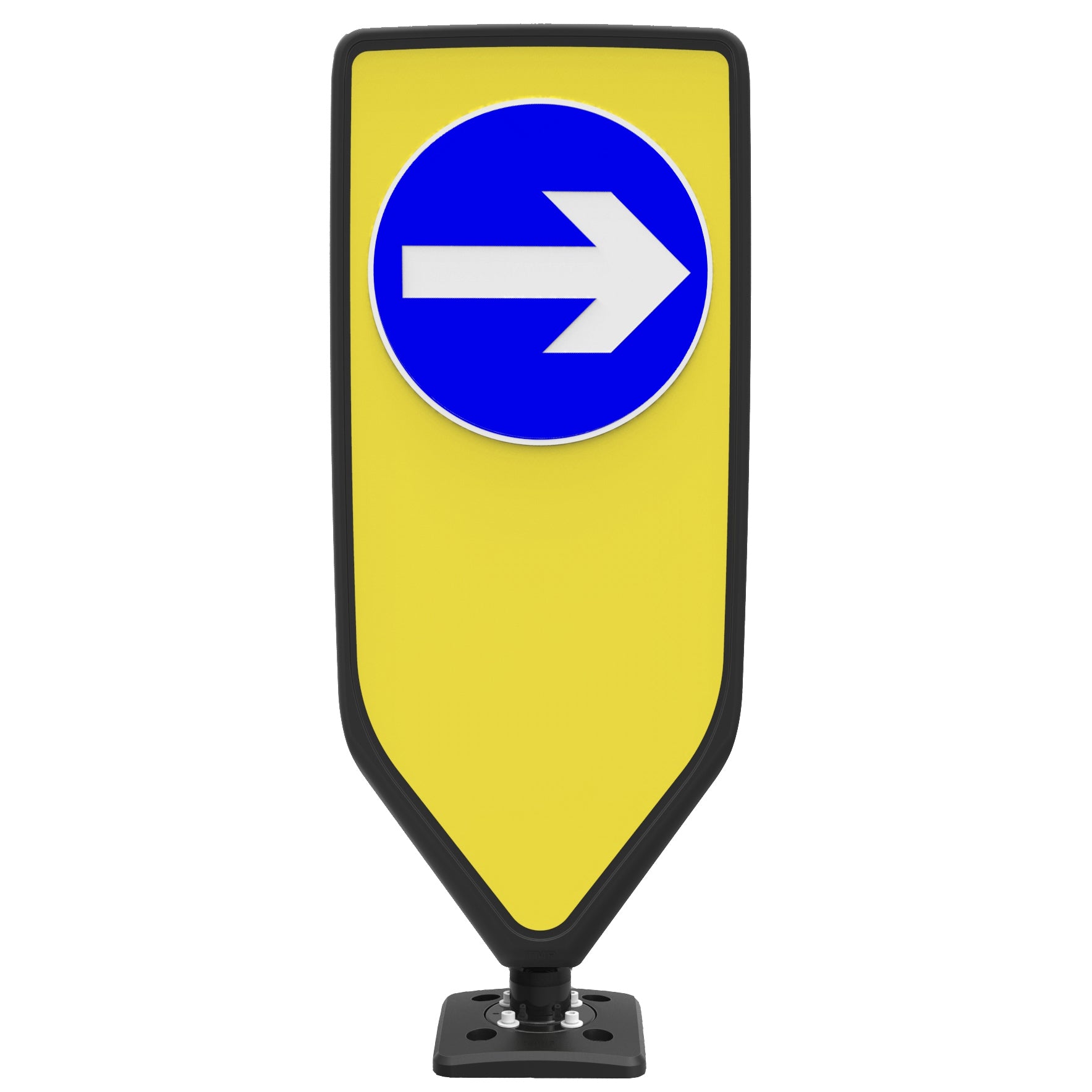

  • Go Right D606

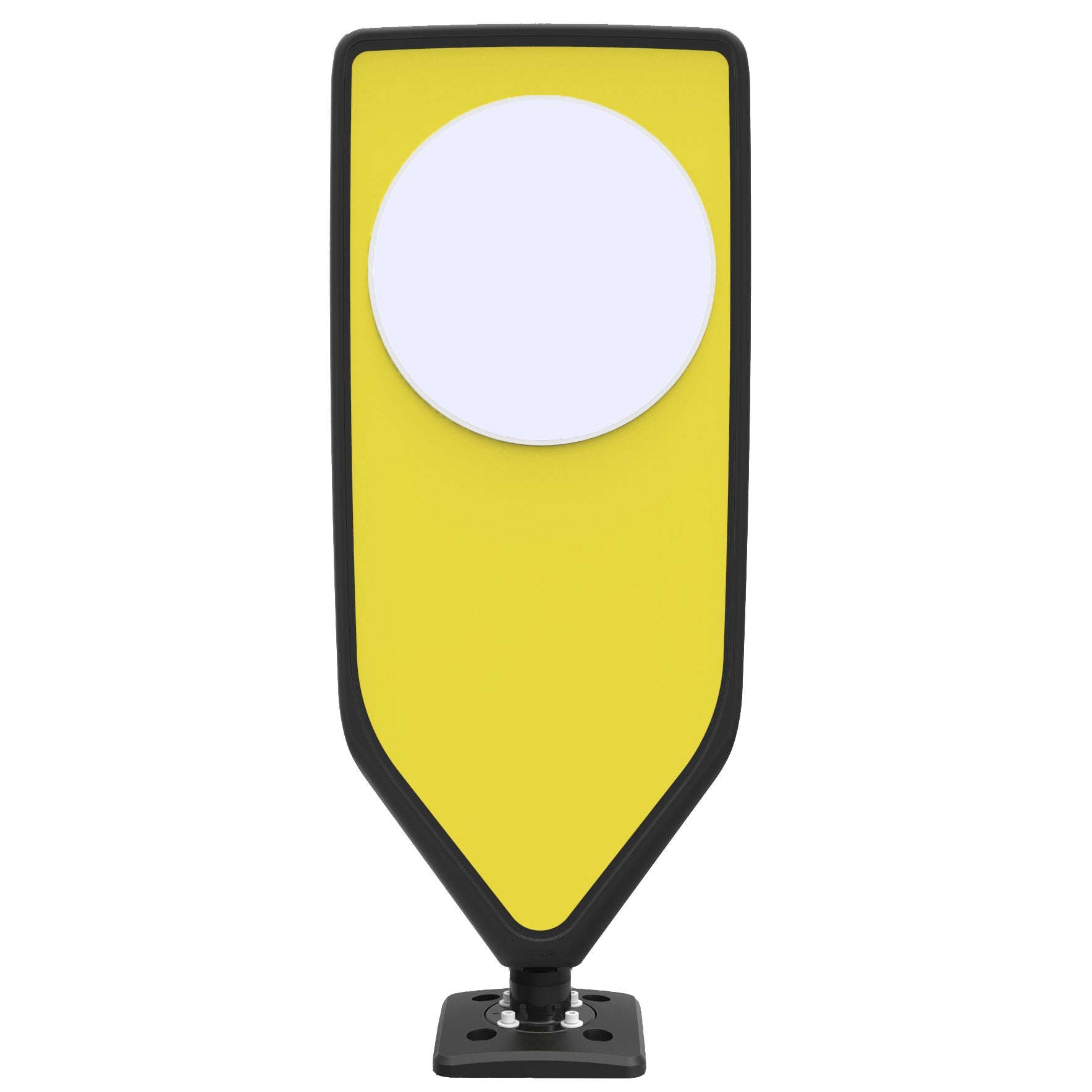

  • Plain Face

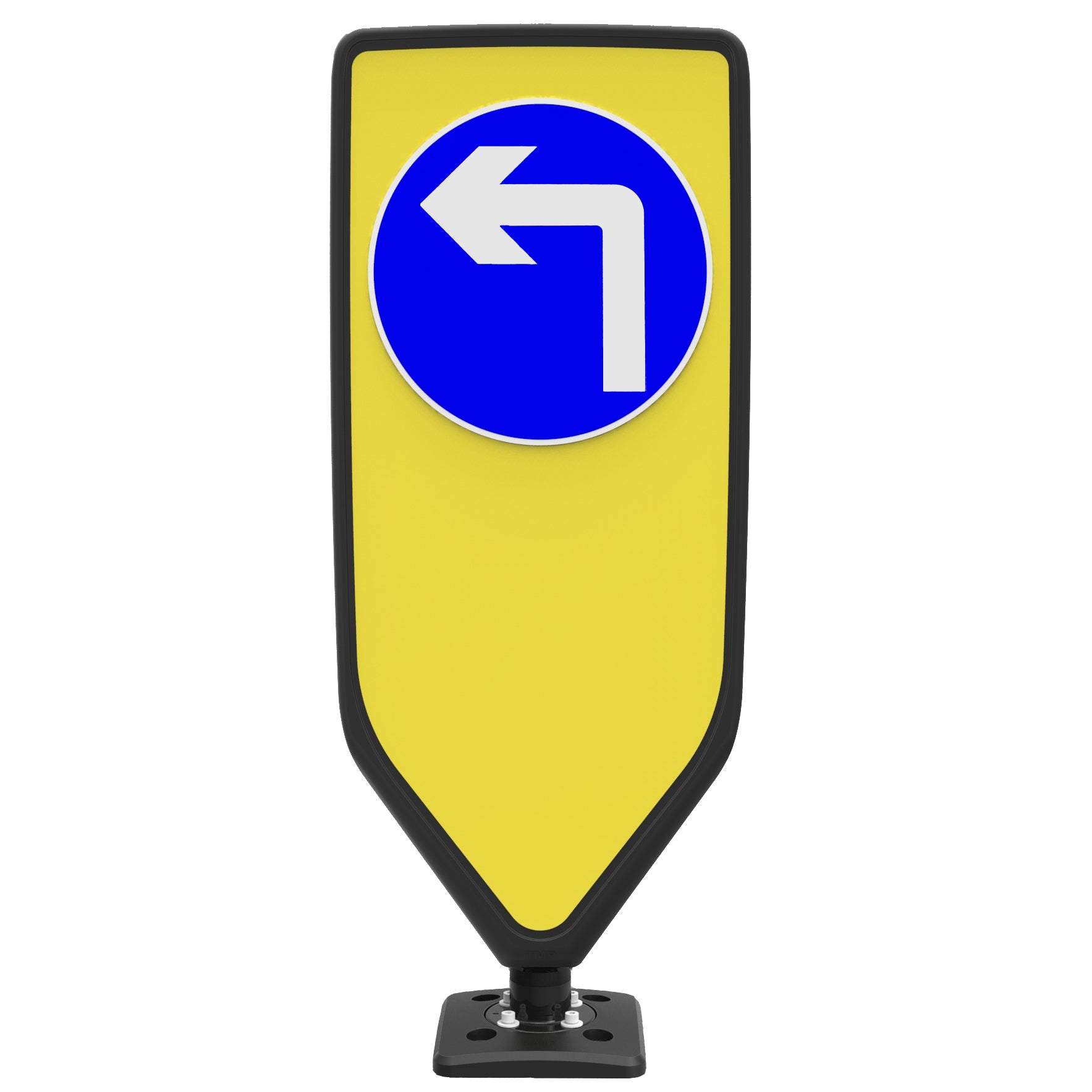

  • Left D609

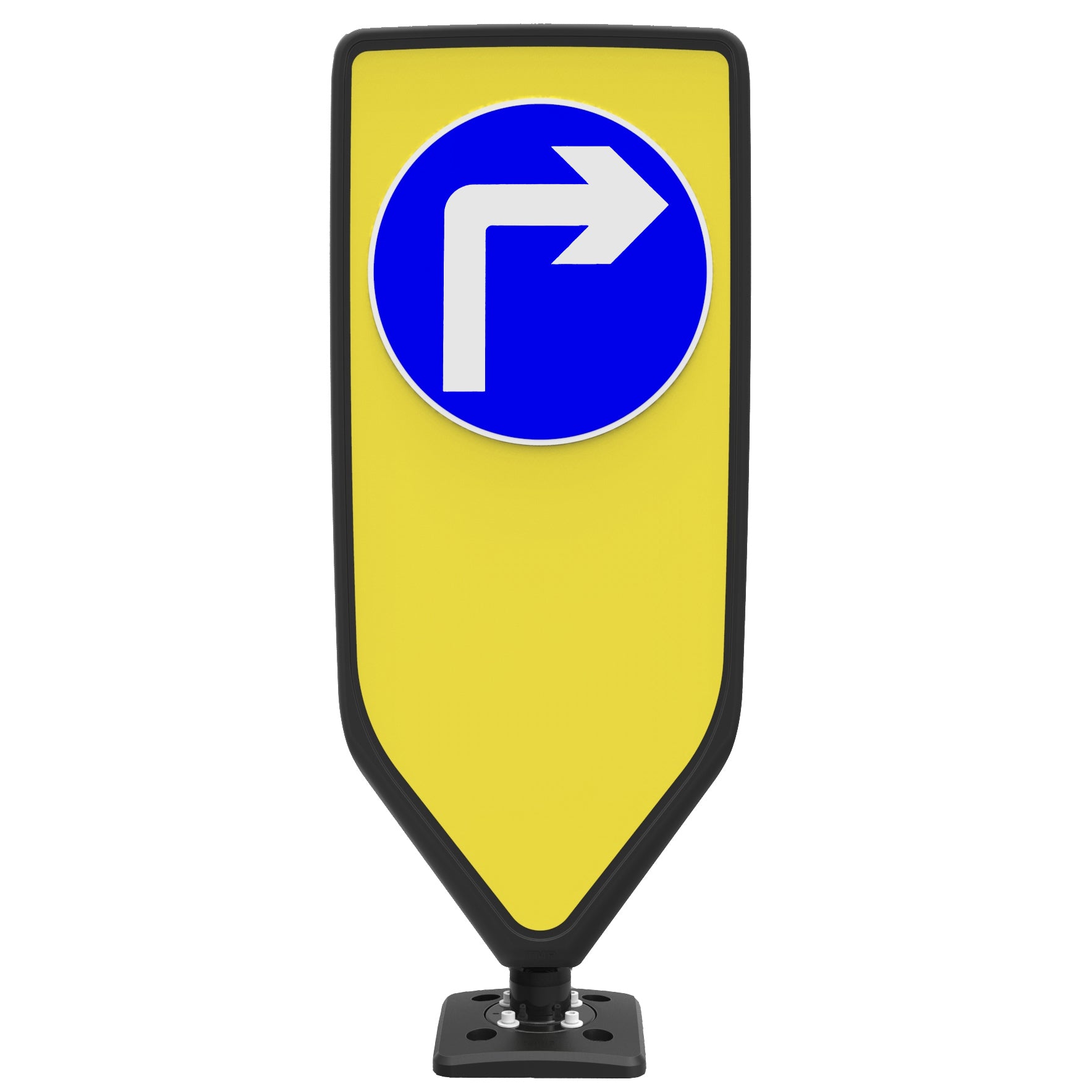

  • Right D609

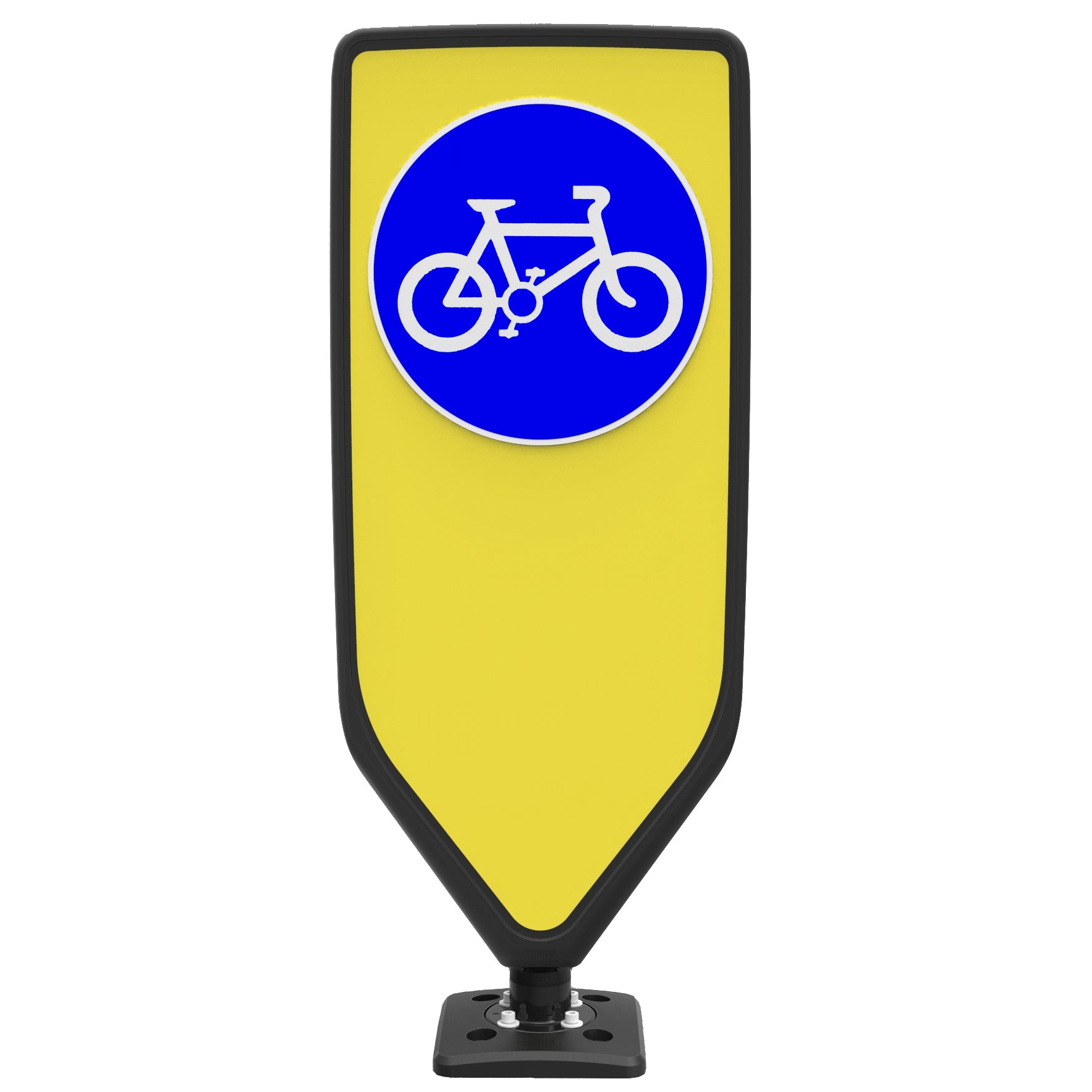

  • Cycle Lane D955

As standard, the bollard is supplied "one-sided" with a black back. This means the front side is reflective and the back is plain. If you would like a yellow reflective back on the sign please select the reflective yellow back option above.

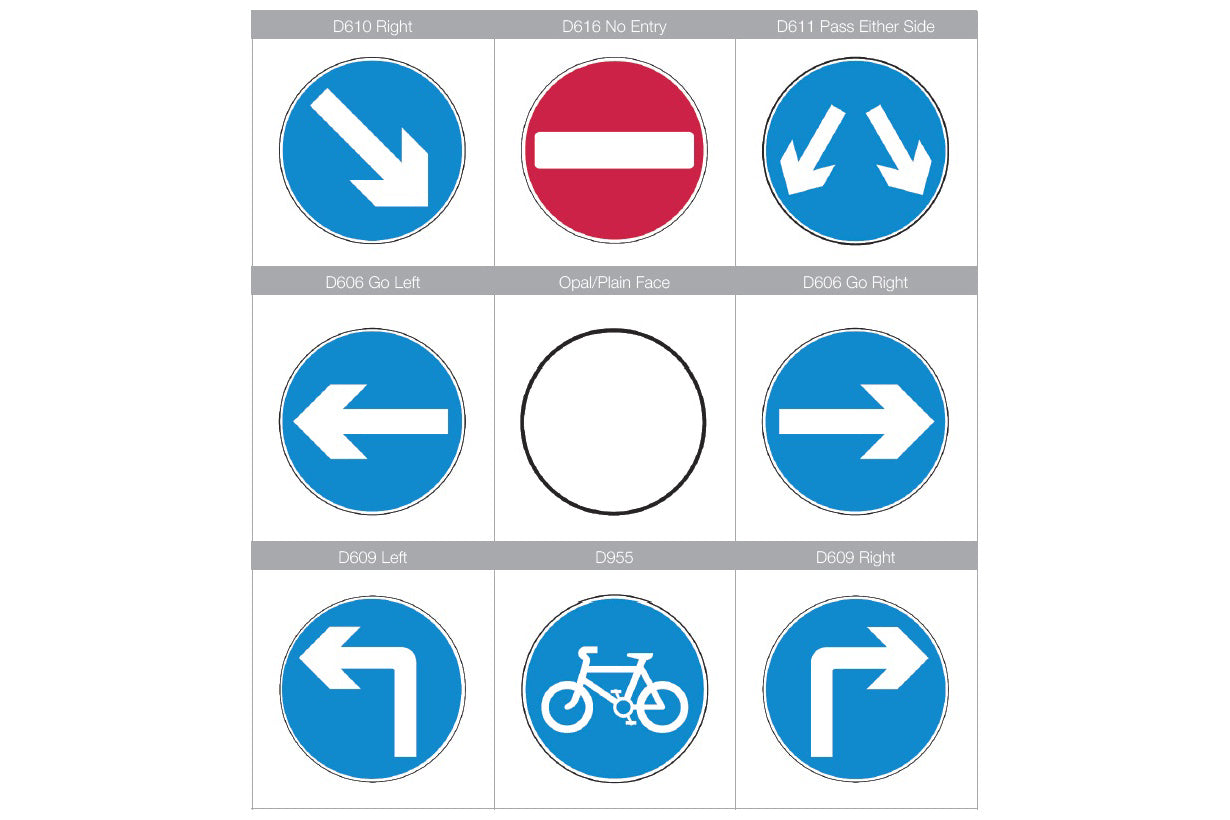

Difference face options available

How Are They Installed

There are three main installation options available for the EVO-N bollard. These include bolt down fixings, conversion plates, and cast in cages. Each one has its benefits depending on the application.

Bolt Down fixing Option

Bolt Down Fixing

Bolt down fixings are great for going straight into solid concrete or an existing thick tarmac surface. Ideal for when you are unable to dig into a surface.

Cast in cage diagram

Cast-in-Cage Fixing

When carrying out a fresh install this is the best option. The cage is cast into the ground. This leaves studs that the bollards can then be fixed too.

Converter plates for fixing over old bollard units

Conversion Plates

When converting old bollards to the EVO-N a conversion plate can be used to adapt the old mounting to fit the new bollard. We offer either a universal connector or Haldo converter.

A full installation guide is available for download at the bottom of this page. if you have any specific questions not covered here please do not hesitate to contact us.

Other Models In The Range

There are other models in this range available to buy online or over the phone, these can be seen below;

Flecta style Bollard

Flecta

Heritage style Bollard

Heritage

Metro style Bollard

Metro

Evo-S style Bollard

EVO-S

The Flecta, Heritage and Metro models are legacy models. They are still available to order by phone. The EVO-S is the latest solar powered unit is internally illuminated, it is available for purchase online.

Customised For Your Needs

We are able to have versions of this bollard made for use in car parks and drive-through restaurants. We can brand them to your needs!

Why Buy From Start Traffic?

We supply a complete range of traffic and safety products and our sales team have a good knowledge of our product range. If you have questions we are here to help on 01905 794 875. With years of experience, we understand that good service goes a long way!
