Cantilever GS6 Telescopic Goalpost Height Restriction Kit

Cantilever GS6 Telescopic Goalpost Height Restriction Kit (Metro Block + Cantilever)

Cantilever GS6 Telescopic Goalpost Height Restriction Kit

Product code: 12754-R-C-S

Start Traffic

View the product details

£163.92 excl. VAT

£196.70inc. VAT

Buy in bulk and save

5 or more £160.64 excl. VAT
5 or more £192.77 inc. VAT
10 or more £157.36 excl. VAT
10 or more £188.83 inc. VAT

In Stock

GS6 Kit Type: Steel Base + Cantilever

Steel Base + Cantilever
Metro Block + Cantilever

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

You may also be interested in the following:

£163.92 excl. VAT

£196.70inc. VAT

Top features

110kg of Ballast
Easy to use Hand Clamps
Insulated to 75kv

Description

GS6 Cantilever Kit - Compact & Effective

This Cantilevered GS6 kit is the perfect solution for situations where it is not possible to stand an upright either side of the carriageway. Where our standard GS6 kits require enough room on each side of a roadway these kits only need a foot on one side, great for when space is restricted.

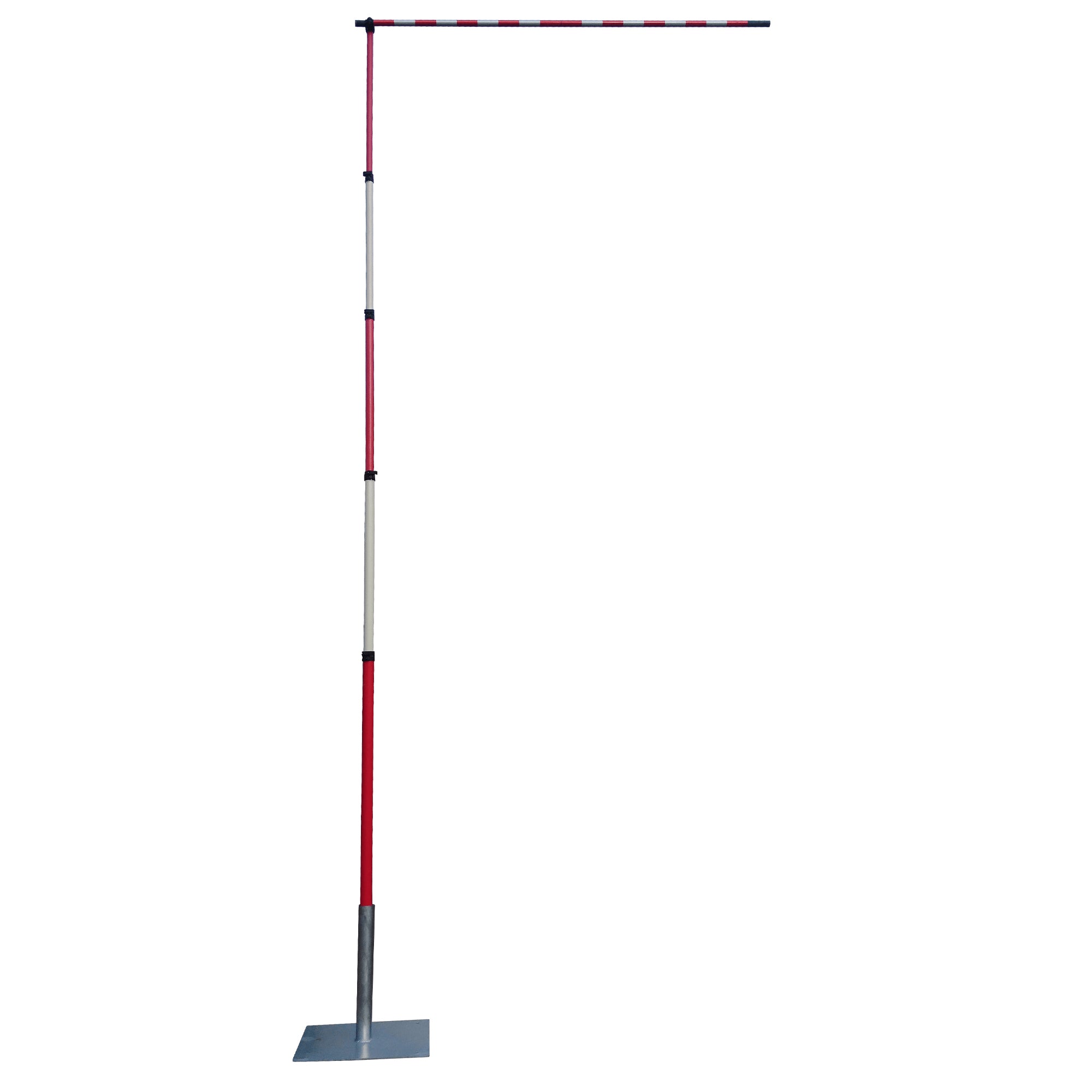

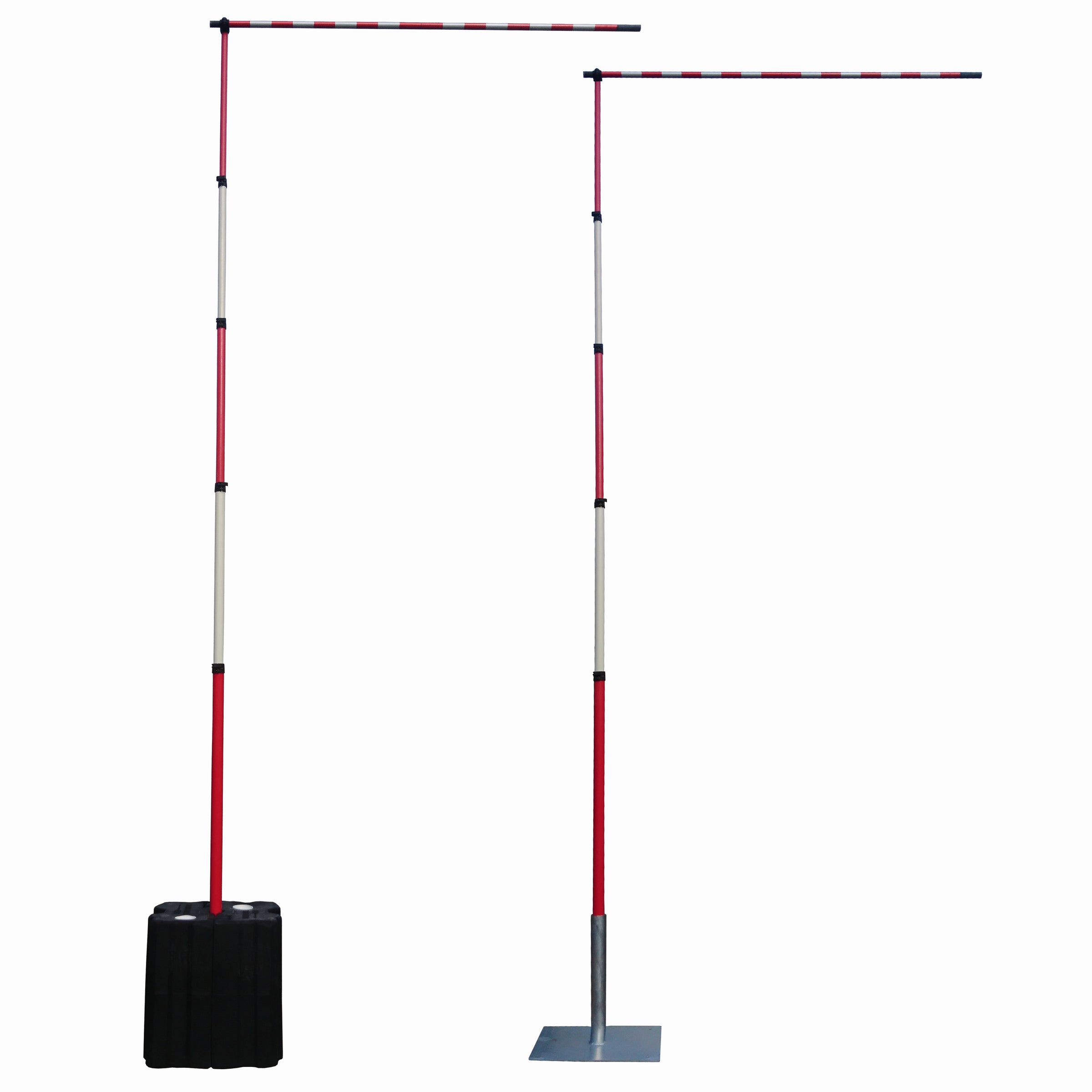

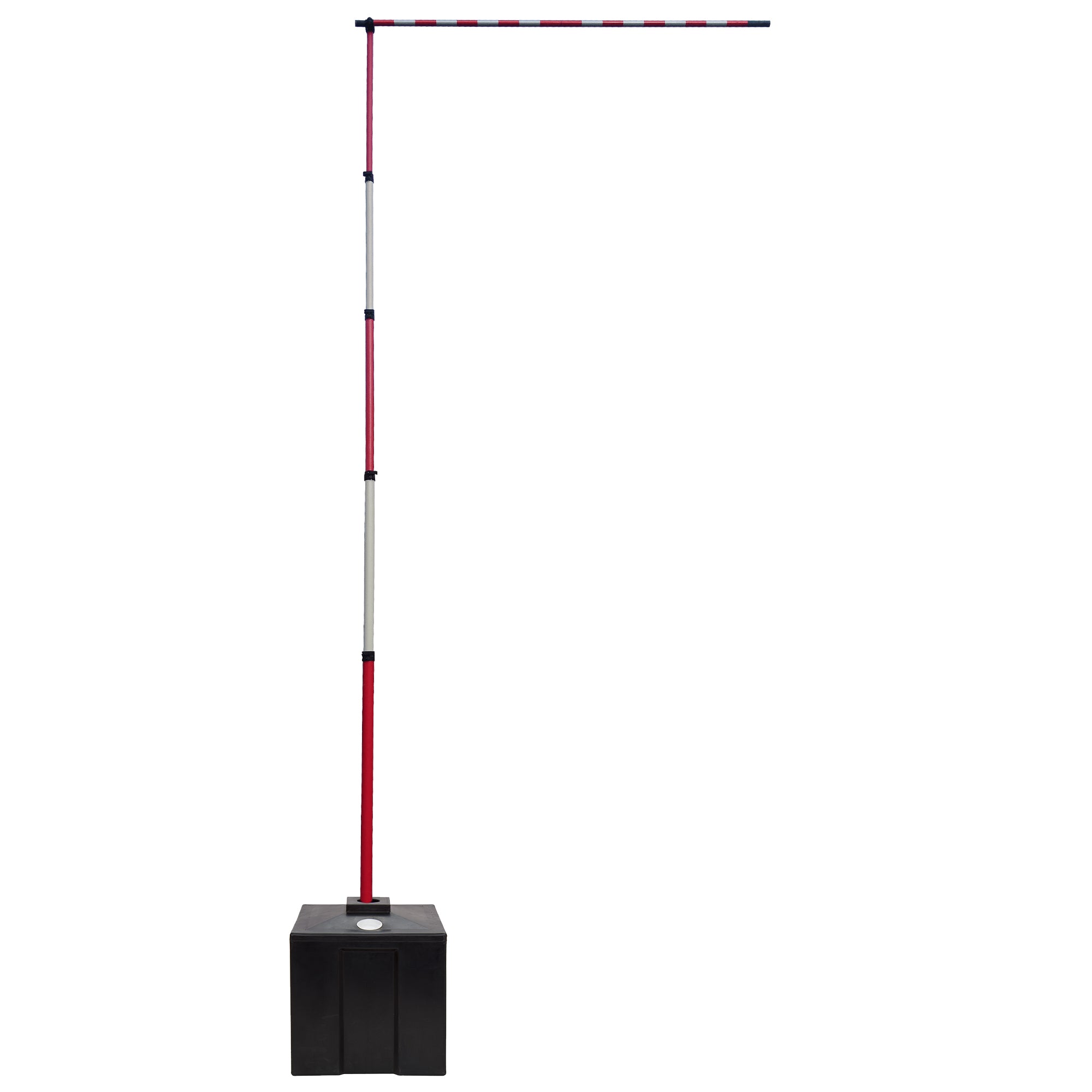

The base on the cantilevered GS6 kit is available in either steel plate or water fillable ‘metro block’. This makes the setup very stable, with the metro block variant being MIRA wind tested. The upright can extend telescopically to a height of 7.3 metres and the top bar is 1.6 metres long.

These kits are seen frequently on road works, construction sites, and any other site where large vehicles are operating around overhead structures. There is a wide range of applications where these markers are required to provide protection to overhead structures.

Key features

110kg of Ballast

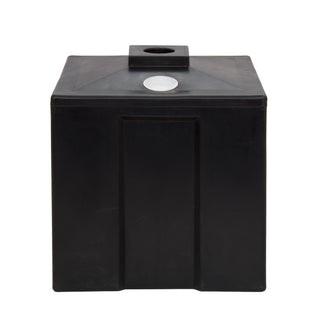

The Metro Block water-filled bases have been MIRA wind speed tested up to 50mph.

Easy to use Hand Clamps

Quick-release clamps on each telescopic section make it a breeze to set up.

Insulated to 75kv

The multi-layered fibreglass tube construction allows this system to be insulated to 75kV.

HSE Compliant

Compliant with the HSE GS6 guidelines (Avoiding Danger from Overhead Power Lines)

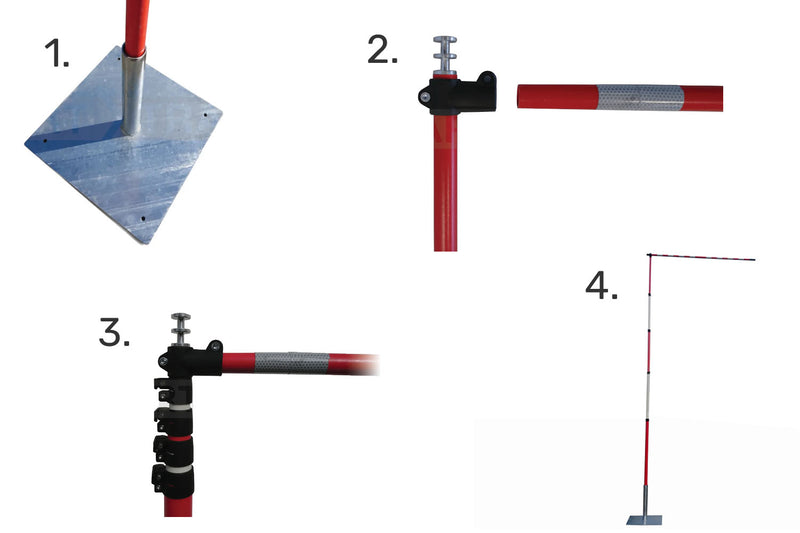

Easy Assembly

Place the GS6 base in the required position and place the upright pole into the base.
Fit the provided elbow to the upright pole and tighten the screw.
Slot the crossbar into the other end of the shoulder piece.
Once the shoulder is fully assembled, extend the barrier to the desired height.

Ensure the system is secure and stable before leaving it unattended.

Protecting your overheads

Get the best GS6 equipment for your needs!

If you are not sure what GS6 setup best suits your requirements then please give our sales team a call on 01905 794 875, or drop us an email on our contact page.
