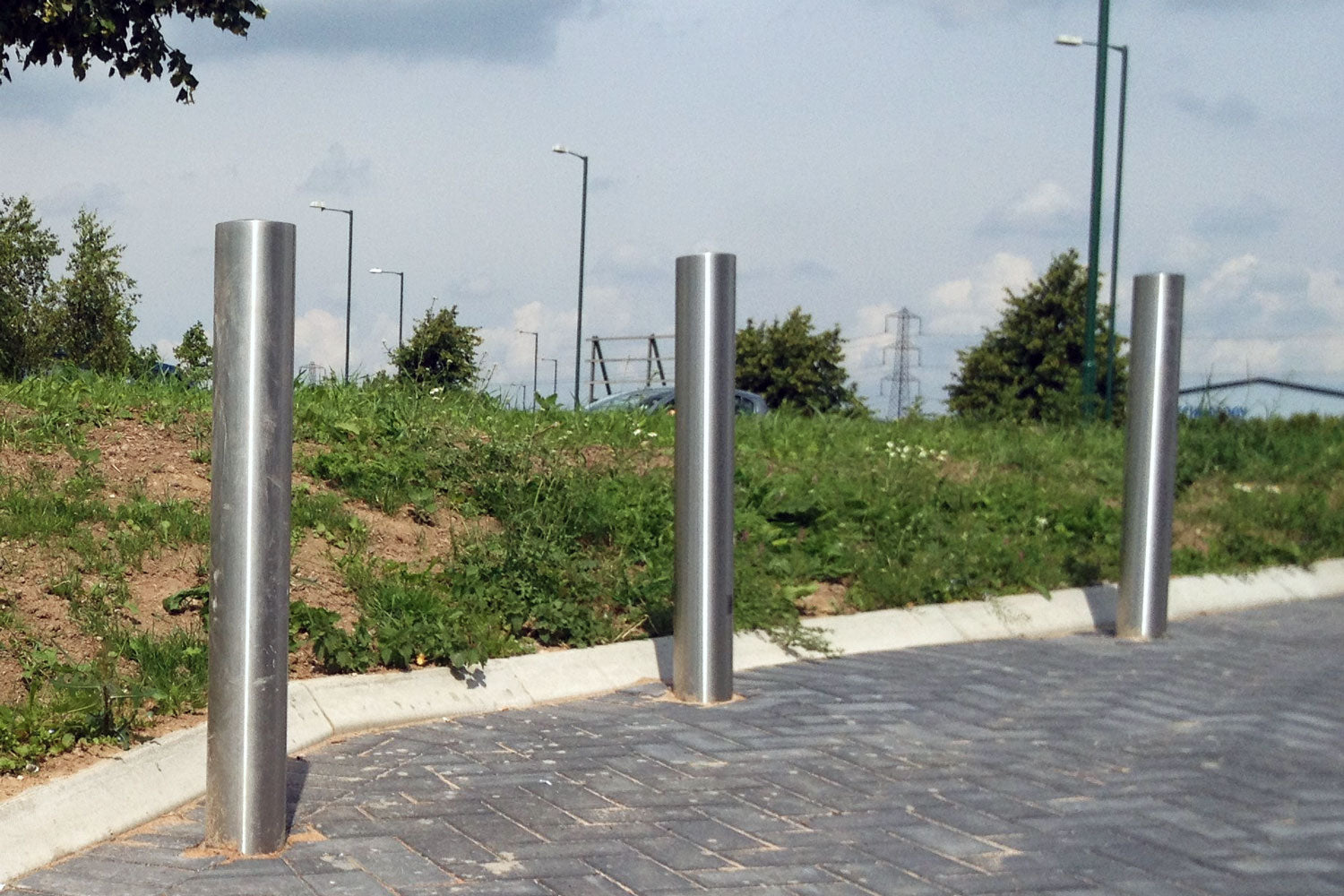

These stainless steel bollards are a staple within our security bollards range. They are a simple and aesthetically pleasing method of keeping unwanted vehicles from parking where they shouldn’t. They are ideal for use around locations, such as golf courses, shopping centres and car dealerships, that would benefit from having more elegant street furniture so as to keep up the high-end appearance and not be an eyesore.

These stainless steel bollards are equally well suited for use in pedestrianised areas as well as areas with vehicle traffic. Their stainless steel composition ensures they withstand the test of time without tarnishing or losing their colour.

If you need the removable counterpart to this product click here.

Design Options

You can purchase these bollards in a range of diameters and a choice of anchoring methods; bolt down or cast in. This makes this range of bollards adaptable to almost any application.

Diameter

This range of Plain Round Stainless Steel Bollards is available in diameters from 48mm to 204mm with extended length for casting into concrete or with a flange plate for bolting down.

They are available in Grades 304 and 316 and have a 2mm wall thickness.

For Flange Mounted / Surface Mounted Posts;

• Ensure the surface where the post is to be located is appropriate for fixing the post onto. There should be at least 400mm x 400mm x 400mm of concrete as a footing for the post.
• Drill fixing holes using the flange of the post as a template to ensure the holes align.
• Clear the holes of dust then fix the post down ensuring all bolts are tightened fully.

For Cast in / Ragged Posts

• Excavate a hole to a depth of 400mm - 500mm (depending on the bollard chosen). Place the bollard at the centre of the hole and fill the hole with concrete mix whilst ensuring the post stays vertical and aligned to the centre of the excavation.
• Trowel the top of the concrete to a smooth neat finish and allow to fully cure for 24 hours.

Fixing Method

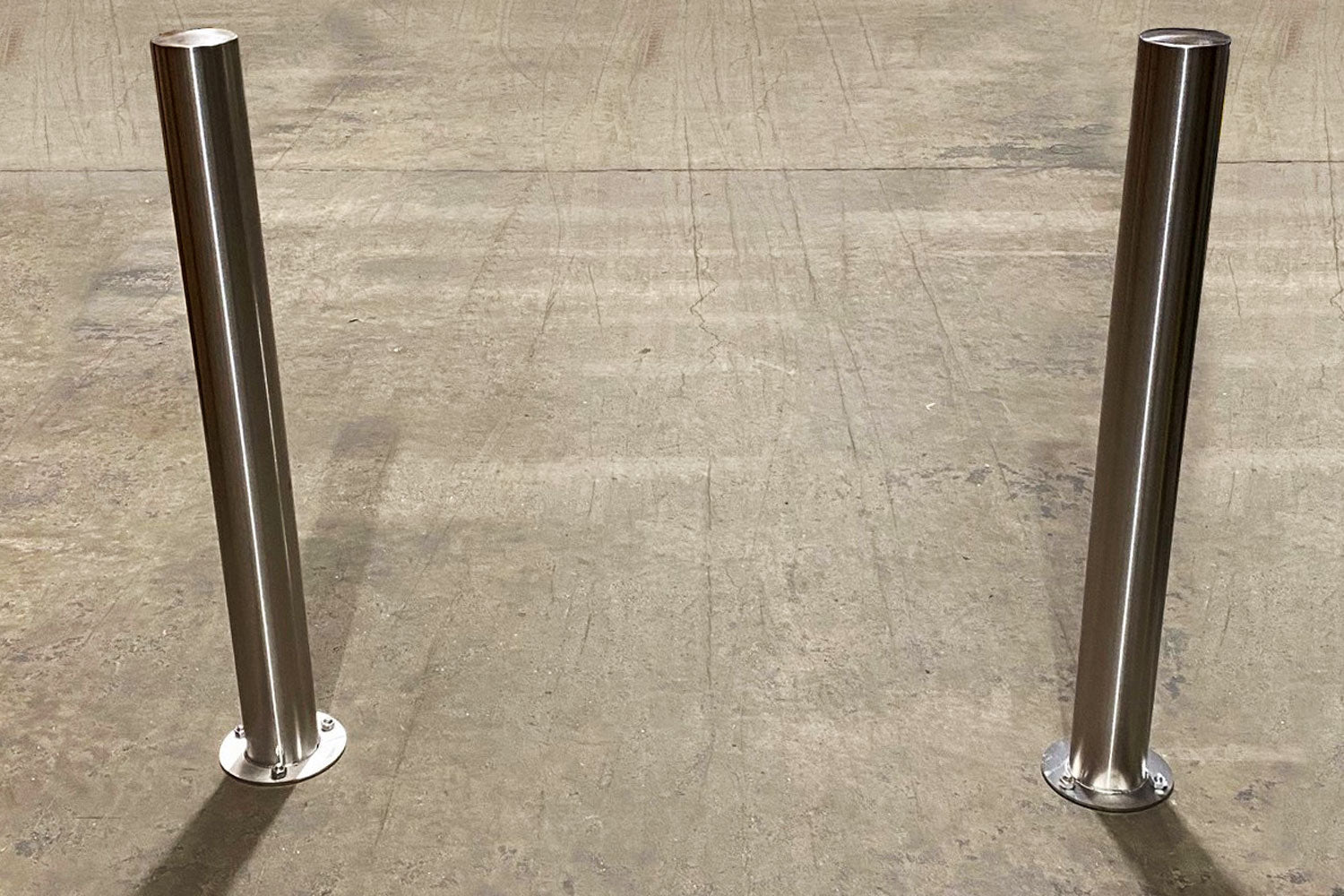

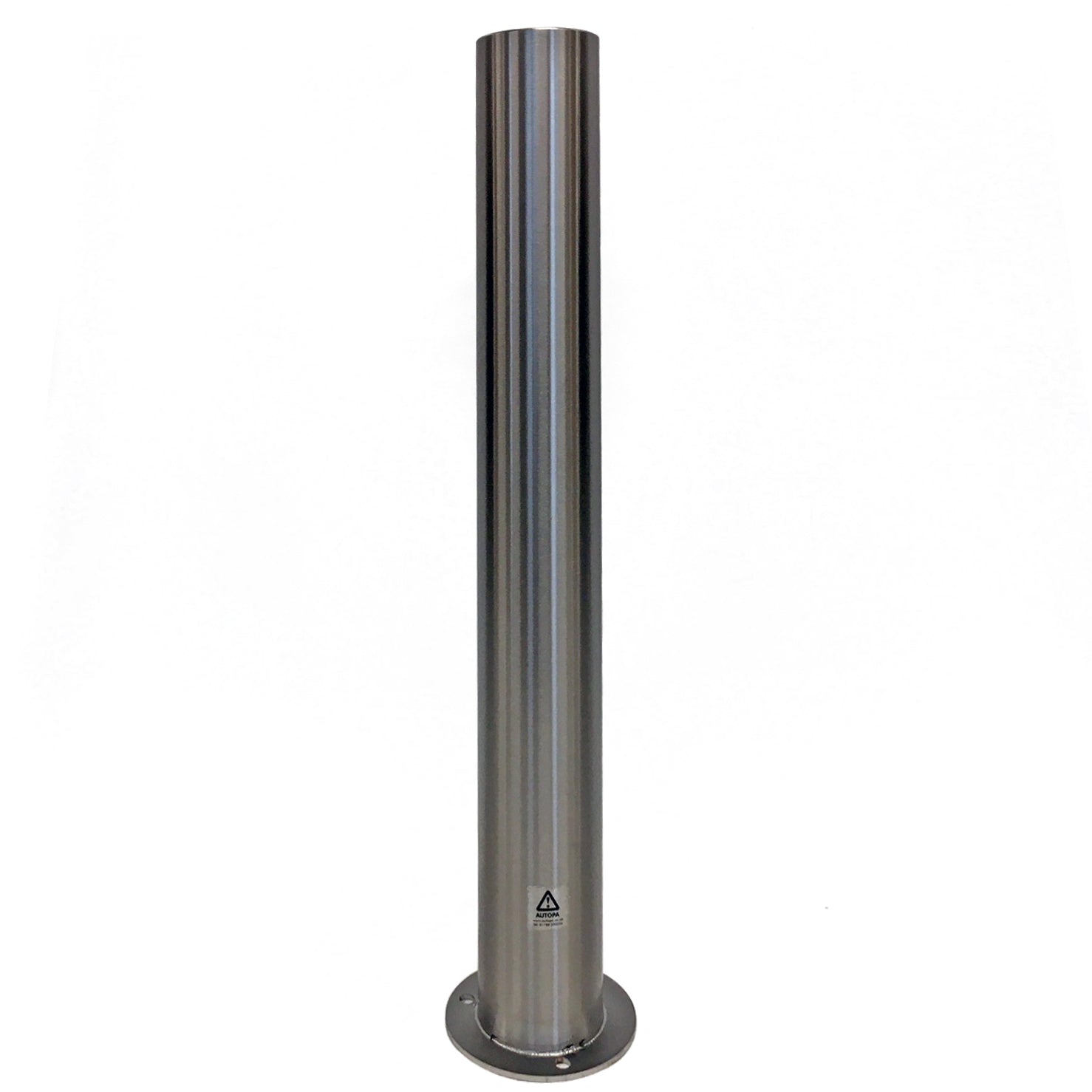

If you already have a good quality thick concrete hard standing to fix a post into then the surface mount option is just what you need. Fitted with a flange it can be bolted straight to the floor with little work.

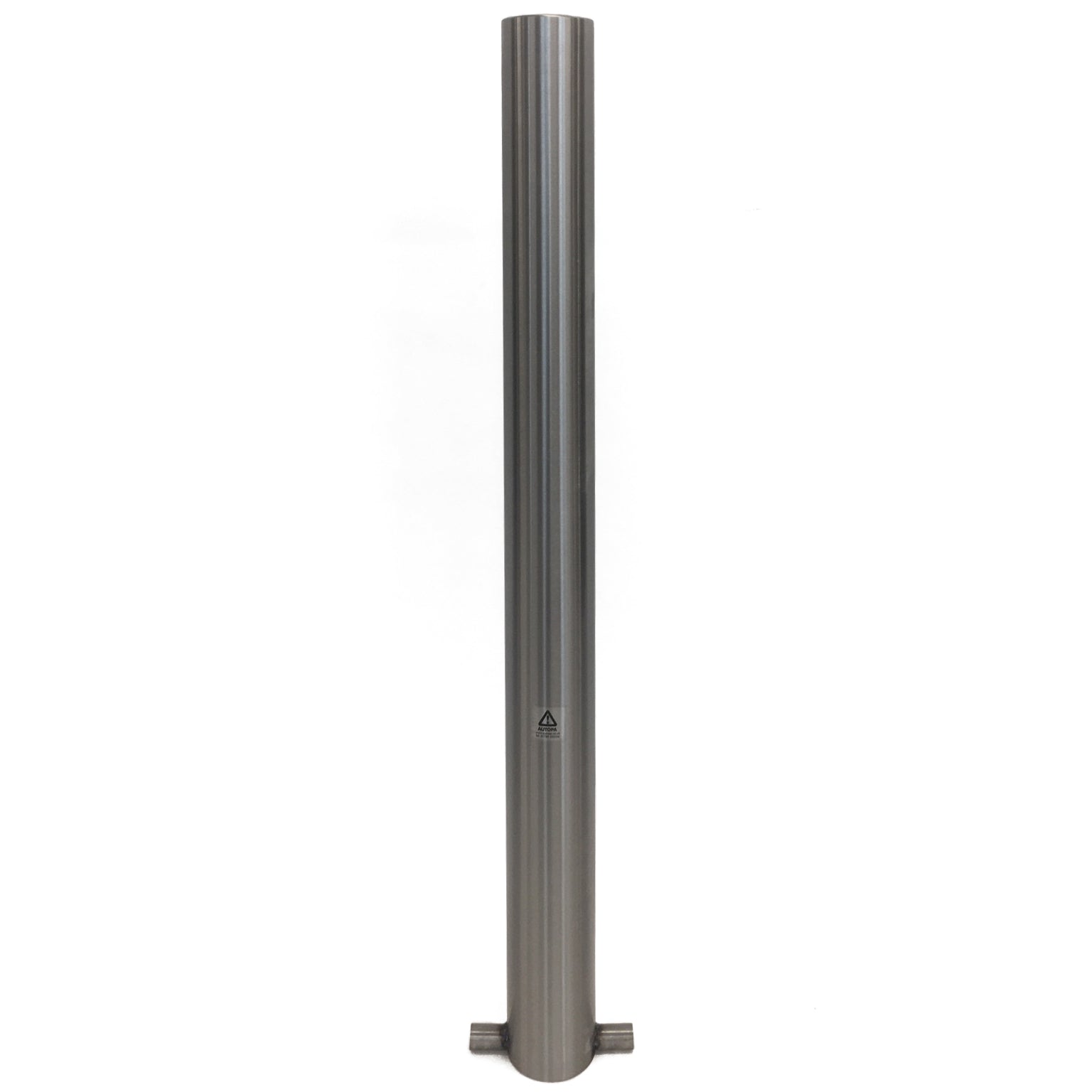

The Ragged option is the recommended method of installation for fresh installs. It gives a cleaner finish (no flange or bolt heads visible) and is very strong.

Eyelets For Chain

Some customers have a requirement for a chain to run between their bollards, this may be used to prevent smaller vehicles such as mopeds going between posts without drastically changing the appearance. If you require eyelets for a chain on your fixed posts then please call our sales department and ask for details.
