  • Product code: 30250
  • Procity
  • Made To Order
£2,423.57 excl. VAT
£2,908.28inc. VAT
Length: 2.5m
Enclosure Cladding: Rear Cladding Only
Finish: Galvanised Traffic Red RAL 3020
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:


Procity Voute Barrel Roof Bus Shelter

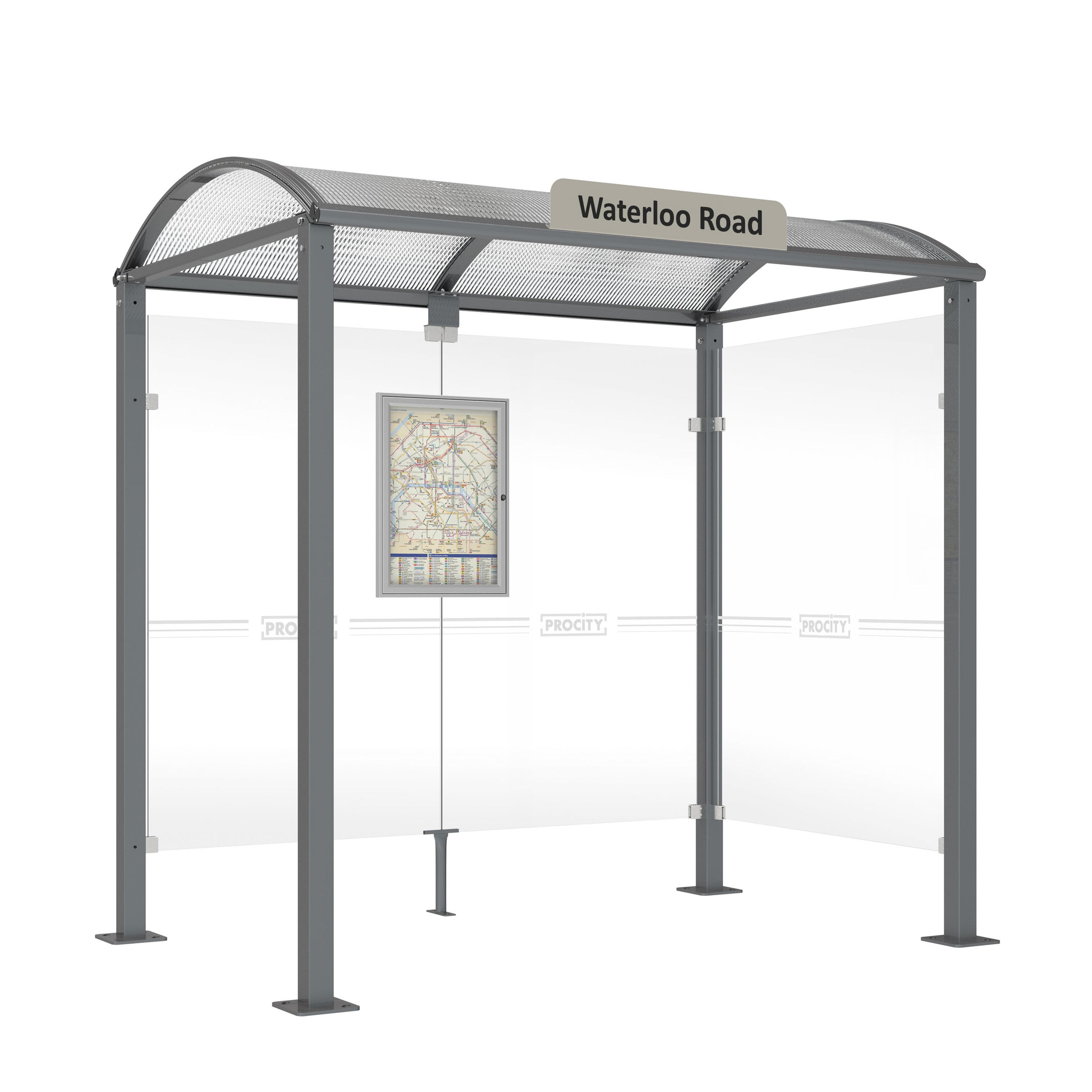

The Procity Voute bus shelter is expertly manufactured, using a blend of steel and aluminium. The roof features a durable 6mm UV-resistant polycarbonate honeycomb canopy, ensuring quality and long-lasting protection.

With a streamlined design, these high-quality bus shelters can be easily integrated into both rural and urban settings. The aesthetically unique barrel-style roof adds charm and provides reliable year-round shelter from the elements, which can be further improved with accessories such as wind protectors.

Please note that the bus stop name sign is not included, allowing for customisable signage based on individual preferences.If you choose a Voute Bus Shelter with one side cladding, cladding will be located on the left hand side of the shelter (as you look at it) unless you specify otherwise at time of order.

Versions with LED lighting are also available upon request, please contact us when making your order.

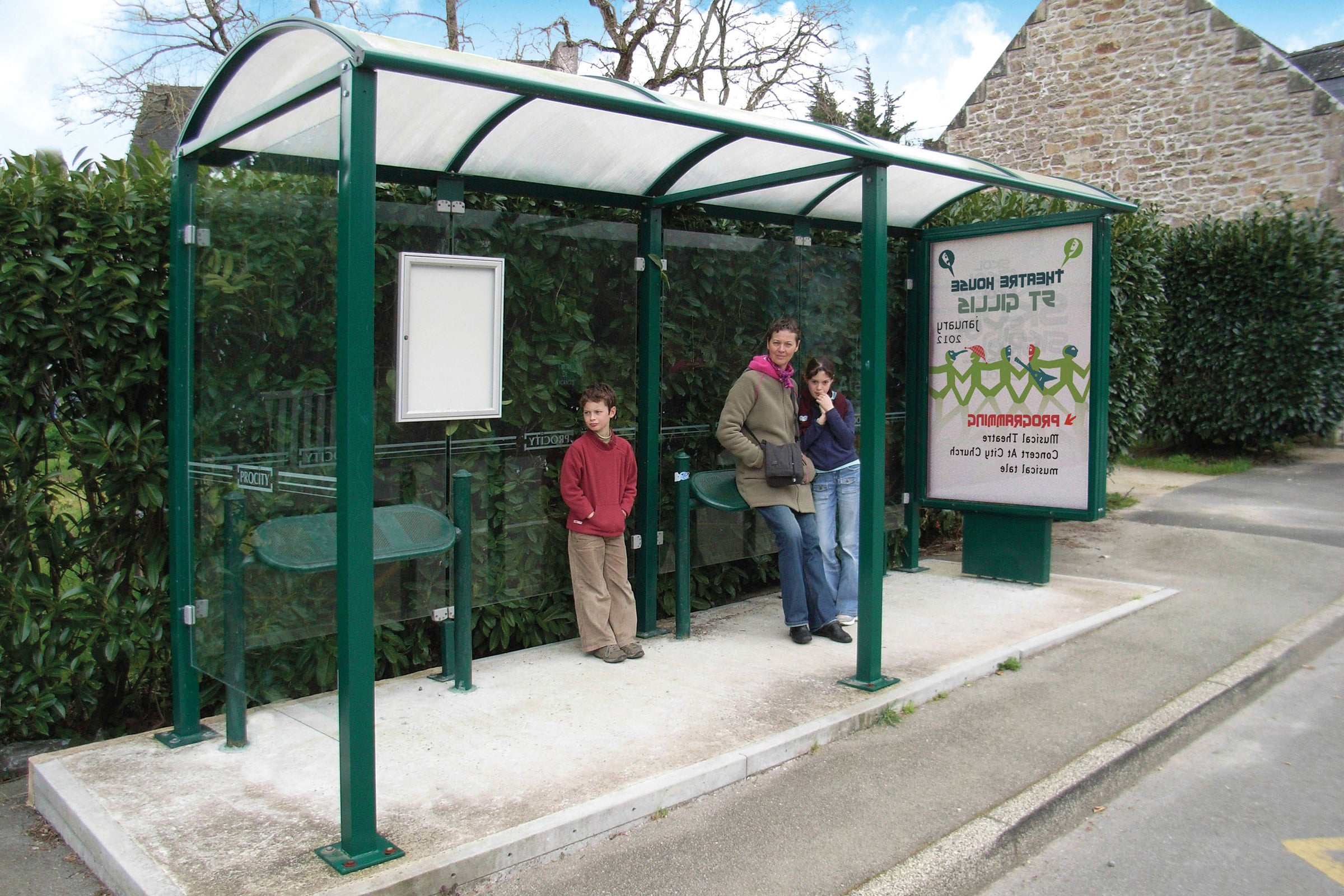

Family Waiting For the Bus at Procity KVoute Bus Shelter With Perch Benches And Advertising Box

Optional Accessories

Every model is delivered with rear cladding and a timetable display case.The Procity Voute bus shelter boasts the following accessories:

  • Seating - Optimise your users’ experience with the optional integrated perch sitting bar (designed to be compatible with the Milan, Voûte, Venice and Modulo bus shelters), providing a convenient yet sheltered short-term waiting space. You can also choose from our range of other seating solutions, including perch benches and backless benches that all fit within the space. Please be mindful not to install benches or perch seats near the advert display case to prevent obstruction.
  • Signage - Bus stop signs allow for greater visibility of the stop name while approaching it, as well as consistent signage even for the longest shelters.
  • Lighting - An optional mains-powered electric lighting system is available, running on a 220v power supply, although a professional electrician must install the electrical wiring. Please contact us for more details.
  • Wind Protection - The Voute bus Shelter can also come with side wind protectors to protect users from the elements.

Wind protection around the roof is only available for models not using advertising space.

Procity Voute Bus Shelter Installed With Extention

Personalisation

If you can’t find the perfect bus stop shelter for your space, you can browse our range of other shelter types, which are all multi-functional and can be installed in different locations to respond to diverse use cases. Don't hesitate to browse our shelter accessories for other complimentary products like noticeboards and benches!

Note: Do not install benches or perch seats near the timetable display case, as this can prevent them from opening.

Procity Voute Bus Shelter With Lighted Advert Box and Backless Bench

Key Features

  • Material & Finish - Galvanised Steel frame finished in a choice of 10 Procity colours as standard. (or finished in any RAL colour of your choice - call us when ordering).
  • Procity Standards - 100% of steel, aluminium and packaging are recycled. 100% of waste collected is processed by specialised waste disposal.
  • Square Posts - 80 x 80 mm steel tube on base plates.

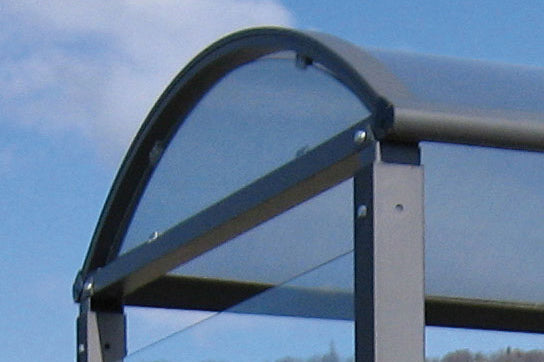

  • Roof & Frame - 6 mm UV-resistant polycarbonate honeycomb canopy. 40 x 60 mm aluminium tube cross-members and aluminium profile gutters. Curved aluminium profile hoops.
  • Roof & Frame - 6 mm UV-resistant smoked PMMA glazing. 40 x 40 mm steel tube frame with gutter.
  • Rear and side cladding - 8 mm thick safety glass.
  • Cladding fixing - Brushed finish Zamak clamping system.
  • Timetable display case - 750 x 550 mm (4 A4), 30 mm thick in anodised aluminium.
  • Information & Advertising - illuminated box (display size 1710 x 1160 mm) or "2000" display case (display size 1750 x 1200 mm).
  • Features - Delivered with rear cladding and a timetable display case.
  • Surface signage not supplied

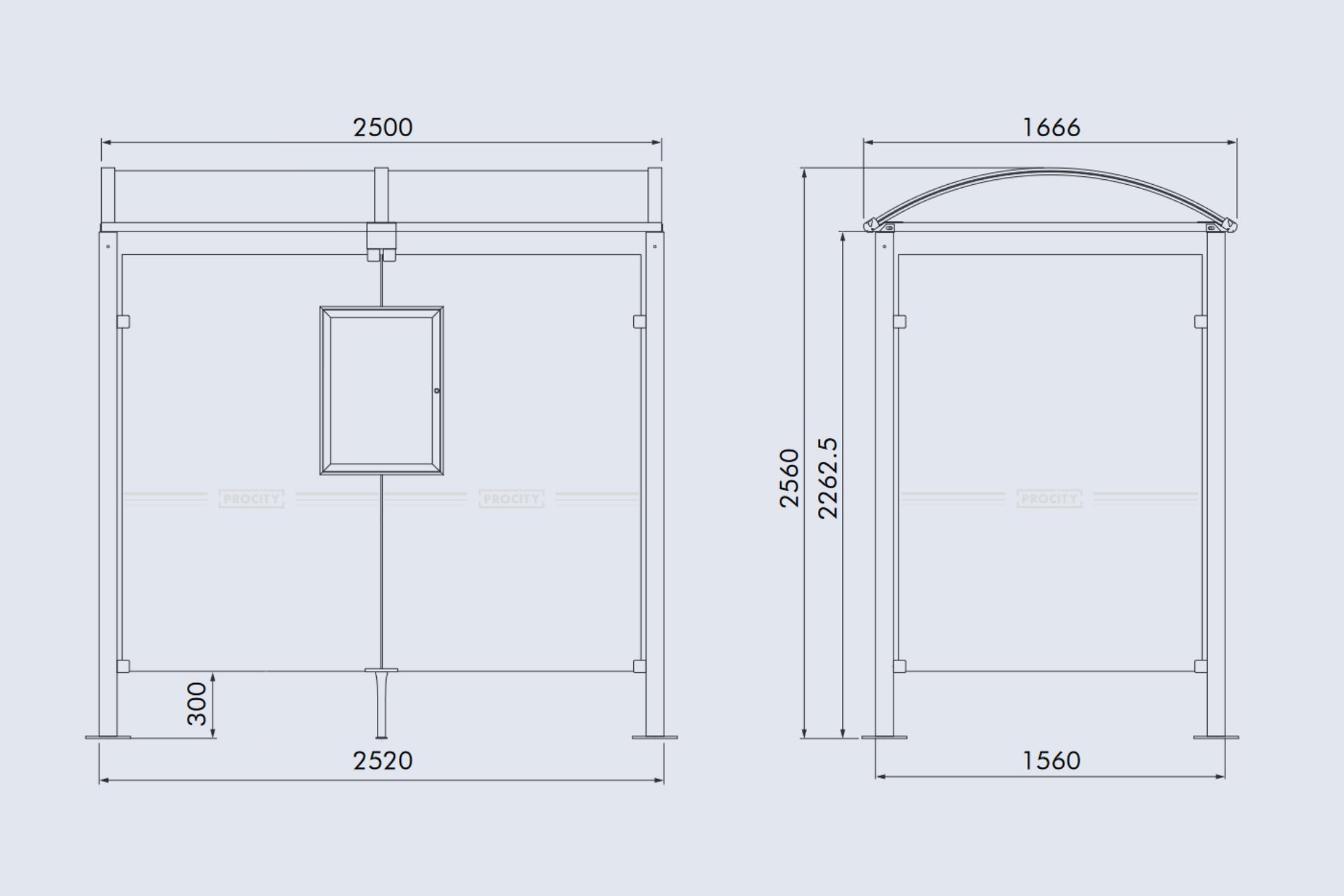

Procity Voute Bus Shelter Dimensions Diagram Spec Sheet
