Procity Milan Bus Shelter

Product code: 30120
Procity
Made To Order

£3,171.07 excl. VAT

£3,805.28inc. VAT

Length: 2.5m

2.5m
5m

Enclosure Cladding: Rear Cladding Only

Rear Cladding Only
Rear + 1 Side Cladding
Rear + 2 Side Cladding
Rear + Display Case + 1 Side Cladding
Rear + Illuminated Display Case + 1 Side Cladding

Finish: Galvanised Traffic Red RAL 3020

Galvanised Traffic Red RAL 3020
Galvanised Jet Black RAL 9005
Galvanised Pure White RAL 9010
Galvanised Moss Green RAL 6005
Galvanised Corten Effect
Galvanised Procity Grey
Galvanised Maroon RAL 3004
Galvanised Gentian Blue RAL 5010
Galvanised Chocolate Brown RAL 8017
Galvanised Silk Grey RAL 7044

Specification

Size guide

If you’re looking to order large quantities, call us on (0)1905 794875 for more information.
View the product details below to learn more about this product.

This product also works with the following:

Procity Milan Bus Shelter 3m

The Procity Milan Bus Shelter boasts contemporary lines and a confident aesthetic that can be integrated seamlessly into any environment.

This aesthetically pleasing shelter is available in single-colour and two-colour versions, allowing the option to choose the colour of the roof and body frames. For personalised preferences, customers can contact us to arrange this customisation.

Each model includes rear cladding and a convenient timetable display case, available in standard 2.5m or 5m long prebuilt kits. To optimise functionality, signage can be applied to the wind protectors on the front, back, or both, providing a customisable touch to suit diverse preferences, needs and locations.

Please note: If you choose a Milan Bus Shelter with one side cladding, cladding will be located on the left hand side of the shelter (as you look at it) unless you specify otherwise at time of order.

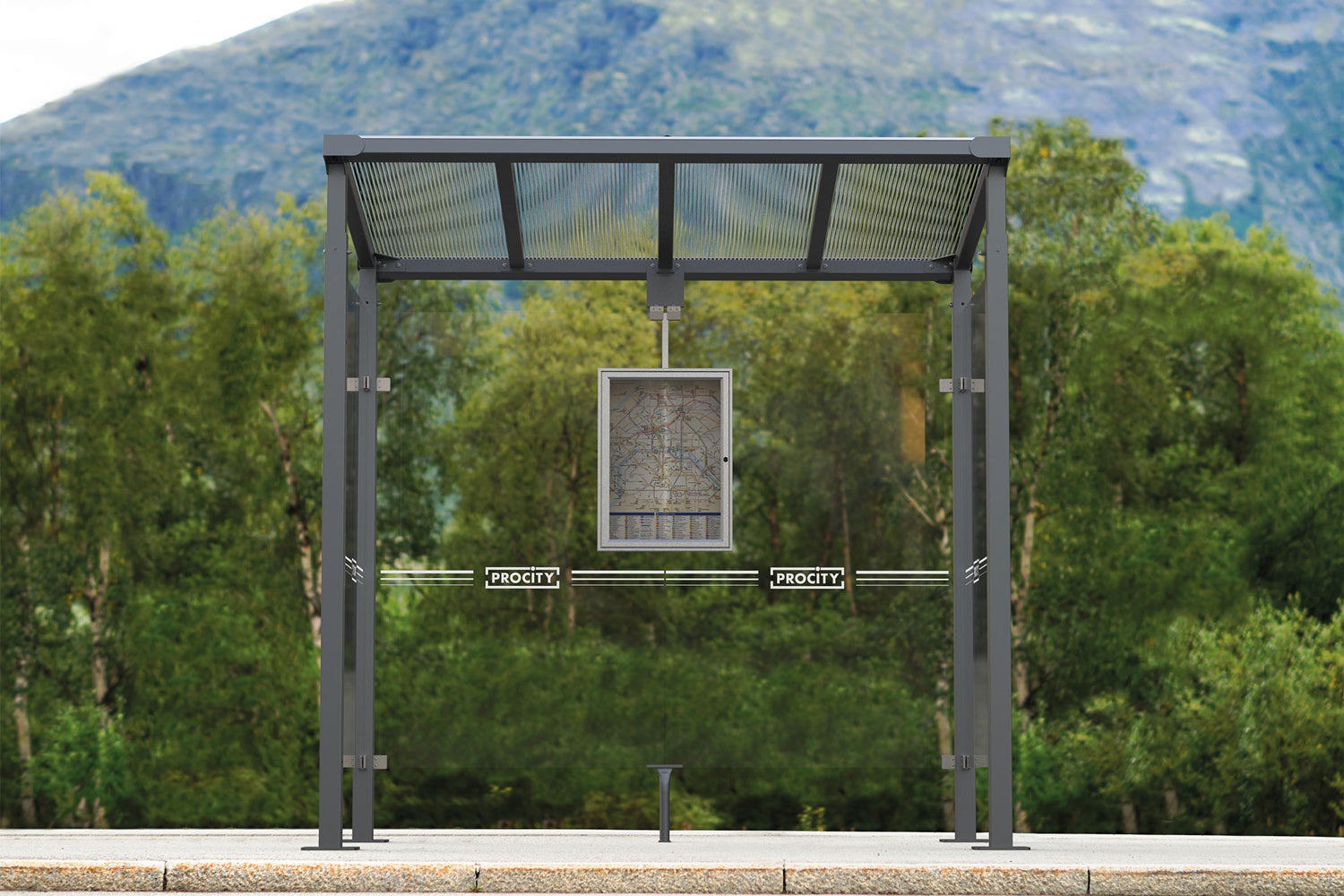

Procity Milan Bus Shelter Installed Rurrally Near Mountain

Optional Accessories

Every model is delivered with rear cladding and a timetable display case. Please note that written signage should be applied to wind protectors and is not included.

The Procity Milan bus shelter boasts the following accessories:

Seating - Optimise your users’ experience with the optional integrated perch sitting bar (designed to be compatible with the Milan, Voûte, Venice and Modulo bus shelters), providing a convenient yet sheltered short-term waiting space. You can also choose from our range of other seating solutions, including perch benches and backless benches that all fit within the space. Please be mindful not to install benches or perch seats near the advert display case to prevent obstruction.
Wind Protection - The Milan bus Shelter can come with side wind protectors and front wind protectors to protect people inside from the elements. Signage (not included) can be applied here so pedestrians can quickly see the bus stop's name. Wind protection around the roof is only available for models not using advertising space.

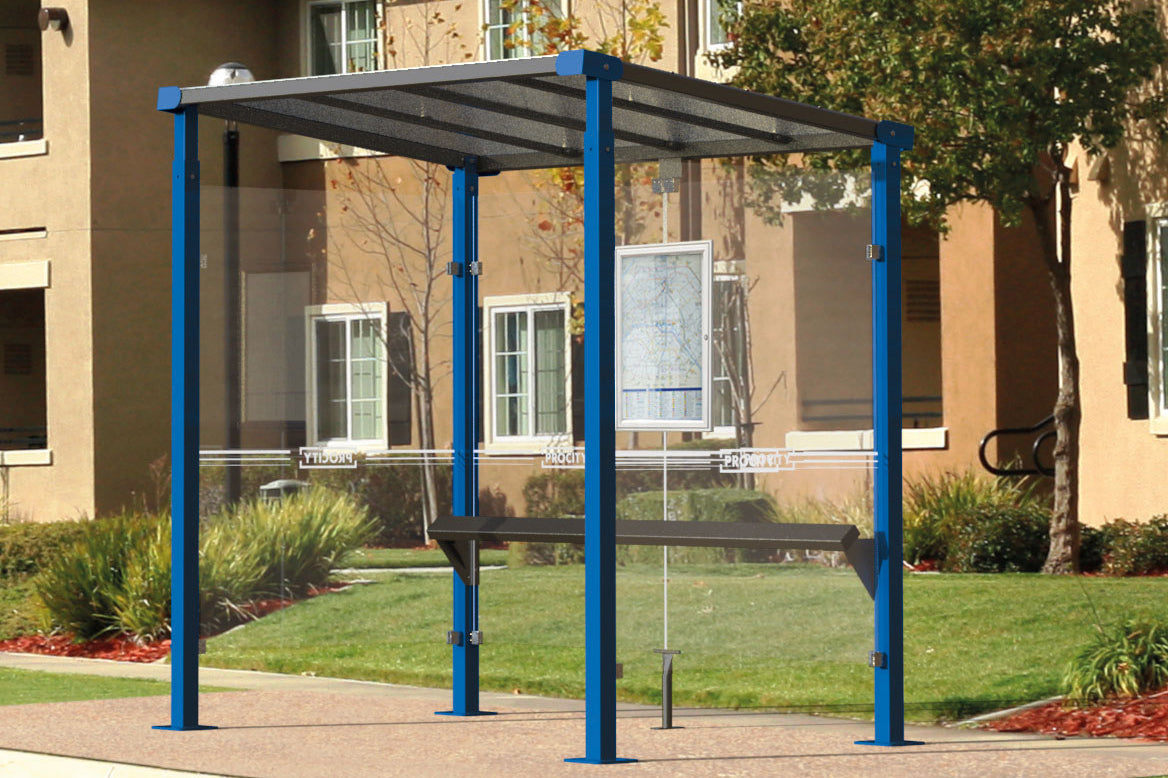

Procity Milan Bus Shelter Installed With Its Internal Perch Bar

Personalisation

If you can’t find the perfect bus stop shelter for your space, you can browse our range of other shelter types, which are all multi-functional and can be installed in different locations to respond to diverse use cases. Don't hesitate to browse our shelter accessories for other complimentary products like noticeboards and benches!

Note: Do not install benches or perch seats near the timetable display case, as this can prevent them from opening.

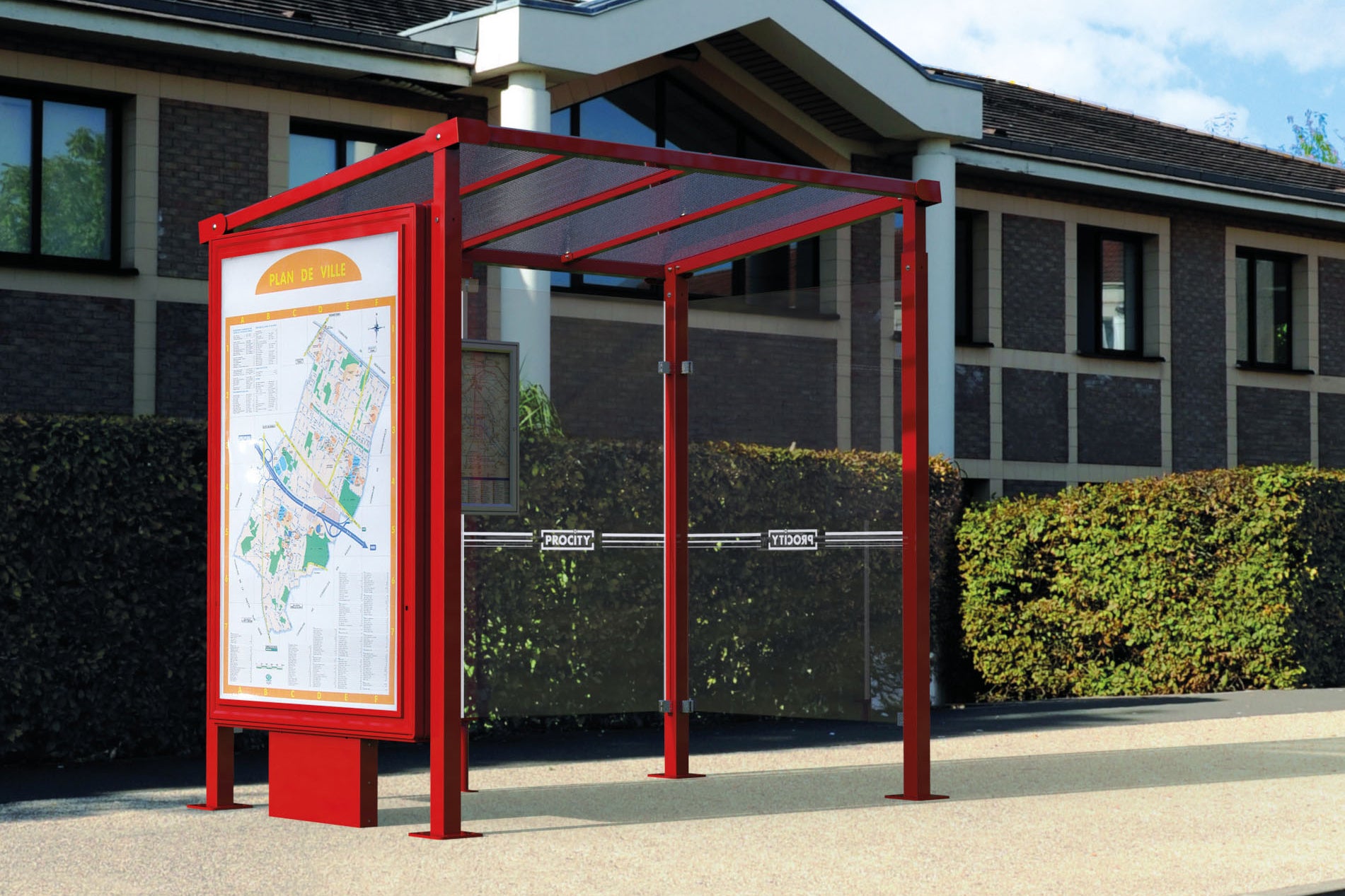

Procity Milan Bus Shelter Installed With Advert Box

Key Features

Material & Finish - Galvanised Steel frame finished in a choice of 10 Procity colours as standard. (or finished in any RAL colour of your choice - call us when ordering).
Procity Standards - 100% of steel, aluminium and packaging are recycled. 100% of waste collected is processed by specialised waste disposal.

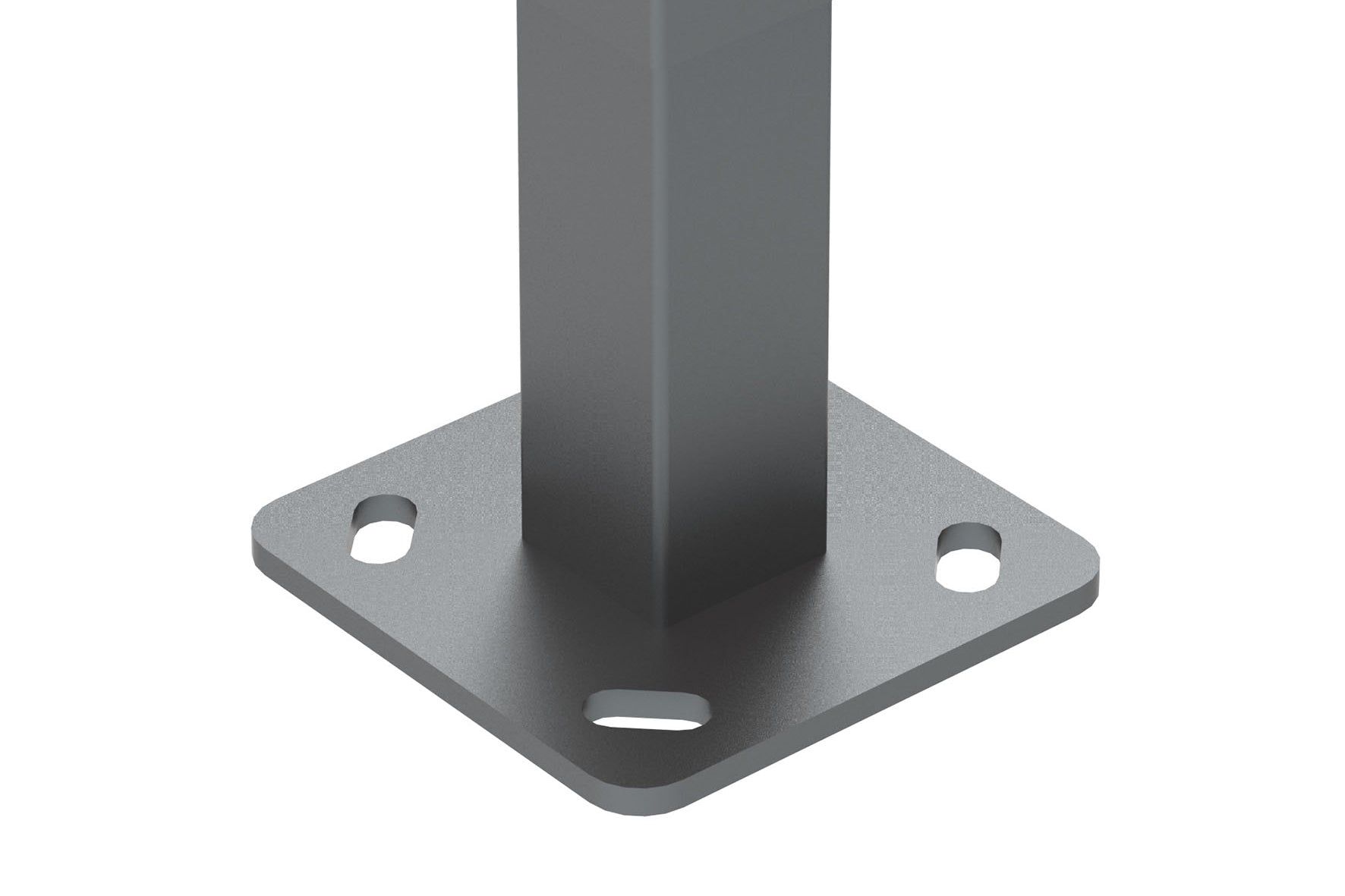

Square Posts - s80 x 80 mm steel tubes on base plates.
Roof & Frame - 10 mm anti-UV-treated cellular polycarbonate panels. Galvanised steel tube, 60 x 60 mm.
Rear and side cladding - 8 mm safety glass.
Cladding fixing -a pinch-grip system made from Zamak alloy with a brushed finish.
Stop Plate - Height 160 x width 900 mm, RAL 9006 lacquered galvanised sheet steel.
Timetable display case - 750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium.
information & Advertising - light box (1710 mm x 1160 mm display area) or “2000” display case (1750 mm x 1200 mm display area).
Features - Delivered with rear cladding and a timetable display case.
Surface signage not supplied.

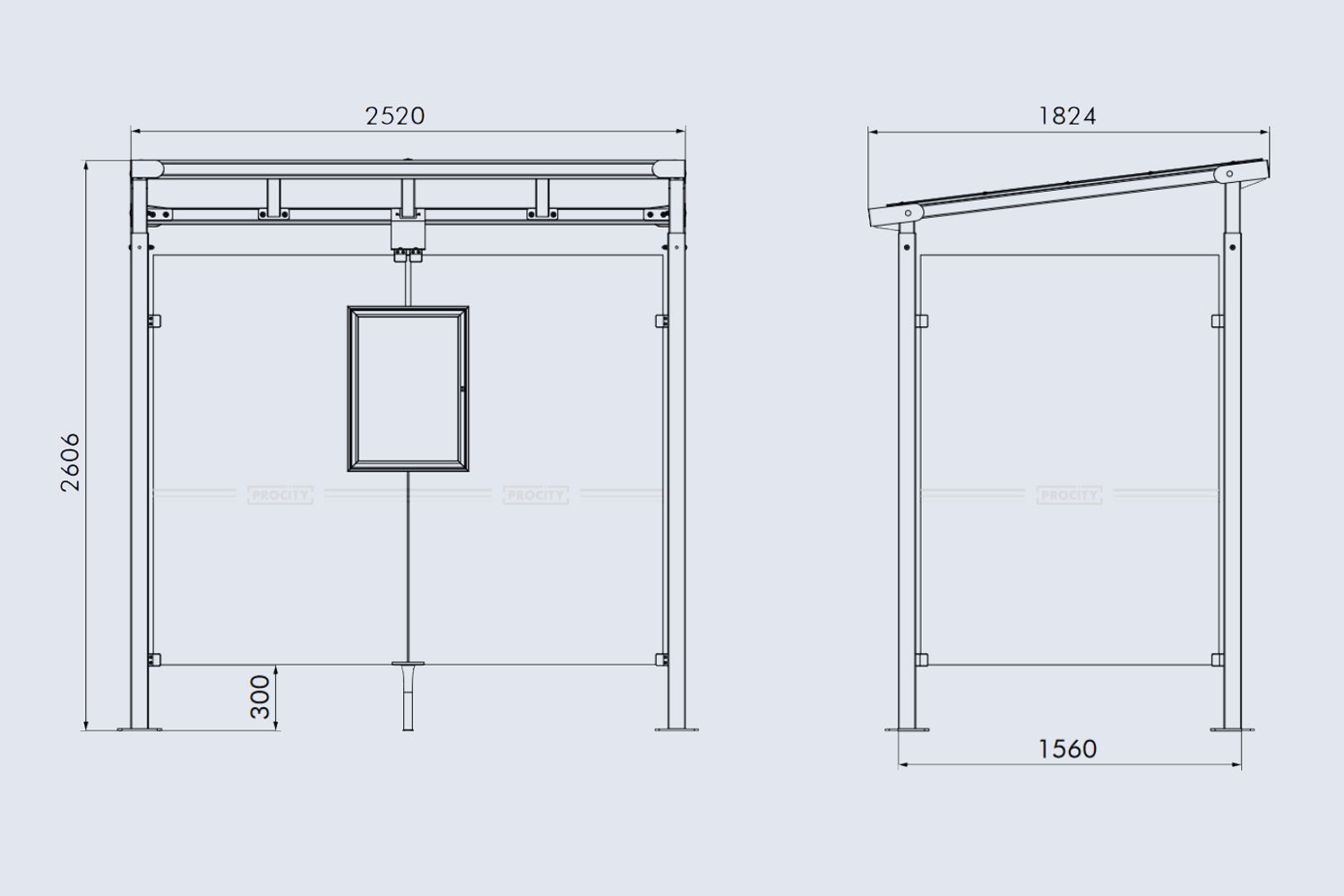

Procity Milan Bus Shelter Dimensions Diagram Spec Sheet
