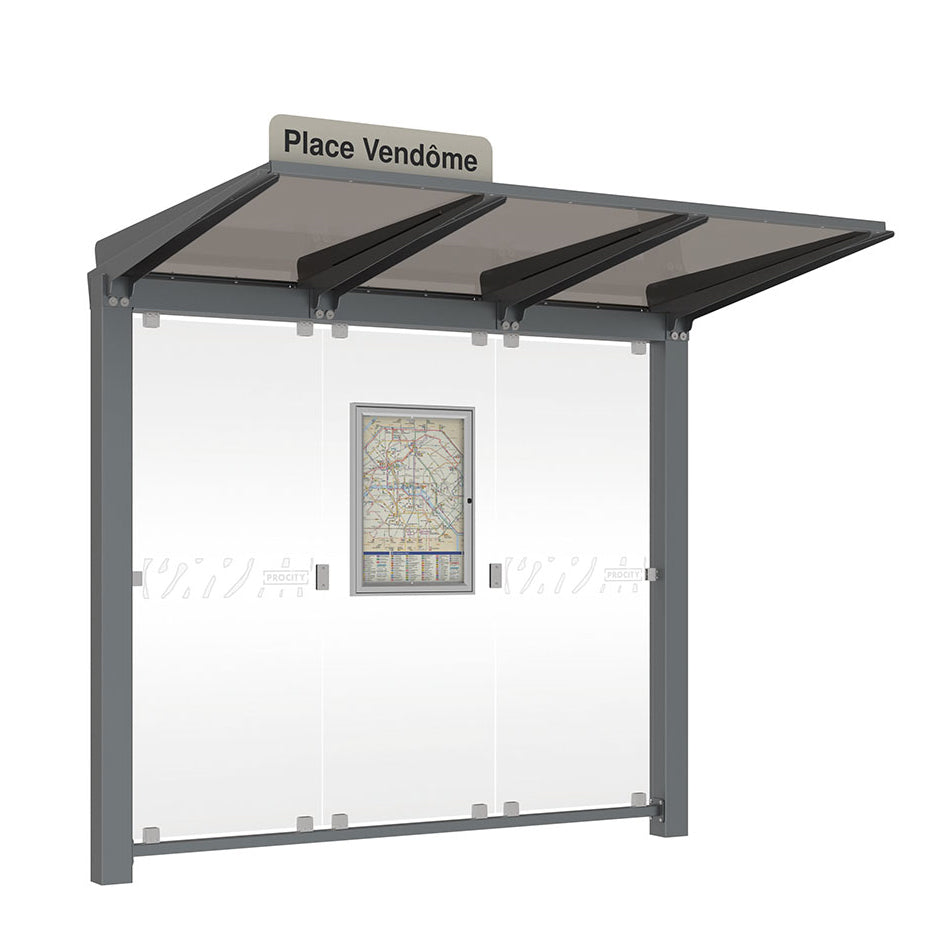

Procity Venice Bus Shelter

Product code: 29814
Procity
Made To Order

£5,271.50 excl. VAT

£6,325.80inc. VAT

Length: 2.5m

2.5m
5m

Enclosure Cladding: Rear Cladding Only

Rear Cladding Only
Rear + 2 Side Cladding
Rear + Display Case + 1 Side Cladding
Rear + Illuminated Display Case + 1 Side Cladding

Finish: Galvanised Traffic Red RAL 3020

Galvanised Traffic Red RAL 3020
Galvanised Jet Black RAL 9005
Galvanised Pure White RAL 9010
Galvanised Moss Green RAL 6005
Galvanised Corten Effect
Galvanised Procity Grey
Galvanised Maroon RAL 3004
Galvanised Gentian Blue RAL 5010
Galvanised Chocolate Brown RAL 8017
Galvanised Silk Grey RAL 7044

Specification

Size guide

If you’re looking to order large quantities, call us on (0)1905 794875 for more information.
View the product details below to learn more about this product.

This product also works with the following:

Procity Venice Modular Modern Bus Shelter

Our Venice bus shelters' simple yet elegant design is popular all over England. Every model is delivered with rear cladding, a timetable display case, and a bus stop sign.

The version without side cladding features a distinctive cantilevered design supported by two single posts, which allows pedestrians to move through the shelter freely and ensures unparalleled brightness for those within. This has the beneficial side effect of giving bus drivers greater visibility inside the shelter.

Choose from standard lengths of 3m or 6m, with the option for extensions to further extend this. There is also a choice in terms of cladding. Choose between side cladding, an advertising and display case ideal for showcasing local messages or advertisements, and a lighted display case for round-the-clock visibility.

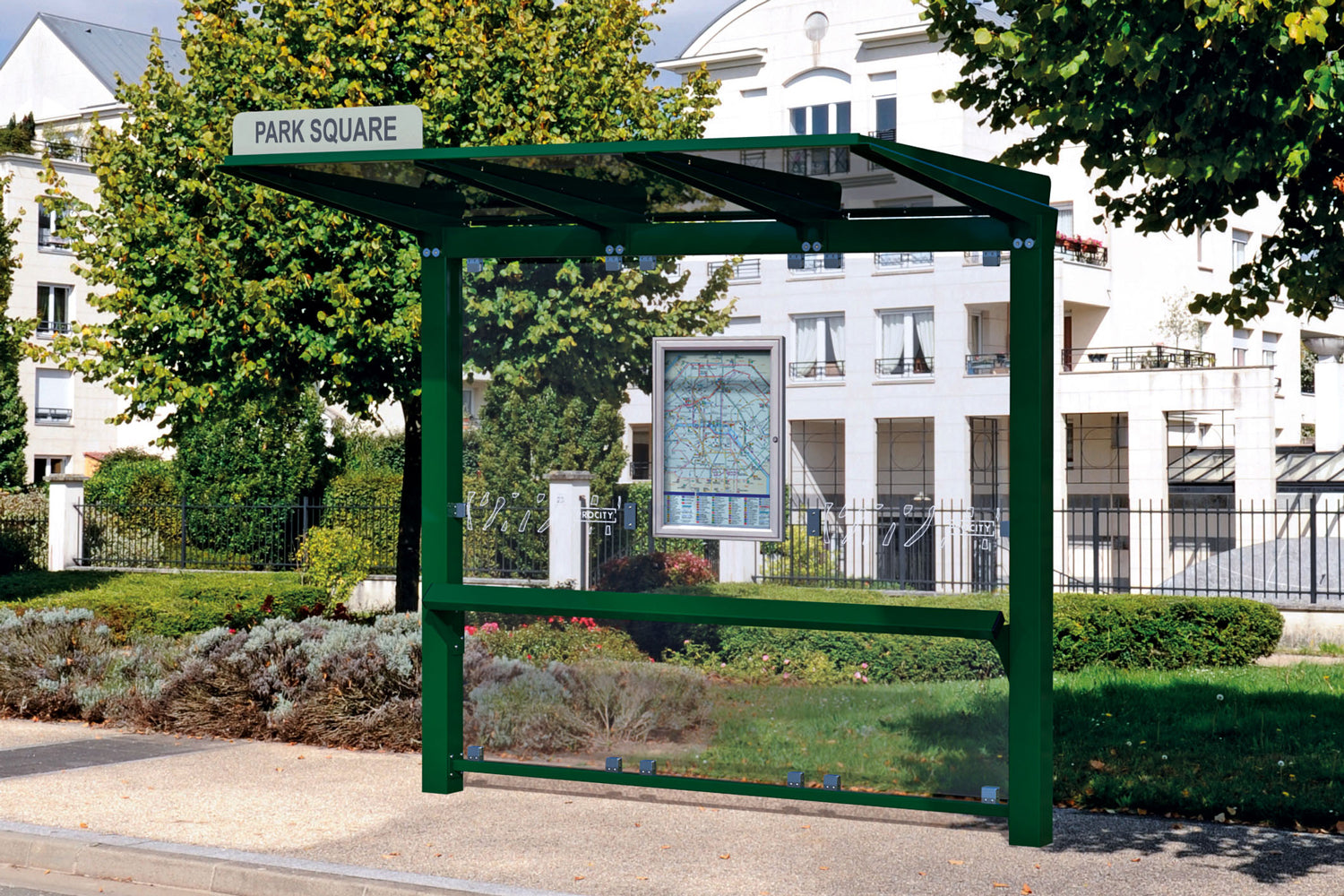

Procity vanice Bus Shelter Installed In park Square

Optional Accessories

Optimise your users’ experience with the optional integrated perch sitting bar (designed to be compatible with the Milan, Voûte, Venice, and Modulo bus shelters), providing a convenient yet sheltered short-term waiting space. You can also choose from our range of other seating solutions, including perch benches and backless benches that all fit within the space. Please be mindful not to install benches or perch seats near the advert display case to prevent obstruction.

Every model is delivered with rear cladding, a timetable display case and a bus stop sign. Please note that signage is not included.

The Venice Bus Stop Shelter also comes with optional accessories such as side-mounted bus stop signs for greater visibility of the stop name while approaching it.

All Procity Venice Bus Shelters also offer the option of integrated LED lighting – contact us for details.

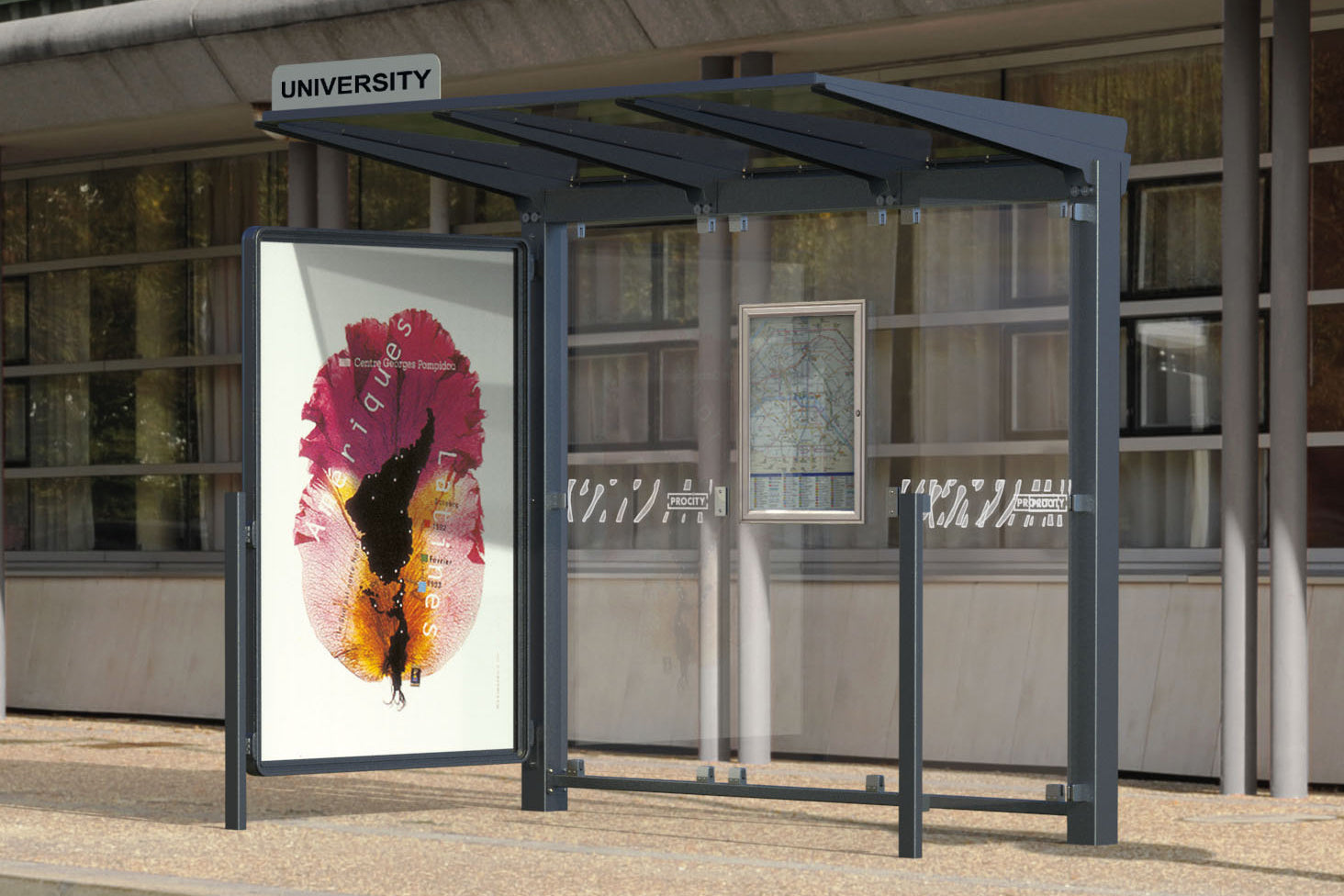

Procity Venice Bus Shelter With Lighted Adverting Box Installed Near University

Personalisation

If you can’t find the perfect bus stop shelter for your space, you can browse our range of other shelter types, which are all multi-functional and can be installed in different locations to respond to diverse use cases. Don't hesitate to browse our shelter accessories for other complimentary products like noticeboards, benches and bins!

Note: Do not install benches or perch seats near the timetable display case, as this can prevent them from opening.

Key Features

Finish - Galvanised Steel frame finished in a choice of 10 Procity colours as standard. (or finished in any RAL colour of your choice - call us when ordering).
Material & Finish - Galvanised Steel frame finished in a choice of 10 Procity colours as standard. (or finished in any RAL colour of your choice - call us when ordering).
Procity Standards - 100% of steel, aluminium and packaging are recycled. 100% of waste collected is processed by specialised waste disposal.
Square Posts - Steel tube 120 x 120 mm.

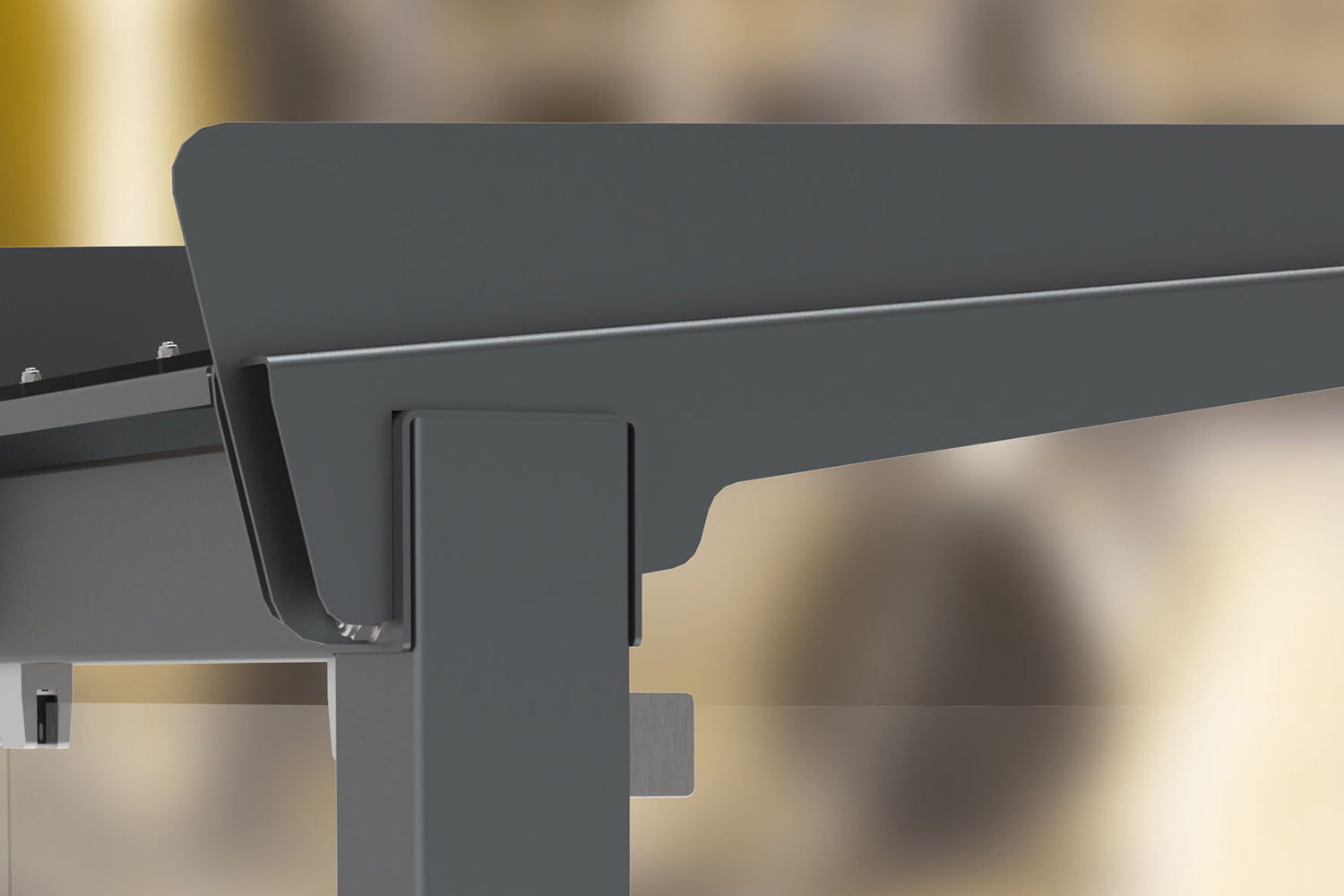

Roof - Bronze tinted 8 mm polycarbonate with anti-UV treatment.
Roof Support Beams - Hot-dip galvanised steel.
Rear and side cladding - 8 mm safety glass.

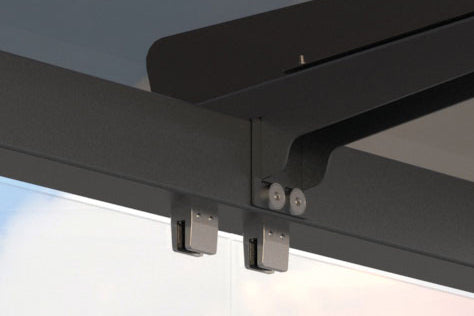

Cladding Attachments - A pinch-grip system made from Zamak alloy with a brushed finish.
Bus Stop Sign - 180 mm high x 815 mm wide, galvanised steel sheet lacquered in RAL 9006 (aluminium white).
Timetable display case - 750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium.
Advertising Space - lightbox (1710 mm x 1160 mm display area) or display case (1750 mm x 1200 mm display area).
Delivered with rear cladding, a timetable display case and a bus stop sign. All of our Venice Bus Shelters are available with LED lighting. Please contact us for details.
Surface signage not supplied

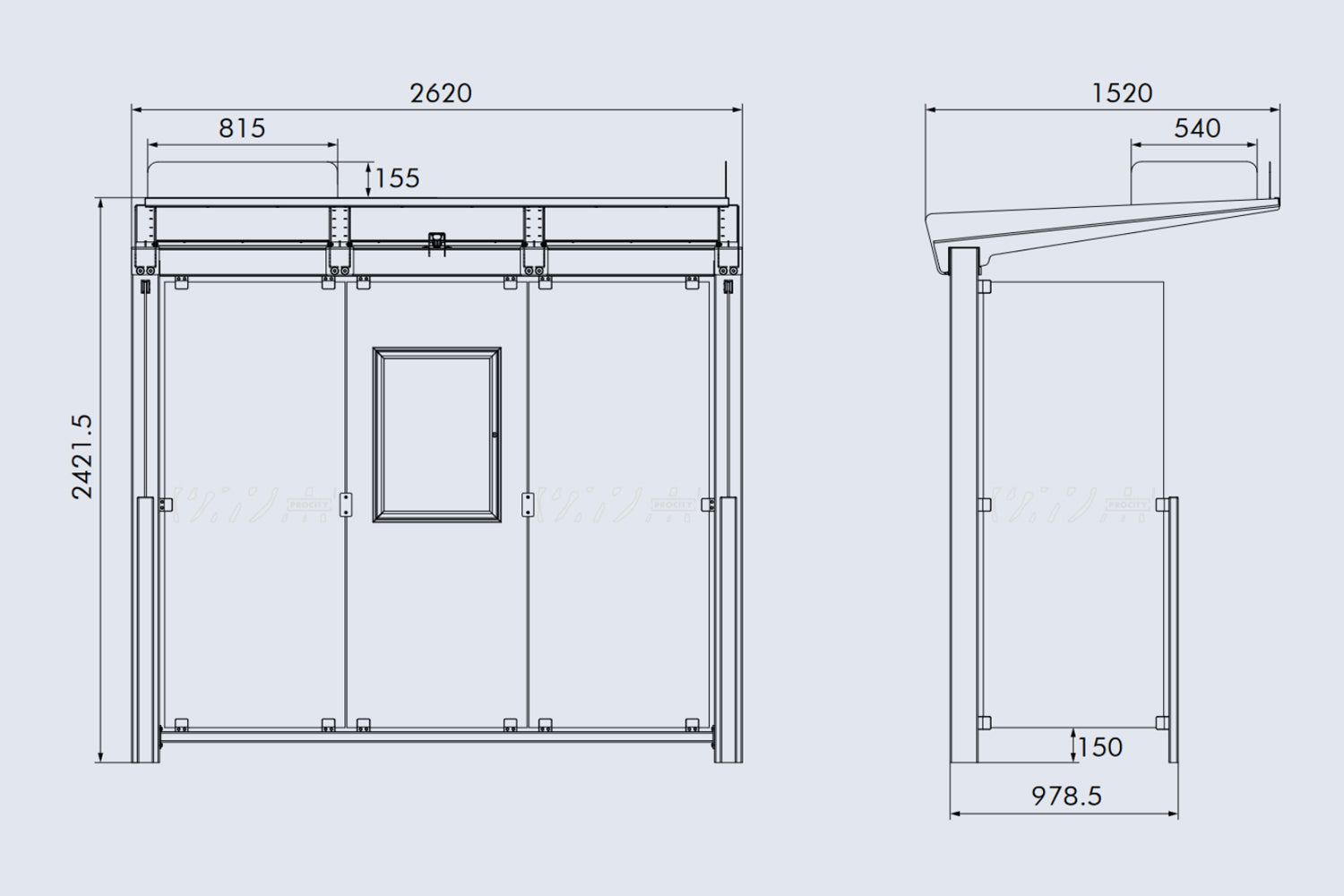

Procity Venice Bus Shelter Dimensions Diagram

Compatible Products

More from the Procity Venice Collection:

Procity venice Backless Bench - A backless bench with a unique personalisable style, designed to be installed with other items of the Procity Venice collection.
Procity Venice Seat Bench - A beautifully modular backless bench, conceived to fit seamlessly with other items from the Kube Relaxation Space.
Procity Venice Round Litter Bin - A litter bin from the Venice collection with a massive internal storage of 120L

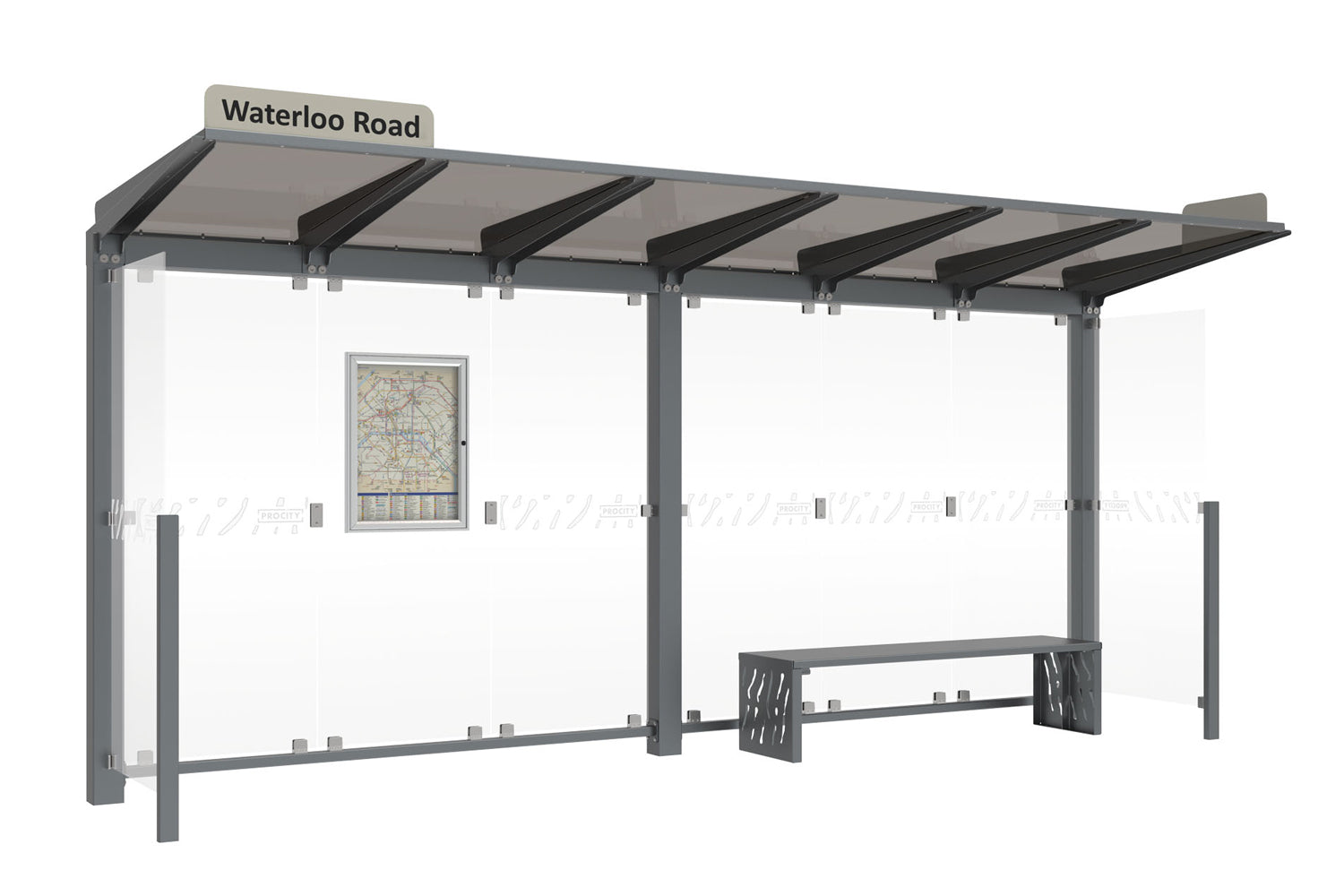

Procity Venice Double Length Bench With Optional Accessories
