Jubilee Original Range 304 Stainless Steel Hose Clip

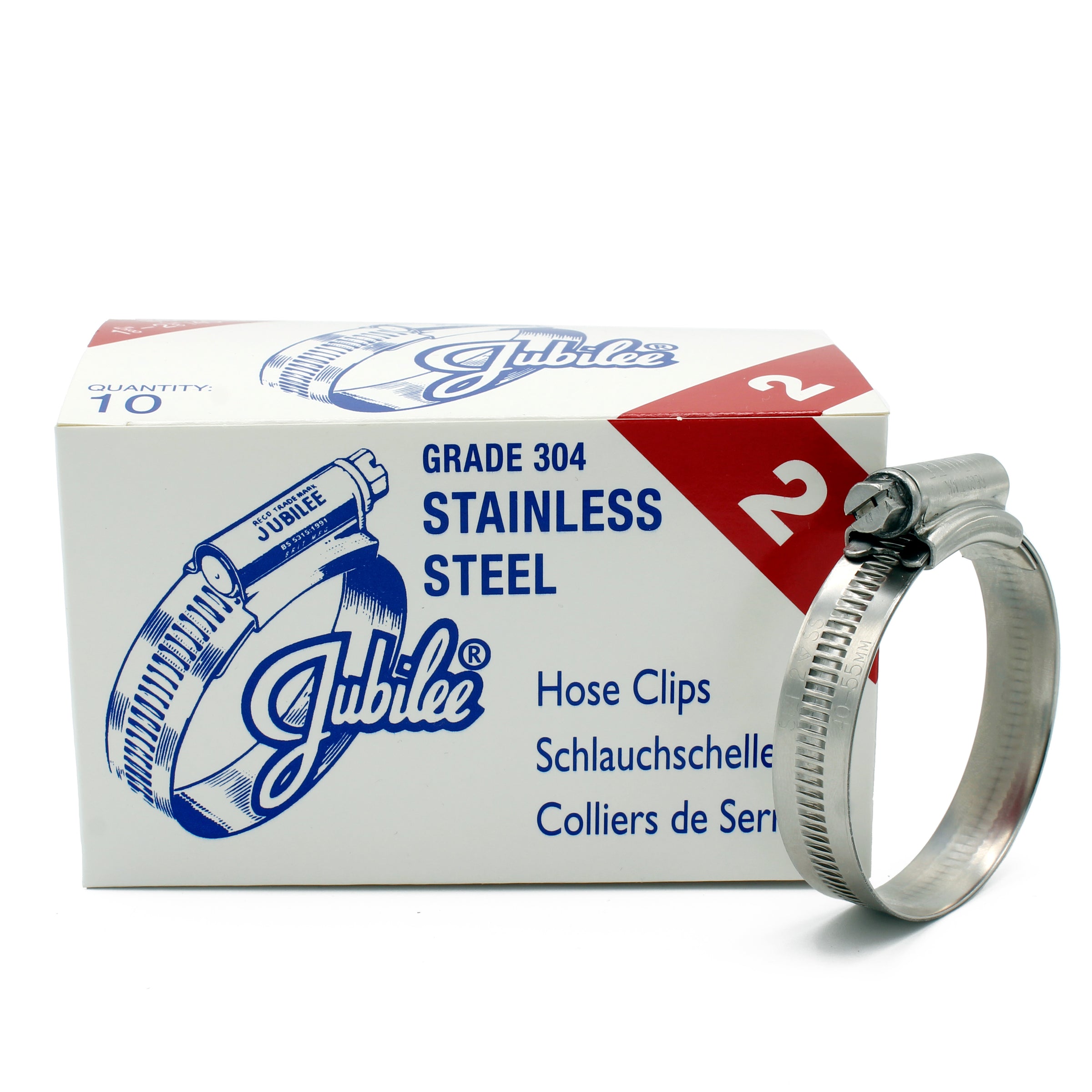

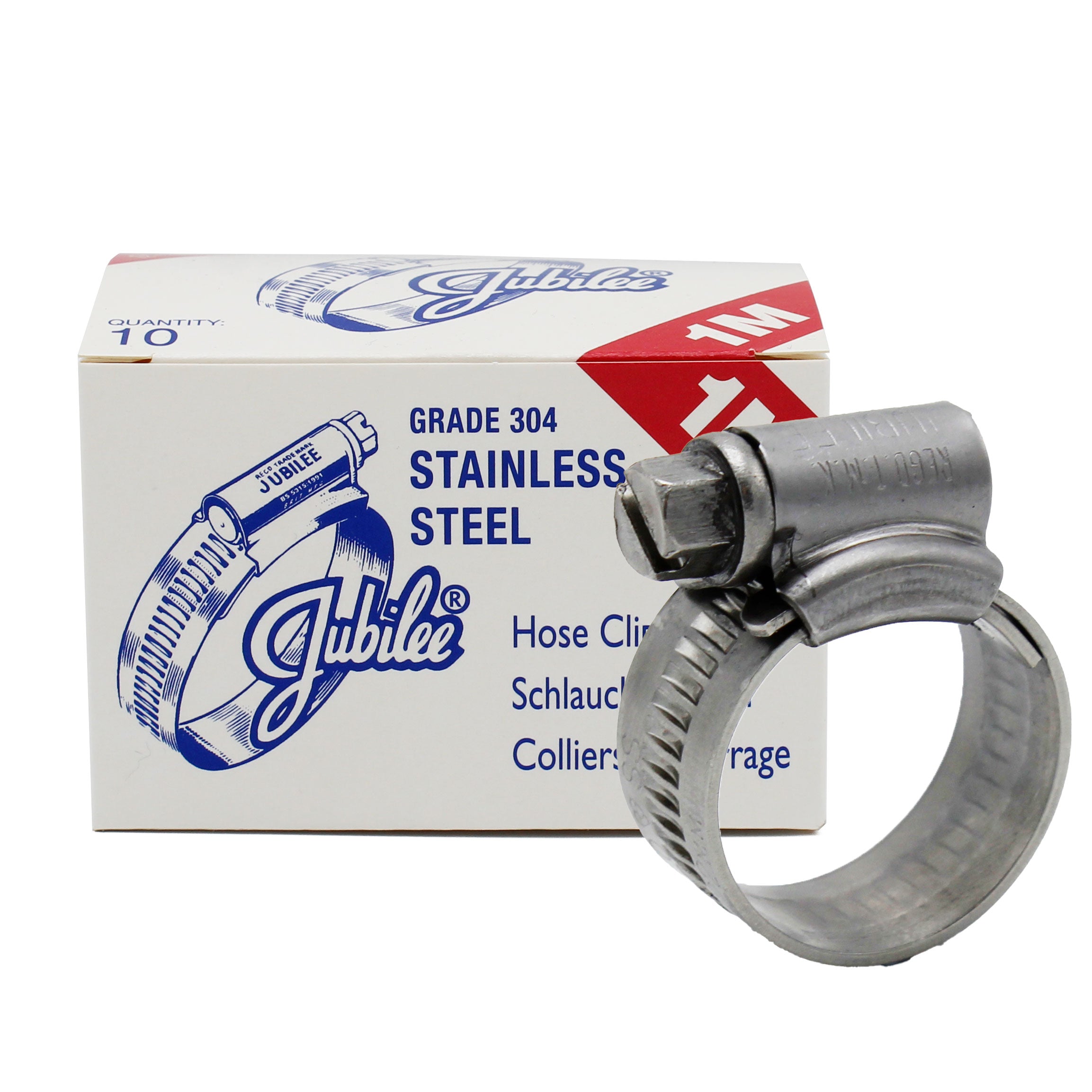

Jubilee Original Range 304 Stainless Steel Hose Clip (9.5-12mm / 10 pack)
Jubilee Original Range 304 Stainless Steel Hose Clip (22-30mm / Single)

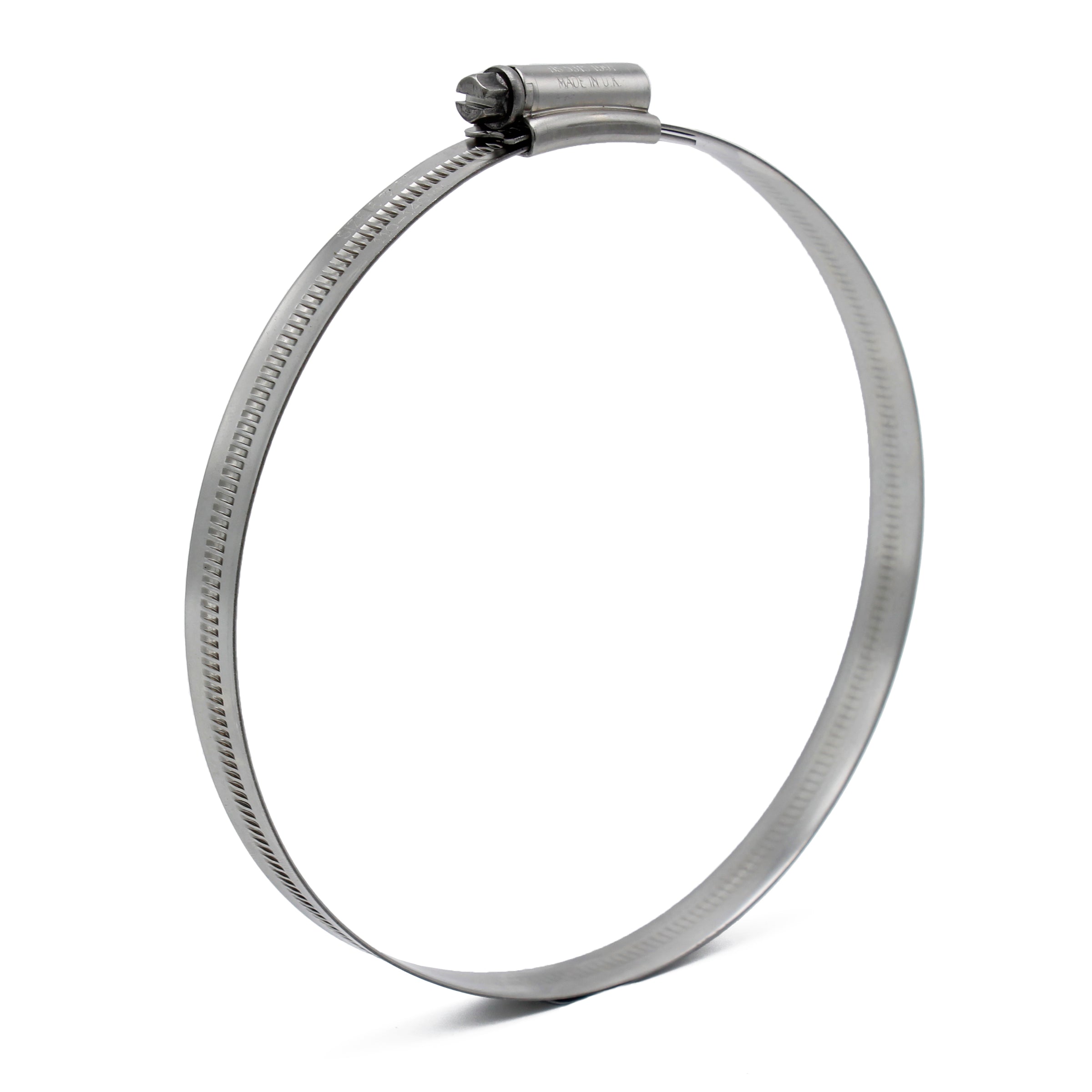

Jubilee Original Range 304 Stainless Steel Hose Clip (110-140mm / Single)

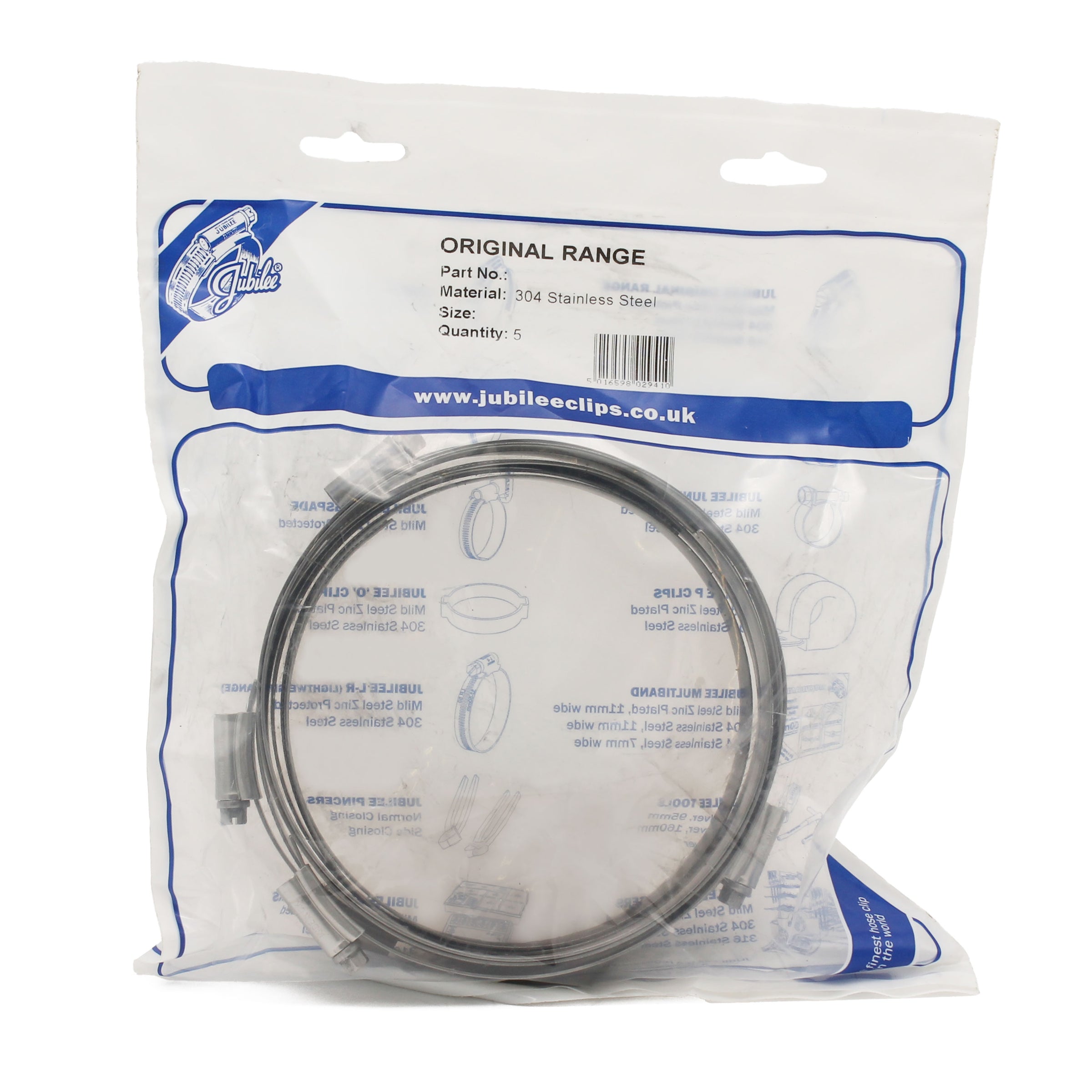

Jubilee Original Range 304 Stainless Steel Hose Clip (110-140mm / 5 pack)
Jubilee Original Range 304 Stainless Steel Hose Clip
Jubilee Original Range 304 Stainless Steel Hose Clip (9.5-12mm / 10 pack)
Jubilee Original Range 304 Stainless Steel Hose Clip (22-30mm / Single)
Jubilee Original Range 304 Stainless Steel Hose Clip (110-140mm / Single)
Jubilee Original Range 304 Stainless Steel Hose Clip (110-140mm / 5 pack)

Jubilee Original Range 304 Stainless Steel Hose Clip

  • Product code: 21745
  • Jubilee
  • In Stock
£1.46 excl. VAT
£1.75inc. VAT
Banding Diameter: 9.5-12mm
Pack Size: Single
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:


Jubilee Original Range 304 Stainless Steel Protected Hose Clip

jubilee-hose-clip-original-range-

The 304 stainless steel variation of the Original Range of Jubilee clips is incredibly versatile and widely used across many industries. These clips offer excellent corrosion resistance with a cost-effective price tag and are the Original Range’s most adaptable option.

Due to their powerful corrosion resistance, these clips are popular among many sectors. Their usage spans from the agricultural and food production sectors to the DIY and industrial industries. Due to their extensive shelf life, the clips can even be used in marine and oil and gas applications requiring high corrosion resistance.

Due to the clip's economical cost, they can be used around the house for applications such as securing hose pipes, drain pipes or even a tap. However, although this product can be used in domestic settings, the Jubilee stainless steel clip should not be underestimated. In the marine industry, these simple clips can be all that stands between your crew and sinking. In this sector, Jubilee stainless steel clips are used to secure pipework in a boat's engine, within the bilge and other essential inner works, offering years of salt-water resistance and decades of trustworthy service.

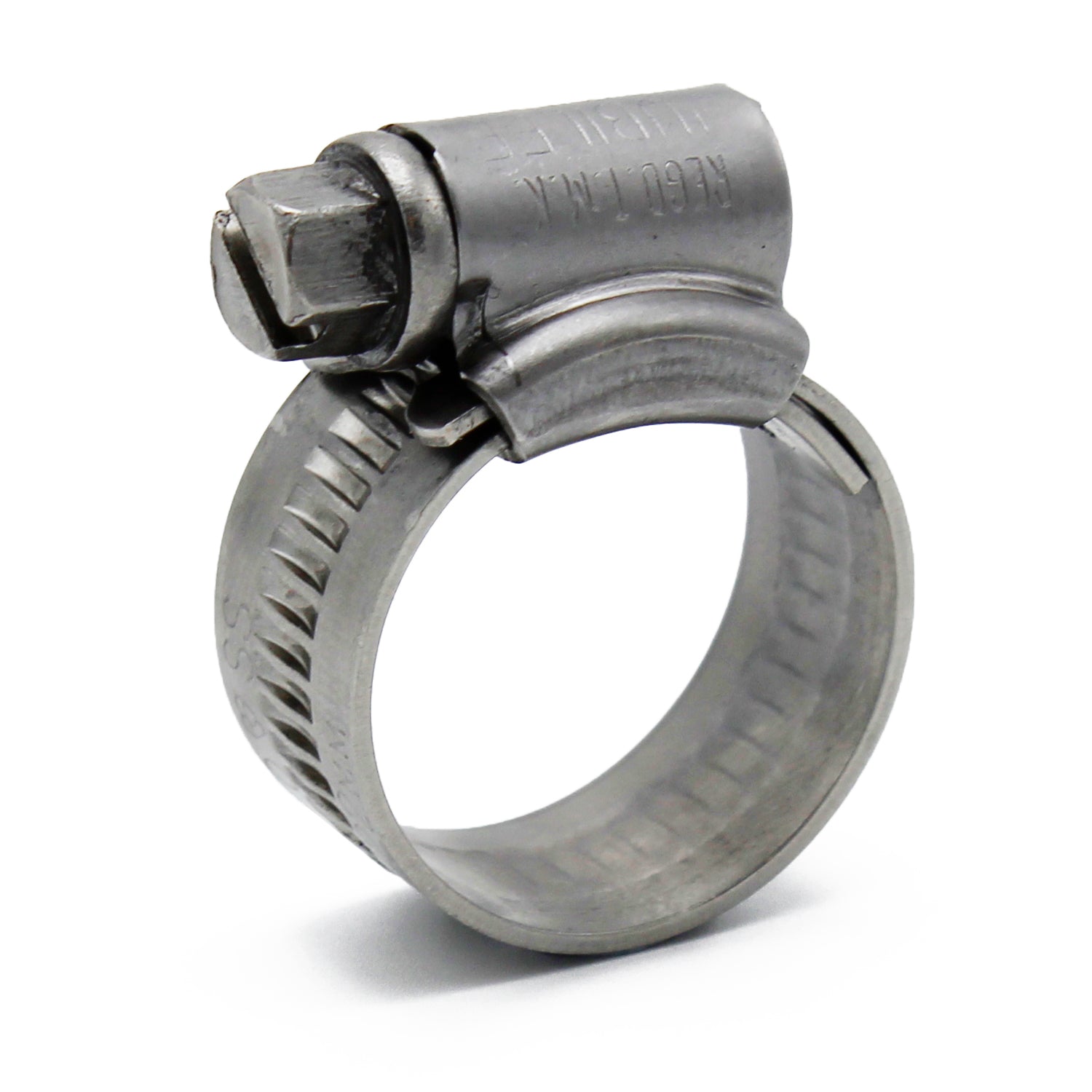

304 grade stainless jubilee hose clip close up

Key Features of the Original Range 304 Stainless Steel Protected Hose Clip

  • Stainless steel materials - a cost-effective and strong metal, stainless steel is an excellent choice material for these clips. The 304 alternatives have been tested and deliver the equivalent of 250 years of use before they show signs of corrosion when installed in a typical UK urban environment.
  • Premium grade and congruent materials - these jubilee clips are manufactured to the very highest standards, using only quality materials. Using mixed metals shortens a clip's lifetime, so these clips are made from purely stainless steel.
  • Consistently threaded banding - allows extra flexibility when adjusting the clip to the correct size. This ensures a consistent fit and first-rate seal.
  • Reusability - if reused, the clips’ performance will not deteriorate, an economic attribute that saves a user money in the long run.
  • Sizing - the 304 stainless steel clips are available in sizes 9.5mm - 318 mm.
  • Smooth interior - the level inside of the clips makes them suitable for use on any type of hose, including soft piping made from materials such as rubber or silicone.
  • Cost-effectiveness - the Jubilee Original range is one of the most competitively priced sections of the entire Jubilee range. The durability of the 304 stainless steel clip dramatically contrasts its low-price point.

Key Industries The Original Range 304 Stainless Steel Jubilee Clamp is used in:

Agricultural

Agricultural

Food Production

Food Production

DIY

DIY

Industrial

Industrial

Marine

Marine

Oil and Gas Works

Oil & Gas Works

Part No. BS No. Adjustment Band Width mm Band Thickness mm Recommended Torque Nm Max. Torque Nm Max. Pressure PSI
mm Inches
000SS 12 9.5- 12 ⅜ - ½ 9.9 0.762 3.4 4.5 203
M00SS 16 11- 16 ½ - ⅝ 9.9 0.762 3.4 4.5 203
00SS 20 13- 20 ½ - ¾ 9.9 0.762 3.4 4.5 203
0SS 22 16- 22 ⅝ - ⅞ 13.0 0.914 4.2 5.6 203
0XSS 25 18- 25 ¾ - 1 13.0 0.914 4.2 5.6 203
1ASS 30 22- 30 ⅞ - 1⅛ 13.0 0.914 5.1 6.8 203
1SS 35 25- 35 1 - 1⅜ 13.0 0.914 5.1 6.8 102
1XSS 40 30- 40 1⅛ - 1⅝ 13.0 0.914 5.1 6.8 102
1MSS 45 32- 45 1¼ - 1¾ 13.0 0.914 5.1 6.8 102
2ASS 50 35- 50 1⅜ - 2 13.0 0.914 5.9 7.9 102
2SS 55 40- 55 1⅝ - 2⅛ 13.0 0.914 5.9 7.9 102
2XSS 60 45- 60 1¾ - 2⅜ 13.0 0.914 5.9 7.9 102
3SS 70 55- 70 2⅛ - 2¾ 13.0 0.914 6.7 9 102
3XSS 80 60- 80 2⅜ - 3⅛ 13.0 0.914 6.7 9 44
4SS 90 70- 90 2¾ - 3½ 13.0 0.914 6.7 9 44
4XSS 100 85-100 3¼ - 4 13.0 0.914 6.7 9 44
5SS 120 90-120 3½ - 4¾ 13.0 0.914 6.7 9 44
6SS 140 110-140 4⅜ - 5½ 13.0 0.914 6.7 9 44
6XSS 150 120-150 4¾ - 5⅞ 13.0 0.914 5.9 7.9 18
7SS 165 135-165 5¼ - 6½ 13.0 0.914 5.9 7.9 18
7.5SS 190 158-190 6¼ - 7½ 13.0 0.914 5.9 7.9 18
8.5SS 216 184-216 7¼ - 8½ 13.0 0.914 5.9 7.9 18
9.5SS 242 210-242 8¼ - 9½ 13.0 0.914 5.9 7.9 18
10.5SS 267 235-267 9¼ - 10½ 13.0 0.914 5.9 7.9 18
11.5SS 292 260-292 10¼ - 11½ 13.0 0.914 5.9 7.9 18
12.5SS 318 286-318 11¼ - 12½ 13.0 0.914 5.9 7.9 18

Measuring Your Clamp

These clips are measured based on their internal diameter. To find the size of the clip, simply measure the outside diameter of the item you are clamping onto.

You should be sure to measure the outside diameter when measuring up to ensure you get the best fit possible.

Available In:

Mild Steel - 304 Stainless Steel - 316 Stainless Steel

Alternatives To This 304 Grade Stainless Original Range Jubilee Clip

  • 304 grade stainless overkill for your requirements? - Take a look at the Jubilee Original Range Mild Steel Hose Clip.
  • Looking For Something Heavier Duty? - Check out the Jubilee Zinc Protected Superclamps. These feature a broader band cross-section and a bridge that helps to distribute clamping force evenly.
  • Not sure how long a hose clip you need? - Take a look at the Jubilee Zinc Plated Multiband kits; these come complete with everything you need to make your own custom-sized worm drive screw bands.

Need Assistance Finding The Best Hose Clip For Your Needs?

Are you in need of a high-quality hose clip? Look no further than Start Safety UK. Our extensive selection of hose clips comes in various shapes and sizes, all stocked on our shelves and available for the quick delivery to your location. If you have any technical questions or inquiries about bulk orders, our knowledgeable staff can assist – just give us a call at 01905 794 875.
