Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (17-19mm / 10 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (32-35mm / 5 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (36-39mm / Single)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (60-63mm / 2 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (113-121mm / Single)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (17-19mm / 10 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (32-35mm / 5 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (36-39mm / Single)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (60-63mm / 2 pack)
Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips (113-121mm / Single)

Jubilee SuperClamp - Heavy Duty Mild Steel Zinc Protected Clips

  • Product code: 21914
  • Jubilee
  • In Stock
£1.11 excl. VAT
£1.33inc. VAT
Banding Diameter: 17-19mm
Pack Size: Single
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.

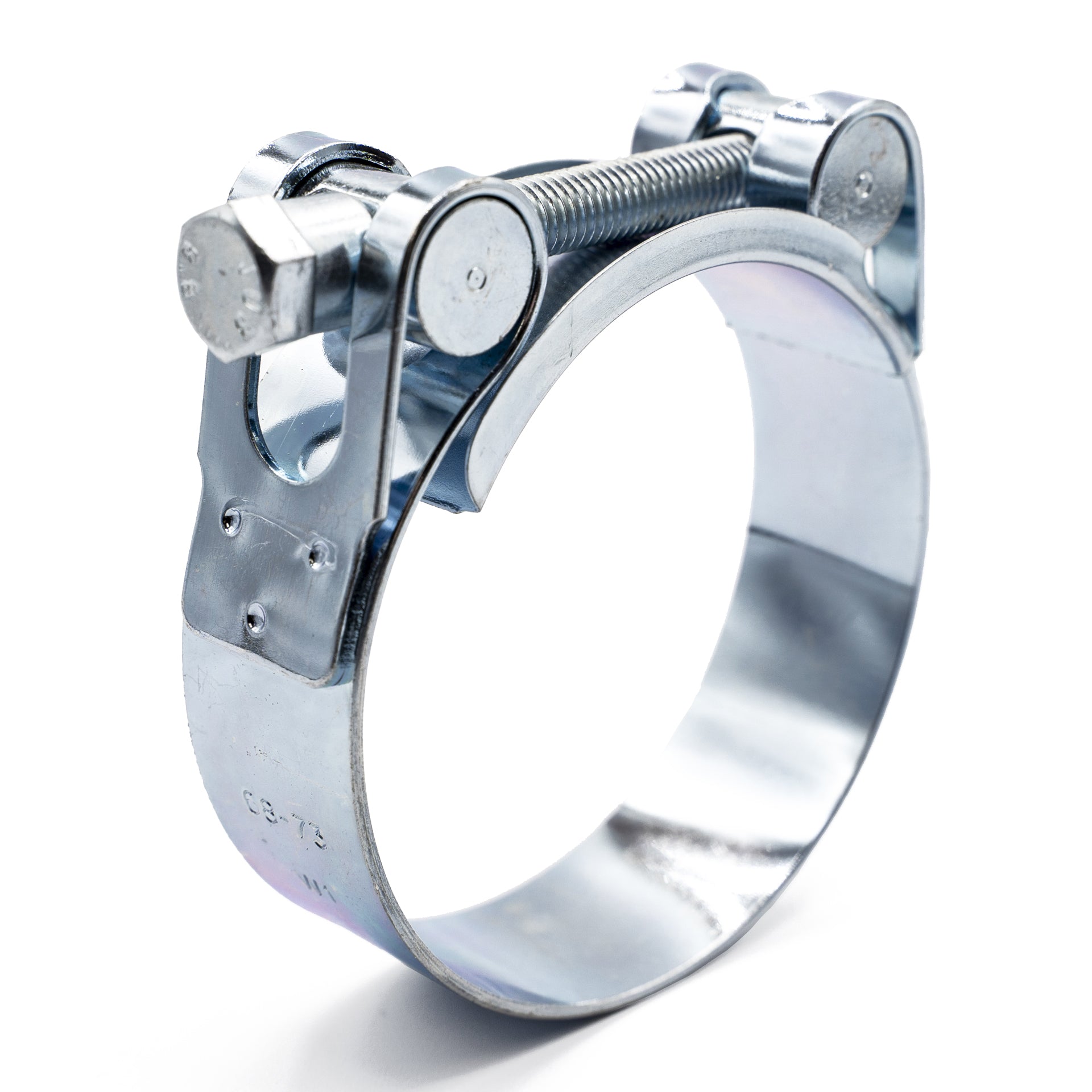

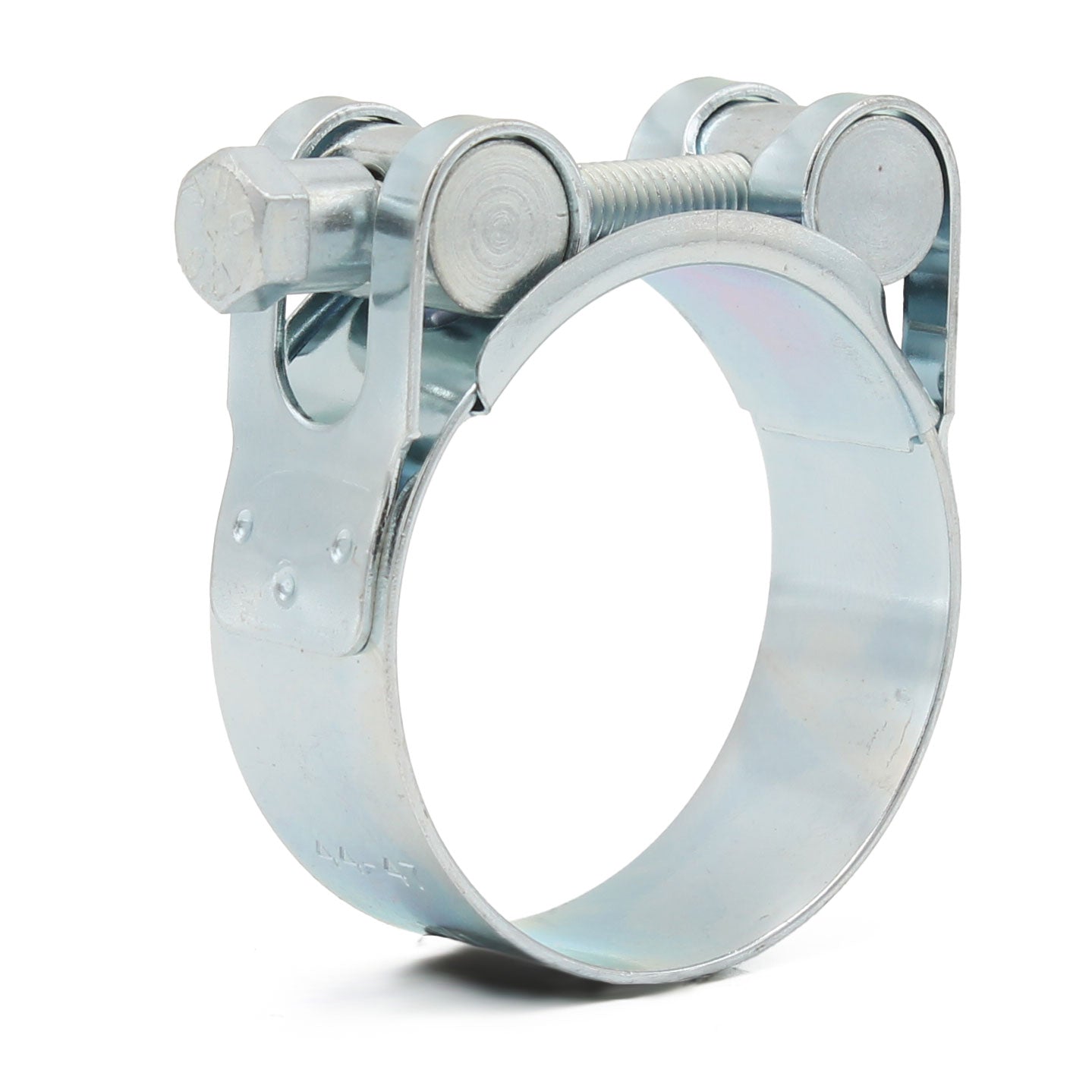

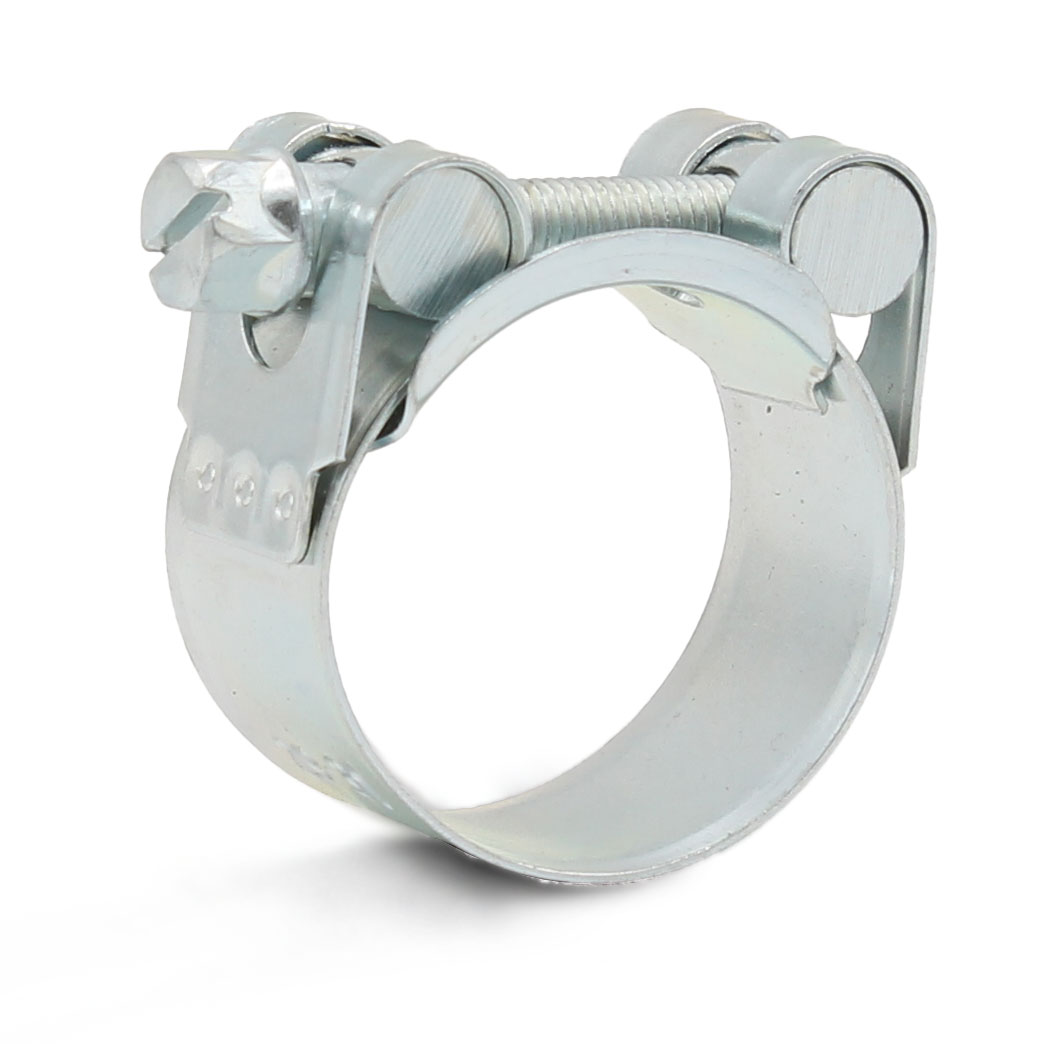

Jubilee Zinc Plated Superclamp Hose Clamps

The Jubilee Superclamp stands out from the crowd when it comes to heavy-duty hose clamps. This is down to the exceptional engineering that allows this clamp to exert greater holding force over a more consistent surface area than other types of hose clips.

A broader band profile and bridge section facilitates a more even and greater distribution of clamping force, helping create a superior seal when clamping hoses onto barbs and other fittings. Smoothed and rolled edges reduce the risk of cutting as the band is tightened onto softer silicon and rubber hoses found in many applications. With its superior 360° sealing ability, the Superclamp Range is ideal for vacuum and pumping applications where a small air leak ruins performance.

A solid trunion partnered with an 8.8 grade high tensile bolt allows you to tighten these clamps up to as much as 25Nm, ensuring once in place, the clamp stays in position. The easily accessible bolt head for tightening makes maintenance operations easier and allows the clamp to be used in an automated assembly process where robotic tools need to be able to tighten the clamp.

Jubilee SuperClamps Mild-Steel
Jubilee clip superclamp-mild-steel

Key Features Of The Jubilee Zinc Plated Superclamp

  • Zinc Protected - A corrosion-resistant coating on the clamp ensures that the hose clip will withstand the test of time. The Mild steel variant has been tested to deliver the equivalent of 42 years lifespan before showing red rust when installed in a typical UK urban environment.
  • Extra Wide Band - The band on these clamps ranges from 18mm up to 25mm in width. This broadness allows greater clamping force to be applied without damaging the hose as the pressure is dispersed over a wider area.
  • Wide Range Of Sizes - Available in sizes for 17mm through to 265mm hoses, making them ideal for many applications.
  • Ease Of Use - Requiring no specialist tools these clips can be installed and removed with ease.
  • Adjustability - Each clip size has an adjustment range, making getting a consistent fit and a good-quality seal easier.
  • Reusability - Once removed, you can use these clips again without diminishing their performance, saving you money in the long run.
  • Consistent Materials - To enhance the corrosion resistance of these clamps, all metals used in constructing a clamp are of the same type. This feature stops the bi-metallic corrosion that can plague inferior offerings from other brands.

Agriculture

Superclamps are suitable for use with the agriculture sector

Automotive

Superclamps are suitable for use in the automotive industry

Industrial

superclamps are suitable for use in industrial sectors
Part No. Description Band Width mm Recommended Torque Nm Maximum Torque Nm Min. Diameter mm Max. Diameter mm Fastening Type
JSC019MS Jubilee Superclamp MS 17-19mm 18 4.5 6 17 19 8mm A/F Bolt
JSC022MS Jubilee Superclamp MS 20-22mm 18 4.5 6 20 22 8mm A/F Bolt
JSC025MS Jubilee Superclamp MS 23-25mm 18 4.5 6 23 25 8mm A/F Bolt
JSC028MS Jubilee Superclamp MS 26-28mm 18 4.5 6 26 28 8mm A/F Bolt
JSC031MS Jubilee Superclamp MS 29-31mm 18 4.5 6 29 31 8mm A/F Bolt
JSC035MS Jubilee Superclamp MS 32-35mm 20 6 8 32 35 10mm A/F Bolt
JSC039MS Jubilee Superclamp MS 36-39mm 20 6 8 36 39 10mm A/F Bolt
JSC043MS Jubilee Superclamp MS 40-43mm 20 6 8 40 43 10mm A/F Bolt
JSC047MS Jubilee Superclamp MS 44-47mm 20 6 8 44 47 10mm A/F Bolt
JSC051MS Jubilee Superclamp MS 48-51mm 20 6 8 48 51 10mm A/F Bolt
JSC055MS Jubilee Superclamp MS 52-55mm 20 6 8 52 55 10mm A/F Bolt
JSC059MS Jubilee Superclamp MS 56-59mm 20 6 8 56 59 10mm A/F Bolt
JSC063MS Jubilee Superclamp MS 60-63mm 20 6 8 60 63 10mm A/F Bolt
JSC067MS Jubilee Superclamp MS 64-67mm 25 18.5 25 64 67 13mm A/F Bolt
JSC073MS Jubilee Superclamp MS 68-73mm 25 18.5 25 68 73 13mm A/F Bolt
JSC073MS Jubilee Superclamp MS 68-73mm 25 18.5 25 68 73 13mm A/F Bolt
JSC079MS Jubilee Superclamp MS 74-79mm 25 18.5 25 74 79 13mm A/F Bolt
JSC085MS Jubilee Superclamp MS 80-85mm 25 18.5 25 80 85 13mm A/F Bolt
JSC091MS Jubilee Superclamp MS 86-91mm 25 18.5 25 86 91 13mm A/F Bolt
JSC097MS Jubilee Superclamp MS 92-97mm 25 18.5 25 92 97 13mm A/F Bolt
JSC103MS Jubilee Superclamp MS 98-103mm 25 18.5 25 98 103 13mm A/F Bolt
JSC112MS Jubilee Superclamp MS 104-112mm 25 18.5 25 104 112 13mm A/F Bolt
JSC121MS Jubilee Superclamp MS 113-121mm 25 18.5 25 113 121 13mm A/F Bolt
JSC130MS Jubilee Superclamp MS 122-130mm 25 18.5 25 122 130 13mm A/F Bolt
JSC139MS Jubilee Superclamp MS 131-139mm 25 18.5 25 131 139 13mm A/F Bolt
JSC148MS Jubilee Superclamp MS 140-148mm 25 18.5 25 140 148 13mm A/F Bolt
JSC161MS Jubilee Superclamp MS 149-161mm 25 18.5 25 149 161 13mm A/F Bolt
JSC174MS Jubilee Superclamp MS 162-174mm 25 18.5 25 162 174 13mm A/F Bolt
JSC187MS Jubilee Superclamp MS 175-187mm 25 18.5 25 175 187 13mm A/F Bolt
JSC200MS Jubilee Superclamp MS 188-200mm 25 18.5 25 188 200 13mm A/F Bolt
JSC213MS Jubilee Superclamp MS 201-213mm 25 18.5 25 201 213 13mm A/F Bolt
JSC226MS Jubilee Superclamp MS 214-226mm 25 18.5 25 214 226 13mm A/F Bolt
JSC239MS Jubilee Superclamp MS 227-239mm 25 18.5 25 227 239 13mm A/F Bolt
JSC255MS Jubilee Superclamp MS 240-255mm 25 18.5 25 240 255 13mm A/F Bolt

Measuring Your Clamp

These clips are measured based on their internal diameter. To find the size of the clip, simply measure the outside diameter of the item you are clamping onto.

You should be sure to measure the outside diameter when measuring up to ensure you get the best fit possible.

Superclamp drawing

Available In:

316 Stainless Steel

316 Grade Stainless Steel

Original range hose clamps

Alternatives To This Mild Steel Superclamp From Jubilee

  • Need Something Lighter Duty? - Check out the Jubilee Zinc Plated Original Range Hose Clamps.
  • Need Something With Greater Corrosion Resistance? - Take a look at the Jubilee 304 Stainless Superclamp or Jubilee 316 Stainless Superclamp.
  • Want Something Vandal Resistant? - You may like the JCS Tamtorque Hose clamps we have on offer. These feature an anti-tamper bolt head to prevent unauthorised disassembly.

Need Assistance Finding The Best Hose Clip For Your Needs?

At Start Safety, we can help you get a great deal on quality branded hose clamps that stand the test of time, saving you money. We have a wide selection of clips of all shapes and sizes, ready to be shipped to you quickly. And with our friendly staff assisting with any technical questions or bulk orders, you can clamp down on wasted spending in no time.
