Jubilee Quick Release Straps 304 Grade Stainless Steel

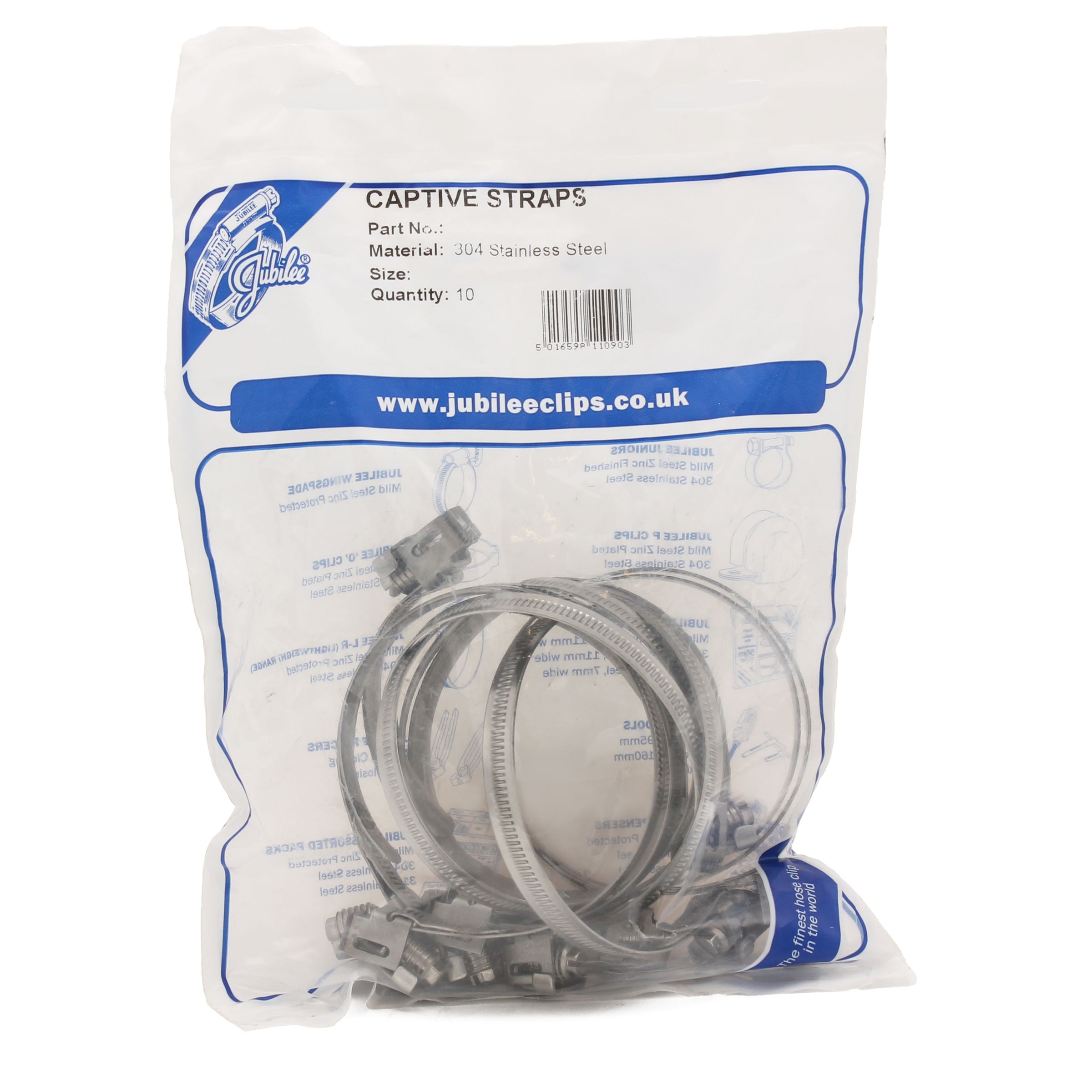

Jubilee Quick Release Straps 304 Grade Stainless Steel (35-50mm / 10 pack)

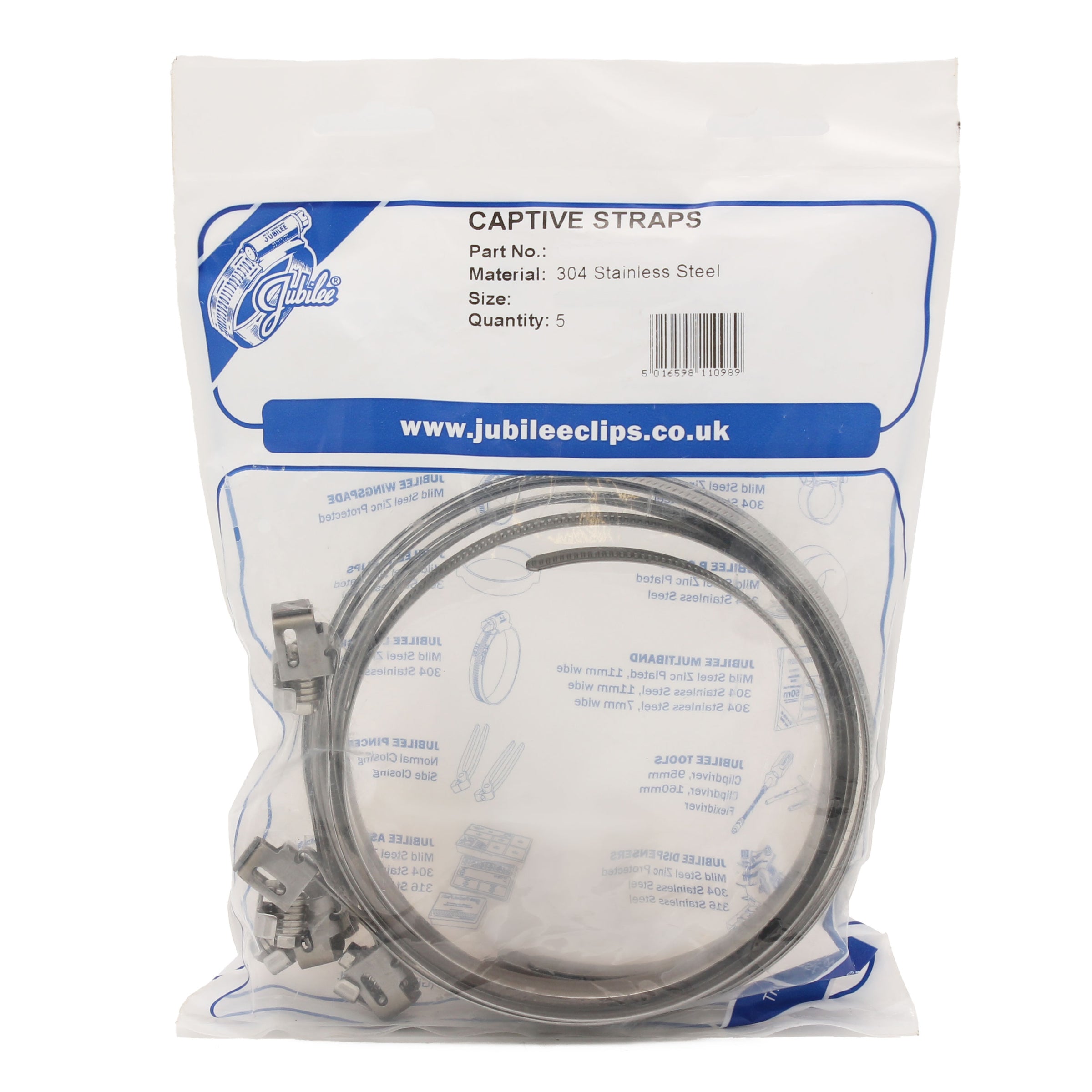

Jubilee Quick Release Straps 304 Grade Stainless Steel (50-100mm / 5 pack)

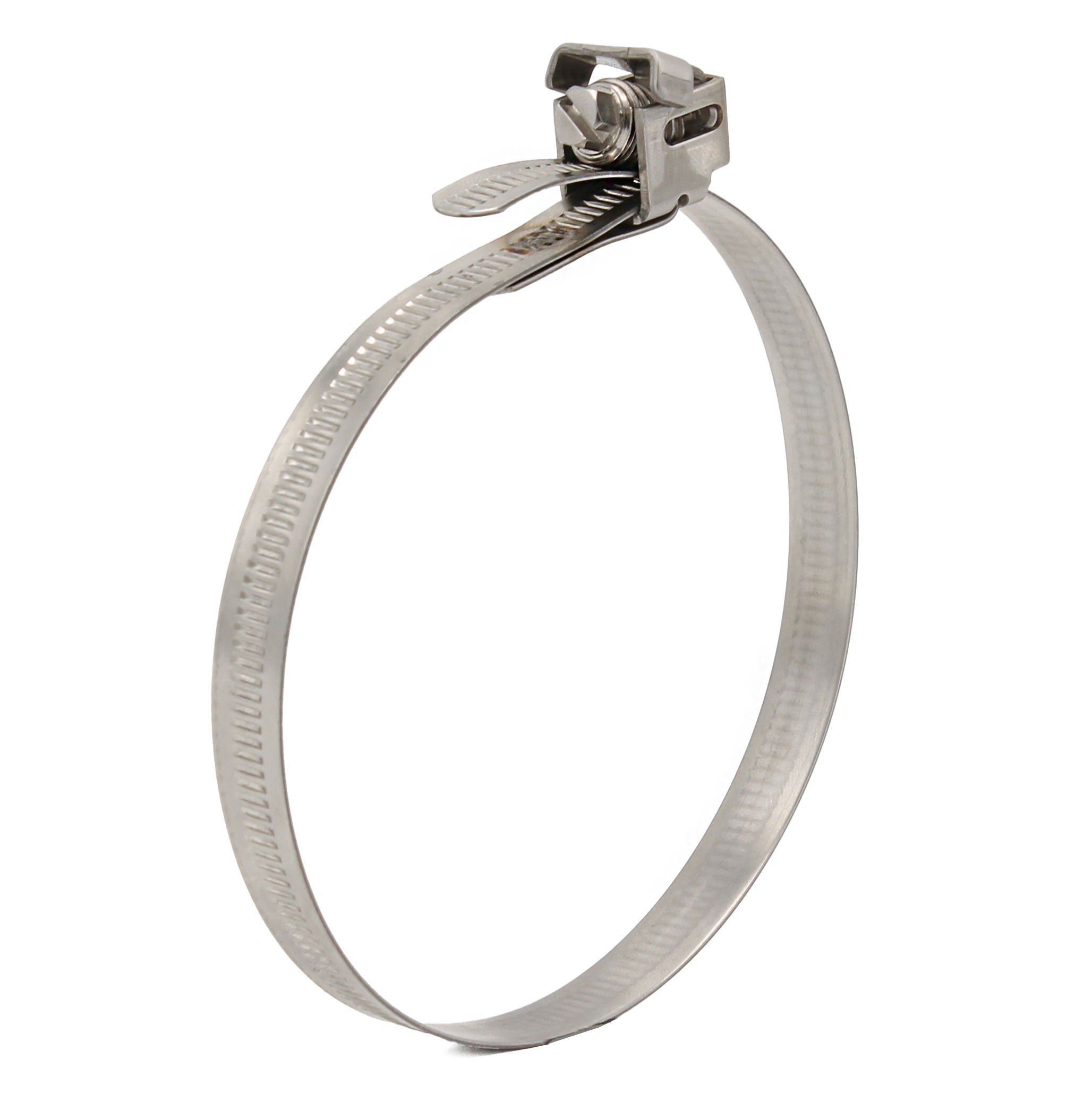

Jubilee Quick Release Straps 304 Grade Stainless Steel (50-175mm / Single)
Jubilee Quick Release Straps 304 Grade Stainless Steel
Jubilee Quick Release Straps 304 Grade Stainless Steel (35-50mm / 10 pack)
Jubilee Quick Release Straps 304 Grade Stainless Steel (50-100mm / 5 pack)
Jubilee Quick Release Straps 304 Grade Stainless Steel (50-175mm / Single)

Jubilee Quick Release Straps 304 Grade Stainless Steel

  • Product code: 22165
  • Jubilee
  • In Stock
£4.41 excl. VAT
£5.29inc. VAT
Banding Diameter: 35-50mm
Pack Size: Single
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


Jubilee 304 Stainless Steel Quick Release Straps

If you need a flexible and reliable way to anchor cables and HVAC equipment to walls and tray work then the Jubilee Stainless Steel Quick Release straps are ideal, especially if you are installing them in outdoor areas exposed to the elements. Supplied in extra long lengths that can be cut down to suit your needs, they are fast to install and dismantle when needed.

The ability to quickly unclip the banding and dismantle it makes these clips ideal for areas where servicing and maintenance is required, such as changing dust filters within a large ventilation system. Although not punched all the way through, the banding is pressed consistently, ensuring the thread makes good contact allowing greater clamping forces to be applied than is possible with other platforms.

You can easily shorten these clips to eliminate excess banding once fitted. You can do this using a pair of standard tin snips to trim the excess material. The tensioning system is captive on the band, making them faster to install than the zinc-plated Jubilee Multiband alternative.

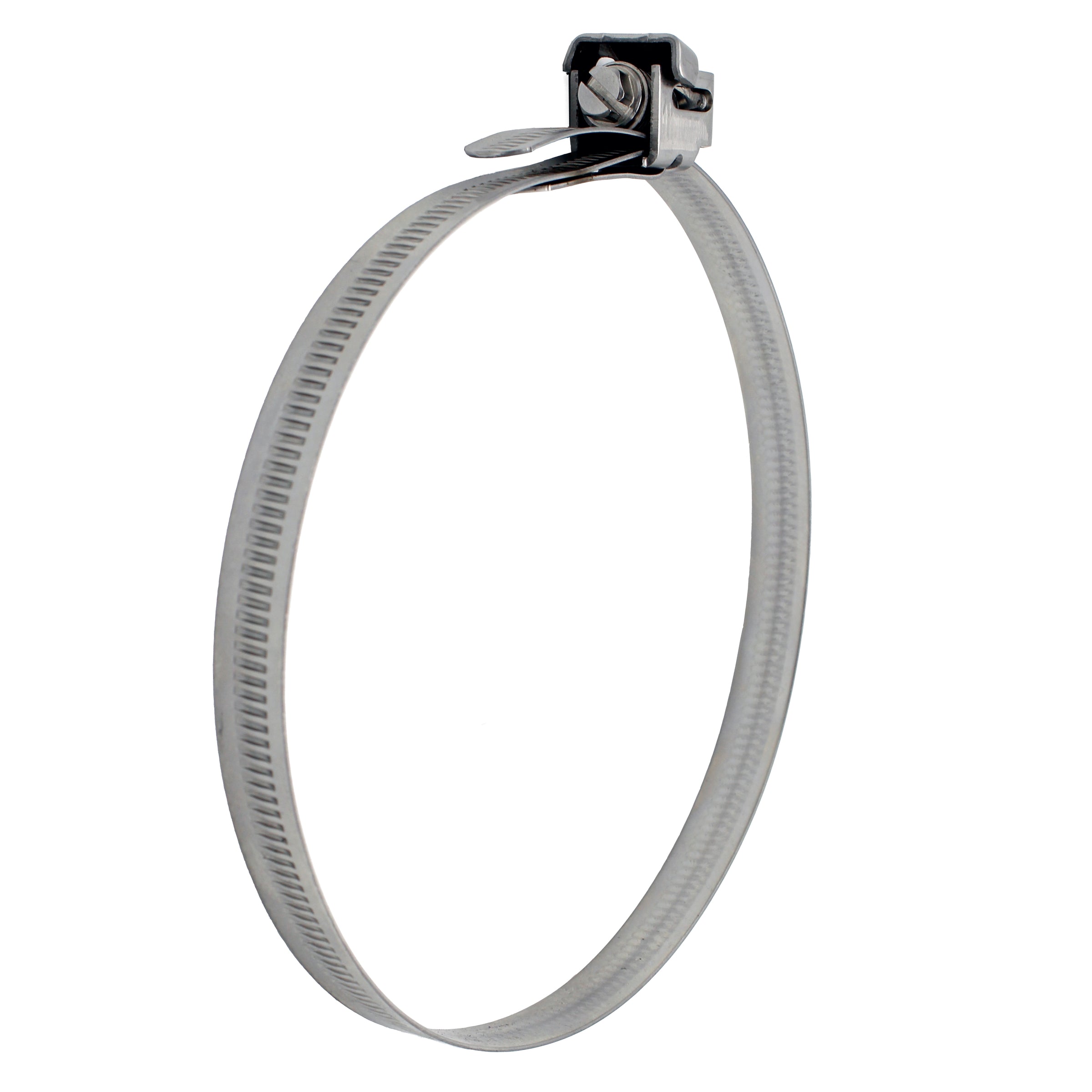

Jubilee quick-release hose clamp
Jubilee quick-release clamp side profile

Key Features Of The Stainless Steel Quick Release Jubilee Clips

  • 304 Stainless Steel Construction - Designed for use in areas with a high likelihood of corrosion. The 304-grade material has been tested and shown to achieve 1000 hours in an NSS test.
  • Wide Range Of Sizes - Available in sizes suitable for 35mm through to 965mm diameter hoses, signage and heating ducts, making them ideal for many applications.
  • Ease Of Use - Requiring no specialist tools meaning these clips can be easily used even by novices.
  • Adjustability - Each clip size has an adjustment range, making getting a consistent fit and a good-quality seal easier.
  • Reusability - Once removed, you can use these clips again without diminishing their performance, saving you money in the long run.
  • Consistent Materials - To enhance the corrosion resistance of these clamps, all metals used in constructing a clamp are of the same type. This feature stops the bi-metallic corrosion that can plague inferior offerings from other brands.

Key Industries The Quick Release 304 Stainless Steel Jubilee Clamp Range is used in:

Agriculture

quick-release clamps are suitable for use with the agriculture sector

DIY

suitable for home use

Industrial

quick-release clamps suitable for use in the industrial sector

Ventilation & Heating

quick-release clamps ideal for use with ventilation pipes

Telecommunications

quick-release jubilee clamps suitable for the telcomms industry

Marine

quick-release jubilee clamps suitable for the Marine Industry

Specifications

Part No. Adjustment mm Band Width mm Band Thickness mm Recommended Torque Nm Maximum Torque mm
CAS050SS 35-50 11 0.80 3.4 4.5
CAS075SS 45-75 11 0.80 3.4 4.5
CAS100SS 50-100 11 0.80 3.4 4.5
CAS120SS 50-120 11 0.80 3.4 4.5
CAS150SS 50-150 11 0.80 3.4 4.5
CAS175SS 50-175 11 0.80 3.4 4.5
CAS200SS 50-200 11 0.80 3.4 4.5
CAS225SS 50-225 11 0.80 3.4 4.5
CAS250SS 50-250 11 0.80 3.4 4.5
CAS275SS 50-275 11 0.80 3.4 4.5
CAS300SS 50-300 11 0.80 3.4 4.5
CAS330SS 50-330 11 0.80 3.4 4.5
CAS355SS 50-355 11 0.80 3.4 4.5
CAS380SS 50-380 11 0.80 3.4 4.5
CAS405SS 50-405 11 0.80 3.4 4.5
CAS455SS 50-455 11 0.80 3.4 4.5
CAS505SS 50-505 11 0.80 3.4 4.5
CAS555SS 50-555 11 0.80 3.4 4.5
CAS605SS 50-605 11 0.80 3.4 4.5
CAS710SS 50-710 11 0.80 3.4 4.5
CAS810SS 50-810 11 0.80 3.4 4.5
CAS910SS 50-910 11 0.80 3.4 4.5
CAS965SS 50-965 11 0.80 3.4 4.5

Measuring Your Clamp

These clips are measured based on their internal diameter. To find the size of the clip, simply measure the outside diameter of the item you are clamping onto.

You should be sure to measure the outside diameter when measuring up to ensure you get the best fit possible.

jubilee quick-release hose clamp drawing

Available In:

316 Stainless Steel

316 Grade Stainless Steel

jubilee superclamp in stainless steel

Alternatives To This Jubilee 304 Stainless Steel Quick Release Strap

  • Need Something With Even Greater Flexibility? - Take a look at the Jubilee Zinc Plated Multiband Starter Kits.
  • Looking For Something Heavier Duty? - Check out the Stainless Steel Superclamps. These feature a broader band cross-section and a bridge that helps to distribute clamping force evenly.
  • Need Something Mild Steel? - Take a look at the Mild Steel Quick Release Straps.

Need Assistance Finding The Best Hose Clip For Your Needs?

Our experienced staff is ready to help you get the right tools to do a “strapping job”. We work with a wide range of fixing suppliers, so if you cannot see what you are looking for, just ask. You can contact Our friendly team on 01905 794 875.
