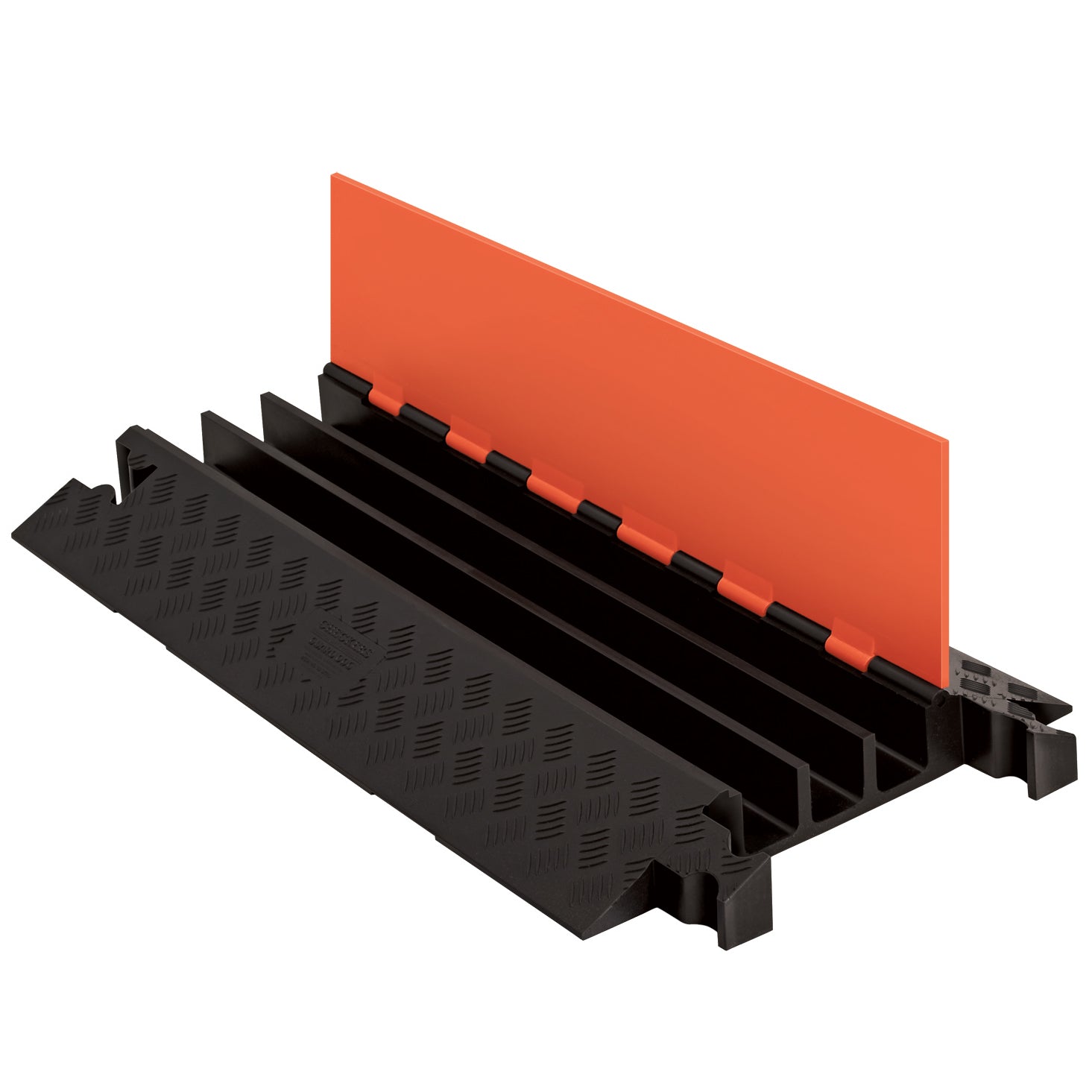

3 Channel Guard Dog Cable Protector GD3X225

This Guard Dog General Purpose Cable Ramp is ideal for protecting cables with an outside diameter of up to 57mm (2.25”). It can safely accommodate three cables or hoses up to this diameter and protect it from vehicle traffic weighing up to 6,446KG per wheel or 12,892kg per axle.

The ramp has a hinged lid that is reinforced, this makes placing cables into the ramp very easy. The design ensures that the cables or hoses placed within the Guard Dog cable ramp are adequately protected from the elements and passing traffic.

Each section locks to the next with “dog bone” connectors that provide a secure connection to the next unit. This modular construction makes the Guard Dog System very strong and adaptable to a multitude of roles.

Popular Applications for the Guard Dog 3 Channel;

• Amusement Parks
• Entertainment Venues
• Industrial Installations
• Construction Sites
• Temporary Installations
• Permanent Installations

Cannot see the Guard Dog Ramp You Need?

If you cannot see the cable ramp that you are looking for there is plenty more to choose from in our cable ramp category. This includes low profile ramps for wheelchair access and heavy duty linebacker ramps for large vehicles.

Have questions about the range?

If you have any questions or are struggling to find what you need then call our sales team on 01905 794 875, they will happily assist you in finding the right cable protection system for your needs.
