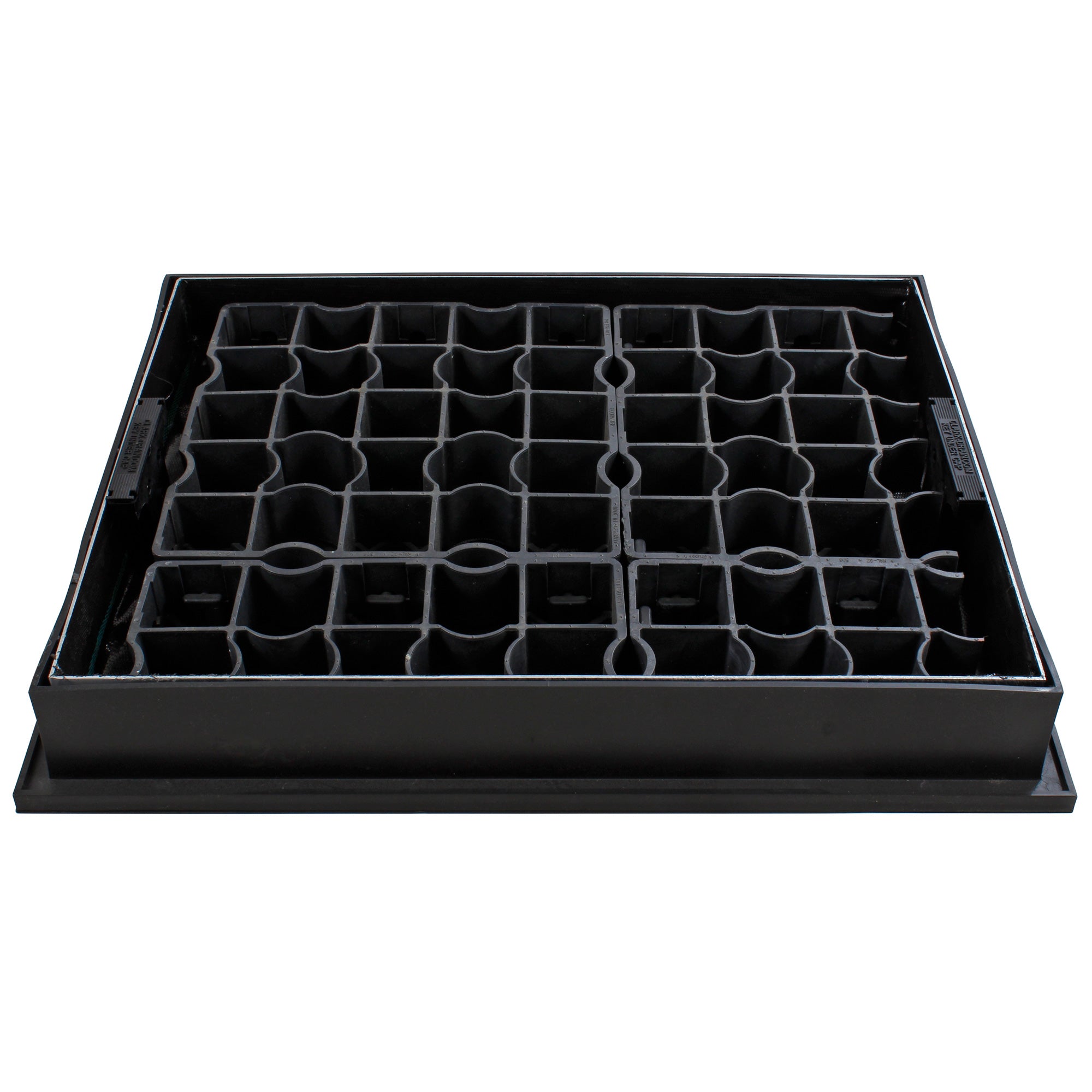

Similar to the GrassTop drainage covers, the EcoGrid Grass & Gravel Manhole covers allow you to disguise your drain cover letting it blend in with its surroundings such as grass, artificial grass, gravel or even permeable paving such as an EcoGrid E50. This inspection hole cover has the same permeable properties and factory fitted membrane as the GrassTop however this recessed cover also features a cellular paving grid allowing you to fill it with aggregate or soil allowing it to match the rest of your driveway, patio or pathway.
We supply this cover in a wide range of sizes starting with a square to round at only 220mm all the way up to 900 x 900mm for the larger drains and manhole openings All of the drainage covers in this range have a depth of 80 or 100mm which is a common size allowing it to accommodate most types of infill easily.
This drainage cover has a load-bearing capacity of 250 tonnes making it ideal for driveways and car parks. The tray for this cover is made with galvanised steel making it a corrosion-resistant, durable drain cover that can withstand vehicular traffic. For more unusual sized openings, we can produce bespoke, made to measure covers, if this is something you may be interested in please contact our sales team.
Each inspection cover is supplied with a factory-fitted membrane in the bed of the tray which allows you to fill the tray without worrying about blocking the drainage holes. Although the membrane covers the holes, it is permeable allowing water to evenly pass through the membrane and through the holes and out of the tray stopping any chances of flooding or surface water build-up.
These drainage covers are supplied with pre-installed paving grids allowing you to fill the cover with the aggregate. By using the same aggregate as the surrounding areas a seamless look can be achieved.
These inspection covers have pre-drilled drainage holes in the bottom of the galvanised tray meaning the tray will not fill with water killing grass or becoming a permanent puddle. The holes in the tray are spaced out equally helping the tray drain water with ease at a steady rate.
This particular model of inspection cover has integral keys on each end of the tray which allow the trays to be lifted out of their holes with no need for additional tools. The keys are located under the key covers which are removed by simply lifting the cover then pulling the key out of the housing, this allows for quick and easy access for inspection.
Two-part drain covers feature a durable tray surround made from polyethylene, this ensures the cover is properly located at all times. The cover itself is made from galvanised steel which is corrosion resistant and strong enough to take vehicle traffic. Sealing rings between the two components prevent any odours from drains escaping.
Inspection covers with fully galvanised frames and trays for maximum strength and stability.
Similar to this inspection tray but with a 100% polypropylene frame for more structural integrity.
A drainage cover with a permeable membrane allowing for grass to grow within the grid. So discreet you won't even notice it!
Cellular paving grids made to support a wide range of applications, from pathways to car parks, the Ecogrid paving grids can do it all.
An expanding connector used between paving grids to create curves in your pathways and patios.
There are many options available in this range, so we understand if it's a bit confusing. Fear not, our helpful sales team are ready and waiting to help you make an informed decision on the right drainage cover for you. You can call them on 01905 794 875 during normal office hours Monday to Friday.
