Product code: 13764-1-1

Unofficial Car Charging Logo Thermoplastic Paint Variant 1

Start Traffic

View the product details

£71.42 excl. VAT

£85.70inc. VAT

Buy in bulk and save

5 or more £69.28 excl. VAT
5 or more £83.14 inc. VAT
10 or more £67.85 excl. VAT
10 or more £81.42 inc. VAT

Dispatches in 1-3 Days

Colour: White

Size guide

White
Yellow

Background Colour: None

None
Black
Blue
Green

Returns are restricted on this item

Call us for bulk quantities (0)1905 794875
Made to order: This product is made to order and, therefore, has a restricted returns policy. Please see our returns policy for more details.

You may also need the following:

£71.42 excl. VAT

£85.70inc. VAT

Thermoplastic Car Charging Symbol

This Car Charging bay marker is an "unofficial" marker, meaning it cannot be used on the public highway. If you were looking for a marker that you can install on the public highway and that is recognised by the department of transport then check out the S65 Marking.

If you are installing these markings on a private office car park, petrol station, school, university or similar you have the freedom to choose from the "unofficial" list of charging markers.

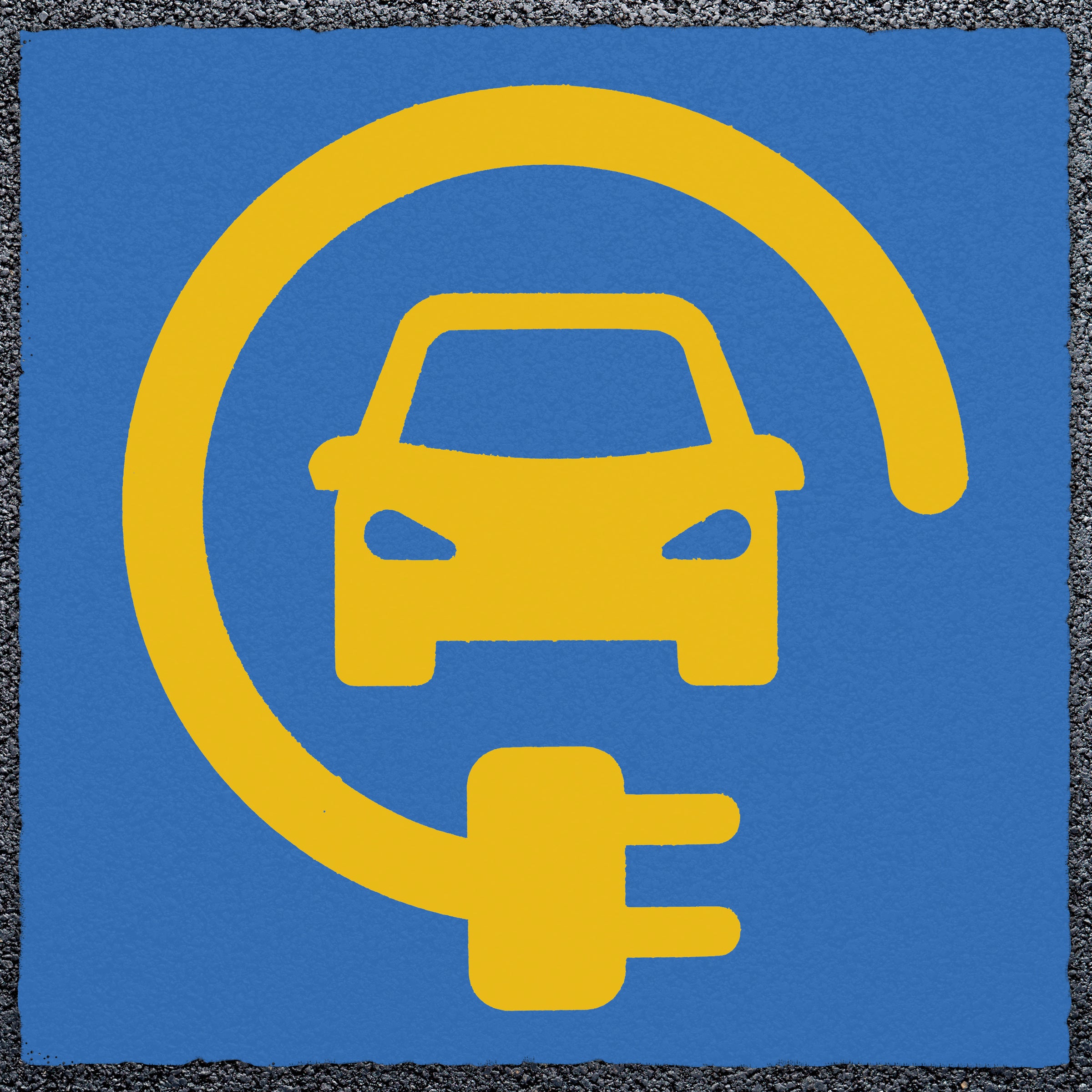

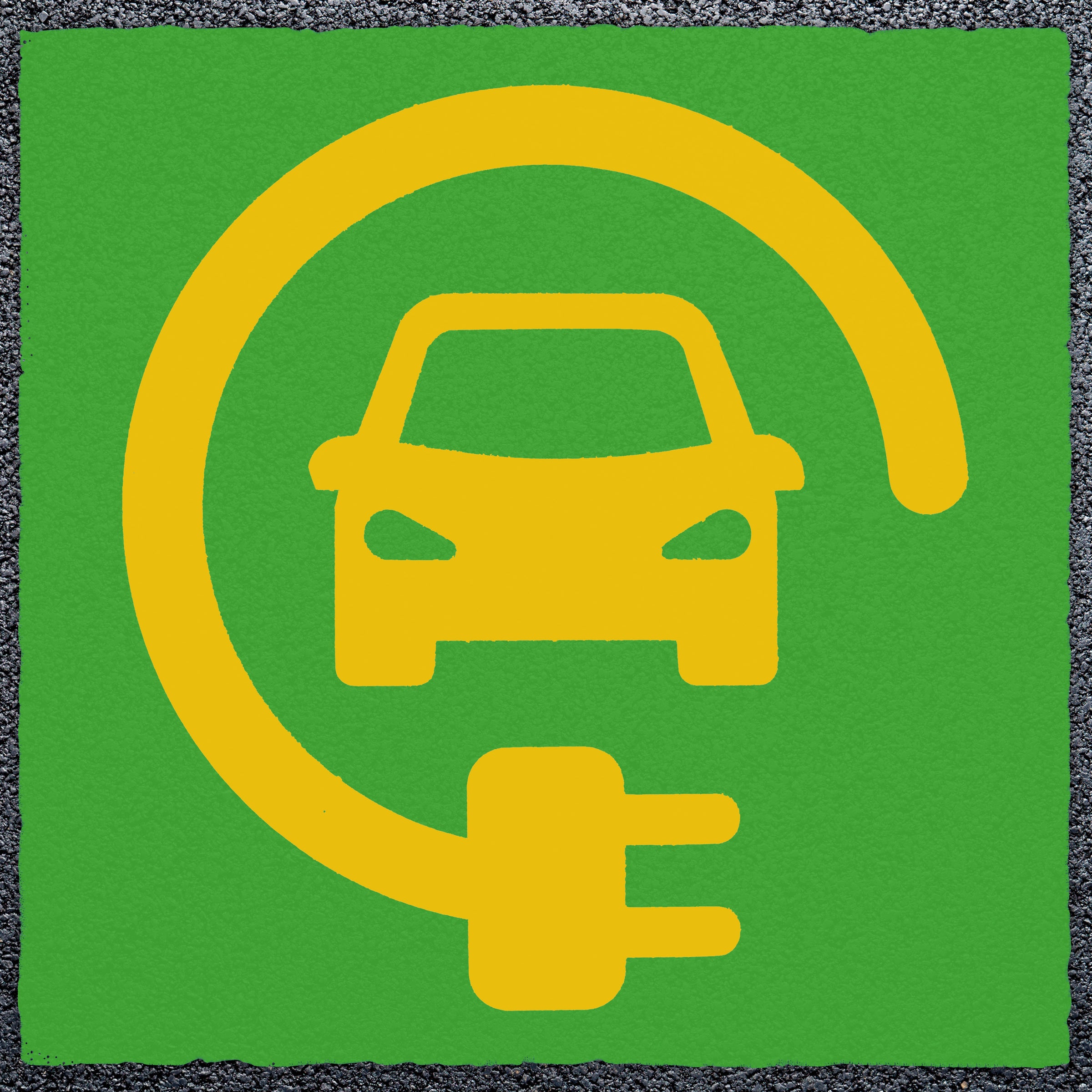

All of these markers are available with white or yellow symbols and a choice of background colours (or none at all).

Colour For This Marking

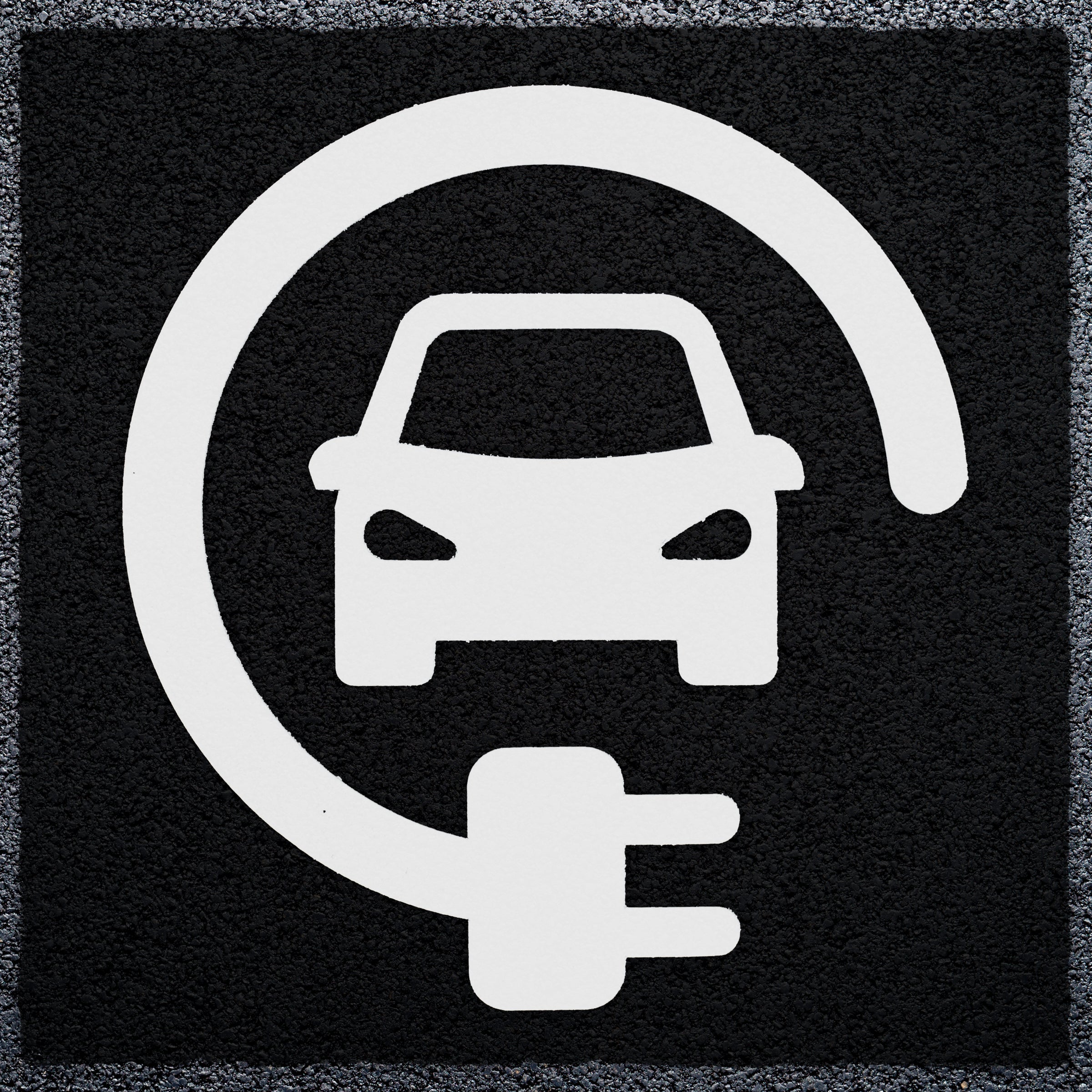

The official charging symbol should be a white logo on a black background. However, on private property almost any colour combination can be used. We have included above the most popular options.

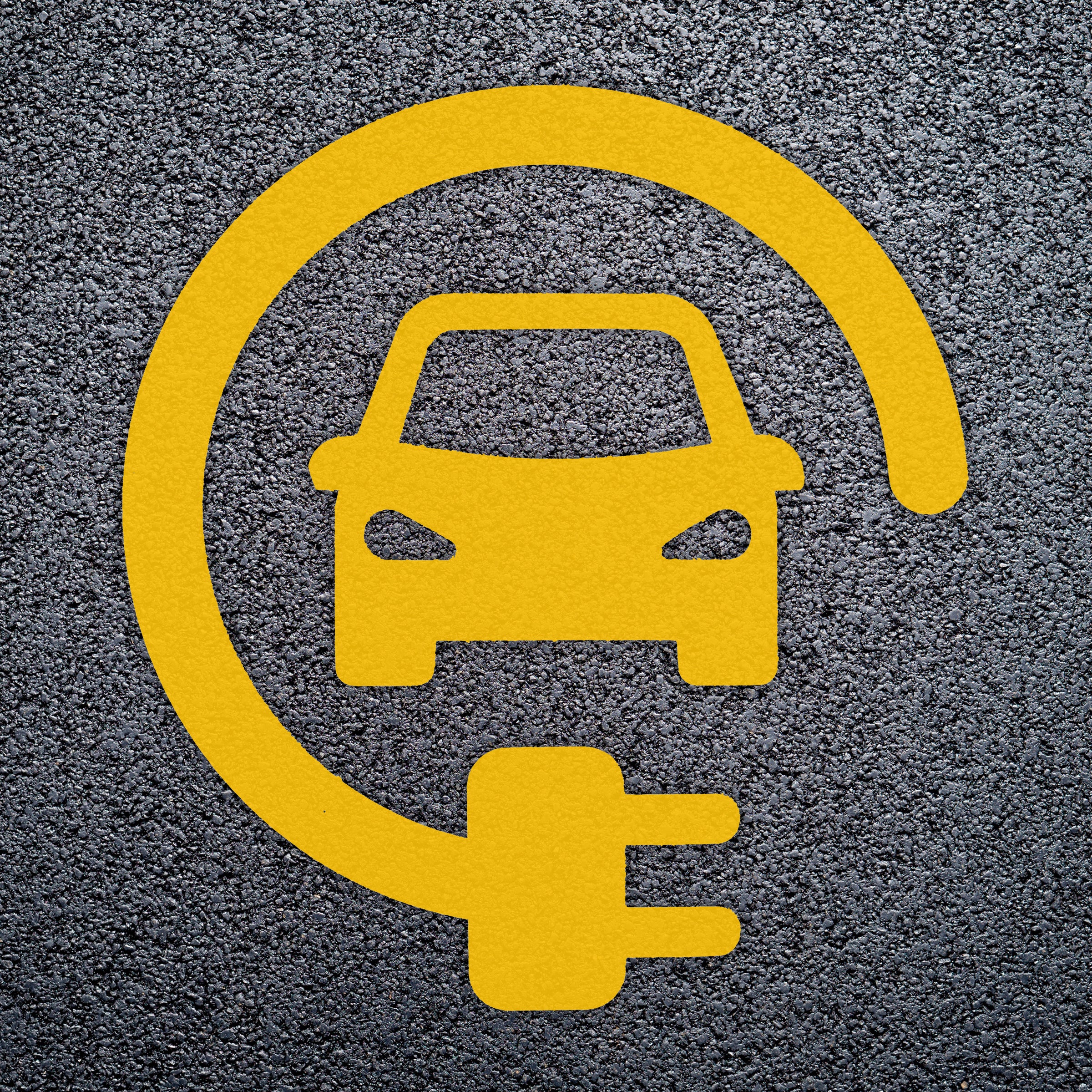

If choosing the “none” option for the background colour you will not receive any “background” material, so the colour of the road/tarmac etc will show through.

Different colours available in Thermoplastic

Primer is available in either 400ml aersol cans or larger 5l tins

Don’t forget your Primer

If you are applying this to anything other than brand new tarmac you will likely require a primer. This is available to purchase separately in both 5-litre containers or 400ml spray cans.

Glass Bead

To ensure that the logo and the background are non slip glass bead should be used. We sell this in small bags suitable for increasing the traction underfoot for the logo and its background.

Propane Gas Burner

To heat the material and properly adhere it to the surface of the road you will require a propane gas burner. We have these on the shelf ready to ship.

Alternative Electric Vehicle Charging Markers

We offer an array of alternative designs which can be seen below, these include logos for forklift charging and many others. These are only suited for use on private non-highway applications as they do not conform to the department of transport regulations.

Official S65 Marking

Alternative Marking 2

Alternative Marking 3

Forklift Charging Logo

I Have Questions About This Thermoplastic Car Charging Marking!

No problem, give our sales team a call on 01905 794 875, they will happily assist you with any questions that you may have regarding the installation, use and requirements of this symbol.

FAQs

How to remove pre-existing road markings

Thermoplastic

Removing Thermoplastic can be done a few ways. With enough pressure a water blaster can be used, or a sandblaster. Other ways include using a lance. The Compressed air will burn off the material. Or depending on if you have the kit available, use a scabbler. It will act as a sort of Jackhammer and break apart the material away from the road surface. In situations where the material is heavily trafficked and worn down closer to the substrate, removal is not necessary, and fresh Thermoplastic can be applied over the top. If the material still has a lot of body or a good level of thickness to it, removal is to be carried out first.

MMA/EPOXY

Strong solvents may not be useful for larger quantities of MMA that may be required for Road Markings. Some sort of abrasion or grinding equipment would be required for a material as durable as MMA/epoxy. It will wear the material down to the underlying substrate, ready for re-applying fresh product.

How to identify pre-existing road markings

Thermoplastic road markings will be softer and can be chipped and carved away with force with a hand tool, such as a screwdriver or chisel. If you can remove a small amount, test with a small flame from a lighter and see if it melts/becomes fluid. If it does, this implies it is a thermoplastic marking.
MMA material is much tougher, and the curing process cannot be reversed. It will remain solid and should not be exposed to elevated temperatures as it gives off toxic odours when burning. Due to its higher durability, you should not be able to carve or pry it away using a hand tool.
Other markings, such as paints or coatings, are harder to identify, as they come in different forms, such as oil-based, water-based, and epoxy paints. In these situations, it is advised that disclosure be requested from the client. In any scenario of uncertainty, consult with the client and gain their insight regarding the pre-existing markings that are present.

Can you install these markings on block paving?

We cannot guarantee the results of laying thermoplastic markings on block paving. This is due to the moisture often present between each block and the movement the blocks experience in relation to each other as traffic passes over them.
