Arrow Left Sign QuickFit EnduraSign Drop Supplementary Plate Dia 573 | 870x275mm (face only)

Product code: 15659-WB-P

Start Traffic

View the product details

£6.61 excl. VAT

£7.93inc. VAT

Buy in bulk and save

10 or more £6.28 excl. VAT
10 or more £7.54 inc. VAT
20 or more £5.95 excl. VAT
20 or more £7.14 inc. VAT

In Stock

Title: Default Title

Default Title

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

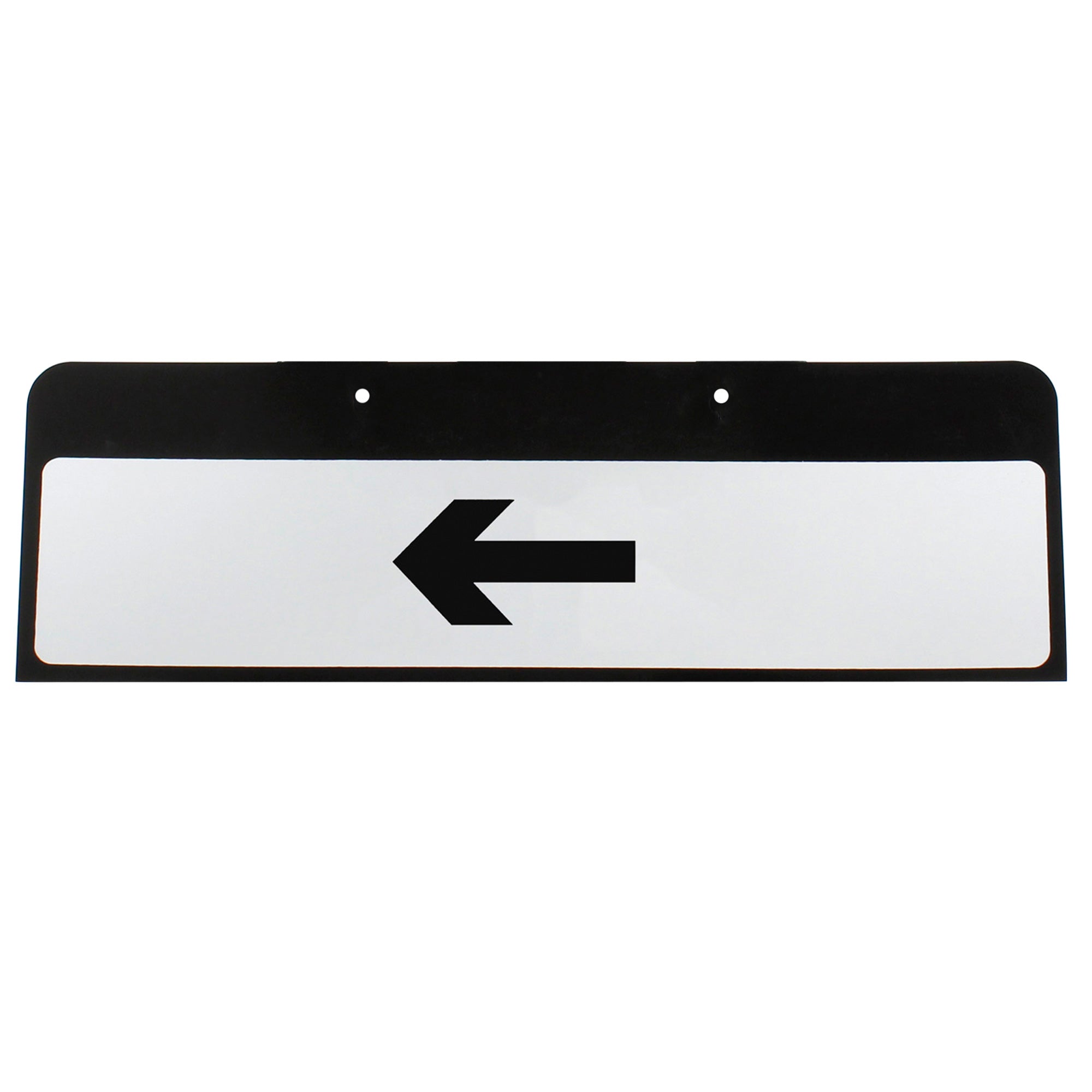

Arrow Left QuickFit EnduraSign Supplementary Plate 573

Our Arrow Left 573 QuickFit Endurasign Supplementary plate is compatible with our all-new range of QuickFit EnduraSigns. It is not recommended for use with any frame other than the EnduraSign Frame. This directional arrow sign can be used to indicate that a hazard or works are occurring on a side road or in a particular direction.

This “Drop Sup” hangs on the lower pegs of the EnduraSign frame with the main sign face being placed over the top. For this reason, the top portion of the sup plate is black as it is hidden from view.

This high-quality sign face is made from 2mm plastic with an RA1 reflective vinyl film applied to ensure it can be seen just as easily as the main plate used with it. We only recommend using this plate with triangular faces on a QuickFit Endurasign frame.

Key features

Interchangeable Faces

Each frame has toggles at 300mm centres. This allows any standard quickfit sign to fit with ease. No longer is a sign written off once the face becomes worn or scratched. Spare faces are available off the shelf from Start Traffic.

Completely Compliant

Of course, these signs meet all requirements for road signs to be used on the road. With Class 1 RA1 reflective faces and proper ground clearance, these signs meet all requirements of The Red Book.

Stacking Design

Save space in storage and in transport. This sign can be stacked flat, or stood up, with and without faces applied. Each frame locks onto the next making the EnduraSign QuickFit very stable and easy to transport.

Compact Format

At only 50 millimetres tall when laid flat, this sign takes up less space than other sign formats. This frees up space for tools and other equipment, especially important in smaller utility works vehicles.

Lightweight

At only 2.8 kilos the QuickFit EnduraSign will not add excessive weight to vehicles saving 3.85 kilos per sign when compared to its nearest counterpart. Are your current road work signs weight-efficient?

Ergonomic Design

A ‘handy’ handhold at the top of the sign makes caring easy, unlike traditional steel frames these signs have no sharp edges making cut hands a thing of the past. Several units can be carried at once with ease.

Spare Parts Available

All parts including the frame, toggles, and faces are available separately so a damaged part does not mean the whole sign is written off. We carry stock of all components saving you money and reducing waste.

Ballast Options

Compatible with standard sand bags, or with the specially designed EnduraSign Ballast. This special weight can be stacked to increase wind resistance drastically. It is also compatible with metal frames.

High-Quality Sign Faces

High quality printed vinyl sign faces with RA1 reflectivity on a 3mm plastic backing means that these signs are not only easy to see in the dark, they are also hard-wearing and cost-effective.

Fast Deployment

A kick-out leg allows this sign to be deployed in seconds, making it instantly stable, needing only ballast. Signs can be stored and transported, stacked with faces attached for even faster deployment if required.

Ultra Tough

The QuickFit Endurasign is flexible and highly durable by design. It will flex rather than snap, it can withstand being dropped from a height and being run over and still get back up to fight another day.

100% Recyclable

At the end of its useful life, you can recycle any worn out parts. Start Traffic works with all manufacturers of components within the QuickFit EnduraSign, which use these to create brand new products.

Brand It Your Way

Want your sign in your company colours, No problem! We can brand your frames with your logo, and have them made entirely in a different colour. This is a great way to stop other contractors from scooping them up. Customised frames require a minimum of 150 units and will require an additional 4 weeks lead time.

Non-Conductive

With a fully plastic frame and face, these signs are non-conductive, making them safer for use around live cables. The construction also means the signs have no scrap value making them less tempting to scrap metal thieves.

EnduraSign Frame

This drop sup will work perfectly with the QuickFit Endurasign frame.

Q-Frame Plastic Quick fit Frame

For this frame, you will need Standard Quick Fit Supplementary Plates.

Quick-Fit Mini Frame

For this frame, you will need Standard Quick Fit Supplementary Plates.

Stand The Toggles Up

Stand the toggles up in the unlocked position.

Place the drop sup on the bottom two toggles

Place the drop sup on the bottom two toggles on the EnduraSign frame and leave them open.

Place The Triangle Sign Face Over The Four Toggles

Place the triangle sign face over the four toggles and lock them securing both sign faces on the frame.

Compatible Sign Faces For The Drop Sup

Due to the height that the quick fit faces sit on the frame, these drop sup plates are only compatible with 750mm Triangle faces. The Circle faces, 600 x 450, 1050 x 450 & 1050 x 750 faces will overlap the supplementary plate and will hide the message on the signs causing the important message to be missed by road users.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

Ballast Requirements for Windspeed Categories

Refer to this guide to determine the amount of ballast/weight required for your sign faces to meet BS 8442:2015 Miscellaneous road traffic signs and devices requirements.

Assembled Signface	C: 8.7m/s (19mph)	B: 17.6m/s (39mph)	A: 26.3m/s (58mph)
750mm Triangle	None	8kg / EnduraSign Ballast: 1	22kg / EnduraSign Ballast: 3
600mm Square	None	7kg / EnduraSign Ballast: 1	21kg / EnduraSign Ballast: 3
750mm Circle	None	5kg / EnduraSign Ballast: 1	17kg / EnduraSign Ballast: 2
1050 x 750mm Rectangle	None	13kg / EnduraSign Ballast: 2	36kg / EnduraSign Ballast: 4
600 x 450mm Rectangle	None	4kg / EnduraSign Ballast: 1	13kg / EnduraSign Ballast: 2
1050 x 450mm Rectangle	None	7kg / EnduraSign Ballast: 1	20kg / EnduraSign Ballast: 2
750mm Triangle + Supplementary plate	None	9kg / EnduraSign Ballast: 1	26kg / EnduraSign Ballast: 3
