Armco Barrier Rigid Internal Corner Kit (Starter Kit)

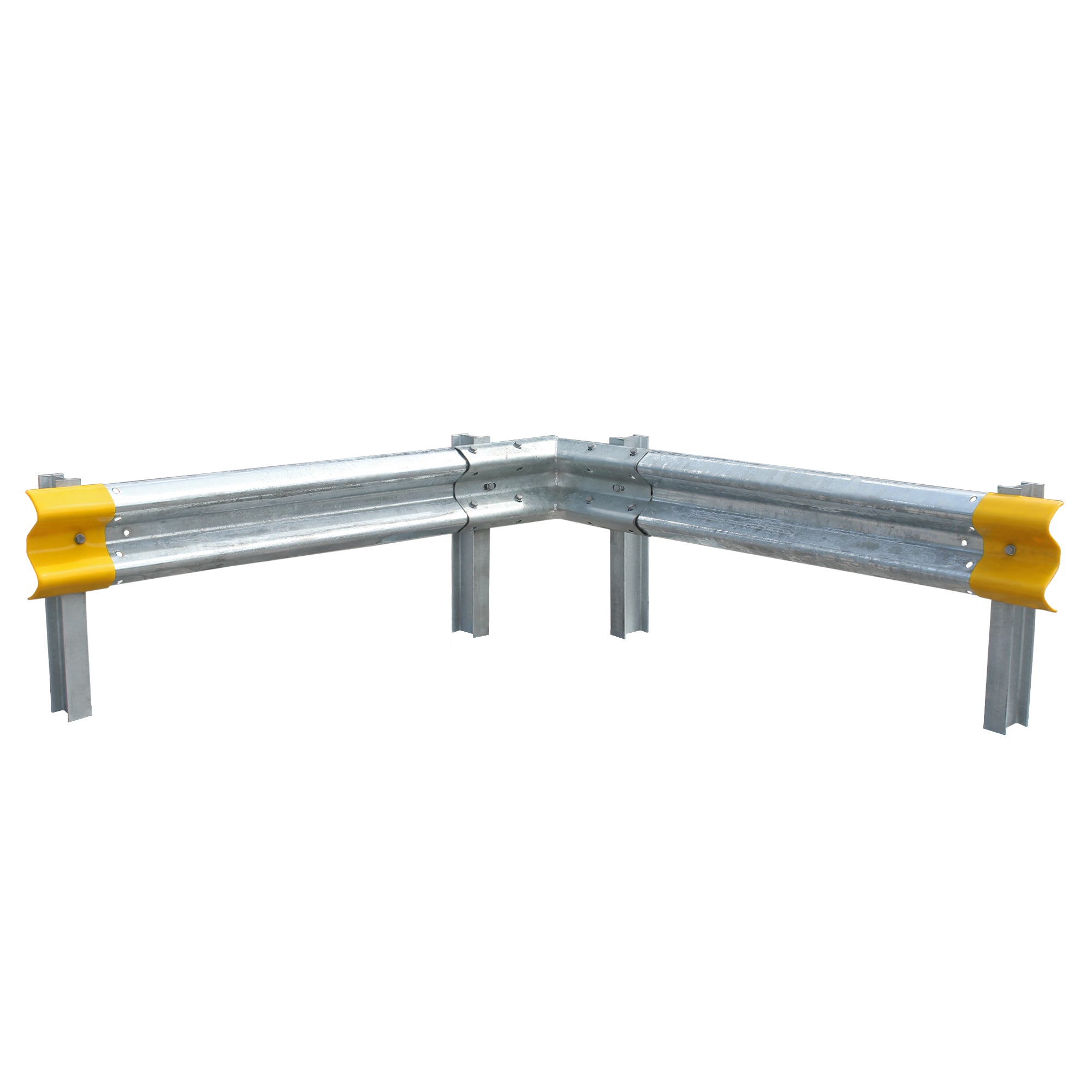

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Yellow Cap / Cast In RSJ Section)

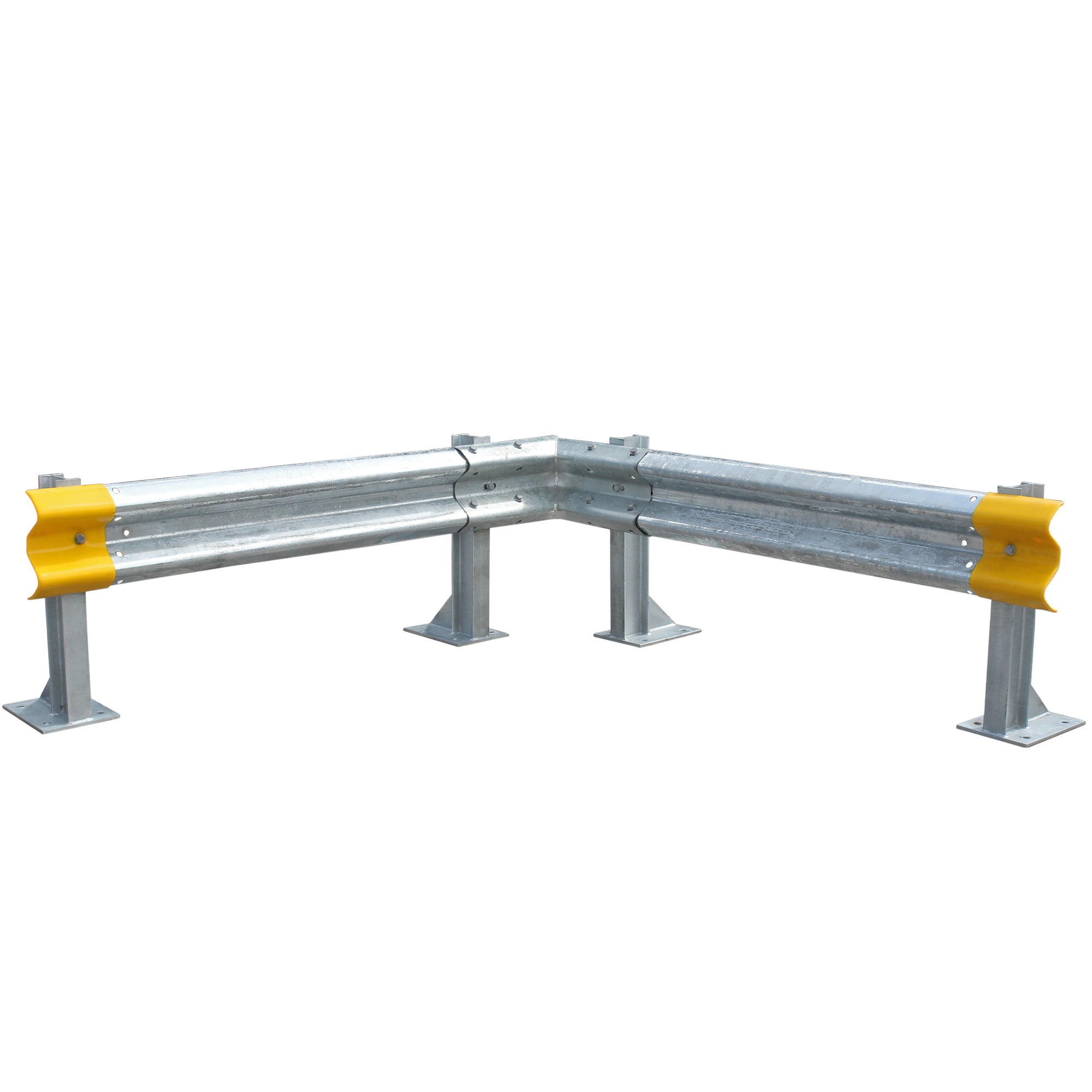

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Yellow Cap / Bolt Down RSJ Section)

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Fishtail End / Cast In Z-Section)

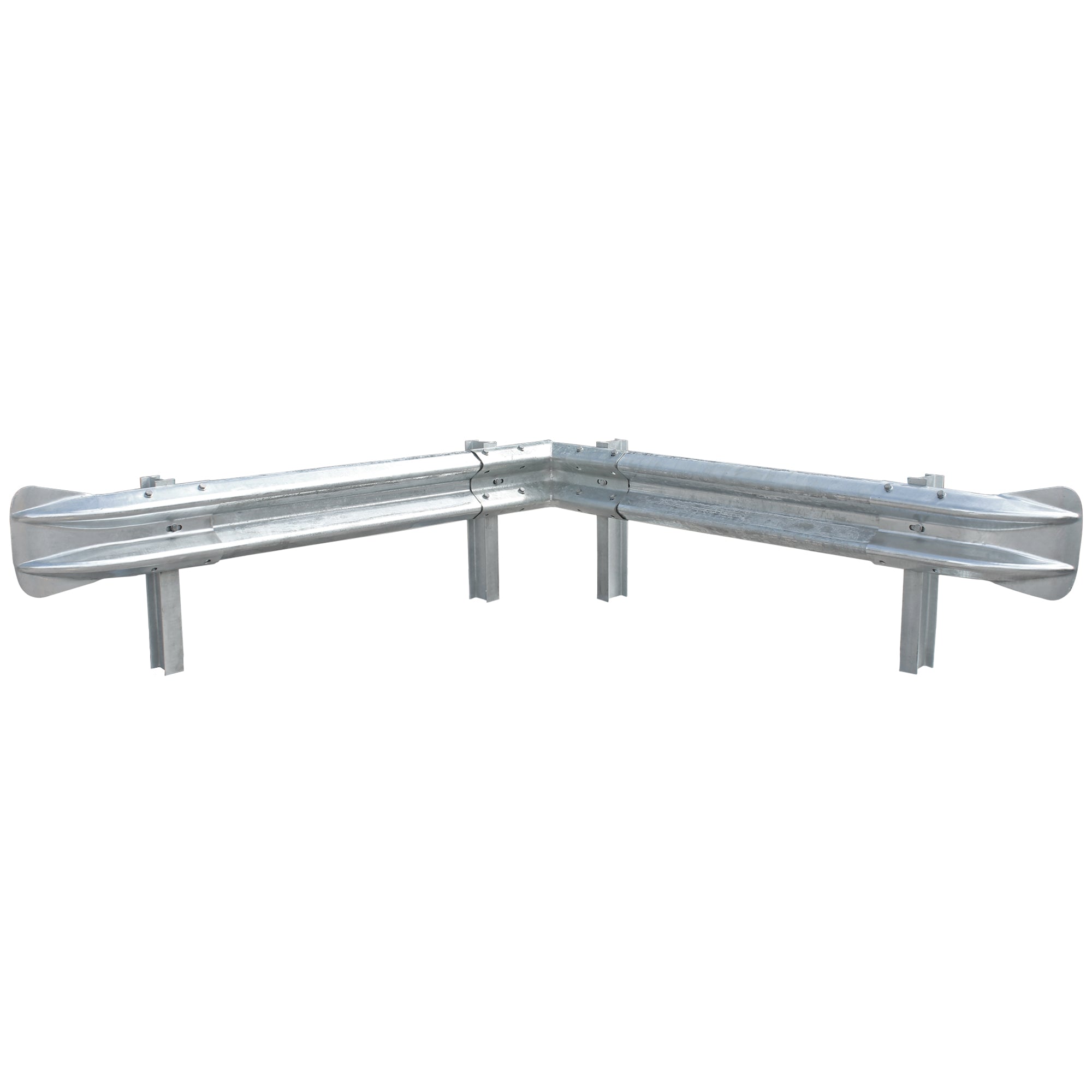

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Fishtail End / Cast In RSJ Section)

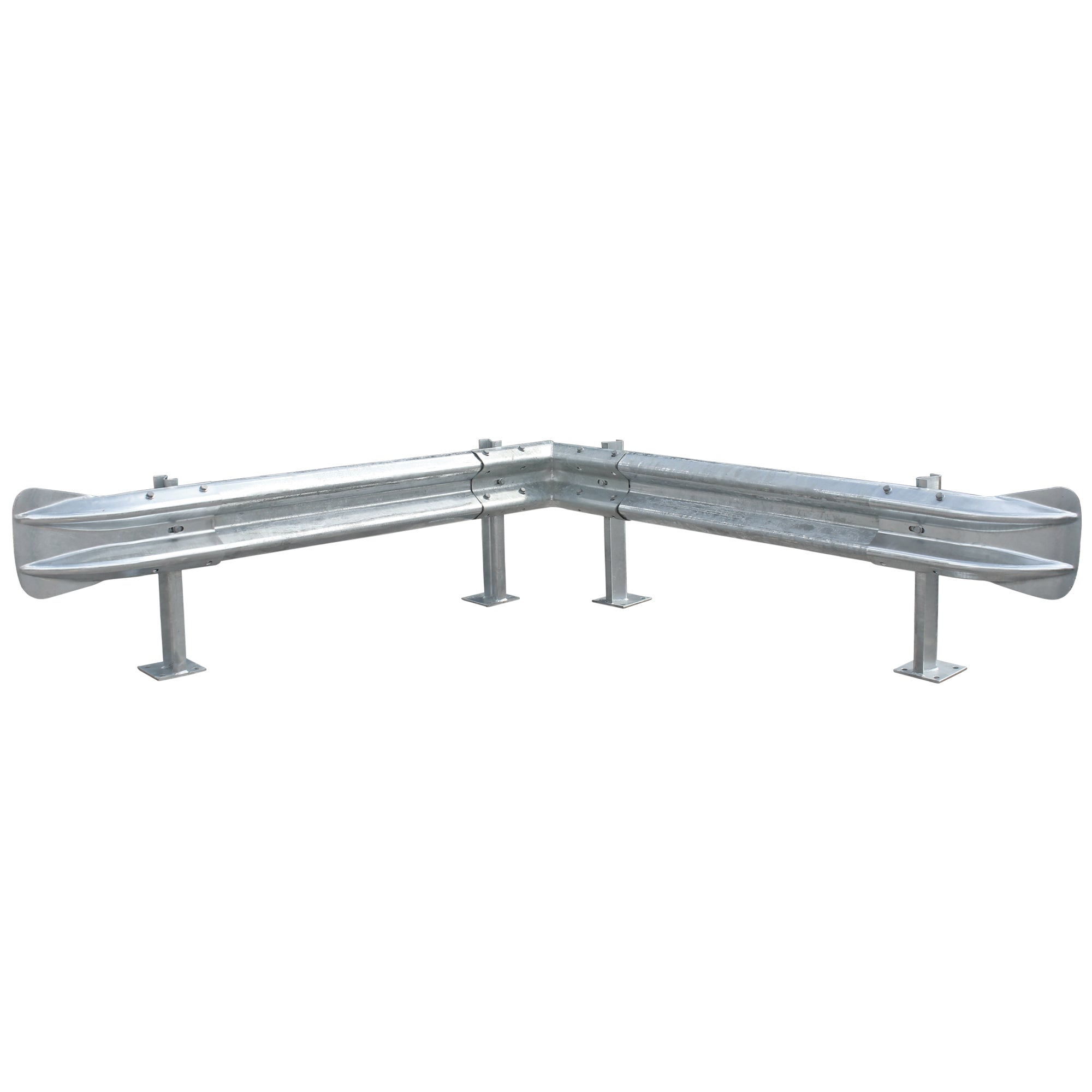

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Fishtail End / Bolt Down Z-Secton)

Armco Barrier Rigid Internal Corner Kit (Starter Kit) (Fishtail End / Bolt Down RSJ Section)

Armco Barrier Rigid Internal Corner Kit (Starter Kit)

Product code: 15544-YE-CZ
Start Traffic
In Stock

£314.32 excl. VAT

£377.18inc. VAT

Armco Kit End Cap: Yellow Cap

Yellow Cap
Fishtail End

Armco Leg Type: Cast In Z-Section

Cast In Z-Section
Cast In RSJ Section
Bolt Down Z-Secton
Bolt Down RSJ Section

Specification

Size guide

If you’re looking to order large quantities, call us on (0)1905 794875 for more information.
View the product details below to learn more about this product.

This product also works with the following:

Armco Barrier Rigid Internal Corner Kit - Starter Kit

This internal corner kit uses a rigid mitred internal corner to produce a fixed 90 degree angle, that is suitable for use inside warehouses or factories to protect external walls from vehicles inside. It can also be installed in car parks both indoor and outdoor to protect boundaries and structures.

The kit comes complete with all fixings required, including those to bolt the structure together and those needed to bolt the assembly to the ground if you are using bolt down posts. The kit includes two 1.6 metre Armco beams which with the addition of our extension kit can be extended to any multiple of 1.6 metres longer.

This kit like all our Armco beams, posts and corners is made from high-quality components that have been made with good quality materials and machined to a good standard, allowing for an easy installation.

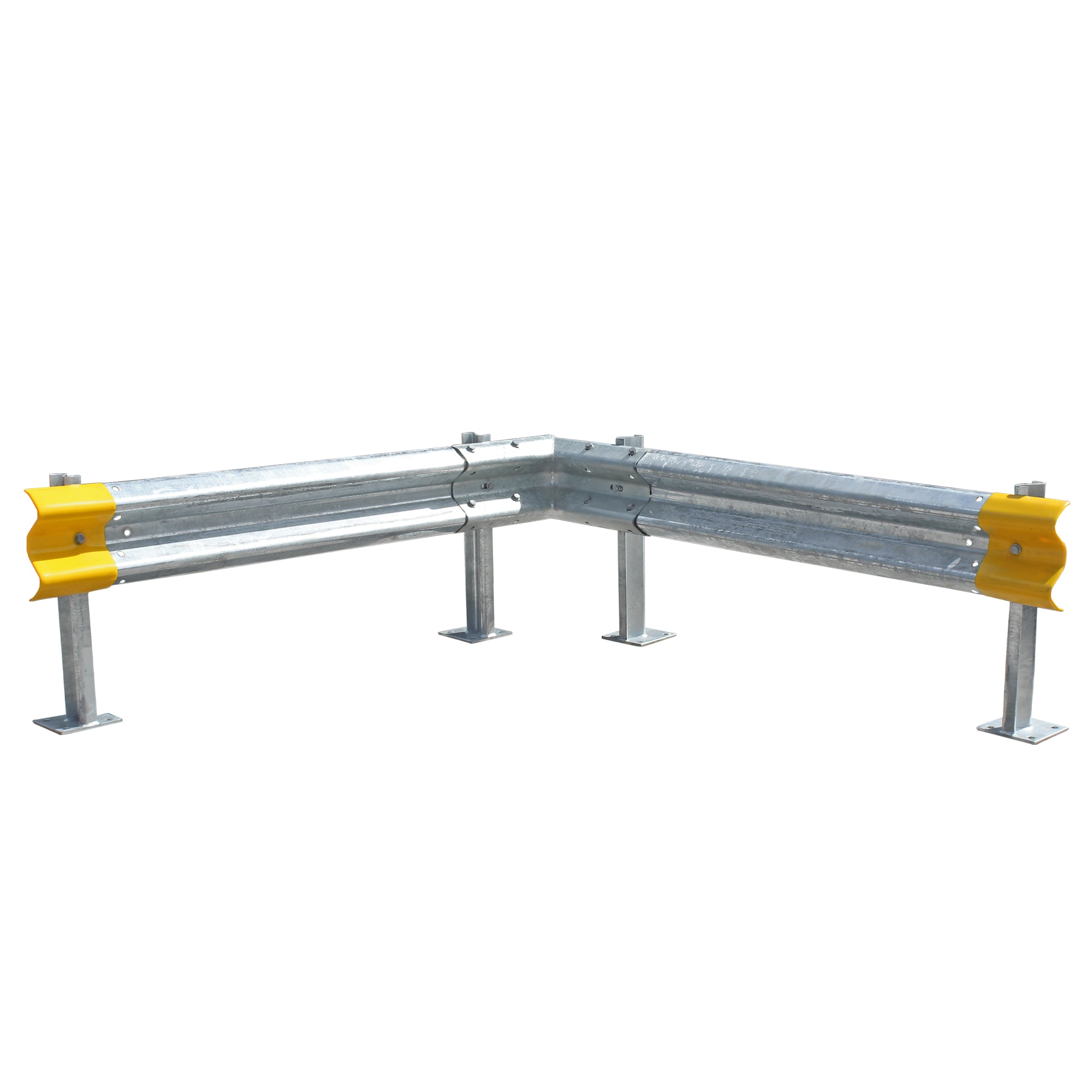

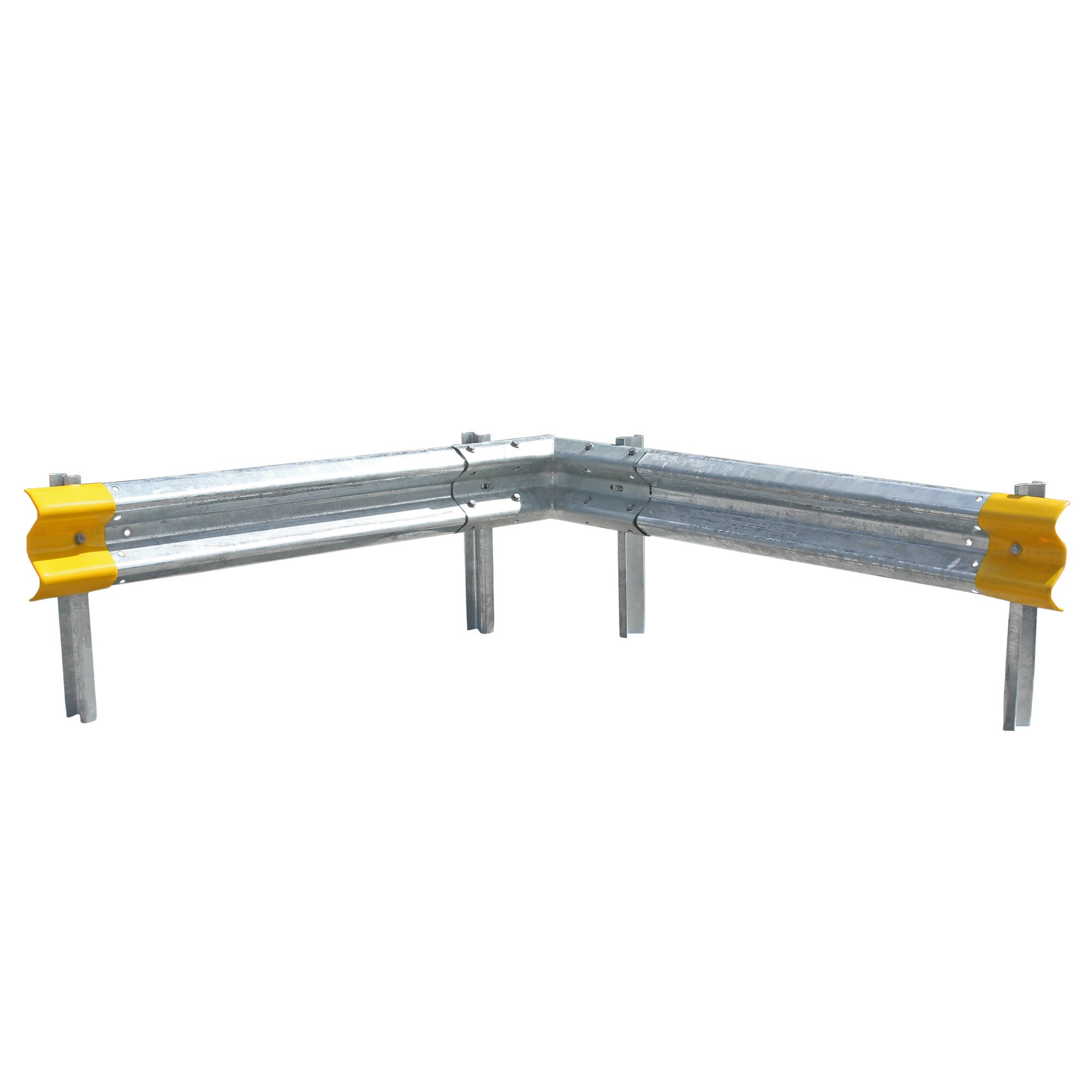

Internal Rigid Armco Corner Kit With Yellow Ends

Close Up On Fixing Bolts Being Adjusted ON Armco

Key Features Of Our Armco Rigid Internal Corner Kit:

Comes Complete With All Fixings - Including lap bolts, post bolts and ground anchor bolts (for kits where a bolt down Armco post has been selected).
Compatible With Our Armco Extension Kit - Allows you to easily extend one or both sides of this corner kit.
Includes High-Quality Components - As with all our Armco kits they include only the best high quality, hot dip galvanised steel components.
Makes Armco Easy - Armco installations can be difficult to get your head around but with our kits it is easy. We are also here to help if you get stuck.
Suitable For Off-Highway Use - All our Armco equipment is perfect for off-highway use in warehouses, car parks, distribution centres for providing protection against vehicular impact.

Choosing The Right Leg For Your Armco Kit

Leg Fixing Method

Cast in / Dig in - These are concreted into the ground using post-mix or a similar material. They are ideal for use when fitting the barrier into a soft substrate (such as grass) along the edge of a car park.
Bolt Down - These are great for those who want to use the barrier on hard standing such as concrete, if fitting onto tarmac you will need to cast concrete footings for the posts to be secured to. The posts are fitted by drilling holes into the surface and bolting down the barrier.

Leg Section Type

Z-Section - Comes in at a lower price and offers more deflection than an RSJ beam. Is ideal for areas where there is plenty of space behind the barrier.
RSJ Section - A much stiffer heavier duty leg that deflects less, more suitable for areas where space behind the barrier is tight.

Choosing The Right End Caps

Yellow Cap- These are great for improving the vibrancy of the barrier and ensuring it is seen by pedestrians and vehicles. They are also very cost-effective.
Fist Tail End- These are used to deflect the edge of the barrier away from the main flow of traffic. They are great for putting at the end of a barrier run where traffic may be turning a corner. If purchasing a fishtail end more fixings will be included in the kit.

If you require any other end cap in your installation please do not hesitate to contact us for information on our bespoke kits.

Dimensions & Component List

How many components you will receive in this kit and the overall footprint of the kit will depend on the options selected. Below table includes details of what is included in each individual kit.

Leg Type	End Cap Type	Fixings
Cast In	Yellow End Cap	Post Bolts - 4 Lap Bolts - 16
Cast In	Fish Tail Ends	Post Bolts - 4 Lap Bolts - 24
Bolt Down	Yellow End Cap	Post Bolts - 4 Lap Bolts - 16 Anchor Bolts - 16
Bolt Down	Fish Tail Ends	Post Bolts - 4 Lap Bolts - 24 Anchor Bolts - 16

Other Armco Kits In This Range

Armco Starter Straight Kit With Yellow Ends And Bolt Down Z Section Posts

Armco Straight Kit

This is our most basic “full” kit, it includes everything you need including ends of your choice to make a clean straight Armco barrier install.

Armco Corner Kit External Rigid

Our external corner kit is ideal for surrounding external building corners or machinery. Providing protection from two faces.

Armco Extension Kit

This kit can be used to extend any of our “starter” kits adding 1.6m of length to any installation.

Armco Enclosure Kit

A kit to enclose around oil tanks and other equipment in warehouses and distribution yards. Includes three rail sections and two external corners.

Has Armco Barrier Got You Stuck In a Corner?

If you need help getting the right Armco kit for your requirements then please do not hesitate to contact our expert customer service team. Our friendly staff are here to help you get the right barrier system for your needs at a price that fits your budget. We have many options and can help you navigate the range to ensure you get the ideal solution for your requirements.
