Cycle Symbol Marking Diagram 1057 Thermoplastic

This bike road marking is used to indicate that an area is part of a cycle route, this could be both on-road or off-road in cyclists only areas. For use on road, this symbol is most commonly seen along the road’s edge where a specific area is designated for pedal cycles. You will also commonly find this symbol at traffic lights in front of the stop line, indicating a safe area designated for cyclists to stop at lights.

This marking is part of a larger range of cycle route signage and permanent thermoplastic road markings that we have available to purchase.

The recommended spacing for this symbol depends on its location there is some handy information from transport for London which can be found here. http://content.tfl.gov.uk/lcds-chapter6-signsandmarkings.pdf It is advised that this marking is placed at road junctions where a cycle lane is present and drivers of motor vehicles need warning of cycles.

Dual-Colour

If you want this symbol with a blue background this is the option for you. Please note that these signs have no legal standing and should be used for cycle-specific areas only.

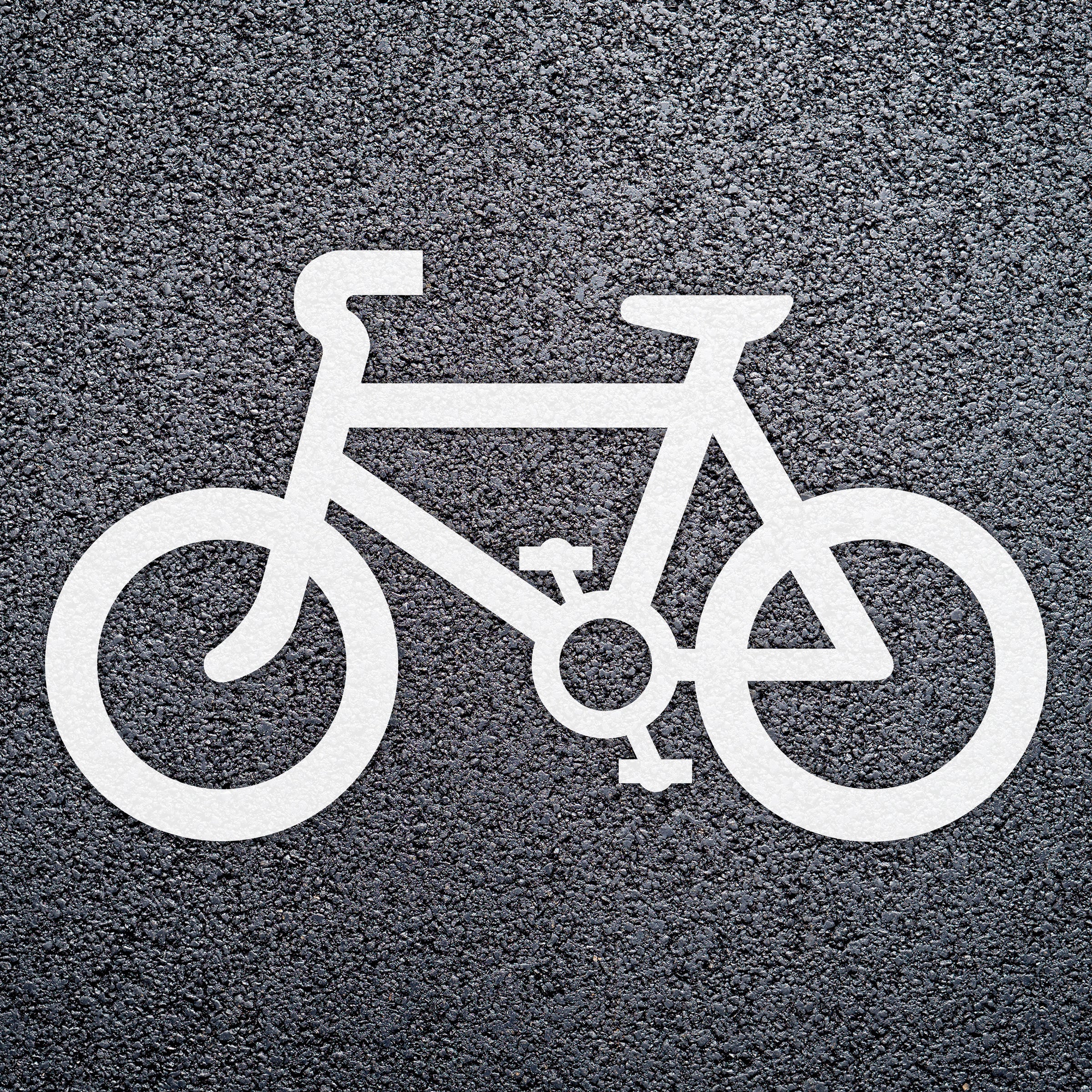

MonoChromatic

These markings only use white and have no background to them. These are used for on-road cycle routes and repeater markers.

Choose From An Array Of Sizes

Depending on the application you may require an array of cycle route marking sizes. We can provide any size required, but keep an array of “standard” sizes ready to go.

Applying Cycle Symbol 1057 In Thermoplastic

Applying our cycle symbol markings is very easy. Firstly the area must be cleaned of all loose debris, oil, grease and salts. Once this is done you are ready to get going. If your road surface is old tarmac, concrete or block paving then you will need to use our fast-drying primer.

Once you have fully prepped the surface the marking can be set out. Once you are happy with the marking positioning a heat gun can be used to melt the marking to the road surface. For additional traction glass bead can be sprinkled over the surface, this is fused into the marking with the further application of heat.

Thermoplastic On Block Paving

Thermoplastic on block paving is known to be more difficult to apply and has a substantially shorter lifetime than on bituminous surfaces, such as tarmac.

Block paving is not a solid structure. Most of the time, they are put down and sand is added into the grooves, so over time when moisture creeps in as well as moss, movement can be made within 2 blocks, making the material crack and fail.
