View the product details below to learn more about this product.

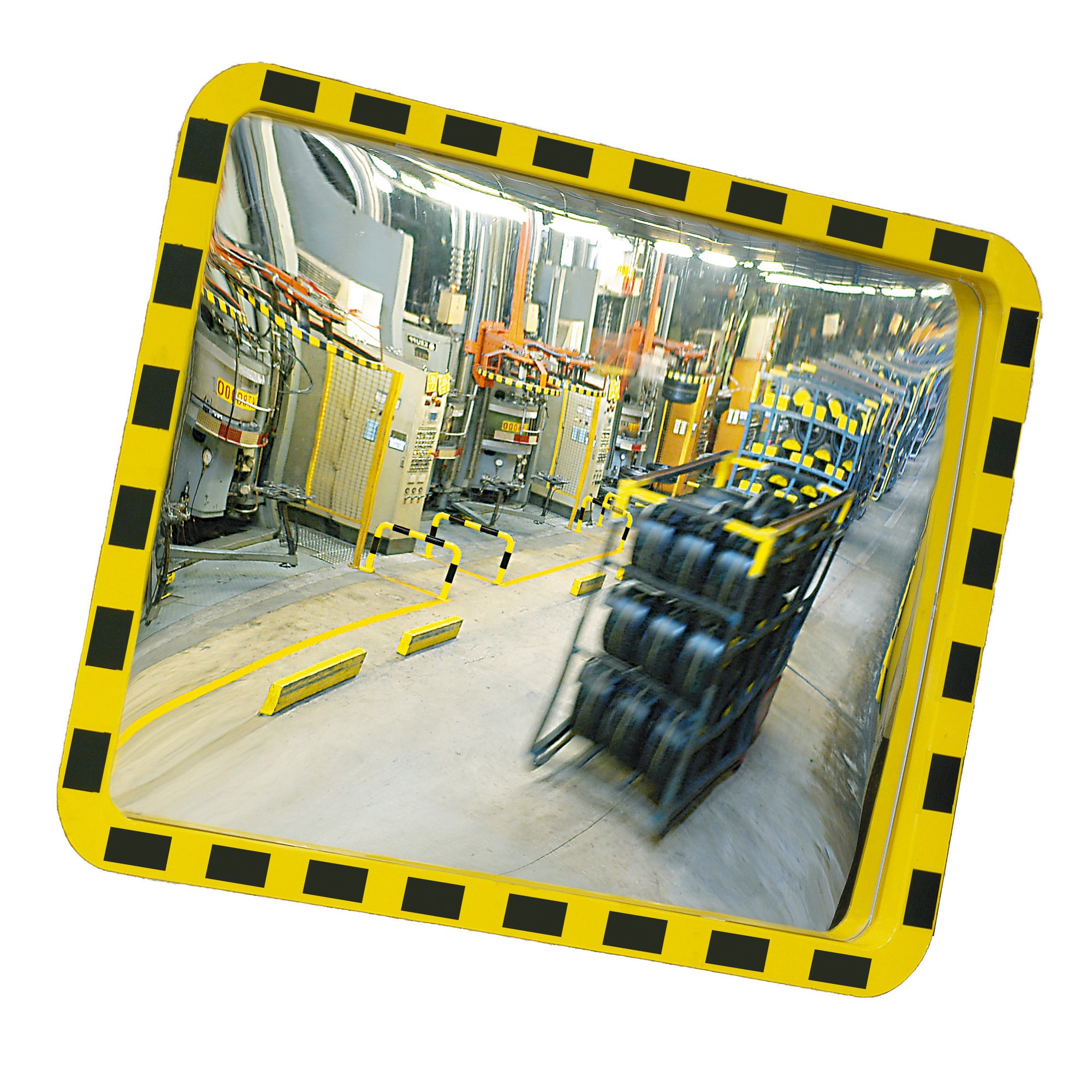

The View-minder mirror is a convex mirror with a striking yellow and black surround that grabs attention and makes it stand out against racking and machinery. This mirror can be used in a variety of roles and is suitable for use both inside and sheltered outdoor use.
The mirror is made from shockproof acrylic which protects a metalised coating. Combined with the uniform curvature of the mirrors face the View Minder produces a clear and defined image.

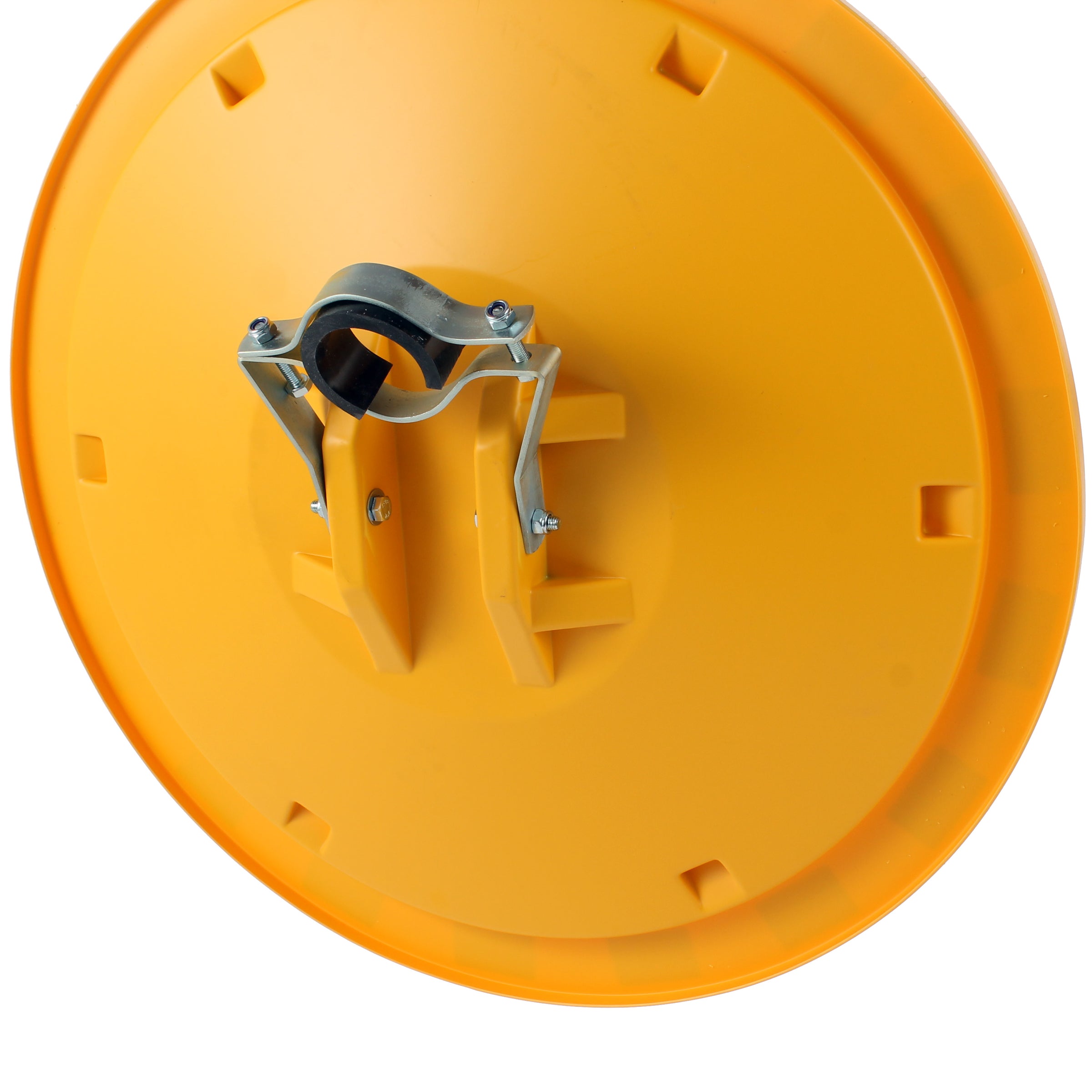

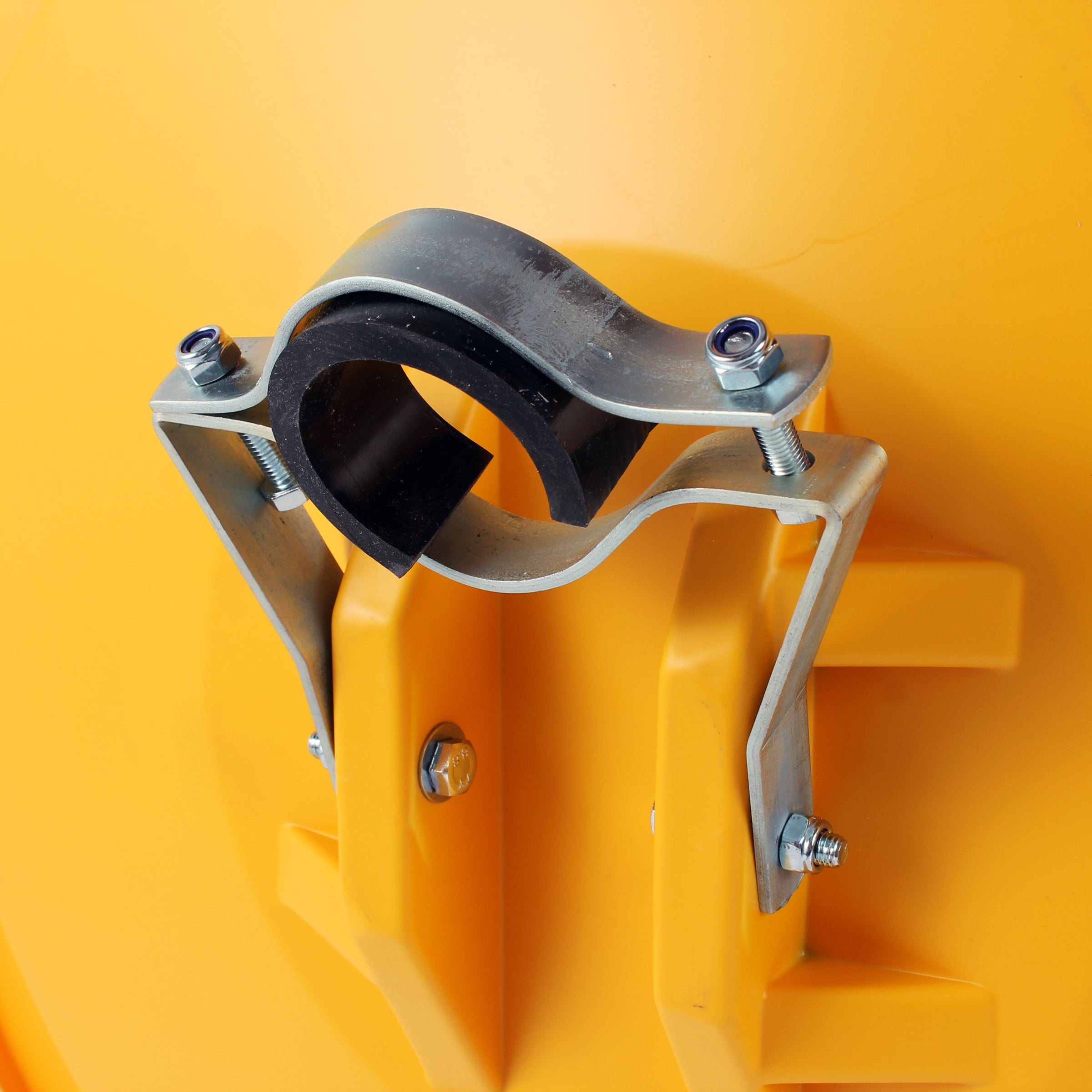

The frame of this mirror provides further protection to the mirror, and also gives contrast to the surroundings making it easier to spot. The frame conforms DIN 4844. The back of the frame includes a bracket for mounting the post onto a 76mm diameter post. If you wish to mount the mirror onto a wall an optional bracket can be supplied, this allows the mirror to be mounted in both portrait and landscape aspects.

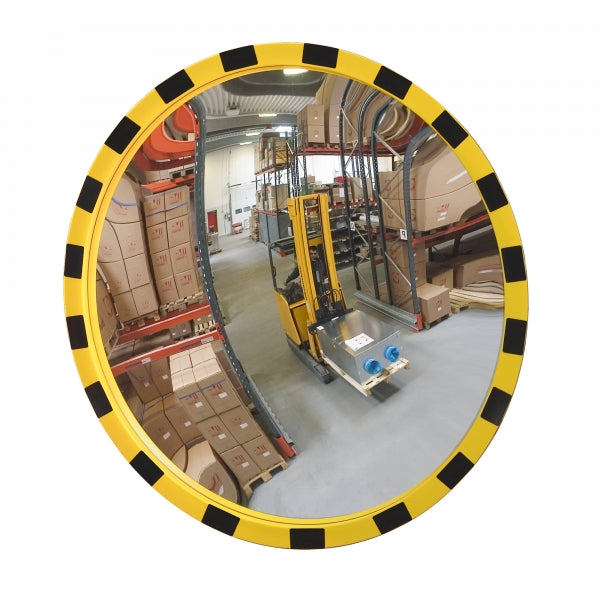

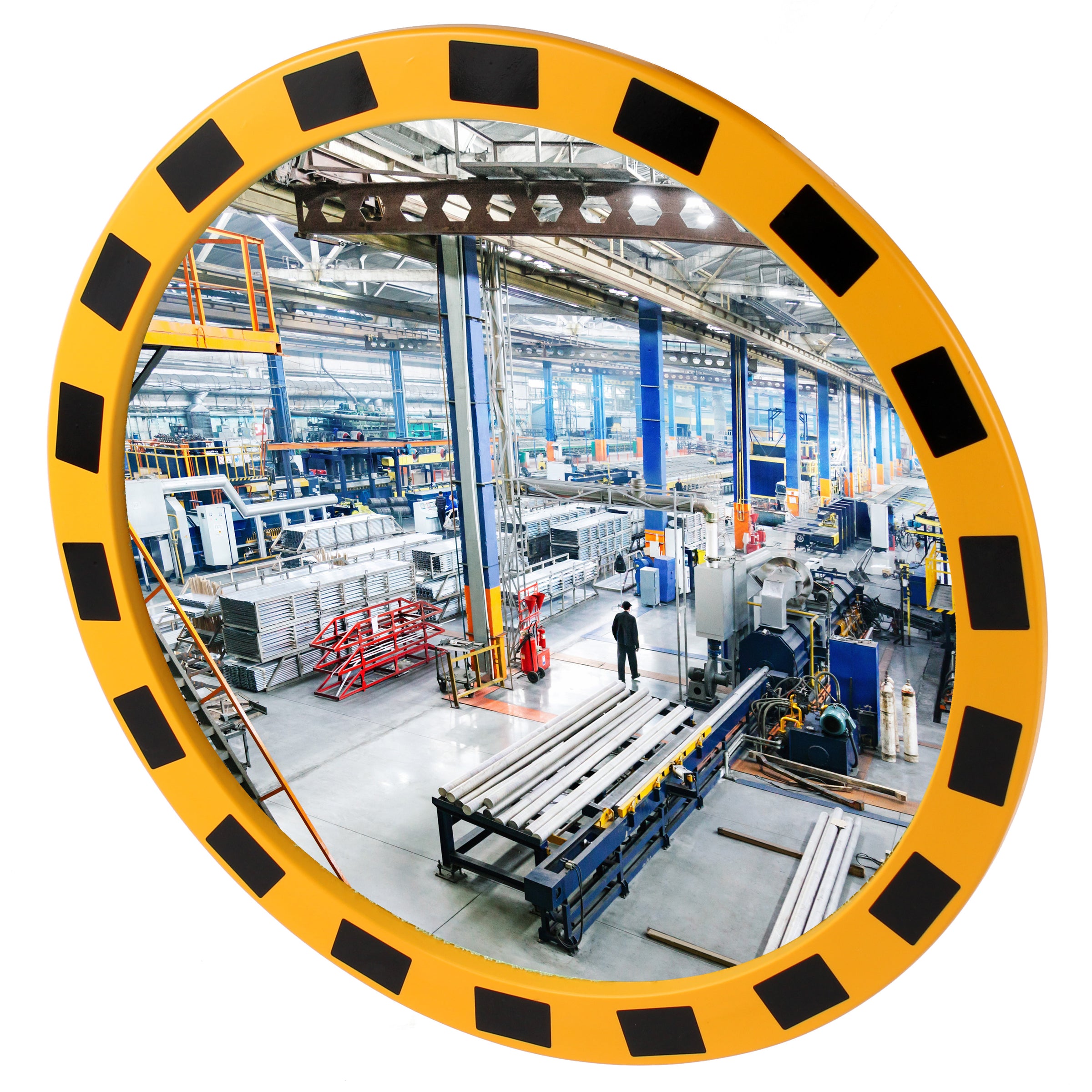

The View Minder mirror is available in several sizes including circular formats. The attached table includes information on the maximum recommended viewing distance for each size, and the format of the mirror. The maximum viewing distance is the maximum recommended distance from the mirrors centre to the viewer's eyes. Adhering to this measurement ensures that objects in the reflection are not too small.
| Mirror Size | Max Viewing Distance (m) | Weight (Kg) |
|---|---|---|
| 400x600mm | 5 | 4 |
| 600x800mm | 8 | 7 |
| 800x1000mm | 15 | 7 |
| 600mm round | 4 | 4 |
| 800mm round | 8 | 6 |
The view minder is just one of our safety mirrors, so if you want to make sure this mirror is the right mirror for you, please contact us! We will be happy to talk through your requirements and help you find just the right mirror for your needs. Our customer service team are here to help during office hours and can be reached on 01905 794 875.
This Mirror is primarily targeted at factories and heavy-duty environments, but it can also be used in warehouses, logistics depots and parking garages. The mirror is a great way of improving visibility at bottlenecks, blind spots, and high traffic areas. Helping Those navigating the area to avoid collisions and improve safety.
Each mirror size has a suitable maximum viewing distance, this is detailed in the table attached table. The viewing distance is both from the "viewer" to the mirror.
