View the product details below to learn more about this product.

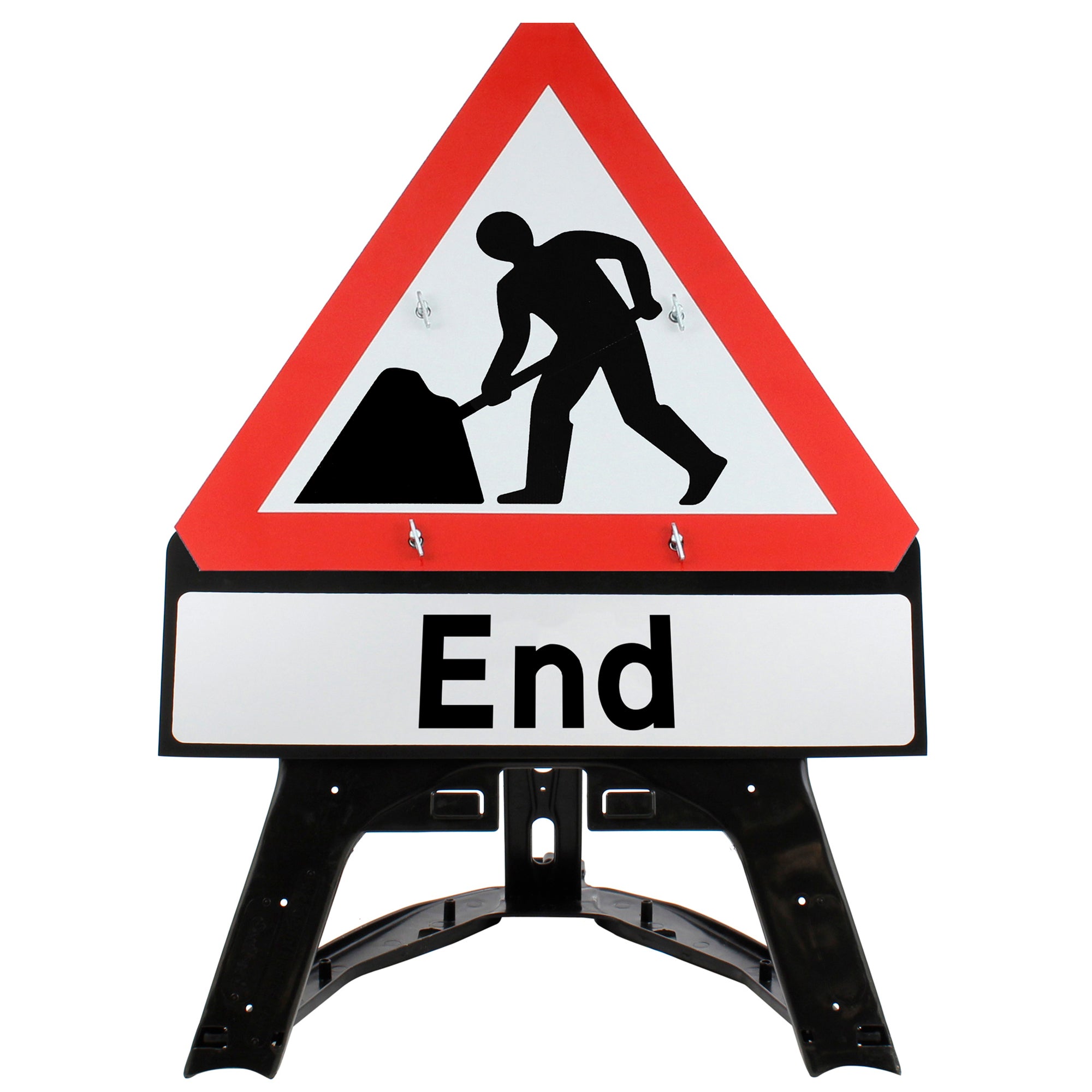

This Men At Work QuickFit Endurasign is supplied complete with an ‘End’ Drop Sup plate. This sign can be placed at the end of road works to inform drivers that the works have finished and that from there onward the traffic should flow as normal. If you want to purchase either of these signs independently you will find them here, Men At Work QuickFit Endurasign and End Drop Sup For QuickFit EnduraSign.

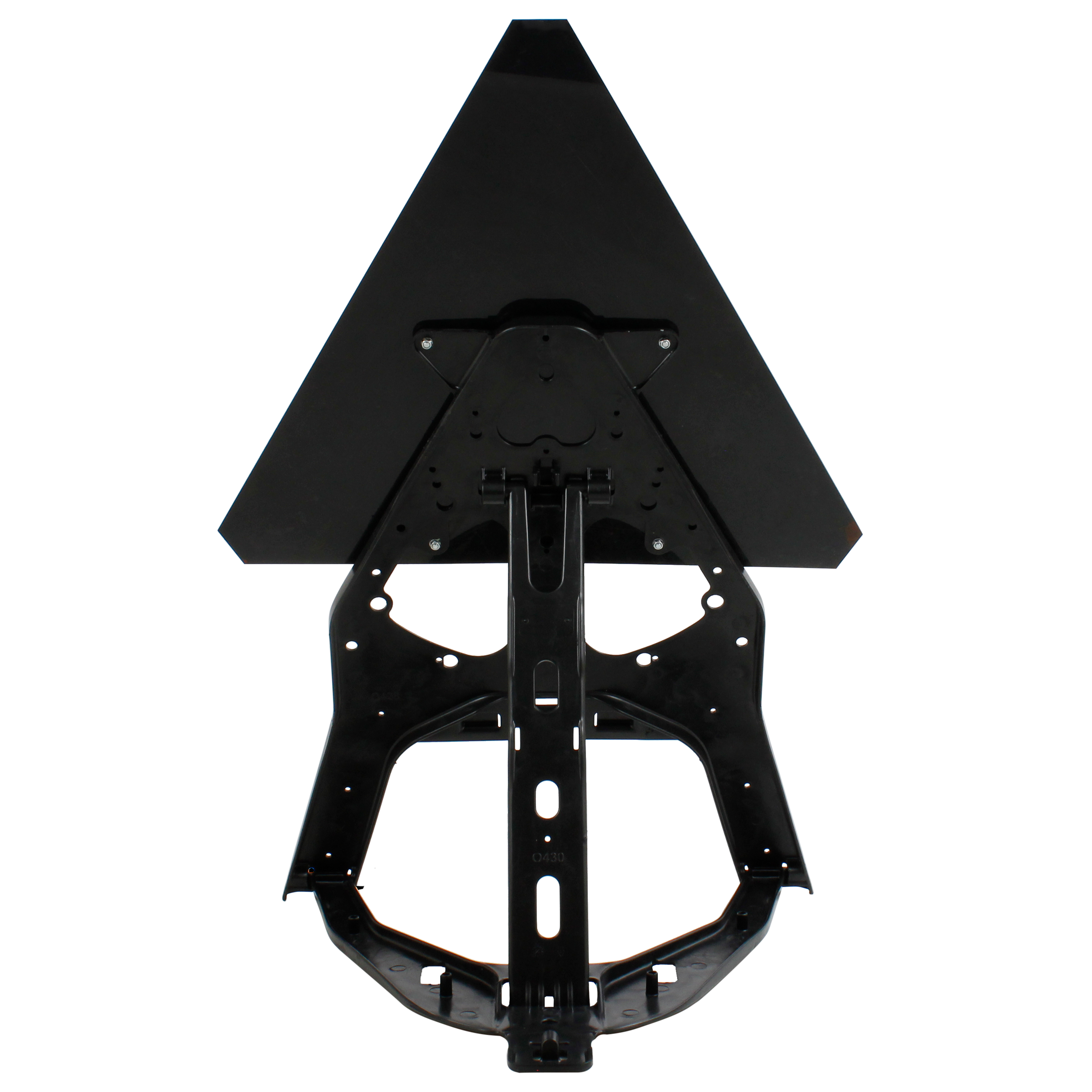

Like all of our supplemented EnduraSign kits, this sign comes complete with frame, drop sup and the main sign face. The sup plate can be swapped or removed with ease by lifting the toggles. This makes this sign very flexible in deployment. Both sign faces feature RA1 reflectivity and holes at 300mm centres. The supplementary plate is made with 2mm plastic backing and the main sign face has 3mm plastic backing.
This sign when deployed correctly complies with all requirements set out in Chapter 8 of the road traffic signs manual and the Red Book. Links to both of these documents can be found on our regulations page.
Stand the toggles up in the unlocked position
Place the drop sup on the bottom two toggles on the EnduraSign frame and leave them open.
Place the Triangle sup plate over the four toggles and lock them securing both sign faces on the frame.
Refer to this guide to determine the amount of ballast/weight required for your sign faces to meet BS 8442:2015 Miscellaneous road traffic signs and devices requirements.
Assembled Signface | C: 8.7m/s (19mph) | B: 17.6m/s (39mph) | A: 26.3m/s (58mph) |
---|---|---|---|
750mm Triangle | None | 8kg / EnduraSign Ballast: 1 | 22kg / EnduraSign Ballast: 3 |
600mm Square | None | 7kg / EnduraSign Ballast: 1 | 21kg / EnduraSign Ballast: 3 |
750mm Circle | None | 5kg / EnduraSign Ballast: 1 | 17kg / EnduraSign Ballast: 2 |
1050 x 750mm Rectangle | None | 13kg / EnduraSign Ballast: 2 | 36kg / EnduraSign Ballast: 4 |
600 x 450mm Rectangle | None | 4kg / EnduraSign Ballast: 1 | 13kg / EnduraSign Ballast: 2 |
1050 x 450mm Rectangle | None | 7kg / EnduraSign Ballast: 1 | 20kg / EnduraSign Ballast: 2 |
750mm Triangle + Supplementary plate | None | 9kg / EnduraSign Ballast: 1 | 26kg / EnduraSign Ballast: 3 |
If this is not the sign you are looking for, do not worry. We have a massive selection of signs available right off the shelf. This range includes more from the EnduraSign QuickFit range, and further products from other ranges.
All common warning signs from men at work to loose chippings.
From ‘works access’ signs to ‘road closed’ signs, we have them all.
View the full range of circular signs from the Quickfit Endurasign Range.
A wide range of pedestrian orientated QuickFit EnduraSigns
Diverted traffic signs and more in this narrow sign format.
Full kits including all you need for small scale works supplied as a package.
Custom faces for signs made to order, including courtesy boards and more.
If you are looking for something outside of the EnduraSign QuickFit Range then be sure to check out our other sign ranges. These include;
Available from stock, with faces that are cross-compatible with the QuickFit EnduraSign.
With Zintec sign faces and angle steel legs. These are the traditional road work sign system.
Flexible roll-up signs ideal for highly mobile applications such as those encountered by emergency services.
Easy to deploy and supported by either 1000mm or 750mm traffic cones.
Whether you are looking for standard QuickFit Signs or QuickFit EnduraSigns our experienced sales team are here to help. You can contact them by email, chat or phone during normal business hours. Our friendly team are knowledgeable and will ensure you are getting great value for money and most importantly getting the right product for the task at hand.
