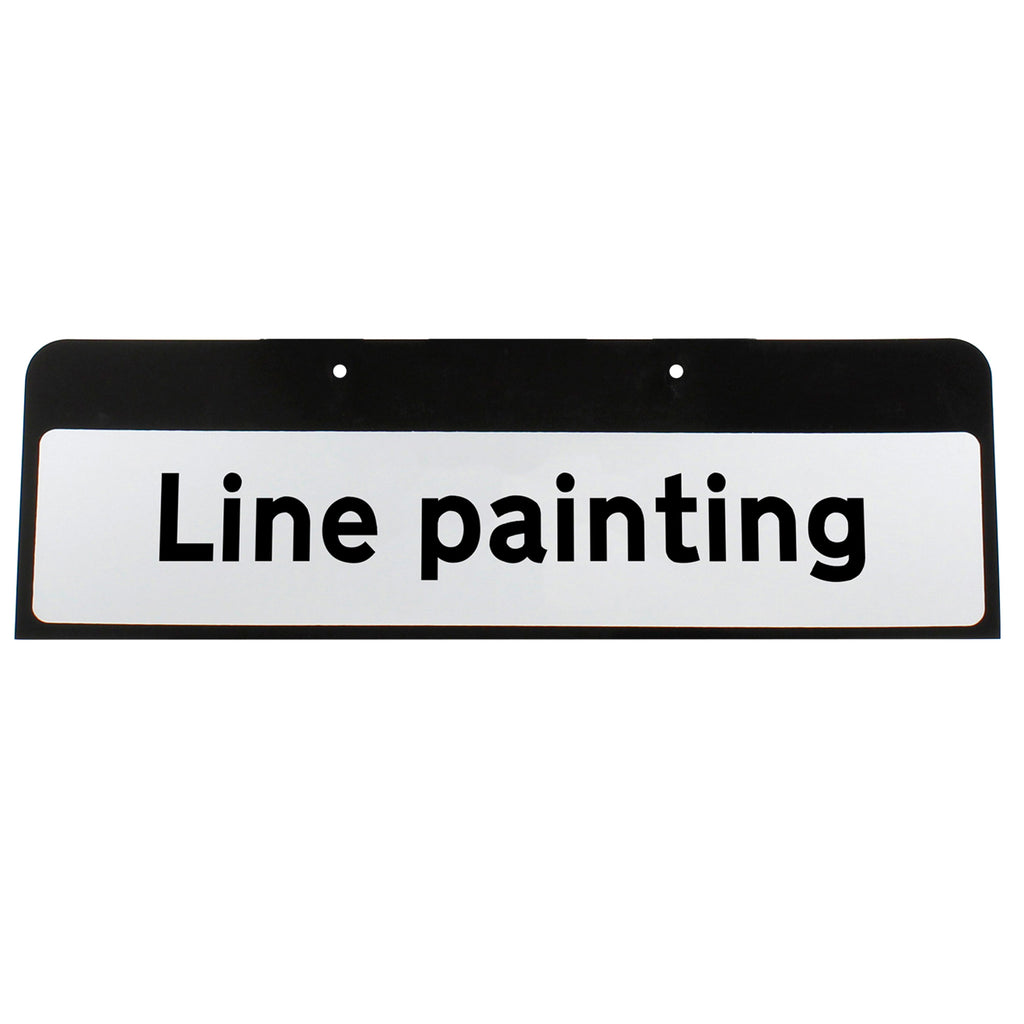

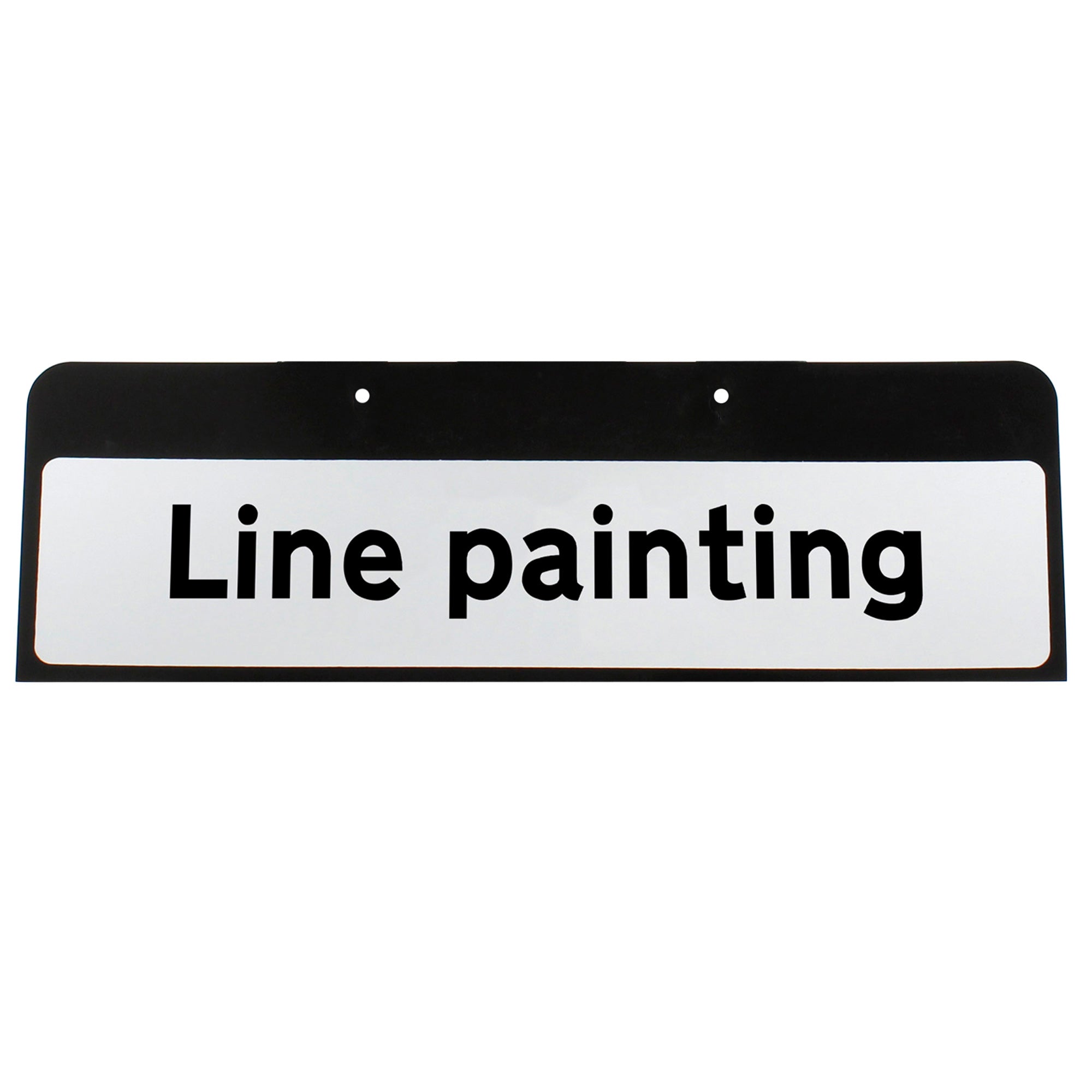

Line painting Sign QuickFit EnduraSign Drop Supplementary Plate Dia 7001.1 | 870x275mm

Line painting Sign QuickFit EnduraSign Drop Supplementary Plate Dia 7001.1 | 870x275mm

£6.61 excl. VAT
£7.93inc. VAT
Buy in bulk and save
  • 10 or more £6.28 excl. VAT
  • 10 or more £7.54 inc. VAT
  • 20 or more £5.95 excl. VAT
  • 20 or more £7.14 inc. VAT
Key features Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:


Line Painting QuickFit EnduraSign Supplementary Plate 7001.1

Our Line Painting 7001.1 QuickFit Endurasign Supplementary plate is compatible with our all-new range of QuickFit EnduraSigns. It is not recommended for use with any frame other than the EnduraSign Frame. We have several other variants of this drop sup available including, Grass Cutting Drop Sup and Tree Cutting Drop Sup, Weed Spraying drop sup and Hedge Cutting Drop Sups.

This “Drop Sup” hangs on the lower pegs of the EnduraSign frame with the main sign face being placed over the top. For this reason, the top portion of the sup plate is black as it is hidden from view.

This high-quality sign face is made from 2mm plastic with an RA1 reflective vinyl film applied to ensure it can be seen just as easily as the main plate used with it. We only recommend using this plate with triangular faces on a QuickFit Endurasign frame.

Men At Work Sign on QuickFit EnduraSign

QuickFit EnduraSign Drop Sup Installation

Drop Supp Placement On The Endurasign Frame

Stand the toggles up in the unlocked position

Drop Supp Placement On The Endurasign Frame

Place the drop sup on the bottom two toggles on the EnduraSign frame and leave them open.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

Place the Triangle sign face over the four toggles and lock them securing both sign faces on the frame.

EnduraSign Drop Sup Compatibility

The EnduraSign Supplementary plate or “Drop Sup” as we refer to it hangs off the lower pegs of EnduraSign Frame. For this reason, it is not compatible with standard quick fit stands. It is also not compatible with every face type and is generally only used alongside Triangular 750mm quickfit faces with 300mm centres.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

EnduraSign Frame

This drop sup will work perfectly with the QuickFit Endurasign frame.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

Q-Frame Plastic Quick fit Frame

For this frame, you will need Standard Quick Fit Supplementary Plates.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

Quick-Fit Mini Frame

For this frame, you will need Standard Quick Fit Supplementary Plates.

Compatible Sign Faces For The Drop Sup

Due to the height that the quick fit faces sit on the frame, these drop sup plates are only compatible with 750mm Triangle faces. The Circle faces, 600 x 450, 1050 x 450 & 1050 x 750 faces will overlap the supplementary plate and will hide the message on the signs causing the important message to be missed by road users.

Triangle Face and Drop Supp Locked Onto Endurasign Frame

Ballast Requirements For Windspeed Categories

Refer to this guide to determine the amount of ballast/weight required for your sign faces to meet BS 8442:2015 Miscellaneous road traffic signs and devices requirements.

Assembled Signface C: 8.7m/s (19mph) B: 17.6m/s (39mph) A: 26.3m/s (58mph)
750mm Triangle None 8kg / EnduraSign Ballast: 1 22kg / EnduraSign Ballast: 3
600mm Square None 7kg / EnduraSign Ballast: 1 21kg / EnduraSign Ballast: 3
750mm Circle None 5kg / EnduraSign Ballast: 1 17kg / EnduraSign Ballast: 2
1050 x 750mm Rectangle None 13kg / EnduraSign Ballast: 2 36kg / EnduraSign Ballast: 4
600 x 450mm Rectangle None 4kg / EnduraSign Ballast: 1 13kg / EnduraSign Ballast: 2
1050 x 450mm Rectangle None 7kg / EnduraSign Ballast: 1 20kg / EnduraSign Ballast: 2
750mm Triangle + Supplementary plate None 9kg / EnduraSign Ballast: 1 26kg / EnduraSign Ballast: 3

More Of This Range

If this is not the sign you are looking for, do not worry. We have a massive selection of signs available right off the shelf. This range includes more from the EnduraSign QuickFit range, and further products from other ranges.

Triangular 750mm Quickfit EnduraSigns

Triangular 750mm QuickFit EnduraSigns

All common warning signs from men at work to loose chippings.

1050x750mm QuickFit EnduraSigns

1050x750mm QuickFit EnduraSigns

From ‘works access’ signs to ‘road closed’ signs, we have them all.

750mm Circular QuickFit EnduraSigns

750mm Circular QuickFit EnduraSigns

View the full range of circular signs from the Quickfit Endurasign Range.

600x450mm QuickFit EnduraSigns

600x450mm QuickFit EnduraSigns

A wide range of pedestrian orientated QuickFit EnduraSigns

1050x450mm QuickFit EnduraSigns

1050x450mm QuickFit EnduraSigns

Diverted traffic signs and more in this narrow sign format.

QuickFit Endurasign Kits

Full kits including all you need for small scale works supplied as a package.

Custom QuickFit EnduraSigns

Custom faces for signs made to order, including courtesy boards and more.

Looking For Something From Other Systems

If you are looking for something outside of the EnduraSign QuickFit Range then be sure to check out our other sign ranges. These include;

Steel Frame QuickFit

Steel Frame QuickFit

Available from stock, with faces that are cross-compatible with the QuickFit EnduraSign.

Stanchion Steel Signs

Stanchion Steel Signs

With Zintec sign faces and angle steel legs. These are the traditional road work sign system.

Roll-Up Signs

Roll-Up Signs

Flexible roll-up signs ideal for highly mobile applications such as those encountered by emergency services.

Cone Signs

Cone Signs

Easy to deploy and supported by either 1000mm or 750mm traffic cones.

Need Further Assistance Navigating The QuickFit EnduraSign Range?

Whether you are looking for standard QuickFit Signs or QuickFit EnduraSigns our experienced sales team are here to help. You can contact them by email, chat or phone during normal business hours. Our friendly team are knowledgeable and will ensure you are getting great value for money and most importantly getting the right product for the task at hand.


Line painting Sign QuickFit EnduraSign Drop Supplementary Plate Dia 7001.1 | 870x275mm
£6.61 excl. VAT
£7.93inc. VAT
Information

Key Facts and Information About This Product

Key features

EnduraSign_Interchangeable Faces

Interchangeable Faces

Each frame has toggles at 300mm centres. This allows any standard quickfit sign to fit with ease. No longer is a sign written off once the face becomes worn or scratched. Spare faces are available off the shelf from Start Traffic.

EnduraSign_Completely Compliant

Completely Compliant

Of course, these signs meet all requirements for road signs to be used on the road. With Class 1 RA1 reflective faces and proper ground clearance, these signs meet all requirements of The Red Book.

EnduraSign_Stacking Design

Stacking Design

Save space in storage and in transport. This sign can be stacked flat, or stood up, with and without faces applied. Each frame locks onto the next making the EnduraSign QuickFit very stable and easy to transport.

EnduraSign_Compact Format

Compact Format

At only 50 millimetres tall when laid flat, this sign takes up less space than other sign formats. This frees up space for tools and other equipment, especially important in smaller utility works vehicles.

EnduraSign_Lightweight

Lightweight

At only 2.8 kilos the QuickFit EnduraSign will not add excessive weight to vehicles saving 3.85 kilos per sign when compared to its nearest counterpart. Are your current road work signs weight-efficient?

EnduraSign_Ergonomic Design

Ergonomic Design

A ‘handy’ handhold at the top of the sign makes caring easy, unlike traditional steel frames these signs have no sharp edges making cut hands a thing of the past. Several units can be carried at once with ease.

EnduraSign_Spare Parts Available

Spare Parts Available

All parts including the frame, toggles, and faces are available separately so a damaged part does not mean the whole sign is written off. We carry stock of all components saving you money and reducing waste.

EnduraSign_Ballast Options

Ballast Options

Compatible with standard sand bags, or with the specially designed EnduraSign Ballast. This special weight can be stacked to increase wind resistance drastically. It is also compatible with metal frames.

EnduraSign_High-Quality Sign Faces

High-Quality Sign Faces

High quality printed vinyl sign faces with RA1 reflectivity on a 3mm plastic backing means that these signs are not only easy to see in the dark, they are also hard-wearing and cost-effective.

EnduraSign_Fast Deployment

Fast Deployment

A kick-out leg allows this sign to be deployed in seconds, making it instantly stable, needing only ballast. Signs can be stored and transported, stacked with faces attached for even faster deployment if required.

EnduraSign_Ultra Tough

Ultra Tough

The QuickFit Endurasign is flexible and highly durable by design. It will flex rather than snap, it can withstand being dropped from a height and being run over and still get back up to fight another day.

EnduraSign_100% Recyclable

100% Recyclable

At the end of its useful life, you can recycle any worn out parts. Start Traffic works with all manufacturers of components within the QuickFit EnduraSign, which use these to create brand new products.

EnduraSign_Brand It Your Way

Brand It Your Way

Want your sign in your company colours, No problem! We can brand your frames with your logo, and have them made entirely in a different colour. This is a great way to stop other contractors from scooping them up. Customised frames require a minimum of 150 units and will require an additional 4 weeks lead time.

EnduraSign_Non-Conductive

Non-Conductive

With a fully plastic frame and face, these signs are non-conductive, making them safer for use around live cables. The construction also means the signs have no scrap value making them less tempting to scrap metal thieves.
