View the product details below to learn more about this product.

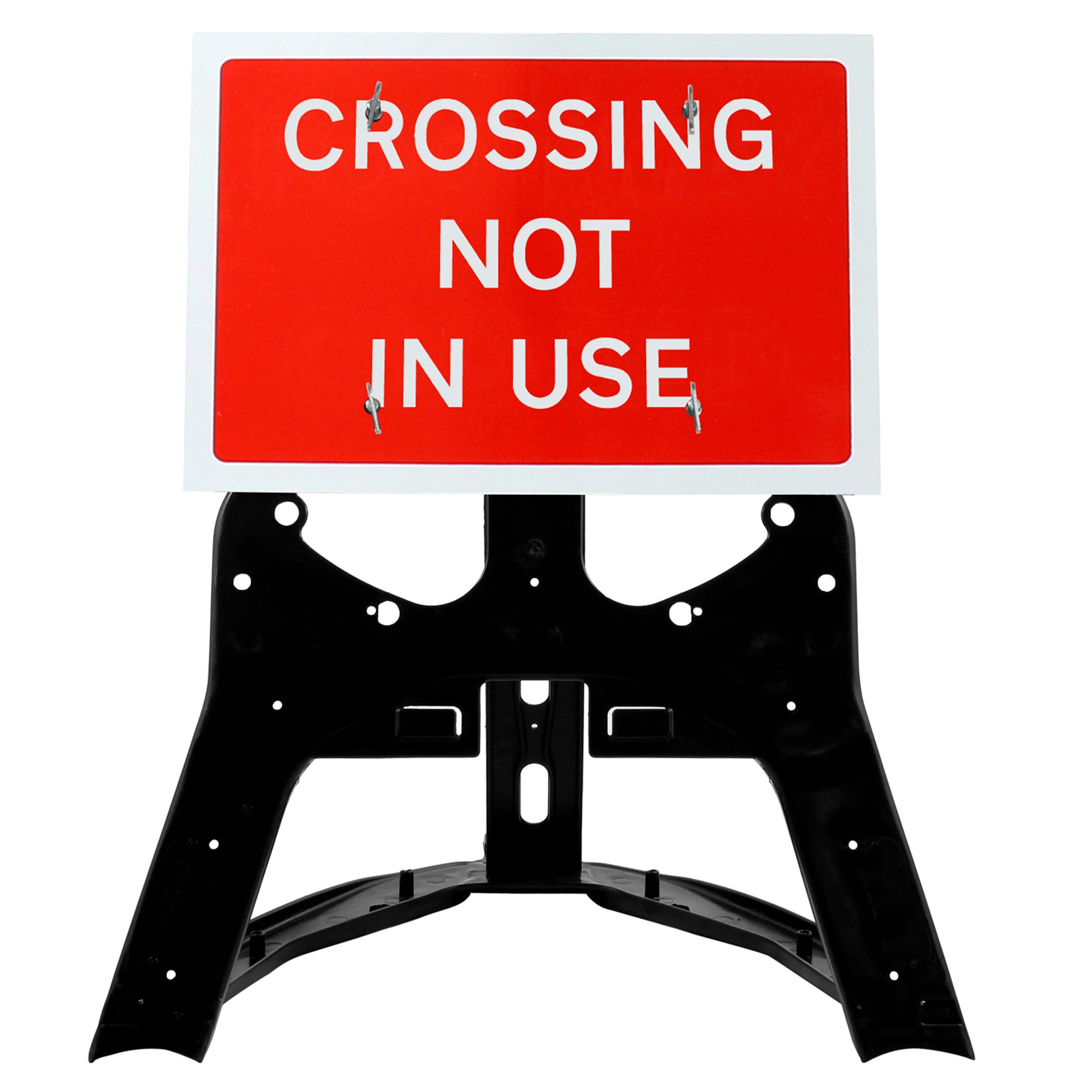

Our Crossing Not In Use 7016 QuickFit EnduraSign is part of our new lineup of high-quality plastic QuickFit EnduraSigns. This sign is used whenever a crossing is out of order, this may be because of a technical fault or due to construction or maintenance works. This sign warns pedestrians and cyclists that they should not expect the lights to work and should cross with caution, or cross somewhere else entirely.
This sign comes as a complete package with a highly reflective 600x450mm sign face coupled with a QuickFit Endurasign frame. The face of this sign can be removed quickly and easily so that it can be swapped to a different message depending on the requirements of the site.
This sign is detailed in the chapter 8 guidelines under diagram 7016 and should be used in accordance with the guidance set out to be compliant. Additional information on the Chapter 8 guidelines can be found on our regulations page.
Refer to this guide to determine the amount of ballast/weight required for your sign faces to meet BS 8442:2015 Miscellaneous road traffic signs and devices requirements.
| Assembled Signface | C: 8.7m/s (19mph) | B: 17.6m/s (39mph) | A: 26.3m/s (58mph) |
|---|---|---|---|
| 750mm Triangle | None | 8kg / EnduraSign Ballast: 1 | 22kg / EnduraSign Ballast: 3 |
| 600mm Square | None | 7kg / EnduraSign Ballast: 1 | 21kg / EnduraSign Ballast: 3 |
| 750mm Circle | None | 5kg / EnduraSign Ballast: 1 | 17kg / EnduraSign Ballast: 2 |
| 1050 x 750mm Rectangle | None | 13kg / EnduraSign Ballast: 2 | 36kg / EnduraSign Ballast: 4 |
| 600 x 450mm Rectangle | None | 4kg / EnduraSign Ballast: 1 | 13kg / EnduraSign Ballast: 2 |
| 1050 x 450mm Rectangle | None | 7kg / EnduraSign Ballast: 1 | 20kg / EnduraSign Ballast: 2 |
| 750mm Triangle + Supplementary plate | None | 9kg / EnduraSign Ballast: 1 | 26kg / EnduraSign Ballast: 3 |
If this is not the sign you are looking for, do not worry. We have a massive selection of signs available right off the shelf. This range includes more from the EnduraSign QuickFit range, and further products from other ranges.
View the full range of circular signs from the Quickfit Endurasign Range.
Full kits including all you need for small scale works supplied as a package.
Custom faces for signs made to order, including courtesy boards and more.
If you are looking for something outside of the EnduraSign QuickFit Range then be sure to check out our other sign ranges. These include;
Available from stock, with faces that are cross-compatible with the QuickFit EnduraSign.
With Zintec sign faces and angle steel legs. These are the traditional road work sign system.
Flexible roll-up signs ideal for highly mobile applications such as those encountered by emergency services.
Whether you are looking for standard QuickFit Signs or QuickFit EnduraSigns our experienced sales team are here to help. You can contact them by email, chat or phone during normal business hours. Our friendly team are knowledgeable and will ensure you are getting great value for money and most importantly getting the right product for the task at hand.

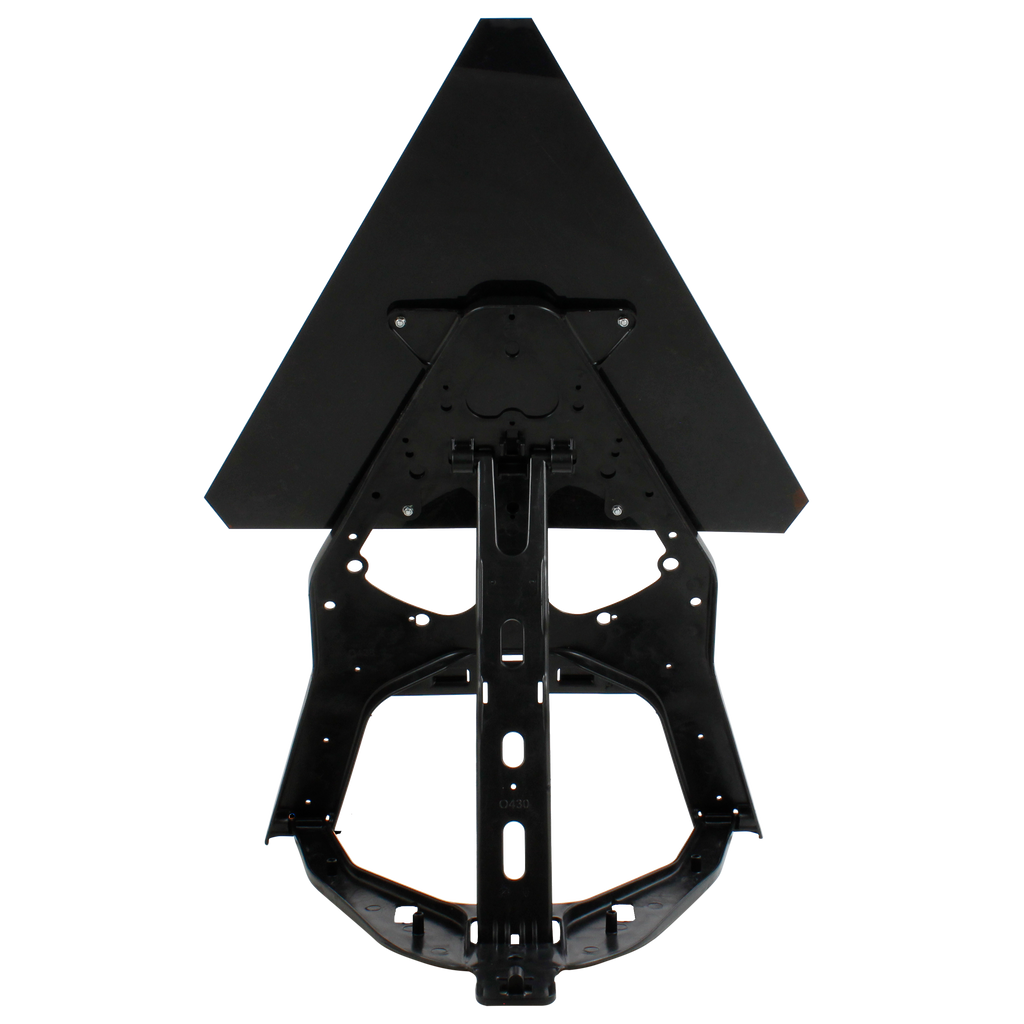

Each frame has toggles at 300mm centres. This allows any standard quickfit sign to fit with ease. No longer is a sign written off once the face becomes worn or scratched. Spare faces are available off the shelf from Start Traffic.
Of course, these signs meet all requirements for road signs to be used on the road. With Class 1 RA1 reflective faces and proper ground clearance, these signs meet all requirements of The Red Book.
Save space in storage and in transport. This sign can be stacked flat, or stood up, with and without faces applied. Each frame locks onto the next making the EnduraSign QuickFit very stable and easy to transport.
At only 50 millimetres tall when laid flat, this sign takes up less space than other sign formats. This frees up space for tools and other equipment, especially important in smaller utility works vehicles.
At only 2.8 kilos the QuickFit EnduraSign will not add excessive weight to vehicles saving 3.85 kilos per sign when compared to its nearest counterpart. Are your current road work signs weight-efficient?
A ‘handy’ handhold at the top of the sign makes caring easy, unlike traditional steel frames these signs have no sharp edges making cut hands a thing of the past. Several units can be carried at once with ease.
All parts including the frame, toggles, and faces are available separately so a damaged part does not mean the whole sign is written off. We carry stock of all components saving you money and reducing waste.
Compatible with standard sand bags, or with the specially designed EnduraSign Ballast. This special weight can be stacked to increase wind resistance drastically. It is also compatible with metal frames.
High quality printed vinyl sign faces with RA1 reflectivity on a 3mm plastic backing means that these signs are not only easy to see in the dark, they are also hard-wearing and cost-effective.
A kick-out leg allows this sign to be deployed in seconds, making it instantly stable, needing only ballast. Signs can be stored and transported, stacked with faces attached for even faster deployment if required.
The QuickFit Endurasign is flexible and highly durable by design. It will flex rather than snap, it can withstand being dropped from a height and being run over and still get back up to fight another day.
At the end of its useful life, you can recycle any worn out parts. Start Traffic works with all manufacturers of components within the QuickFit EnduraSign, which use these to create brand new products.
Want your sign in your company colours, No problem! We can brand your frames with your logo, and have them made entirely in a different colour. This is a great way to stop other contractors from scooping them up. Customised frames require a minimum of 150 units and will require an additional 4 weeks lead time.
With a fully plastic frame and face, these signs are non-conductive, making them safer for use around live cables. The construction also means the signs have no scrap value making them less tempting to scrap metal thieves.
