Boom Barrier With Counterweight Parking Access Restriction

  • Product code: 14412-IP-2895
  • Start Traffic
  • Dispatches in 15-20 Days
£1,252.33 excl. VAT
£1,502.80inc. VAT
Width: 2895mm
Support Arm: Intergral Hanging Support Arm
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.

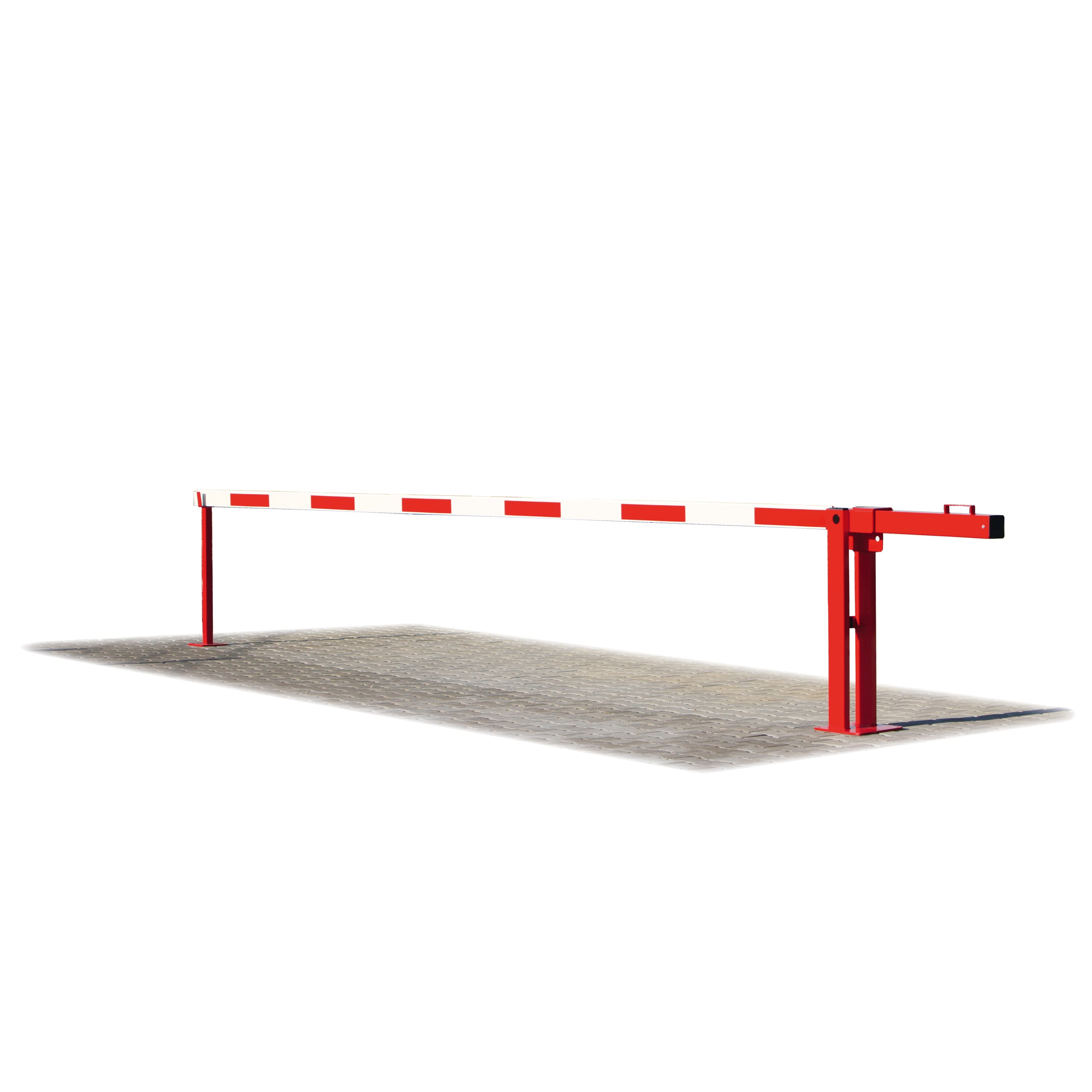

Counterweighted Manual Boom Barrier

This counterweighted boom barrier is a simple access control barrier for car parks and factories. It uses a simple counter-weight method to balance the boom making it easy to operate with little effort.

Manufactured from durable materials this barrier is simplistic and built to last. All steel parts are galvanised and powder coated red, ensuring rust is kept at bay. The boom arm is made from aluminium which has been coated white. Reflective strips ensure that the boom arm is easily seen even in low light conditions.

This barrier comes ready to surface mount onto any sufficient substrate. This makes it very easy to install onto existing surfaces. The barrier can be locked in both the raised and lowered positions and latches automatically in both positions..

Counterweight boom barrier installed at facory

Key Features:

  • Support leg Included - Comes complete with either a fixed support post or a hanging support arm.
  • Easy to lift - Balanced by the counterweight the boom is easy to lift and lower requiring minimal physical effort.
  • Locks open or closed - The boom latches in both positions automatically and can be locked in both positions.
  • Supplied With Standard Cylinder Lock With 2 Keys - More keys can be cut to allow multiple key holders access.
  • Anti-sit ridge - A raised ridge on the top of the boom makes it uncomfortable to sit on.
  • Corrosion-resistant - Made from corrosion-resistant materials.
Counterweight barrier with Boom up

Key Applications

This is the perfect barrier for use in commercial applications where access often needs to be restricted. Some examples include the following;

  • Office Car Parks - Prevent unauthorised vehicles from accessing the car park or parking where they should not.
  • Emergency Vehicle Access - Prevent vehicles using an entrance route yet allow it to be opened for emergency vehicles.
  • Industrial Estates - Block off empty unit access or prevent areas being used as a cut-through.
  • Farm Access - Restrict access to private lanes, reducing the risk of fly-tipping.
Lock of counterweight barrier

Available Options

This compact counterweight boom barrier has several options to choose from. These include the following.

Support Post Options

Choose between a static floor mounted support post or a hanging support post. The hanging post is lifted with the barrier arm, reducing obstructions at floor level. The floor-mounted post offers a little more security but does cause a slight obstruction. Please email us for pricing on the hanging support arm.

Fixing Method

The optional sub-surface mounting kit creates a strong and sturdy point for the base plate to be bolted onto. Perfect for installations on grass or areas without an existing good foundation.

Drive Through Width

This measurement indicates the width that is clear for vehicles to drive through when the gate is raised. Please note, the overall length is different and shown in the accompanying table. It is important to note that the overall length is longer than the drive-through width, especially on this counterweighted design.

Overall Width (mm) Max.drive through width (mm) Delivery Weight (kg/ea.) Product Code Despatch time (working days)
4000 2895 110 14412-FP-2895 15 / 20 days
4500 3395 125 14412-FP-3395 15 / 20 days
5000 3895 135 14412-FP-3895 15 / 20 days
5500 4395 145 14412-FP-4395 15 / 20 days
6000 4895 155 14412-FP-4895 15 / 20 days
6500 5395 165 14412-FP-5395 15 / 20 days
7000 5895 175 14412-FP-5895 15 / 20 days

Other Boom Barrier Options In Our Range

Gas-Assisted Boom Barrier

Gas-Assisted Boom Barrier

Fitted with a gas strut this barrier is compact and ideal for areas where the overhang of a counterweight would be problematic.

Compact gas-dampered boom barrier

Compact Boom Barrier

This small size boom barrier is designed specifically for narrow entrances and exits.

Electronic boom barrier

Solar Powered Remote Boom Barrier

Can be remotely opened and closed from the comfort of a vehicle. No external power required, simply bolt it down and off you go.

Need Help Finding The Right Boom Barrier?

We are here to help you choose the best barrier for your needs. We have access to a wide range of car park barriers and other barrier systems so almost certainly have what you need. Please contact our trained sales team today for more information and a great deal on any of our access barriers.
