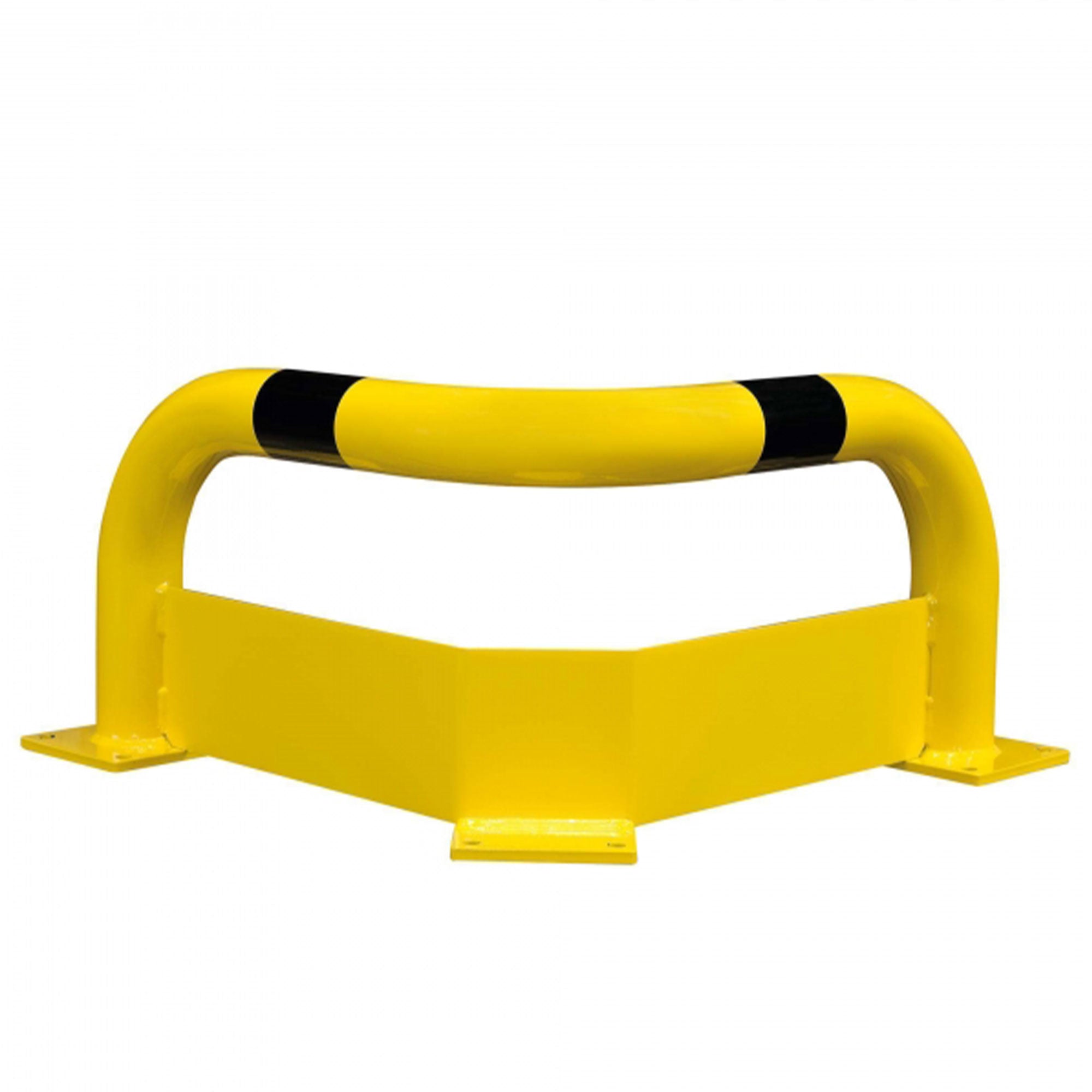

Black Bull 76mm Corner Guard With Under Run Protection

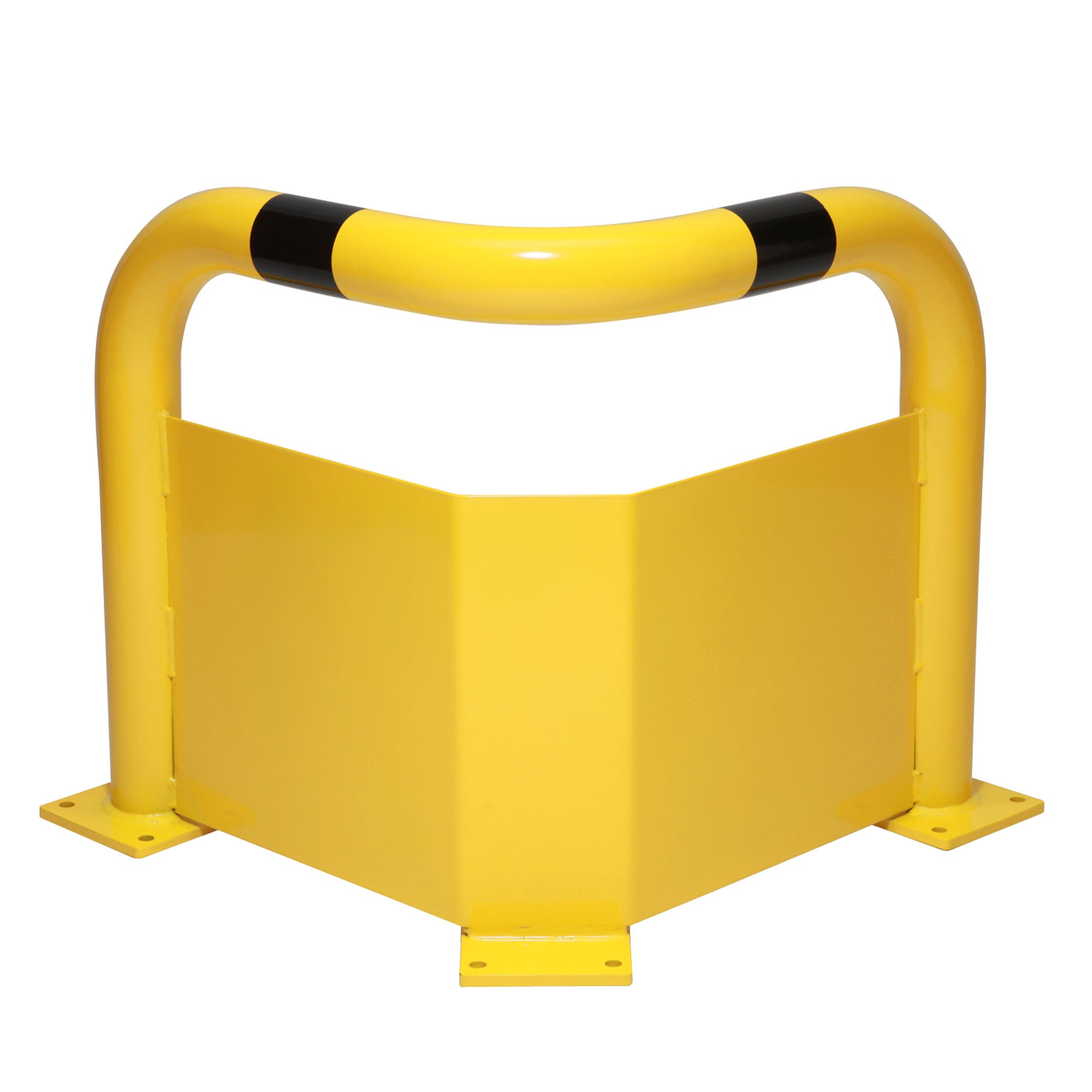

Black Bull 76mm Corner Guard With Under Run Protection (600mm)
Black Bull 76mm Corner Guard With Under Run Protection
Black Bull 76mm Corner Guard With Under Run Protection (600mm)

Black Bull 76mm Corner Guard With Under Run Protection

£330.04 excl. VAT
£396.05inc. VAT
Height: 350mm
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:


Black Bull 76mm Corner Guard With Under Run Protection

This corner guard hoop barrier features an underrun barrier essential for areas where pallet trucks and forklifts operate. Under run protection bars are critical because it keeps forks and pallet trucks from running under the hoop barrier, protecting the lower legs of workers and lower sections of equipment and infrastructure.

This Black Bull underrun corner guard is part of a range of high-quality black bull hoop barriers. This range includes an underrun straight hoop barrier, ideal for the end of aisles, and a standard corner guard without underrun protection, ideal for use in areas where underrun is not an issue.

The steel infill plate on this Black Bull Corner protection guard is manufactured from high quality 4mm steel. The tube sections of the barrier are made from a high grade 76mm tube section with a 3mm tube wall. This thick wall makes the barrier solid and durable, capable of withstanding repetitive impacts. The barrier is fixed to the ground by 12 fixing bolts through the 10mm thick base plates on each leg. You can purchase the bolts here.

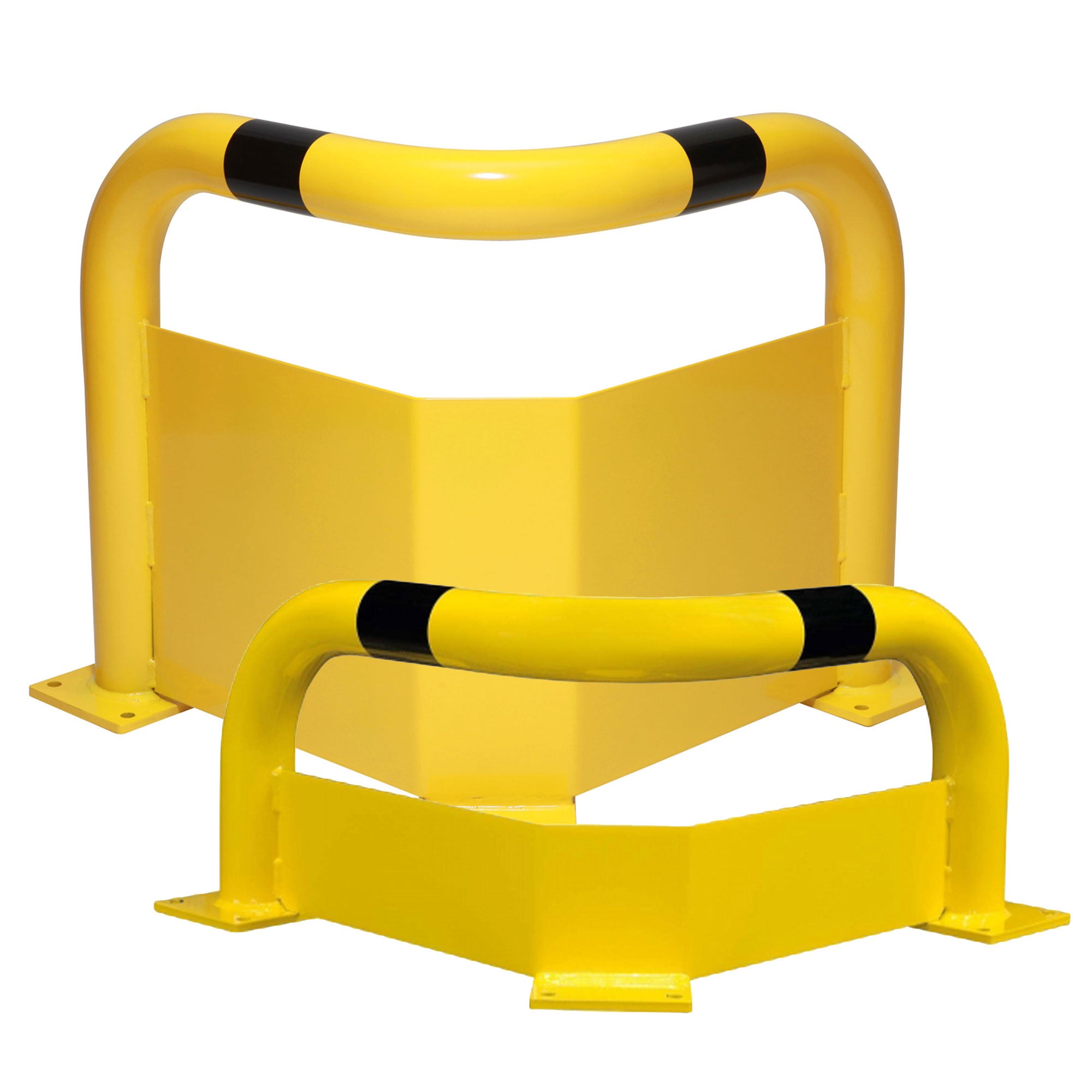

Black Bull Corner Barriers With Under Run Protection
Black Bull Corner Barriers With Under-Run Protection Lineup

Key Features Of The Corner Guard With Under Run Protection;

  • Two Heights Of Low-Level Shield - The underrun plate is available in 150mm and 400mm heights.
  • 76mm Tube Section - A durable tube section further reinforced by the 4mm thick steel plate spanning the legs.
  • 3mm Tube Wall Thickness - High quality 3mm tube makes the walls of the tube section more resilient to dents.
  • Suitable For Indoor Use - A vibrant powder-coated finish makes this hoop barrier perfect for indoor use in distribution depots.
  • Two Heavy Duty Fixing Plates - Each base plate features four fixing holes for secure ground fixing.
  • Two Sizes Available - Choose from two sizes to fit different requirements.
  • Fast Installation - You can quickly install this barrier without carrying out expensive excavations.
  • Contrasting Colours - Contrasting colours enhance protection by increasing the distance the barriers can be seen, allowing drivers more time to react.

Key Applications For The Black Bull Corner Barrier With Under Run Protection:

Black Bull Corner Barrier With UnderRun Protection

Warehouses

When deployed at the corner of racking or the perimeter of packing areas, this corner barrier protects racking legs and personnel legs.

Black Bull 108mm Hooped Barrier In Factory

Factories

When installed, this Black Bull underrun protection guard protects mills and lathes and other expensive equipment from impact.

Black Bull Corner Barrier With Under Run Protection In Gas Plant Environment

Gas & Oil

Install this corner barrier to protect assets and staff from heavy equipment.

If you are looking for a modular impact protection system, check out our range of Armco barriers. Armco barrier is ideally suited to protecting a range of assets in a wide variety of locations.
