RetractaPost Retractable Post External Lock 500mm - Autopa | 90mm

At some sites it is impractical to haul around bollards and posts once they are removed, it is also not ideal to leave them laying over in a fold-down format. For these instances, the RetractaPost is the ideal solution.

This post is commonly seen in vehicle sales forecourts, commercial premises, car parks, and even domestic driveways and private properties. When the bollard is in the down position, it is covered by a small cover.

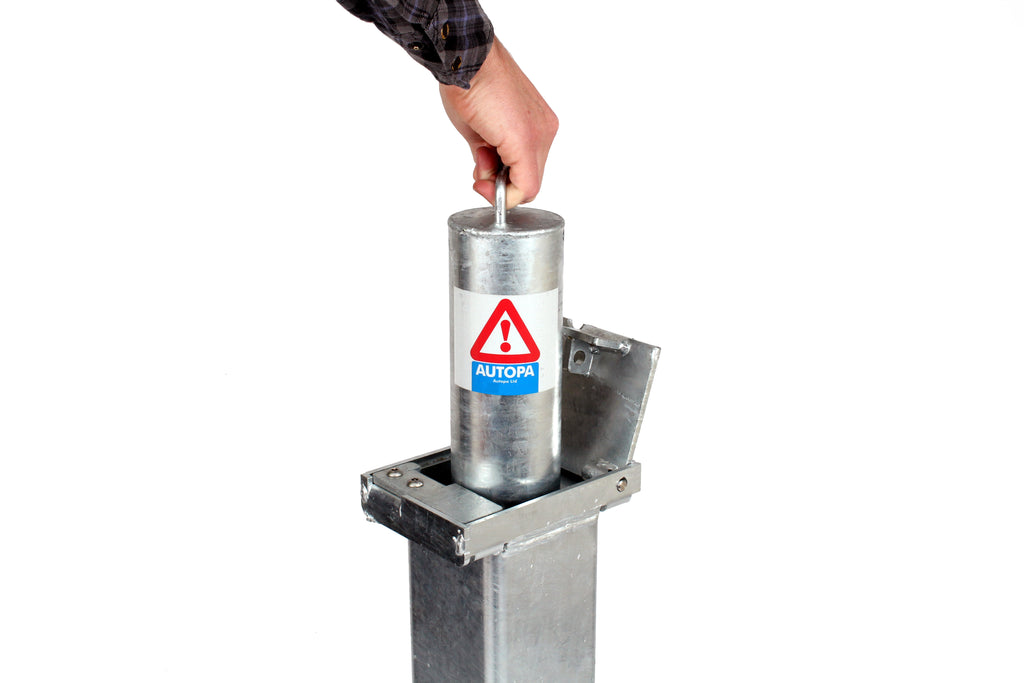

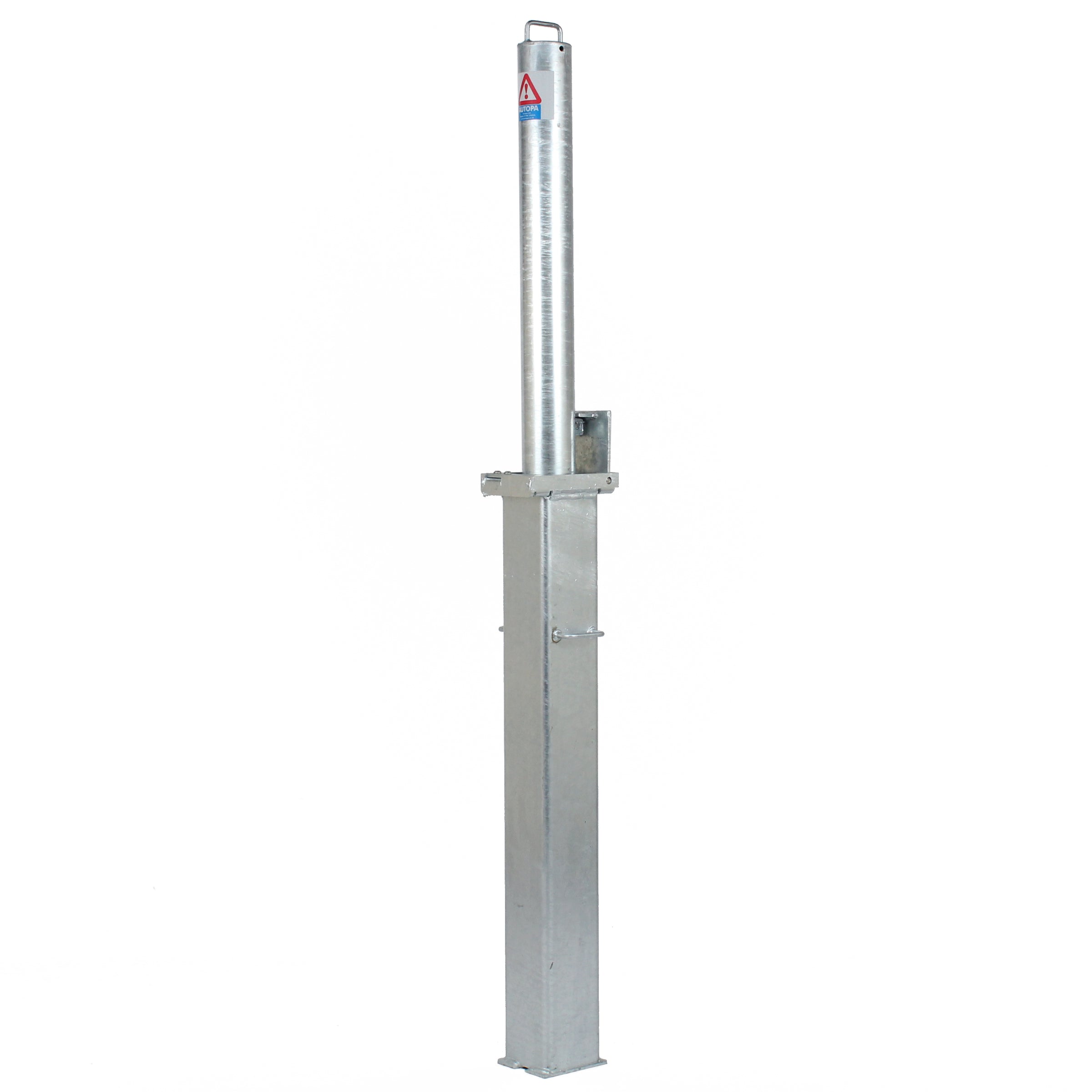

Once in the raised position, the bollard stands 500mm tall above ground level. The post has a convenient grab handle on the top for ease of lifting. There are several heights of retractaPost to choose from, including 500mm, 745mm and 900mm. An option with an integral lock is available to purchase for those that require it.

Installation of a RetractaPost 500

This is a simple procedure but requires a deeper excavation than the other parking posts and security bollards that we offer.

1. Calculate where you require your posts, we recommend placing them no further than 1200mm apart. Mark the ground at these points so you know where to dig later. This prevents cars from driving between them, yet still allows pedestrians and wheelchair users to pass freely.
2. Excavate a hole that is 300mm square and the correct depth for your chosen Retractapost size.
   • Retractapost 500 – 900mm Deep Excavation
   • Retractapost 745 – 1200mm Deep Excavation
   • Retractapost 900 – 1400mm Deep Excavation
3. Place chippings at the base of the hole to allow sufficient drainage. Preventing flooding of the post-excavation once installed.
4. Place the post in position in the hole, the top of the post cover should be proud of the surface by 5mm.
5. Add further chippings around the post until it stands on its own.
6. Lift the post to full extension to ensure it stands straight, then continue to fill with chippings until they are 400mm from the surface of the excavation.
7. Fill the remainder of the hole with concrete and smooth off around the lid, lower the post carefully and allow it to fully cure.

Full detailed install instructions are available for download below. It is recommended that these are read fully before purchasing and then again before installation.
