View the product details below to learn more about this product.

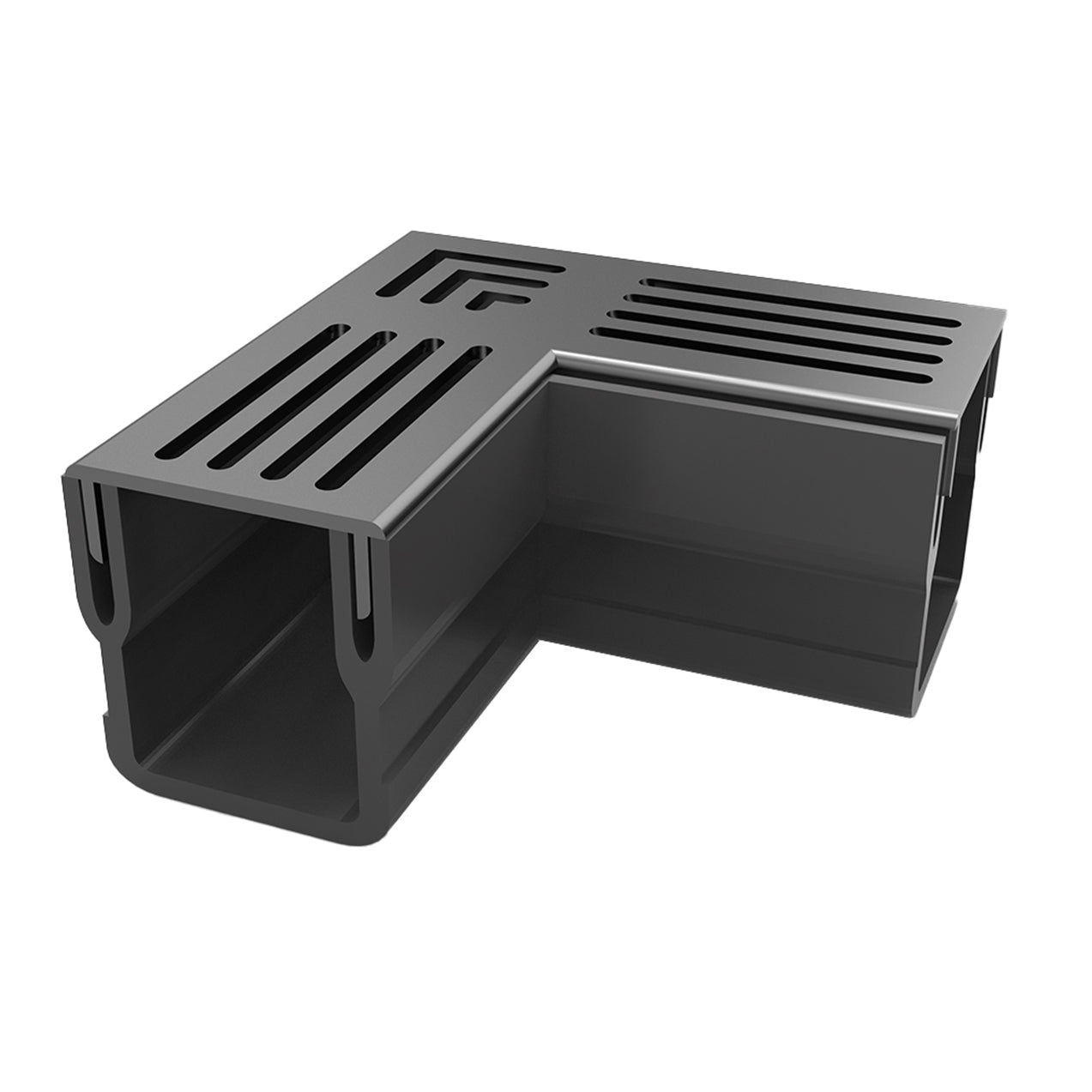

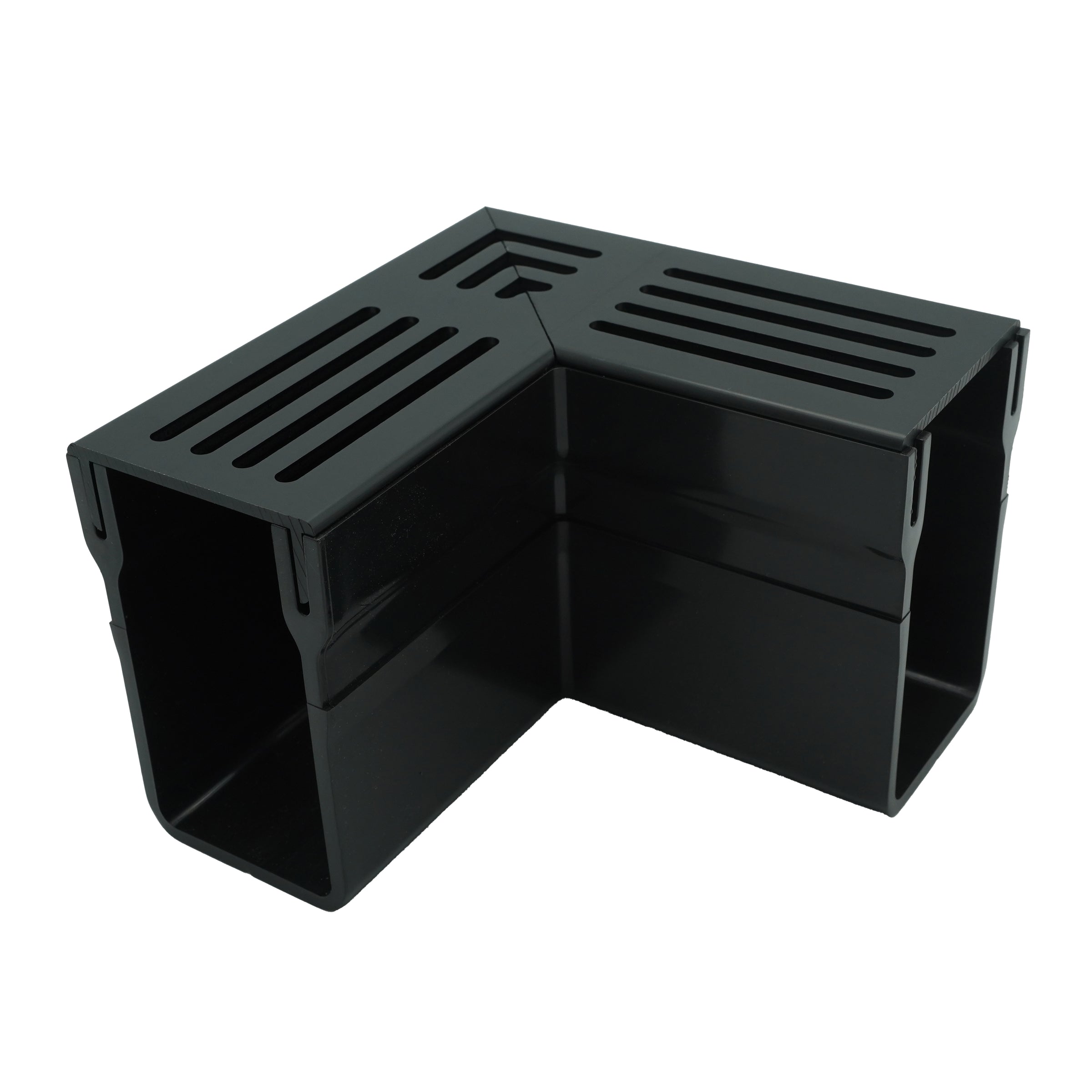

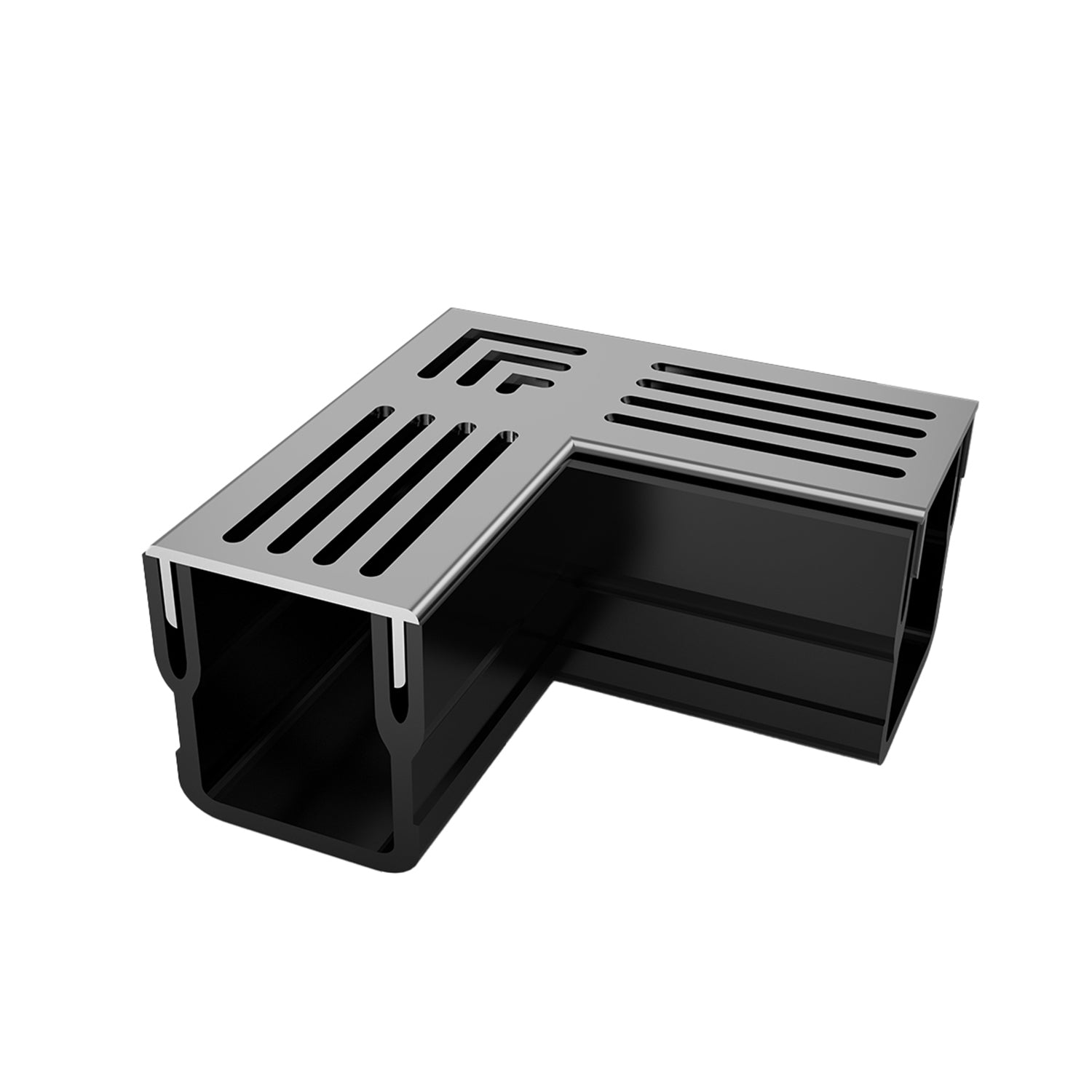

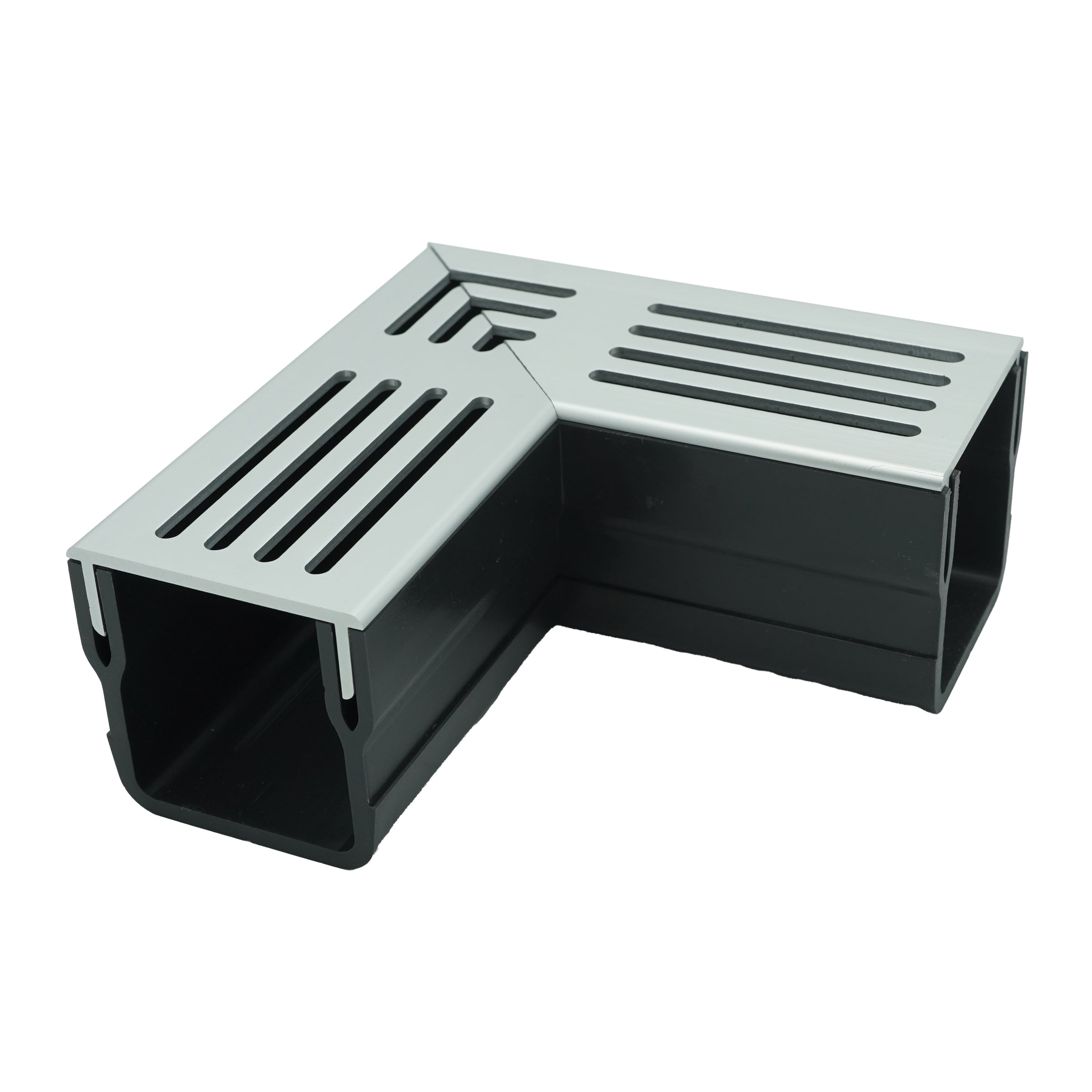

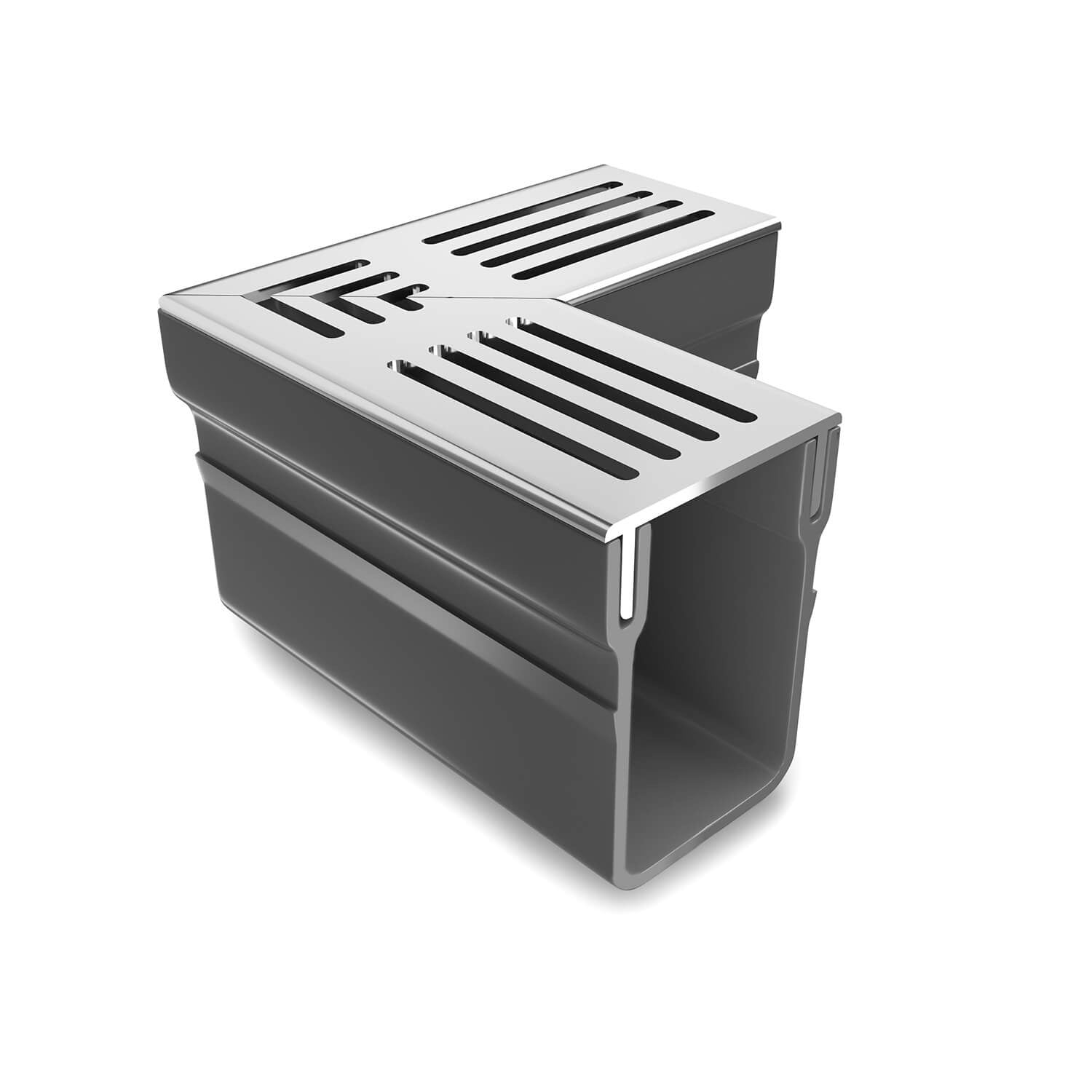

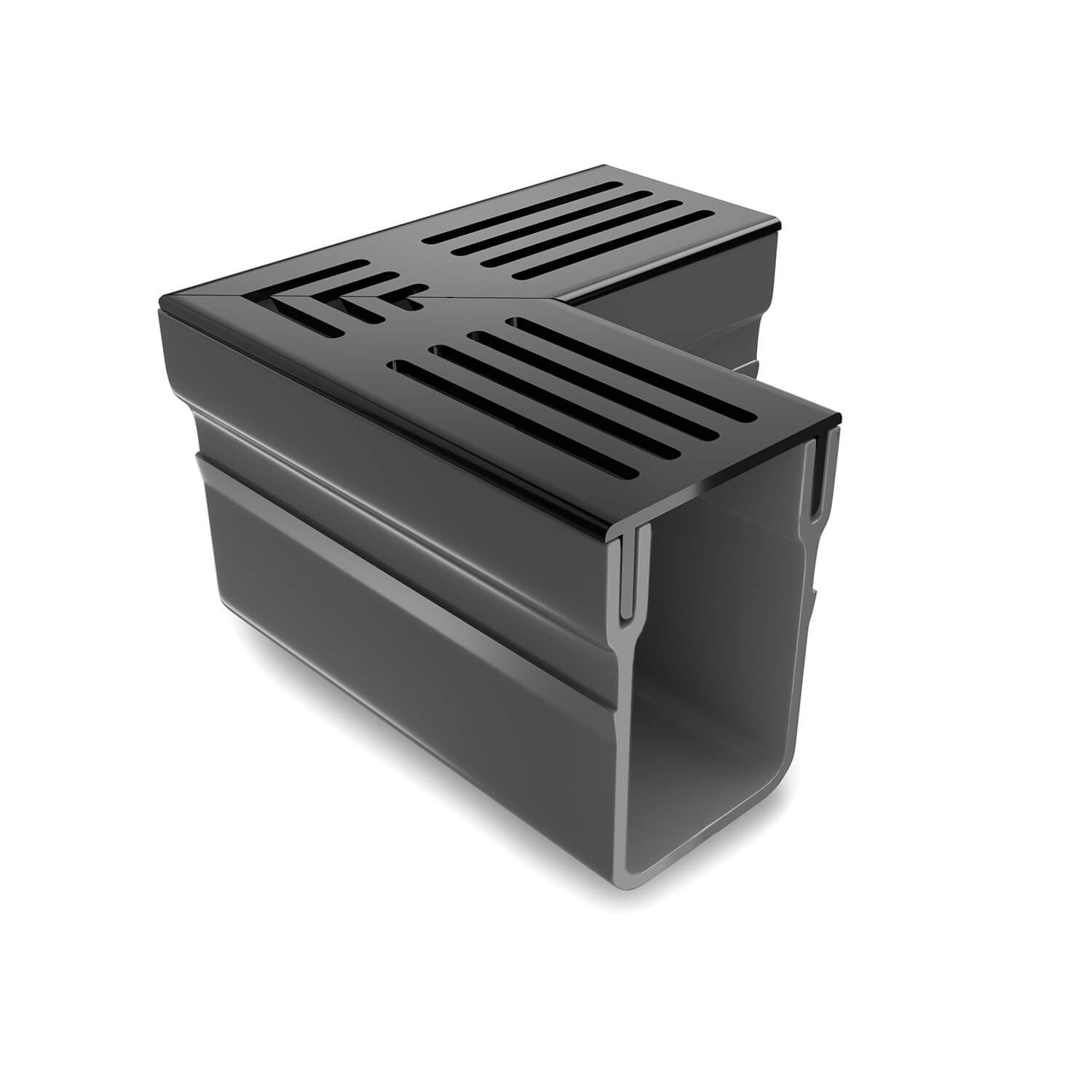

The Alusthetic Threshold Drain Corner Unit in Aluminium is designed to be installed with the Alusthetic Threshold Drain and Grate in Aluminium. When connected to the rest of your Alusthetic drainage channel system, this corner connector allows the system to make right-angled turns to move around corners.
Use an Alusthetic bottom connector to connect this corner unit to the rest of your drainage channel, and fix (or “glue”) it securely using a PVC solvent weld.

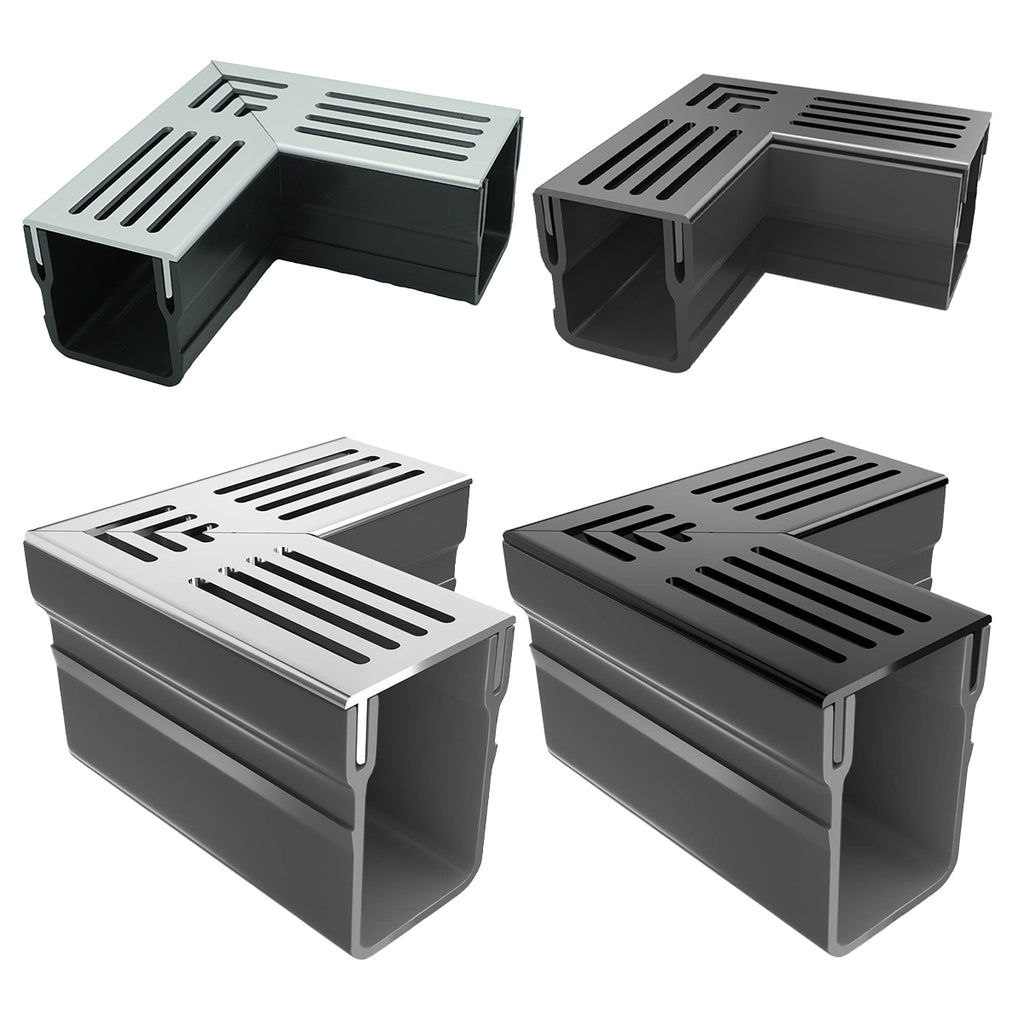

With a channel manufactured from extruded PVC, this corner unit has a grating made from lightweight anodised Aluminium, available in silver or black, which allows quick and easy removal of the grating for maintenance. Corner units are also available with other grating materials for different uses:

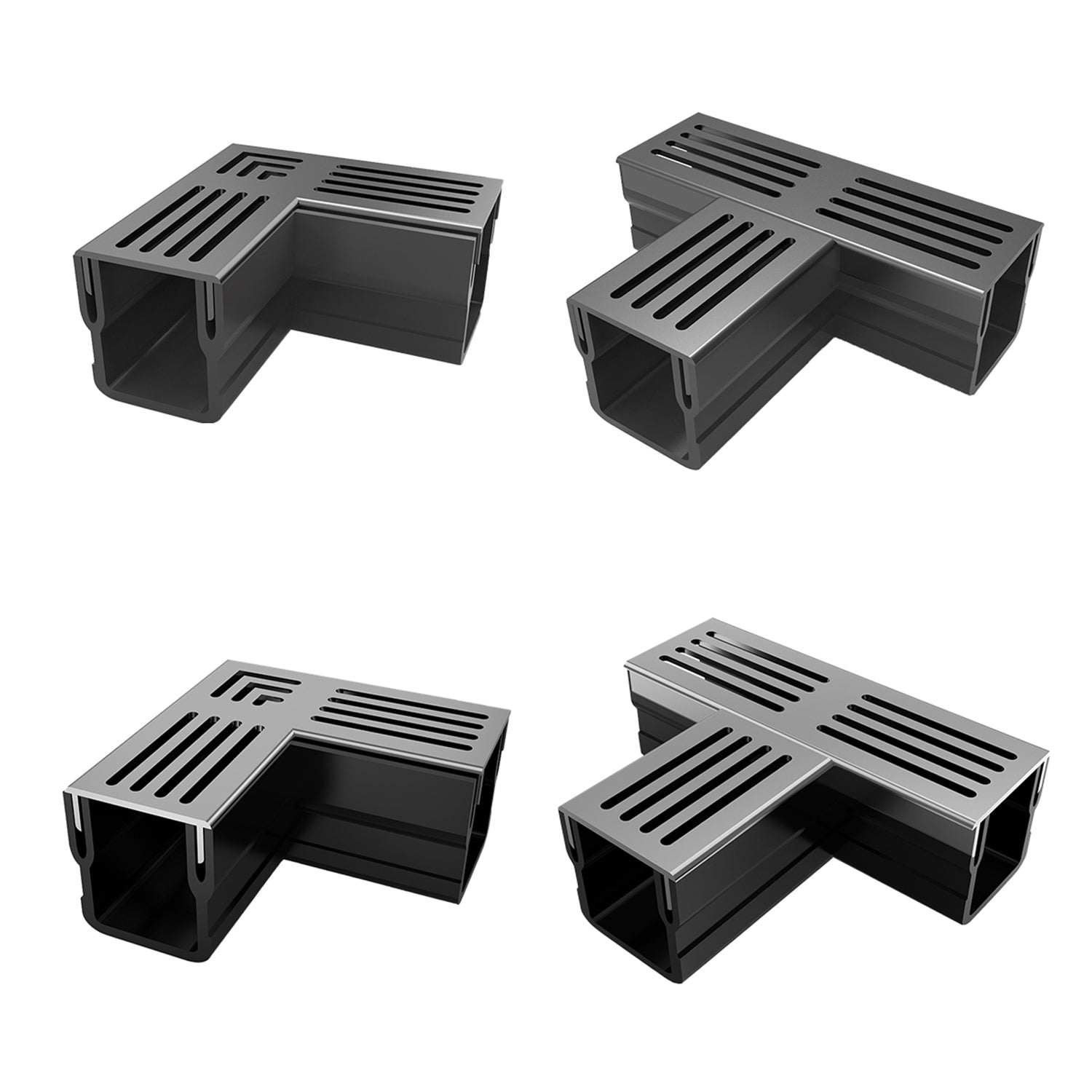

Like the rest of the drainage system, the corner units (and T pieces) are all available with the same heel guard™ gratings, which are essential in the pedestrian environments that this collection is aimed for.
Please note: Each section of Alusthetic Threshold Drainage Channel should be connected using a channel connector which will also help to stabilise the channel during installation. Ends should be capped off using an end cap or outlet. We recommend using a PVC solvent weld to fuse your channels and connectors together. Although not essential (as your system will be slotted together using channel connectors), it can be useful to plug any gaps and ensure your channels are one seamless length of leak proof, water tight PVC.
Fully compliant and certified to load class standard A 15 BS EN 1433:2002, and compliant with Part M of the Building Regulations, the threshold drainage set is certified to withstand up to 15kN (approximately 1.5 tonnes) of force in soft ground and around 25kN in concrete. This makes it perfectly suited for light-duty internal and external applications such as skirting the base patios and garage thresholds or along pedestrian footpaths and bridleways.
Large volumes of drain water can be carried thanks to a discreet 65mm width and depth of 103mm. Each channel piece, is available in one-metre lengths, and we stock a full range of accessories, including bottom connectors, end caps, and T-shaped units - allowing the installation of the whole system. Other accessories include the solvent weld, end outlets and bottom outlets.
More from Alusthetic's Lightweight Drainage Collection.
Install your flush threshold drain and let the excess water go down the drain instead..!Give our friendly team a call today on +44 (0)1905 794875 for more information, or send us an instant message in the chat below.
