View the product details below to learn more about this product.

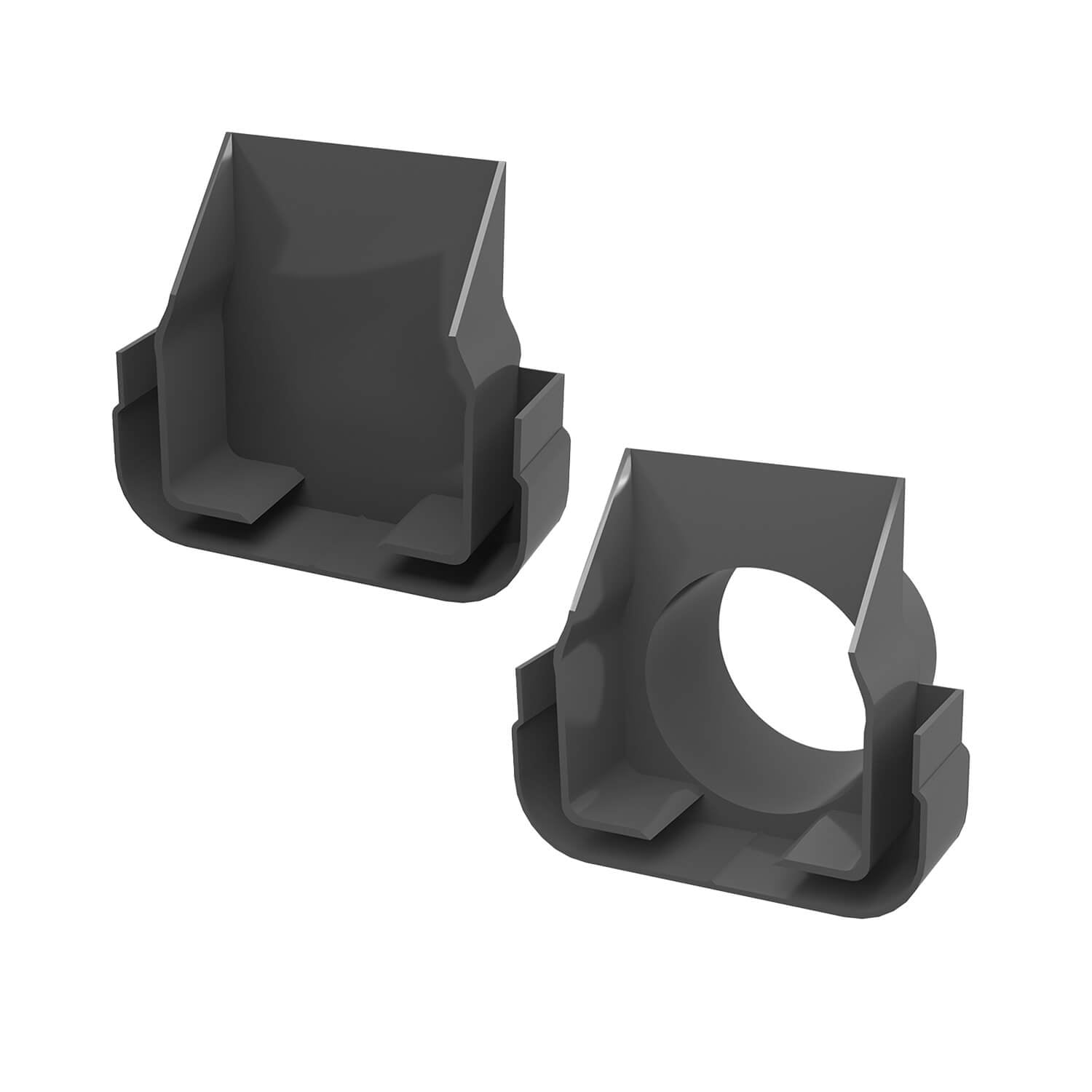

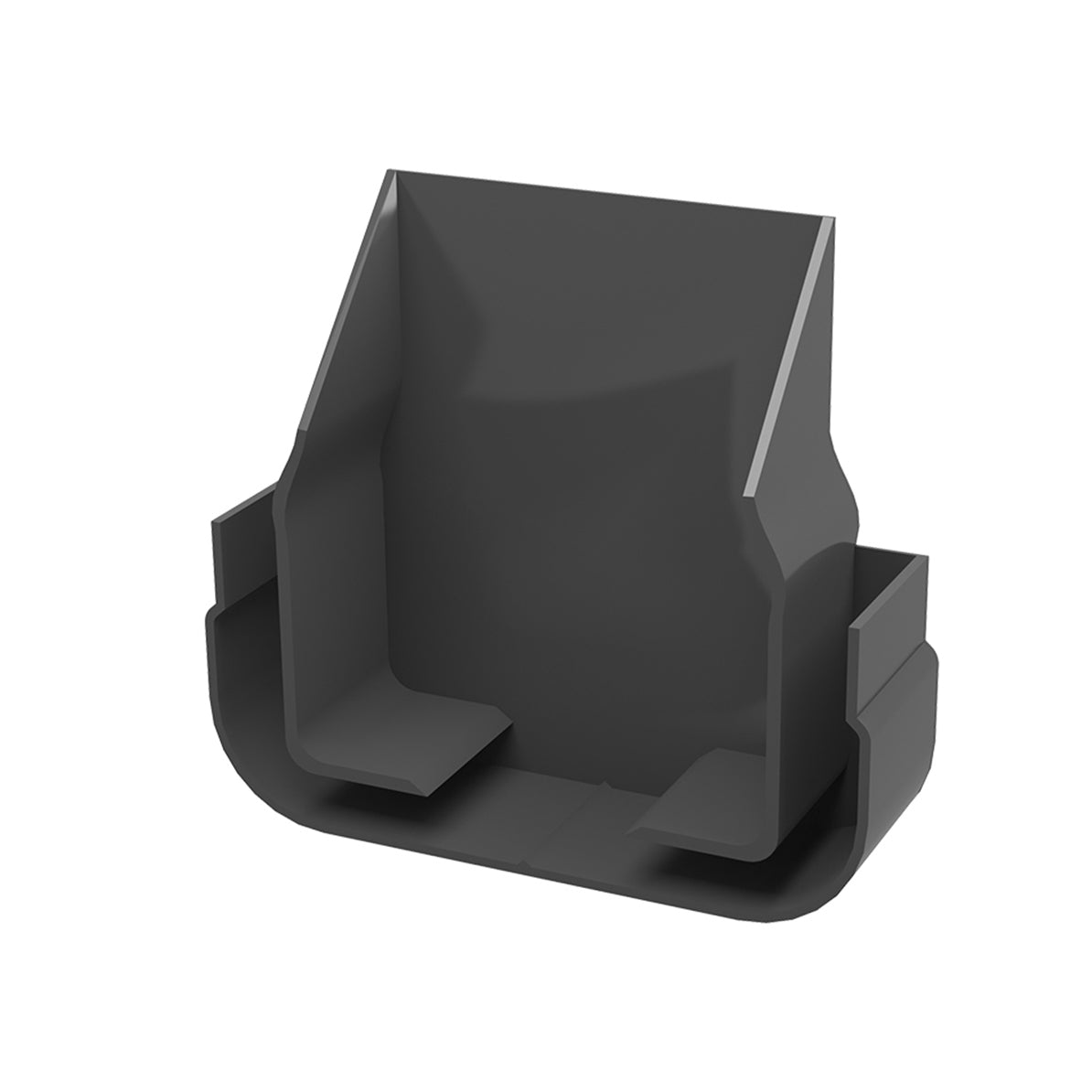

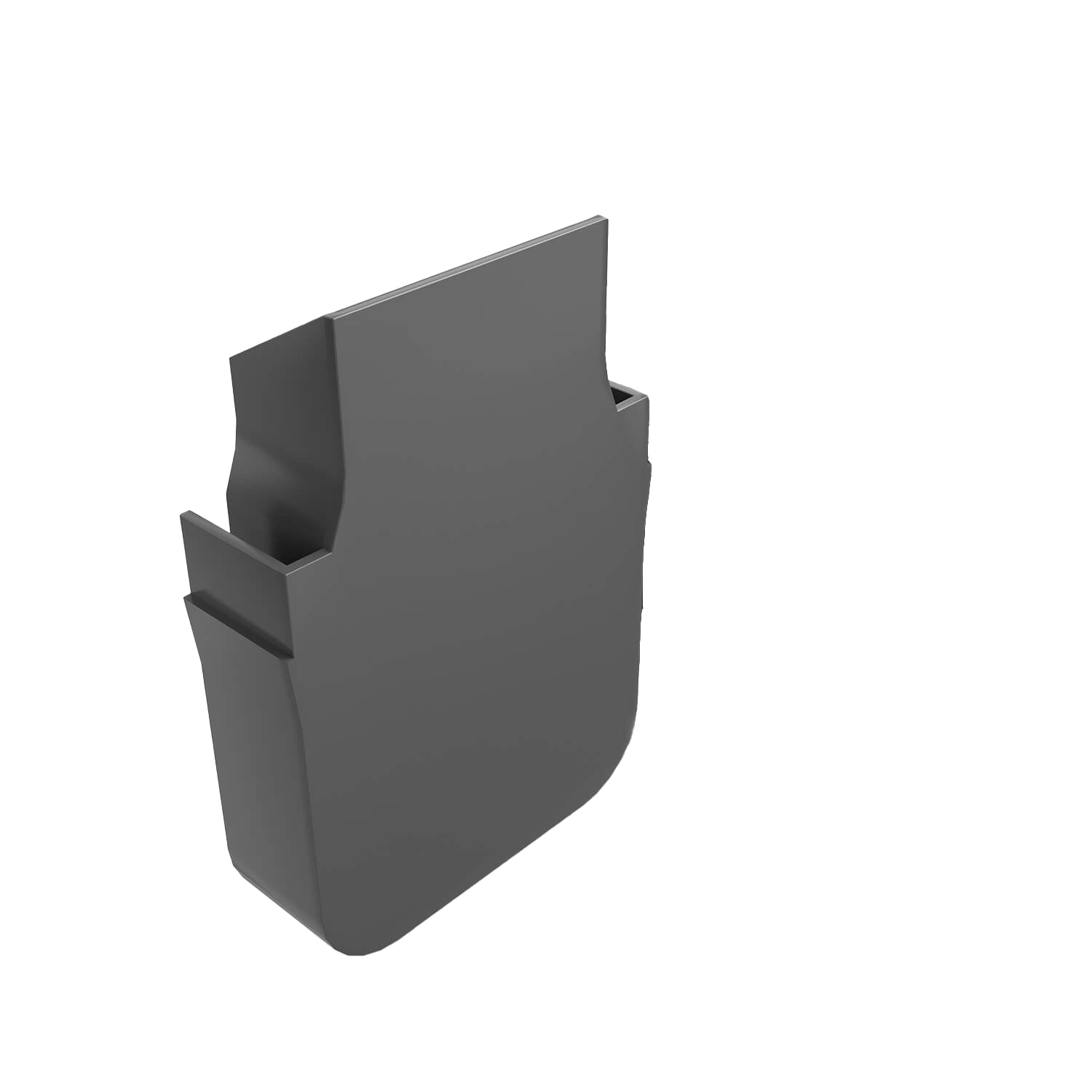

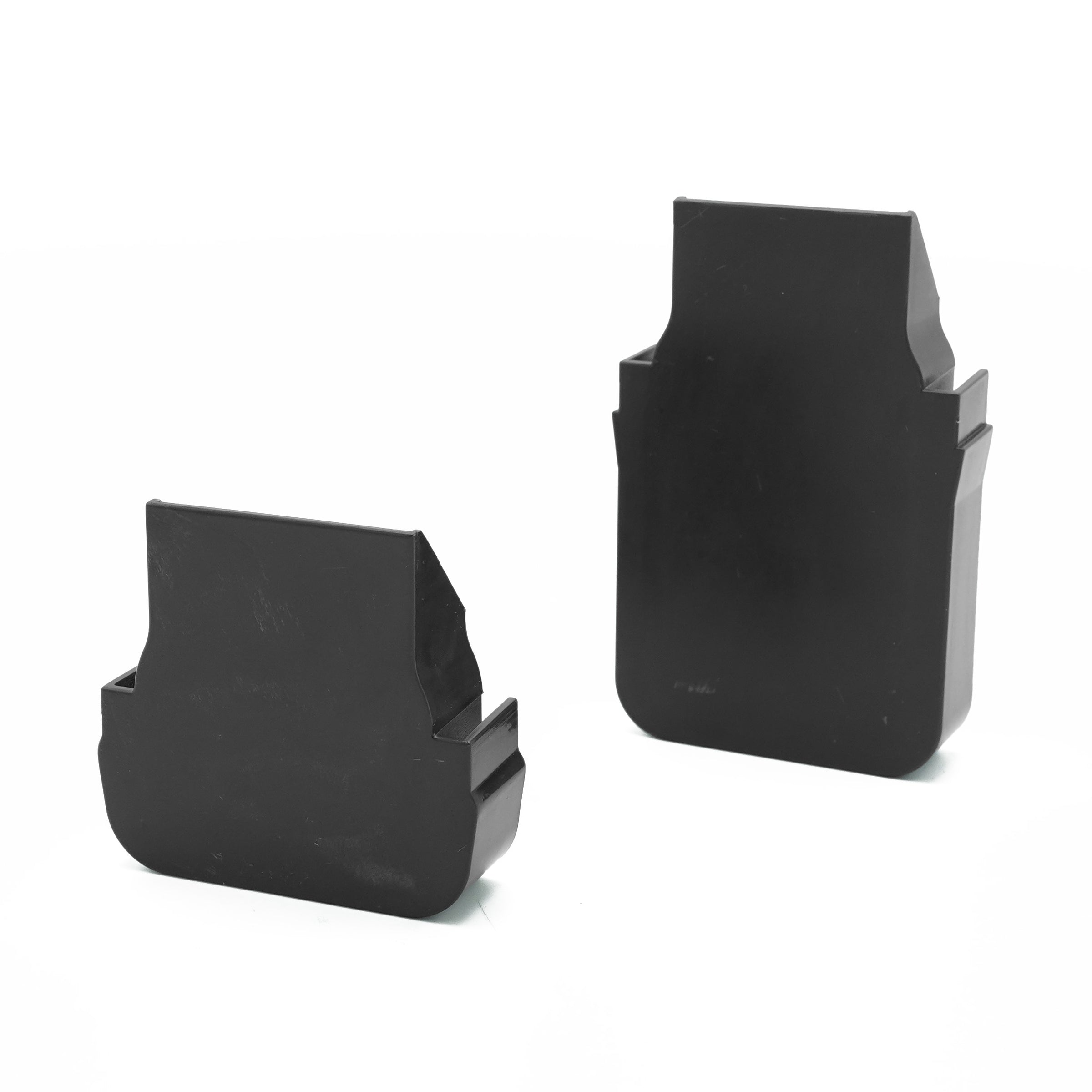

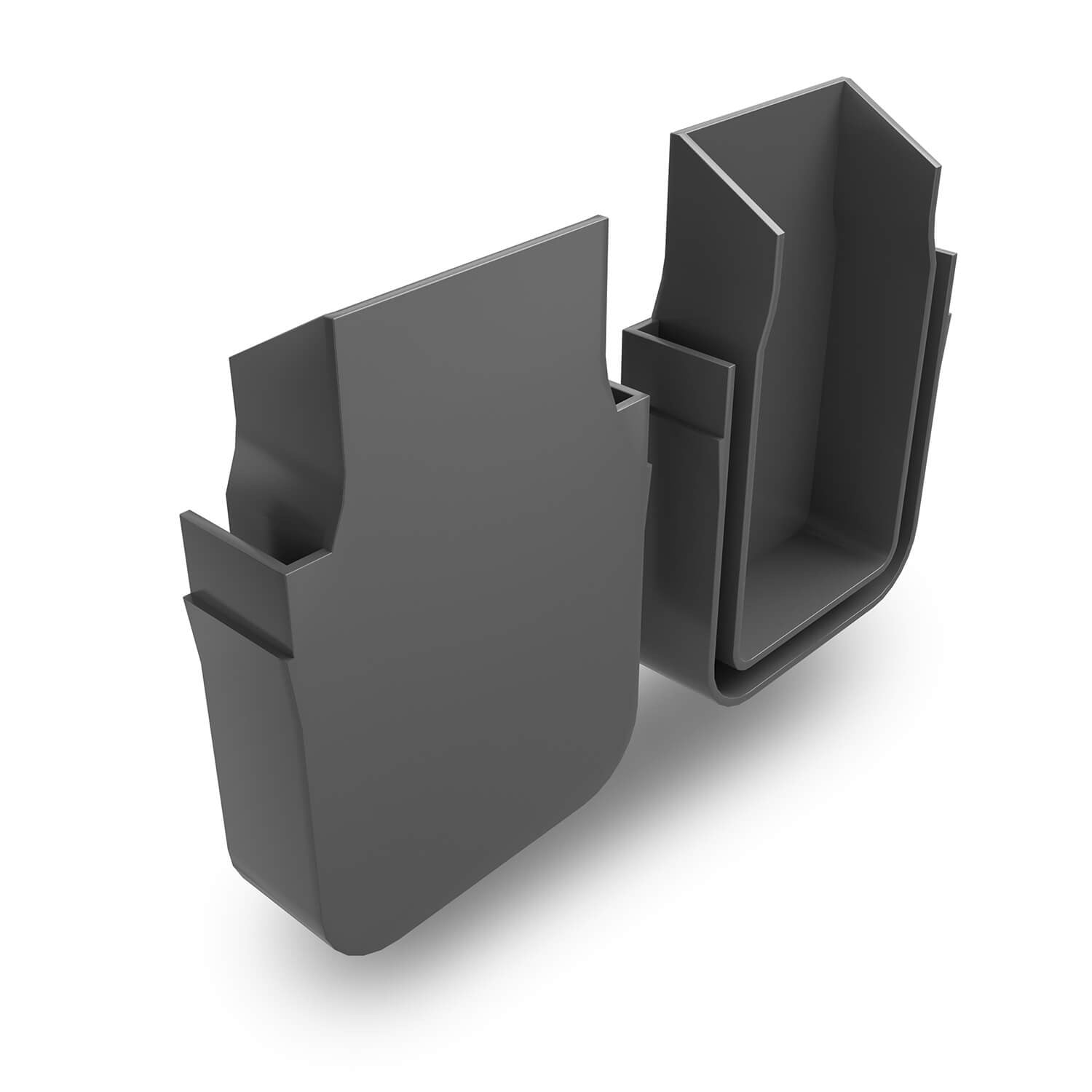

The Alusthetic Threshold Drain channel end cap is designed to cap the channel drain system at each end, acting as a stopper and blocking waterflow in that direction.

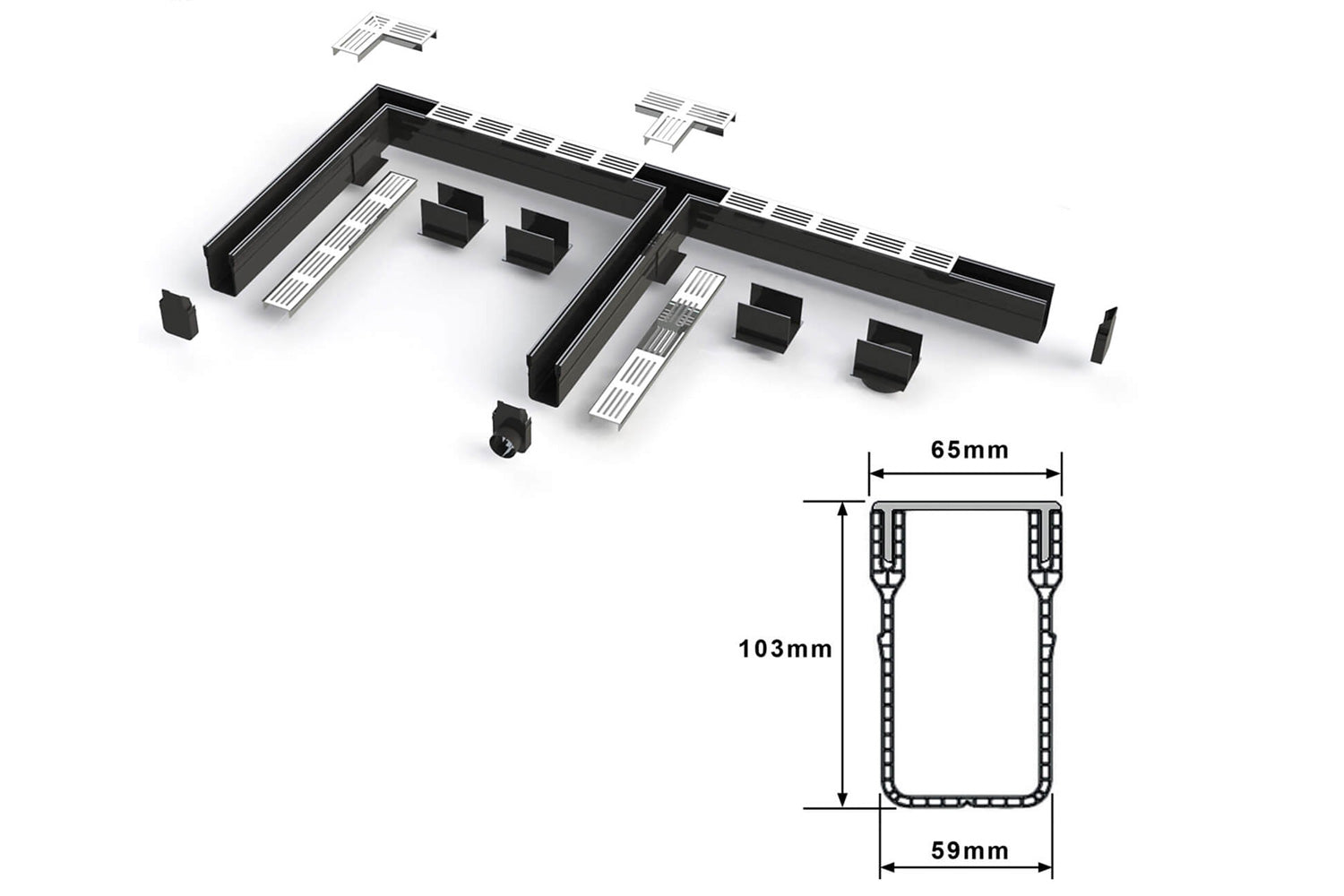

Designed to sit at the end of a length of Alusthetic Threshold Drains and Grates (which lie flush to the floor) and blocking channel ends, the Alusthetic PVC channel end caps ensure efficient waterflow in the correct direction. Measuring 65mm in width and 103mm in depth, this Alusthetic PVC channel end cap is also available with a 50mm outlet.

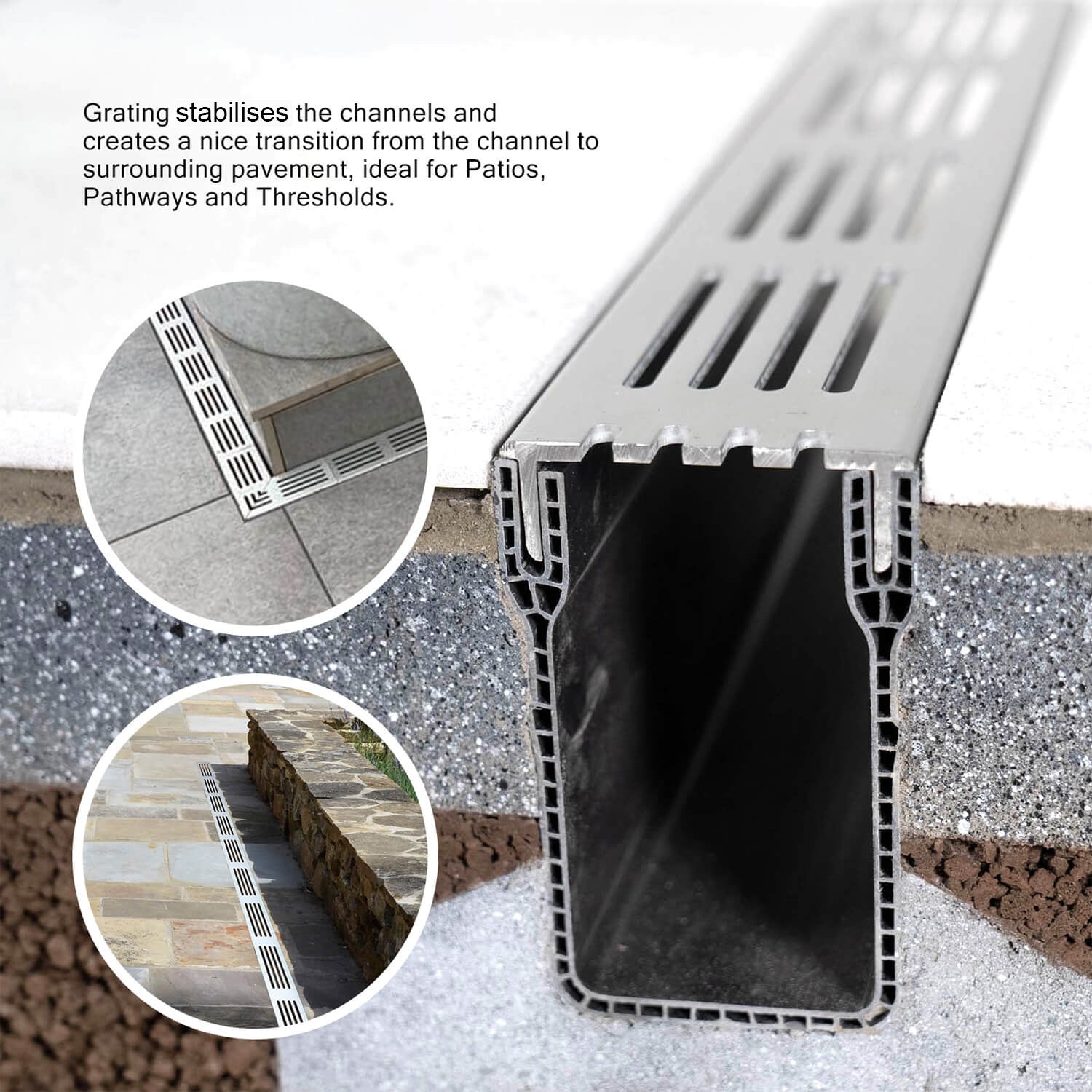

Designed for use with the Alusthetic Threshold Drain and Grate around the home or in areas of low or no vehicular traffic, the channel end cap (like the rest of the system) is UKCA and CE marked and fully certified to Load Class A 15 of the BS EN 1433:2002. This means it can withstand forces of up to 15kN (approximately 1.5 tonnes) in soft ground and around 25kN in concrete.
Please note that all plastic (PVC) parts can be connected to each other in a waterproof manner using a PVC solvent weld.
Outlets can be integrated into channel connectors or channel end plates to efficiently remove water. You could incorporate a 50mm outlet into this channel connector to allow connectivity to an adjacent drainage pipe.
You should connect a maximum of 5 metres of threshold drainage channels to a side outlet, and you can prevent stray odours from escaping by installing a syphon when connecting to the wastewater sewer.

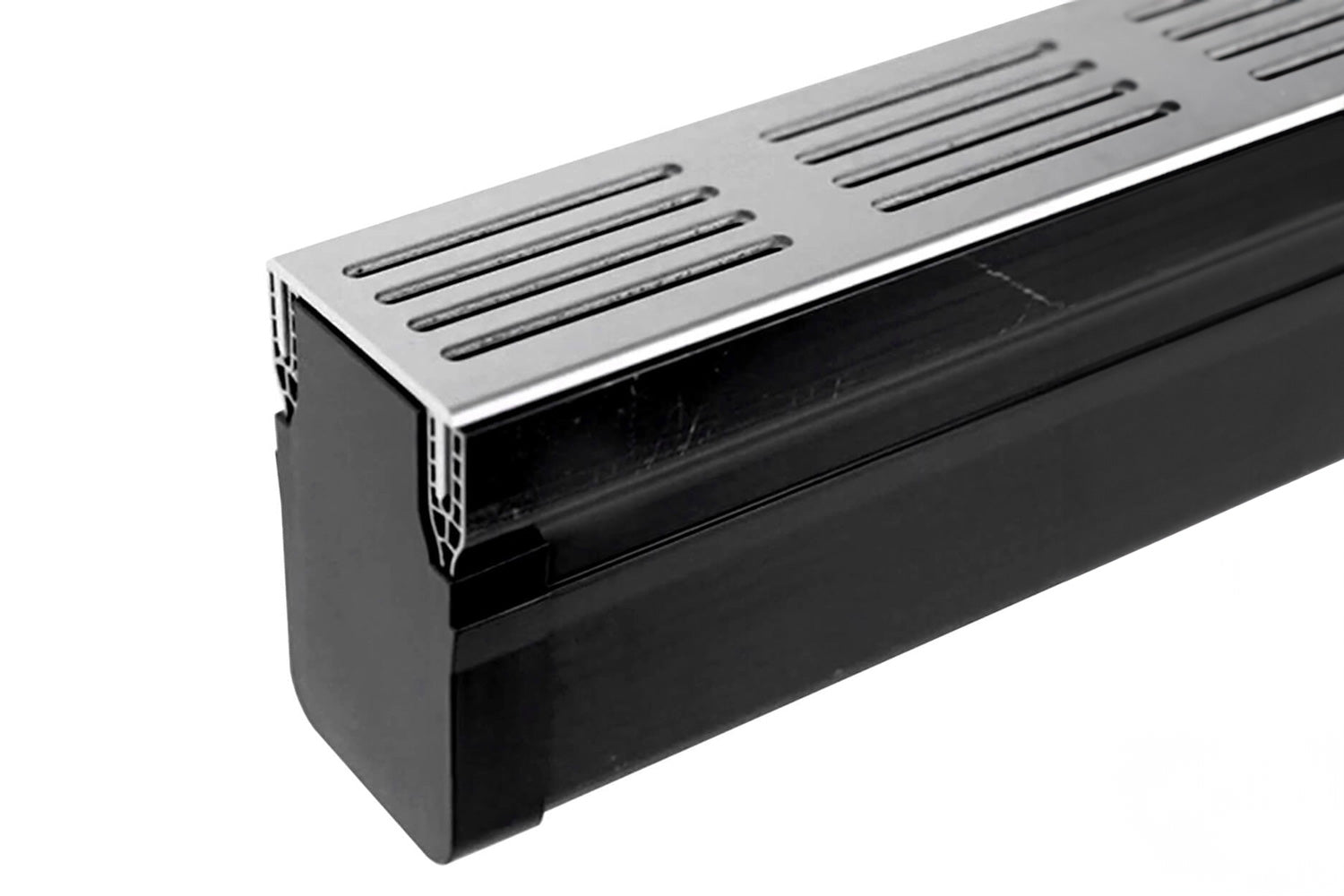

If you’re looking for a channel connector with a bottom escape route for water, try the Alusthetic PVC Channel End Cap With Outlet.
More from Alusthetic's Lightweight Drainage Collection.
Feel free to reach out to us if you have any questions or need help with the installation of our PVC threshold channels.Call us today on +44 (0)1905 794875, Or send us a message in the instant chat below!
