Pivoting Height Restriction Barrier With Temporary Access

£1,903.63 excl. VAT
£2,284.36inc. VAT
Width: 3000mm
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:

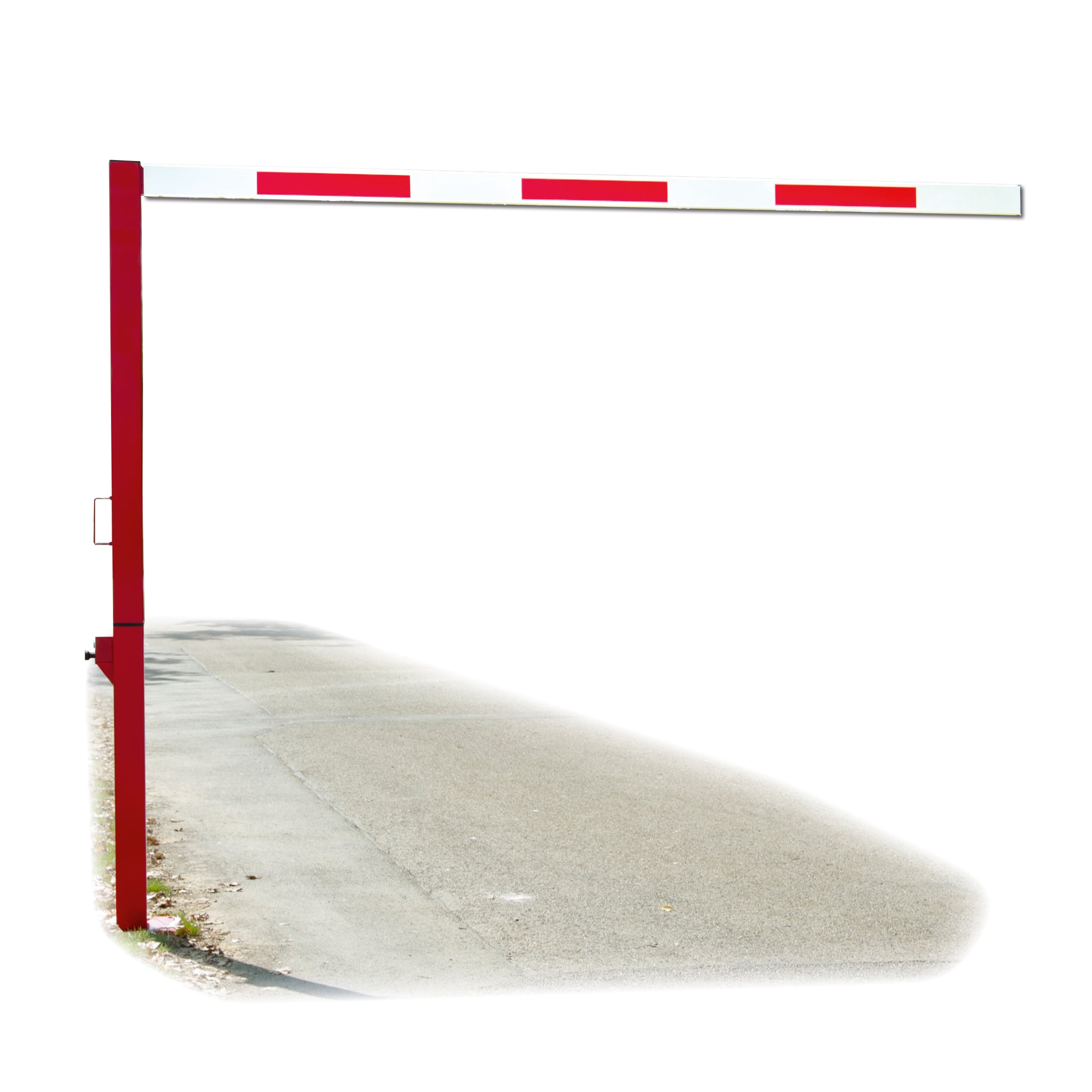

Pivoting Height Restriction Barrier With Temporary Access

This height restriction barrier is very similar to the fixed barrier that we offer but features the added advantage of being able to pivot out of the way when needed. This may be to grant access to authorised vehicles that would otherwise exceed the required height restriction. This may be to allow refuse vehicles to access parkland that you would not permit other large vehicles such as vans and caravans to access.

These pivoting height barriers can be used individually or in pairs, this allows them to cater to a variety of widths of roads and access routes. A strong steel upright can be bolted to any suitable foundation making this fast to install.

The pivot can be locked open or closed with the included triangular key, or with a locking pin and padlock (padlock not included). When pivoted the crossbar is moved out of the way of approaching vehicles. When in position high visibility markings in red and white ensure that vehicles can easily spot the height restrictor barrier.

Pivoting Access Control Barrier

Solid Construction

With hot-dip galvanized steel uprights finished in a durable powder coat, these barriers are strong and will look sharp for years to come.

Adjustable Height

The crossbar can be set at four heights these include; 2200mm, 2350mm, 2500mm and 2650mm. The height can be further fine-tuned by using the drop-down nudge bar, this is suspended on-chain and can reduce the height by a further 400mm if needed.

Two Barrier setup

Perfect For Temporary Access Applications

When access is occasionally required then these are the best alternative to a fixed product. They can be quickly opened to allow access to vehicles when needed.

Available In A Variety Of Widths

There are several sizes available to allow for all spaces and scenarios. Drive through width options include; 3m, 3.5m, 4m, 4.5m and 5m.

Pivoting barrier installed

Drive Through Width

This measurement indicates the width that is clear for vehicles to drive through. Please note, the overall length is different and shown in the accompanying table.

It is important to note that the overall length is longer than the drive-through width.

Overall width (mm) Max.drive through width (mm) Delivery Weight (kg/ea.) Product Code Despatch time (working days)
3205 3000 55 14408-3000 15 / 20
3705 3500 60 14408-3500 15 / 20
4205 4000 65 14408-4000 15 / 20
4705 4500 70 14408-4500 15 / 20
5205 5000 75 14408-5000 15 / 20

Other Height Barrier Systems

GS6 Temporary Height Restriction Barrier System

GS6 Kits

For road and construction sites the GS6 kit is king. These carry out the same job but are specially developed just for construction sites.

Aluminium Height Bar

Aluminium Height Bar

A height bar made from a durable aluminium profile. It comes in more lengths and sizes.

Plastic Height Bar

Plastic Height Bar

Supplied in a high reflectivity red and white this simple plastic bar will reduce the risk of causing damage to vehicles.

Fixed Height Restrictor

Fixed Height Restrictor

Installed at the entrance to car parks and public areas these barriers are fixed in the entrance and free standing.

Need Help Setting A Height Limit?

Our quick and easy to install height limit barriers are great for restricting access to certain vehicle types. If you need help finding the right system for your needs then please contact our sales team on 01905 794 875 today. Our sales team are available to discuss your needs and help you find the best barrier for your needs.
