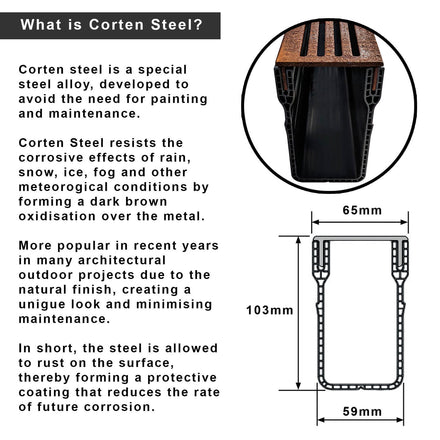

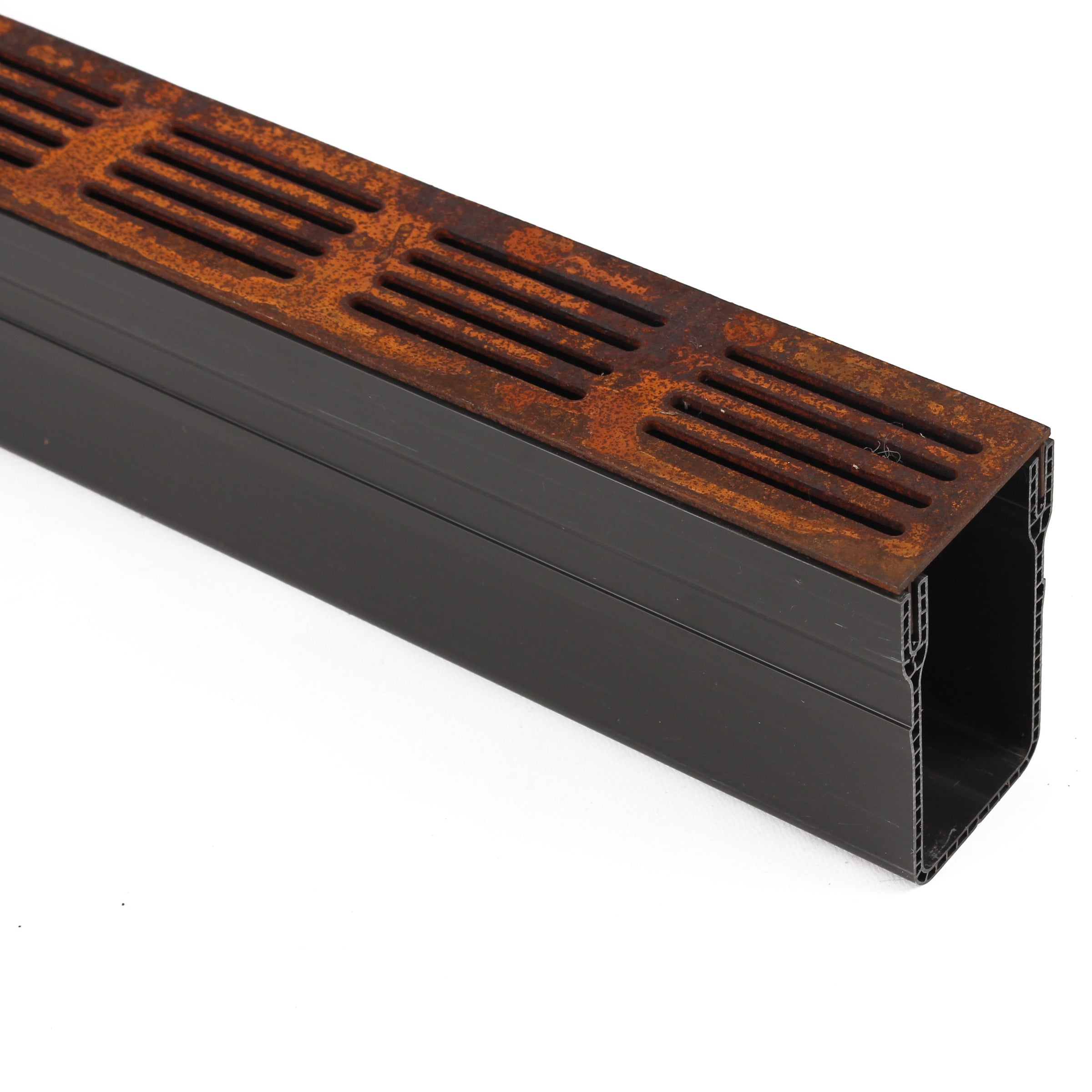

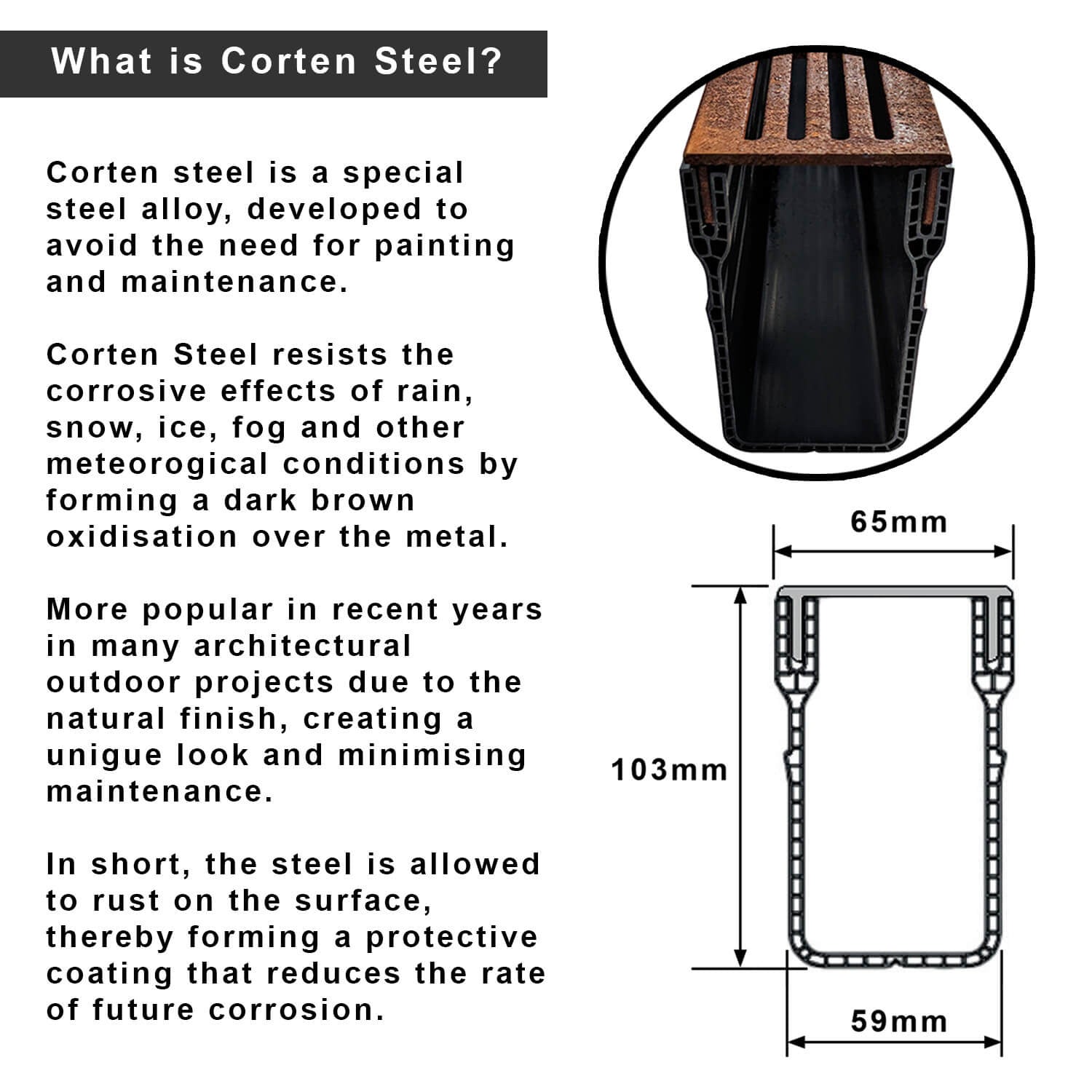

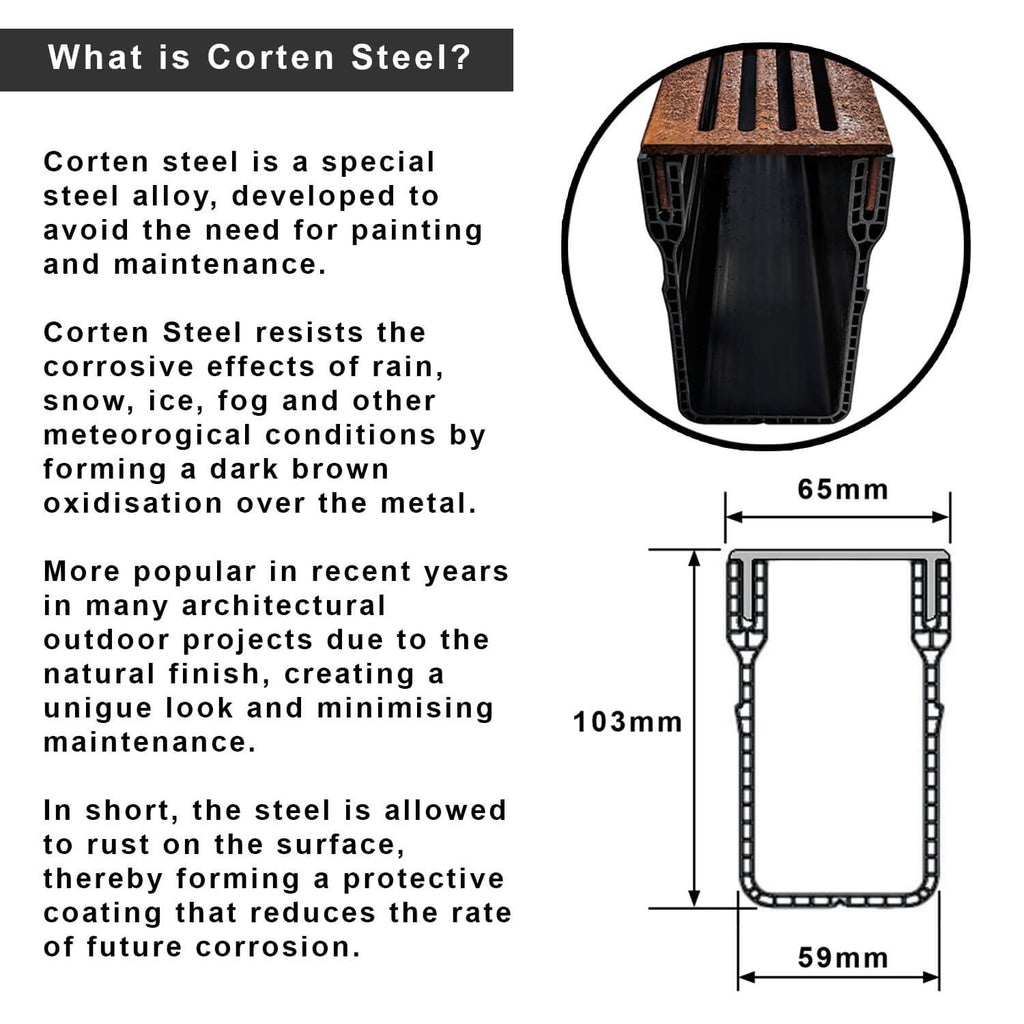

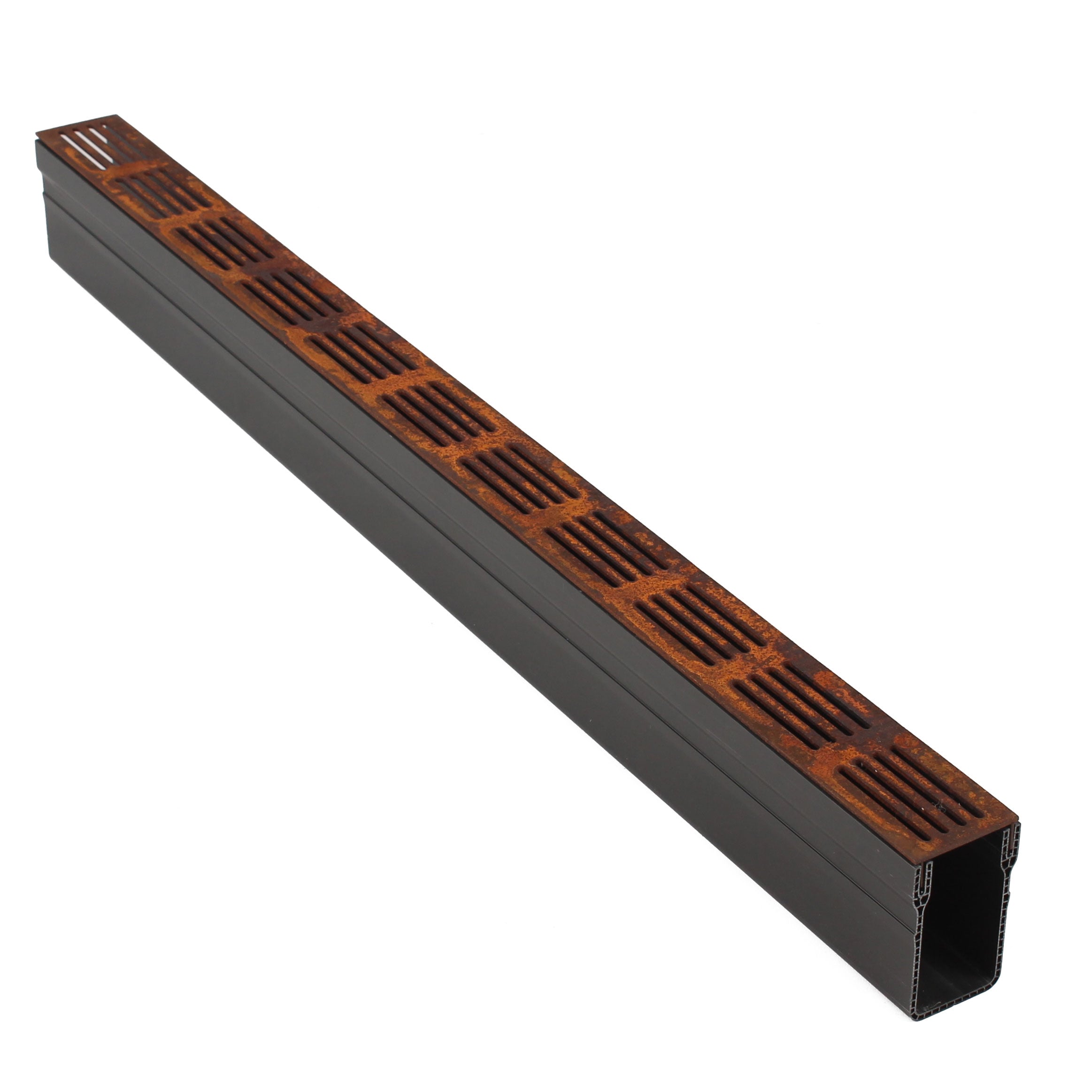

Alusthetic PVC Threshold Drain With Corten Steel Grating 1 Metre Length

Alusthetic's corten steel threshold drain is a slim drainage channel designed for residential projects in areas with minimal vehicular traffic, such as patios, pathways, and walkways. Tailored for domestic use, this drainage solution efficiently collects and redirects water, reducing the accumulation of pools of water around entry points, patios, and pedestrian zones close to residences or businesses.

The linear drainage channel (trench drainage channel), effectively controls water runoff at doorways or entrances, presenting an optimal solution for both commercial and residential structures susceptible to water ingress, protecting walls and foundations from potential damage. This effective drainage system not only prevents water damage but also contributes to maintaining a secure living or working environment. Additionally, threshold drains decrease surface runoff in urban settings, lowering the likelihood of local flooding.

Fully compliant to load class standard A 15 BS EN 1433:2002 and meeting the requirements of Part M of the Building Regulations, this certified threshold drainage strip can withstand forces of up to 15kN (approximately 1.5 tonnes) in soft ground and around 25kN in concrete. This robust construction makes it well-suited for light-duty indoor and outdoor applications, such as skirting the base of indoor pools, patio and garage thresholds, and along pedestrian footpaths and bridleways.

Please note: Each section of Alusthetic Threshold Drainage Channel should be connected using a channel connector which will also help to stabilise the channel during installation. Ends should be capped off using an end cap or outlet. We recommend using a PVC solvent weld to fuse your channels and connectors together. Although not essential (as your system will be slotted together using channel connectors), it can be useful to plug any gaps and ensure your channels are one seamless length of leak proof, water tight PVC.
