Universal Sign Clips for Post / Pole Mount Signs

Universal Sign Clips for Post / Pole Mount Signs (52-312mm)

Universal Sign Clips for Post / Pole Mount Signs

Product code: 16088-U

Start Traffic

View the product details

£4.81 excl. VAT

£5.77inc. VAT

Buy in bulk and save

50 or more £4.57 excl. VAT
50 or more £5.48 inc. VAT
100 or more £4.33 excl. VAT
100 or more £5.20 inc. VAT

In Stock

Diameter (mm): 45-217mm

45-217mm
52-312mm

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

You may also be interested in the following:

£4.81 excl. VAT

£5.77inc. VAT

Description

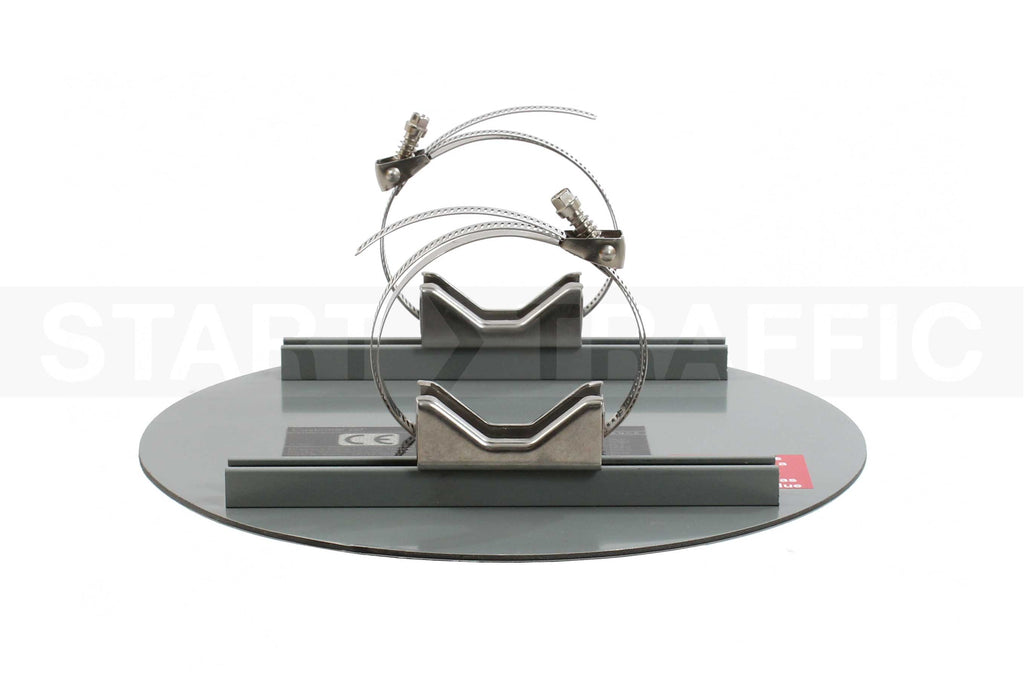

Sign Clips for Post / Pole Mount Signs- Universal Clip

Two universal clamps are required to mount one of our post mountable signs to a pole (one for each rail). The universal clamp provides adjustable sizing, allowing easy mounting to any pole from 45mm to 217mm including odd pole profiles. This clip is useable with any sign from our post mountable sign range.

To mount two signs to the top of a post, a set of back-to-back clips are required to hold the rails. This, unfortunately, will not work with the universal sign clamps as back-to-back clips are a set length to fit with the Rigid-D clips. Therefore, we recommend using a 76mm pole in situations where signs are required facing both ways. It is possible to mount two signs back to back with the universal clips, however, the signs will not be level with each other.

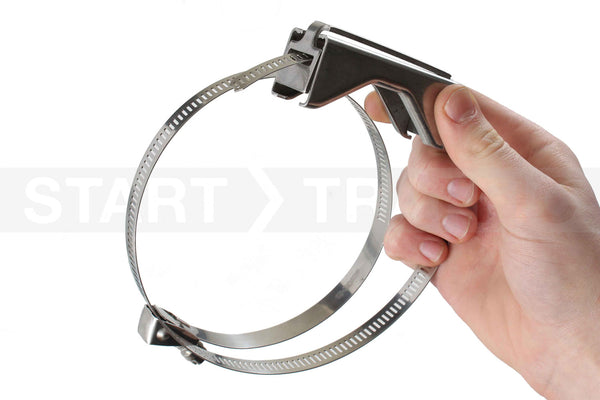

Step 1

Cut the cable tie holding the bands and thread them through the mouth of the larger pieces.

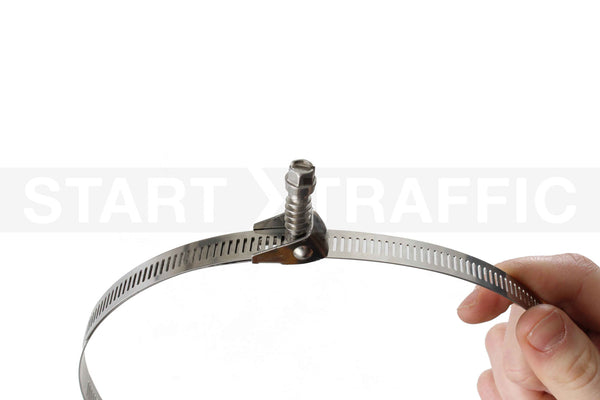

Step 2

After sliding the larger pieces into the rails of the sign, straighten the screw to allow the band to pass through and wrap the band of each clip around your pole.

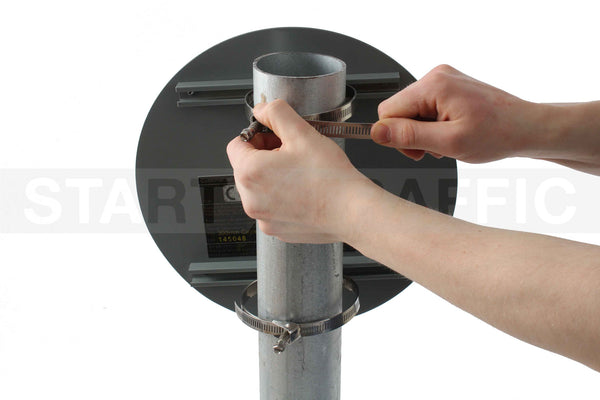

Step 3

Pull the band as tight as possible.

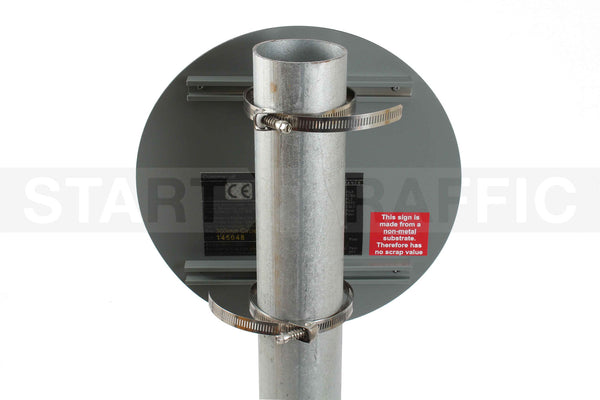

Step 4

Push the screw back down to secure the band's position and repeat for the bottom clip.

Step 5

Use a flathead screwdriver to tighten the screws, firmly securing the sign's position.

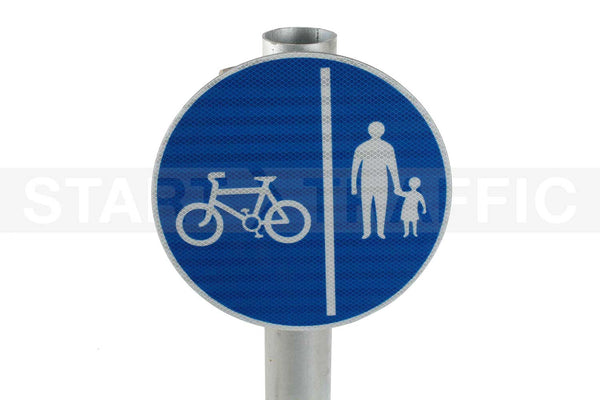

Step 6

Enjoy your mounted sign.

Rigid 'D' Clip

For 76mm / 3" diameter poles. The rigid-'D' clamp is designed to be specifically used with 76mm poles.

Back-to-Back Clips

These are used if you need to have two signs mounted on one pole back to back and are only compatible with the 76mm rigid clip. To mount two signs back to back you would require two Rigid 'D' clips and two sets of the Back-to-back clips.

Universal Clamp

This is the page for this clamp. It works with any pole from 45mm to 217mm including odd pole profiles. However, they are not compatible with back-to-back clips.
