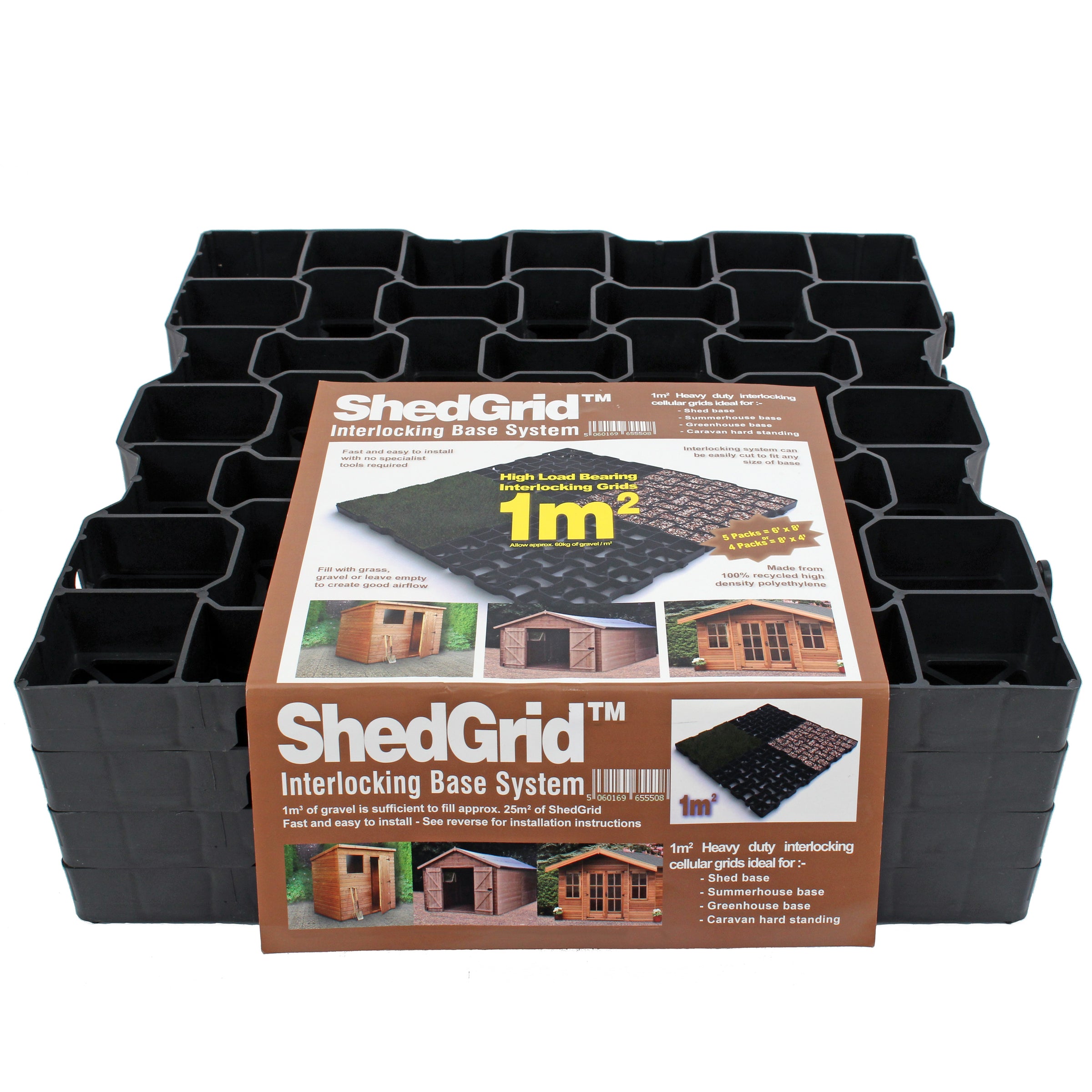

The original ShedGrid, a shed base system that allows water to quickly and efficiently drain away preventing rot and puddles. One of the most common failure points of a traditional timber shed is the base, which often rots due to being placed on a non-porous surface such as paving slabs.
The ShedGrid system provides a fast and easy to lay foundation for garden sheds, log stores, and garden storage bins. Unlike other foundations though ShedGrid provides incredible drainage, keeping water away from the shed base, helping reduce the risk of rotting or flooding.

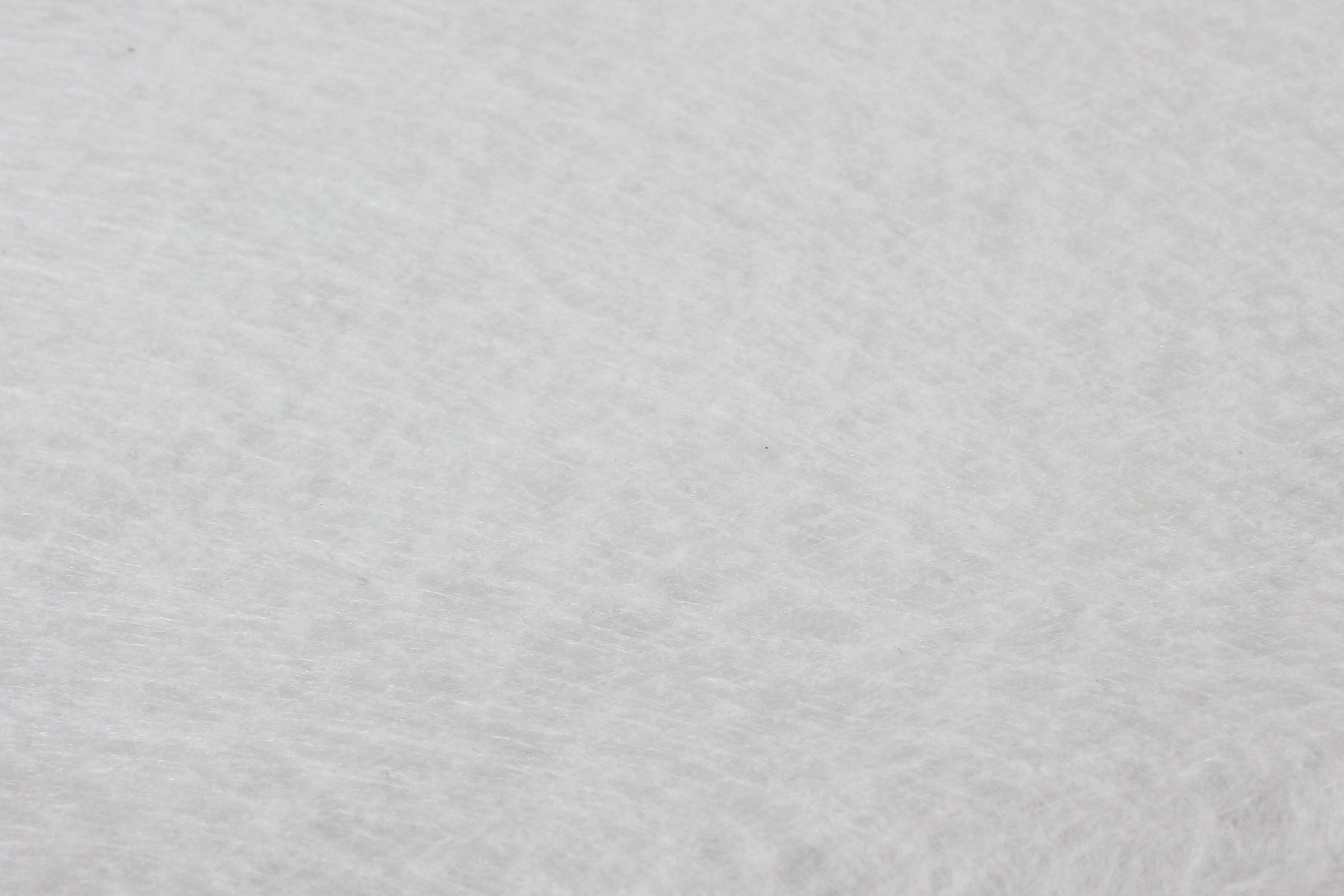

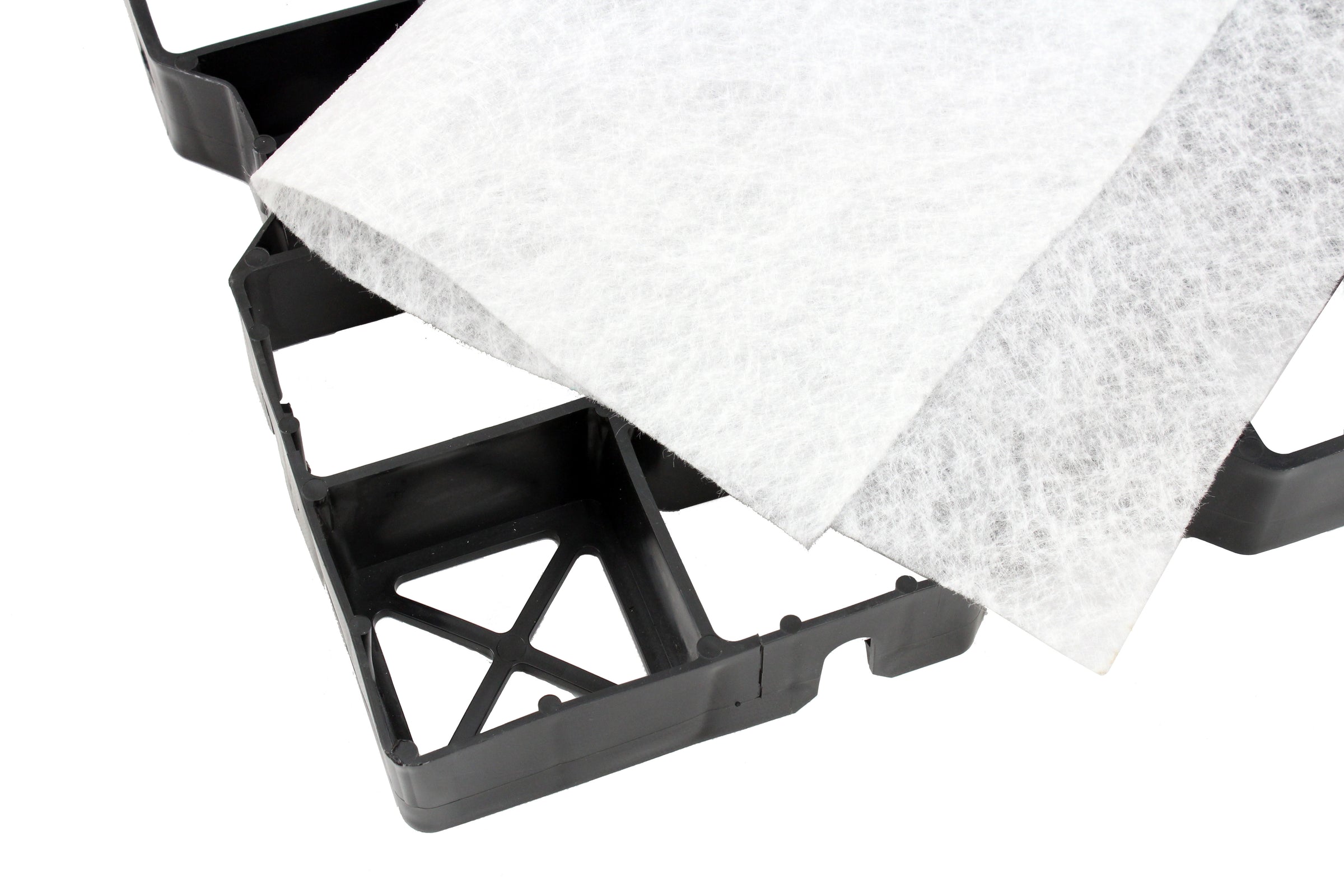

ShedGrid Is superior when compared to other systems on the market. We not only use the genuine ShedGrid, but we also use the Premium version that is strong enough to support up to 44 tonne per square meter! Each kit comes complete with commercial grade geotextile membrane, to prevent weeds from coming through.
If installing on a flat level area installation could not be easier.
Your Shed Base foundation is now complete.
If you are not working with level ground there is an excellent guide here: that provides plenty of instruction on how to produce a foundation strong enough to park a car on.
Each kit is supplied with just enough grids to protrude past the size of the shed that you are installing on top of it. We have included a table below that details the shed size, how many grids you will receive, and the overall dimensions of the ShedGrid foundation.
| Shed Size (ft/m) | Overall Foundation Size (m) | Quantity Of Grids | Kit Version |
|---|---|---|---|
| (2x3) (ft) (0.61x0.91) (m) | 1x1 | 4 | A |
| (3x4) (ft) (0.91x1.22) (m) | 1x1.5 | 6 | B |
| (3x5) (ft) (0.91x1.52) (m) | 1x2 | 8 | C |
| (3x6) (ft) (0.91x1.83) (m) | 1x2 | 8 | C |
| (2x8) (ft) (0.61x2.44) (m) | 1x2.5 | 10 | D |
| (3x7) (ft) (0.91x2.13) (m) | 1x2.5 | 10 | D |
| (3x8) (ft) (0.91x2.44) (m) | 1x2.5 | 10 | D |
| (3x9) (ft) (0.91x2.74) (m) | 1x3 | 12 | E |
| (3x10) (ft) (0.91x3.05) (m) | 1x3.5 | 14 | F |
| (4x5) (ft) (1.22x1.52) (m) | 1.5x2 | 12 | G |
| (4x6) (ft) (1.22x1.83) (m) | 1.5x2 | 12 | G |
| (4x7) (ft) (1.22x2.13) (m) | 1.5x2.5 | 15 | H |
| (4x8) (ft) (1.22x2.44) (m) | 1.5x2.5 | 15 | H |
| (4x9) (ft) (1.22x2.74) (m) | 1.5x3 | 18 | J |
| (4x10) (ft) (1.22x3.05) (m) | 1.5x3.5 | 21 | K |
| (5x6) (ft) (1.52x1.83) (m) | 2x2 | 16 | L |
| (6x6) (ft) (1.83x1.83) (m) | 2x2 | 16 | L |
| (5x7) (ft) (1.52x2.13) (m) | 2x2.5 | 20 | M |
| (5x8) (ft) (1.52x2.44) (m) | 2x2.5 | 20 | M |
| (6x7) (ft) (1.83x2.13) (m) | 2x2.5 | 20 | M |
| (6x8) (ft) (1.83x2.44) (m) | 2x2.5 | 20 | M |
| (5x9) (ft) (1.52x2.74) (m) | 2x3 | 24 | N |
| (6x9) (ft) (1.83x2.74) (m) | 2x3 | 24 | N |
| (6x10) (ft) (1.83x3.05) (m) | 2x3.5 | 28 | P |
| (6x12) (ft) (1.83x3.66) (m) | 2x4 | 32 | Q |
| (7x7) (ft) (2.13x2.13) (m) | 2.5x2.5 | 25 | R |
| (7x8) (ft) (2.13x2.44) (m) | 2.5x2.5 | 25 | R |
| (8x8) (ft) (2.44x2.44) (m) | 2.5x2.5 | 25 | R |
| (8x9) (ft) (2.44x2.74) (m) | 2.5x3 | 30 | S |
| (7x10) (ft) (2.13x3.05) (m) | 2.5x3.5 | 35 | T |
| (8x10) (ft) (2.44x3.05) (m) | 2.5x3.5 | 35 | T |
| (8x12) (ft) (2.44x3.66) (m) | 2.5x4 | 40 | U |
| (8x13) (ft) (2.44x3.96) (m) | 2.5x4 | 40 | U |
| (8x14) (ft) (2.44x4.27) (m) | 2.5x4.5 | 45 | V |
| (8x16) (ft) (2.44x4.88) (m) | 2.5x5 | 50 | W |
| (9x9) (ft) (2.74x2.74) (m) | 3x3 | 36 | X |
| (10x10) (ft) (3.05x3.05) (m) | 3.5x3.5 | 49 | Y |
| (10x11) (ft) (3.05x3.35) (m) | 3.5x3.5 | 49 | Y |
| (10x12) (ft) (3.05x3.66) (m) | 3.5x4 | 56 | Z |
If you are tight for space the shedgrid can be cut to size using a hand saw or circular saw with ease.
We are here to help you get just the right shed foundation for your needs. We want to ensure that you get just the right kit so that you can quickly and easily install your foundation with minimal effort, ensuring you are sat and admiring your work in as little time as possible. Our sales team can be contacted on 01905 794 875 during office hours.
