Q-Frame Plastic Quick Fit Sign Frame

Product code: 15485

Melba Swintex

View the product details

£31.96 excl. VAT

£38.35inc. VAT

In Stock

Title: Default Title

Default Title

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

You may also be interested in the following:

£31.96 excl. VAT

£38.35inc. VAT

Top features

Recyclabel & Corrosion Proof
Lightweight Construction
Ultra Strong

Description

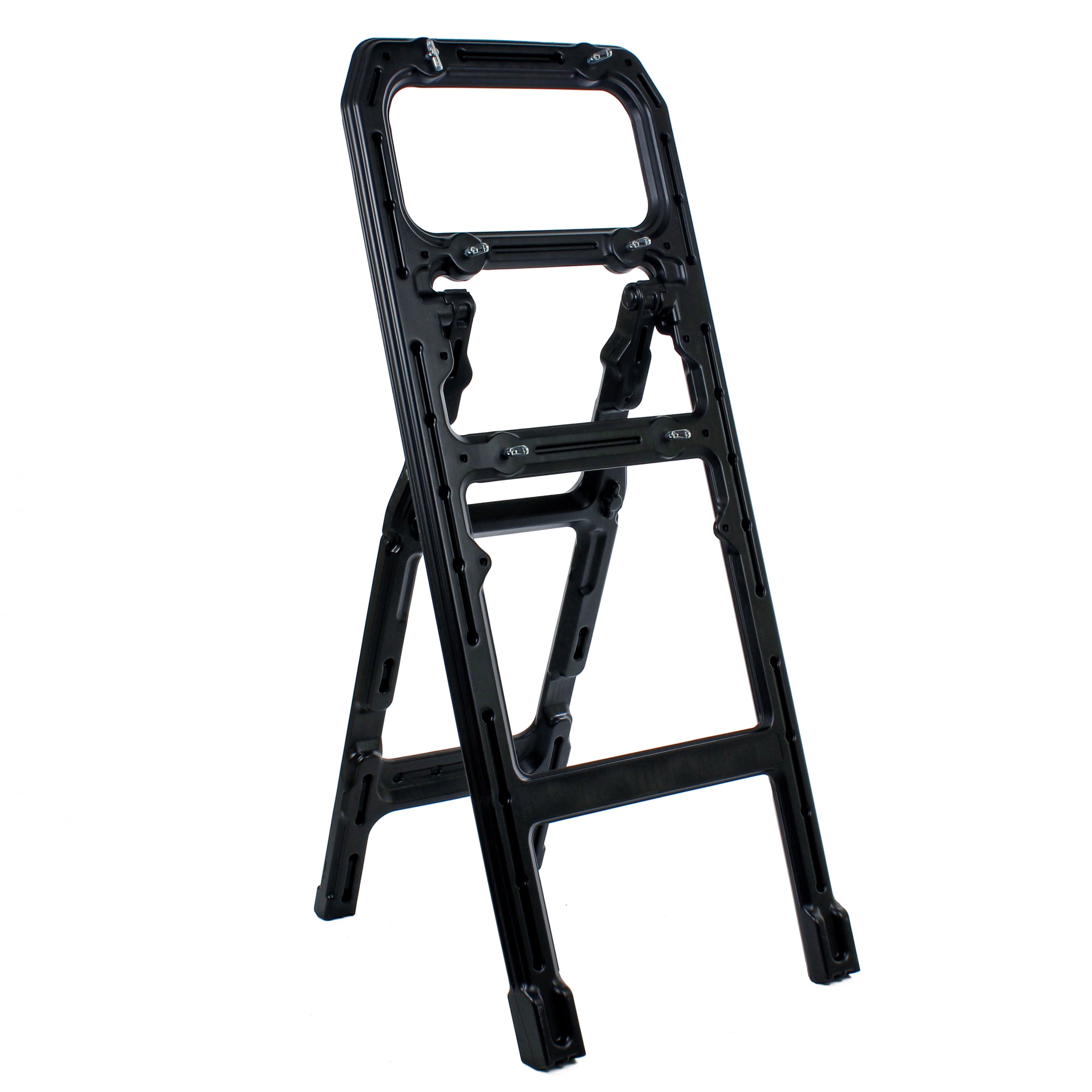

Q-Frame Plastic Quick Fit Sign Frame

The all-new Q-Frame road sign frame from Melba Swintex is a long-awaited innovation that has pulled the quick fit system into the modern age. An ultra-strong blow moulded plastic construction makes this sign frame highly durable, non-conductive and most importantly lightweight.

Unlike traditional steel frames this plastic quick fit mini sign frame has no sharp edges, and also no scrap value so is not desirable to scrap metal thieves that often target metal sign frames. Transportation and storage costs are also massively reduced with 80 units easily being transported on a single pallet. This density of storage along with the lightweight nature of the product means there is more weight capacity relieved on vans and transport vehicles.

Compatible with all quick fit faces, including supplementary faces that have 300mm hole centres. The frame also comes with mounting points for 450mm centres, if this is something you require please do not hesitate to contact us.

Key features

Recyclabel & Corrosion Proof

Made from 100% recyclable plastic. No rust or corrosion.

Lightweight Construction

Get more on your work vehicle without being overloaded.

Ultra Strong

Strong enough to take two adults standing on each leg, it may be light, but it is also super sturdy.

300mm Centres

Supplied as standard with 300mm centres, but available to order with 450mm toggle centres.

Mira Wind Speed Tested

Testing data to ensure you get the right amount of ballast for your deployment.

Cost-Effective To Transport

Cut down on trips by getting 80 units to a pallet.

Non-Conductive

Reduce the risk of electrocution when working around live power sources.

Customised To Your Needs

Branding your sign frames in company colours or adding embossing is a great way to ensure that other contractors don’t accidentally pick your signs up at the end of a job. Please contact us to find out how we can customise the Q-frame to your needs.

The First Fully Wind Tested Quick Fit Sign Frame

The Q-frame is the very first quick-fit sign frame to be tested at the Mira full-scale wind testing facility. To be suitable for use on UK roads, temporary road signs must be able to withstand three classes of wind speed with the use of ballast as per BS 8442:2015;

Class A: 26.3 m/s (58mph)
Class B: 17.6 m/s (39mph)
Class C: 8.7m/s (19mph)

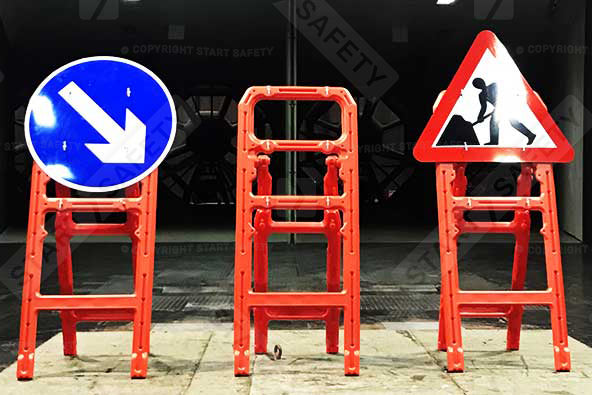

Q-frame plastic quick fit sign frame being wind tested at MIRA

Melba Q-Frame Ballast Requirements

The Q-frame after testing is suitable for use in all of the above wind speed classes with added ballast in the form of sandbags. The following table indicates how much ballast is required at each common sign face size and wind loading.

Class	750mm Triangle	750mm Circle	600x450mm	1050x450mm	1050x750mm
Class C	10kg	10kg	10kg	10kg	20kg
Class B	50kg	50kg	50kg	60kg	65kg
Class A	75kg	75kg	75kg	80kg	90kg
