Product code: 20501

Procity Universal Fixed Height Restrictor Barrier

View the product details
£1,859.00 excl. VAT
£2,230.80inc. VAT
Call For Availability

Height: 2200mm Fixed Height Size guide
Width: 5250-7550mm

  • Call us for bulk quantities (0)1905 794875

  • View the product details below to learn more about this product.

You may also need the following:

Procity Universal Fixed Height Restrictor Barrier
£1,859.00 excl. VAT
£2,230.80inc. VAT

Procity Universal Fixed Height Restrictor Barrier

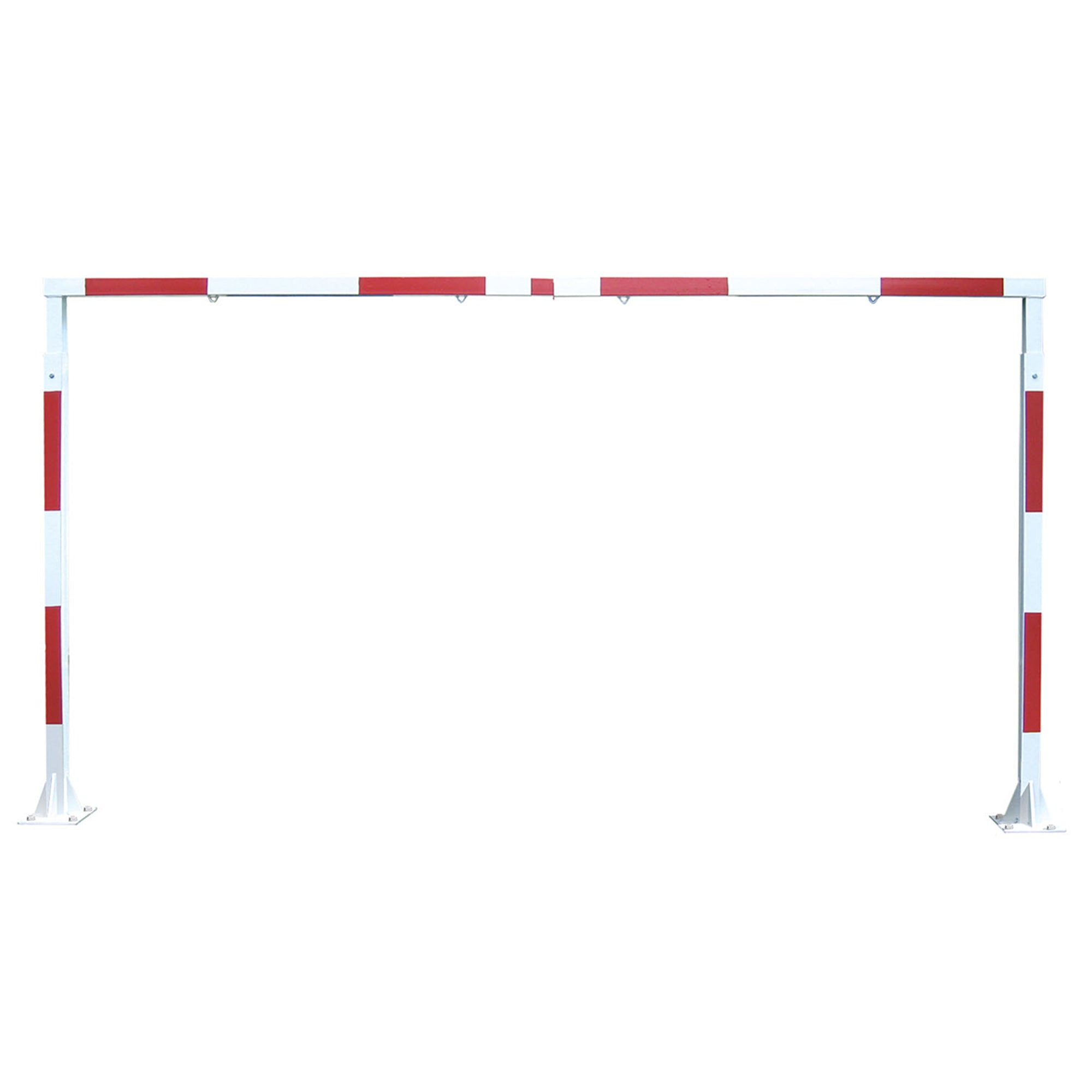

This fixed Universal Height Barrier from Procity is ideal for exit and entry points that will never permit oversized vehicle access. As the kit has less complexity, it also offers a cost saving over the swivel-type height restrictors.

This height restrictor is universal as it is available in several sizes, which you can adjust to suit specific site requirements. This height restrictor is suitable for 3850mm and 7550mm wide access routes. You can choose either fixed height versions of this height restrictor or adjustable; these allow you to cover most heights between 2200mm and 4500mm.

We supply the Procity Adjustable Fixed Height Restrictor Barrier with a white painted finish applied over a hot dip galvanised frame. Red reflective bands around the frame offer an advanced warning to drivers in low light conditions, ensuring unnecessary collisions are avoided.

Please Note: A pre-installation kit is required to install this barrier. The correct kit can be found here.

Procity fixed height restrictor installed

Key Features:

  • Multiple Widths Available - Choose the appropriate option for your car park requirements. All sizes have adjustments available, allowing you to fine-tune the install to your needs. Options available can adapt between 3850mm and 7550mm.
  • Multiple Heights Available - Pick a height that best suits your requirements; there are multiple options to choose from, one of which you can adjust to different heights.
  • Fixed Design - This height restriction barrier is fixed and does not have the option to pivot opening access.
  • Reflective Panels - Vibrant, eye-catching red panels ensure drivers do not overlook the barrier.
  • Anti-Sag tension cables on larger spans - Larger widths come with tensioning cables to ensure that the centre of the restrictor does not sag.
  • Preinstallation Kit available - The pre-installation kit (available separately) allows you to carry out all groundwork before erecting the frame. It includes cast-in base plates to which you can bolt the main structure.
  • Solid Construction - Procity manufactured the frame from 120 x 120mm steel tubes, which are hot dip galvanised and finished in white lacquer. This finish gives a premium aesthetic and ensures that the restrictor won't rust and will stay looking new for as long as possible.
procity-universal-fixed-height-restrictor drawing

Key Applications Procity Universal Static Height Restrictor Barrier

Underground Car Parks

Tall vehicles can cause damage to ceilings and support beams. This height rail will prevent excessively tall vehicles from getting close enough to cause damage.

Multi-Storey Car Parks

Fit these on the driveway leading up to multi-storey car parks to ensure that oversized vehicles do not damage ceilings and infrastructure by entering the property.

Manufacturing & Materials Processing

In these environments, overhead conveyors and pipework can cost tens of thousands to repair. By placing a height restrictor at the entrance to these areas, you can be assured that oversized vehicles won't damage infrastructure.

More From Our Range Of Car Park Barriers

Universal Procity swivel barrier

Procity Universal Swivel Height Restrictor

This restrictor is perfect for areas where larger vehicles occasionally need access. This requirement is often the case for sites where weekly waste collections are required.

Eco Swivel Height Restrictor

Procity Eco Height Restrictor

This is a budget-friendly alternative to this height barrier. It has no adjustability and is cast directly into the ground; it is still galvanised and just as durable.

procity height restrictor roof rattler rails

Height Restrictor Rails

These can be suspended from pre-existing structures or even from this barrier. They make contact with the roof of oversized vehicles making an audible warning.

Need Help Finding the Right Height Restriction System For Your Needs

If you are struggling to find the correct height restrictor for your needs, do not despair. Our knowledgeable sales team is here to help; we work with many of Europe's leading manufacturers, giving us a vast range of solutions to choose from. If you want to speak to the team, call us on 01905 794 875.

Key features

Procity_Made In France

Made In France

Procity products are manufactured in France for the European market; ensuring quality craftsmanship and strict adherence to European standards.
