  • Product code: 21852
  • Jubilee
  • In Stock
£4.22 excl. VAT
£5.06inc. VAT
Banding Diameter: 20-35mm
Pack Size: Single
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


You may also need the following:


Jubilee High Torque Stainless Steel Hose Clips

These heavy-duty Jubilee clips are designed for applications where reinforced or plastic hoses need extra clamping pressure to be applied to get a good seal. They are especially suited to applications where parts vibrate or are prone to leaks, where other hose clamps cannot meet the required performance levels.

The characteristics of this high-performance worm drive Jubilee clip make it well-suited to heavy-duty applications within quarrying machinery, rail locomotive units, oil and gas processing and the food industry. Its suitability for these applications is further enhanced by its stainless steel construction which gives it an outstanding 1000 hours of corrosion resistance during an NSS test.

All components within the assembly are made from the same grade of 304 stainless steel, ensuring no bi-metallic corrosion issues and further enhancing the lifespan of this high clamping force hose clip. The superior tightening torque this high torque hose clip achieves is facilitated by its cut-through thread, giving the screw band thread more significant purchase against the band. With such high clamping forces achievable, you should note that this clamp is unsuitable for soft hoses.

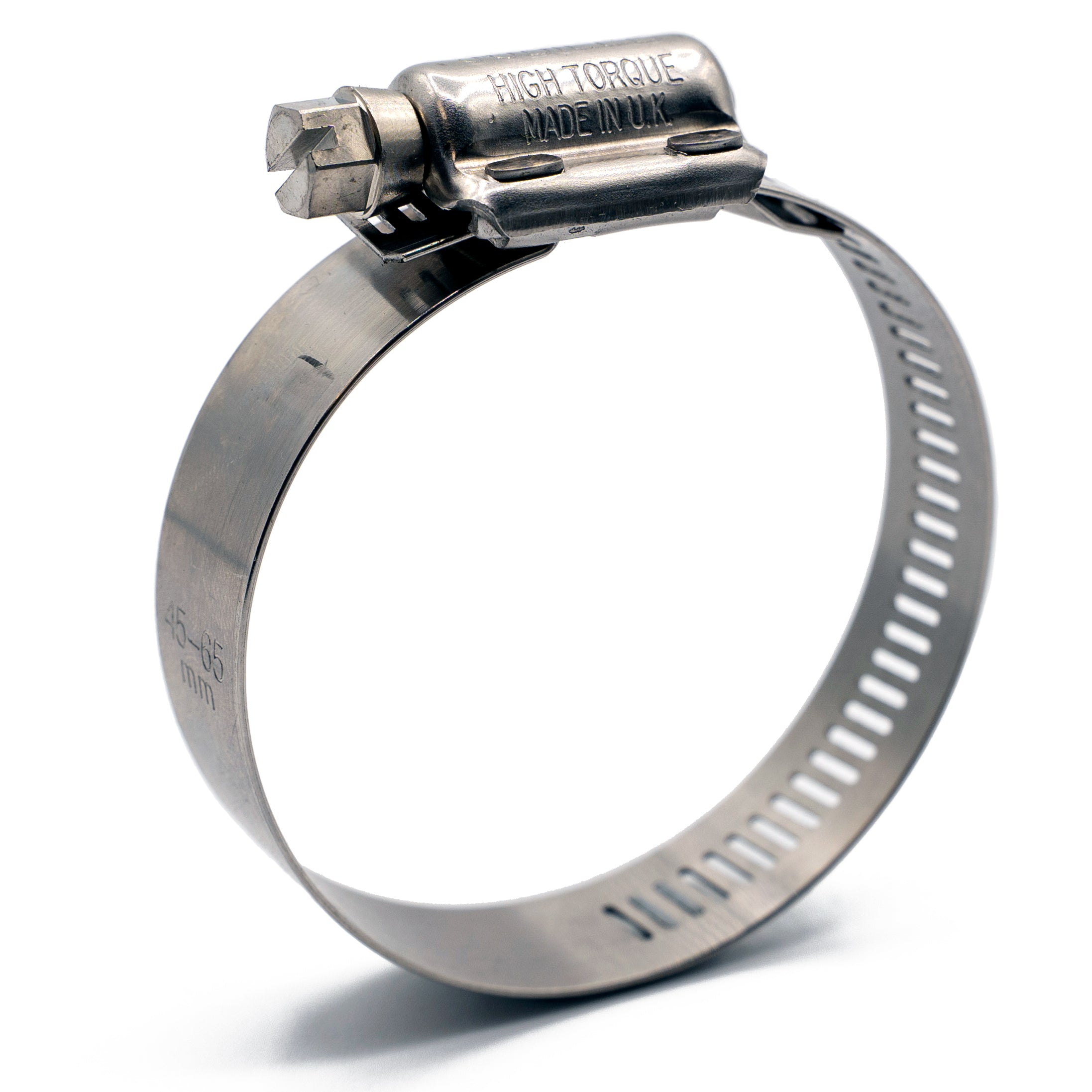

Jubilee High-torque Hose Clip
Jubilee high-torque hose clip stainless steel

Key Features Of The Jubilee High Torque 304 Stainless Steel Hose Clamp

  • Made From 304 Stainless Steel - Made from high-quality stainless steel, this clamp is suitable for areas of food production and areas prone to corrosion.
  • Wider Band Profile - Compared to the Original Range clamps, these Jubilee High Torque clips feature a wider band profile of 16mm. This greater surface area allows them to apply greater clamping force without damaging the clamped hose.
  • Cut-Through Band - This cut-through band gives more positive engagement against the internal screw thread, allowing more torque to be applied to the band without the thread failing.
  • Wide Range Of Sizes - Available in sizes for 20mm through to 520mm hoses, making them ideal for many applications.
  • Ease Of Use - Requiring no specialist tools, these clips can be easily installed and removed.
  • Adjustability - Each clip size has an adjustment range, making getting a consistent fit and a good-quality seal easier.
  • Reusability - Once removed, you can use these clips again without diminishing their performance, saving you money in the long run.
  • Consistent Materials - To enhance the corrosion resistance of these clamps, all metals used in constructing a clamp are of the same type. This feature stops the bi-metallic corrosion that can plague inferior offerings from other brands.

Key Industries The High Torque Jubilee Clamp is used in:

Agriculture

High-torque clamps are suitable for use with the agriculture sector

Automotive

high-torque are suitable for use in the automotive industry

Industrial

high-torque jubilee clips are often used in heavy industrial environments

Food Processing

High-torque hose clips are suitable for the food industry

Marine

high-torque jubilee clips are often used in the marine industry in a stainless steel grade

Oil & Gas

high-torque suitable for oil and gas hose clip

Specifications

Part No. Description Band Width mm Recommended Torque Nm Maximum Torque Nm Min. Diameter mm Max. Diameter mm Maximum Pressure Psi
HT035 Jubilee High Torque Stainless Steel 20-35mm 15.7 11.9 17 20 35 304.5
HT040 Jubilee High Torque Stainless Steel 25-40mm 15.7 11.9 17 25 40 304.5
HT045 Jubilee High Torque Stainless Steel 25-45mm 15.7 11.9 17 25 45 304.5
HT050 Jubilee High Torque Stainless Steel 30-50mm 15.7 11.9 17 30 50 304.5
HT055 Jubilee High Torque Stainless Steel 35-55mm 15.7 11.9 17 35 55 153
HT060 Jubilee High Torque Stainless Steel 40-60mm 15.7 11.9 17 40 60 153
HT065 Jubilee High Torque Stainless Steel 45-65mm 15.7 11.9 17 45 65 153
HT070 Jubilee High Torque Stainless Steel 40-70mm 15.7 11.9 17 40 70 153
HT080 Jubilee High Torque Stainless Steel 60-80mm 15.7 11.9 17 60 80 153
HT095 Jubilee High Torque Stainless Steel 70-95mm 15.7 11.9 17 70 95 153
HT100 Jubilee High Torque Stainless Steel 80-100mm 15.7 11.9 17 80 100 66
HT120 Jubilee High Torque Stainless Steel 90-120mm 15.7 11.9 17 90 120 66
HT140 Jubilee High Torque Stainless Steel 110-140mm 15.7 11.9 17 110 140 66
HT160 Jubilee High Torque Stainless Steel 130-160mm 15.7 11.9 17 130 160 66
HT180 Jubilee High Torque Stainless Steel 150-180mm 15.7 11.9 17 150 180 30
HT200 Jubilee High Torque Stainless Steel 170-200mm 15.7 11.9 17 170 200 30
HT220 Jubilee High Torque Stainless Steel 190-220mm 15.7 11.9 17 190 220 30
HT240 Jubilee High Torque Stainless Steel 210-240mm 15.7 11.9 17 210 240 30
HT260 Jubilee High Torque Stainless Steel 230-260mm 15.7 11.9 17 230 260 30
HT280 Jubilee High Torque Stainless Steel 250-280mm 15.7 11.9 17 250 280 30
HT300 Jubilee High Torque Stainless Steel 270-300mm 15.7 11.9 17 270 300 30
HT320 Jubilee High Torque Stainless Steel 290-320mm 15.7 11.9 17 290 320 30
HT340 Jubilee High Torque Stainless Steel 310-340mm 15.7 11.9 17 310 340 -
HT360 Jubilee High Torque Stainless Steel 330-360mm 15.7 11.9 17 330 360 -
HT380 Jubilee High Torque Stainless Steel 350-380mm 15.7 11.9 17 350 380 -
HT400 Jubilee High Torque Stainless Steel 370-400mm 15.7 11.9 17 370 400 -
HT420 Jubilee High Torque Stainless Steel 390-420mm 15.7 11.9 17 390 420 -
HT440 Jubilee High Torque Stainless Steel 410-440mm 15.7 11.9 17 410 440 -
HT460 Jubilee High Torque Stainless Steel 430-460mm 15.7 11.9 17 430 460 -
HT480 Jubilee High Torque Stainless Steel 450-480mm 15.7 11.9 17 450 480 -
HT500 Jubilee High Torque Stainless Steel 470-500mm 15.7 11.9 17 470 500 -
HT520 Jubilee High Torque Stainless Steel 490-520mm 15.7 11.9 17 490 520 -

Measuring Your Clamp

These clips are measured based on their internal diameter. To find the size of the clip, simply measure the outside diameter of the item you are clamping onto.

You should be sure to measure the outside diameter when measuring up to ensure you get the best fit possible.

high-torque drawing

Available In:

316 Stainless Steel

316 Grade Stainless Steel

Original range hose clamps

Alternatives To Jubilee High Torque 304 Stainless Steel Hose Clips

  • Need Something Lighter Duty? - Check out the Jubilee 304 Stainless Steel Original Range Hose Clamps.
  • Need Something Longer? - Take a look at the Jubilee 304 Stainless Steel Multiband kits, which come with a choice of screw fittings.
  • Want Something Vandal Resistant? - You may like the JCS Tamtorque Hose clamps we have on offer. These feature an anti-tamper bolt head to prevent unauthorised disassembly.

Need Assistance Finding The Best Hose Clip For Your Needs?

If you need help finding a hose clip that suits your requirements, please do not hesitate to contact our experienced sales team. Our friendly staff will help you find the best clamp to perform when needed and meet your budget requirements. Phone today on 01905 794 875 and get a great deal.
