Heavy Duty Barrier Gate System
Heavy Duty Barrier Gate System
Heavy Duty Barrier Gate System
Heavy Duty Barrier Gate System

Heavy Duty Barrier Gate System

£1,440.69 excl. VAT
£1,728.83inc. VAT
Width: 1250mm
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.

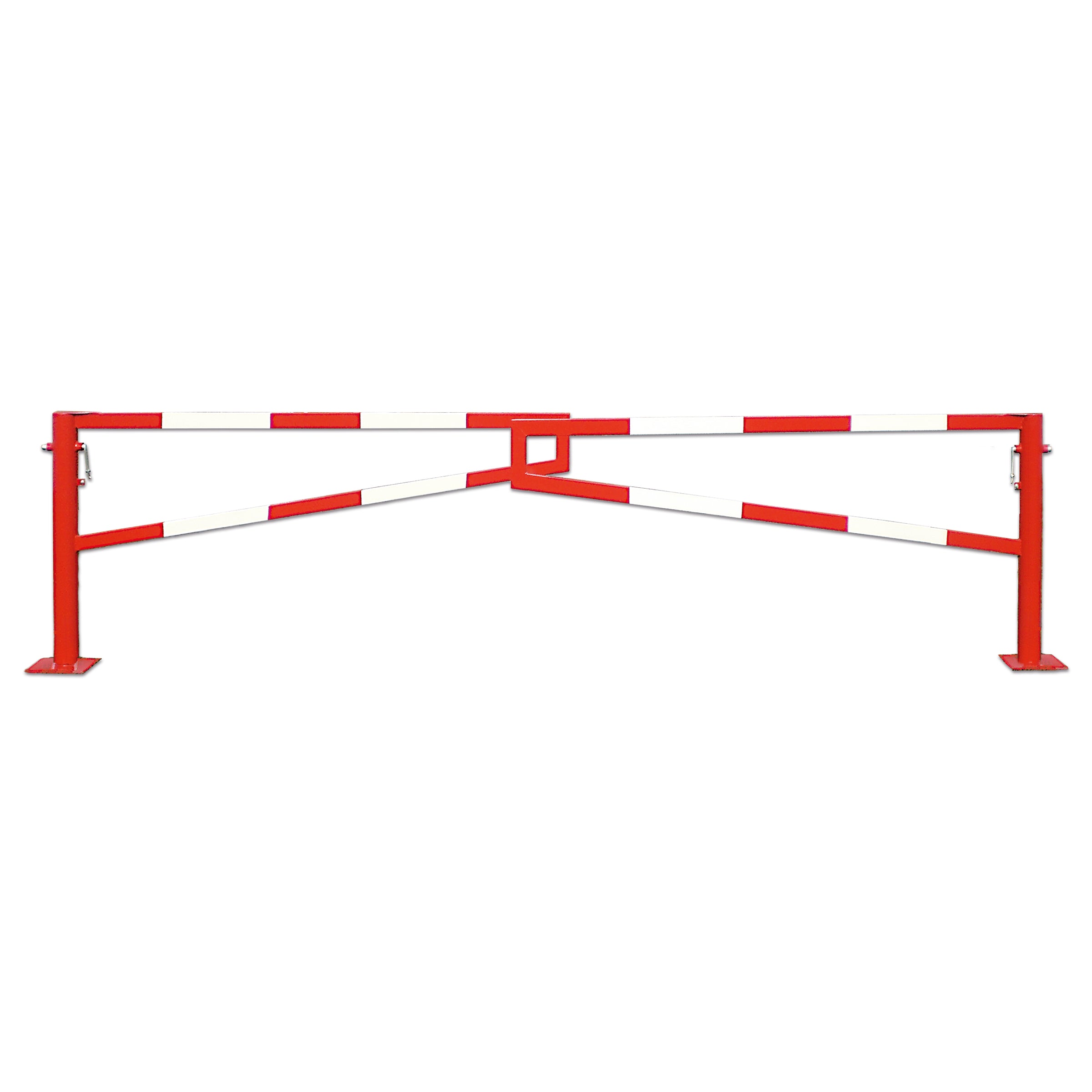

Heavy Duty Barrier Gate System

This heavy-duty barrier gate is ideal for cycle routes, pedestrian walkways and other access routes where cars are prohibited. Made from durable box section steel that has been hot dop galvanized then painted red and white.

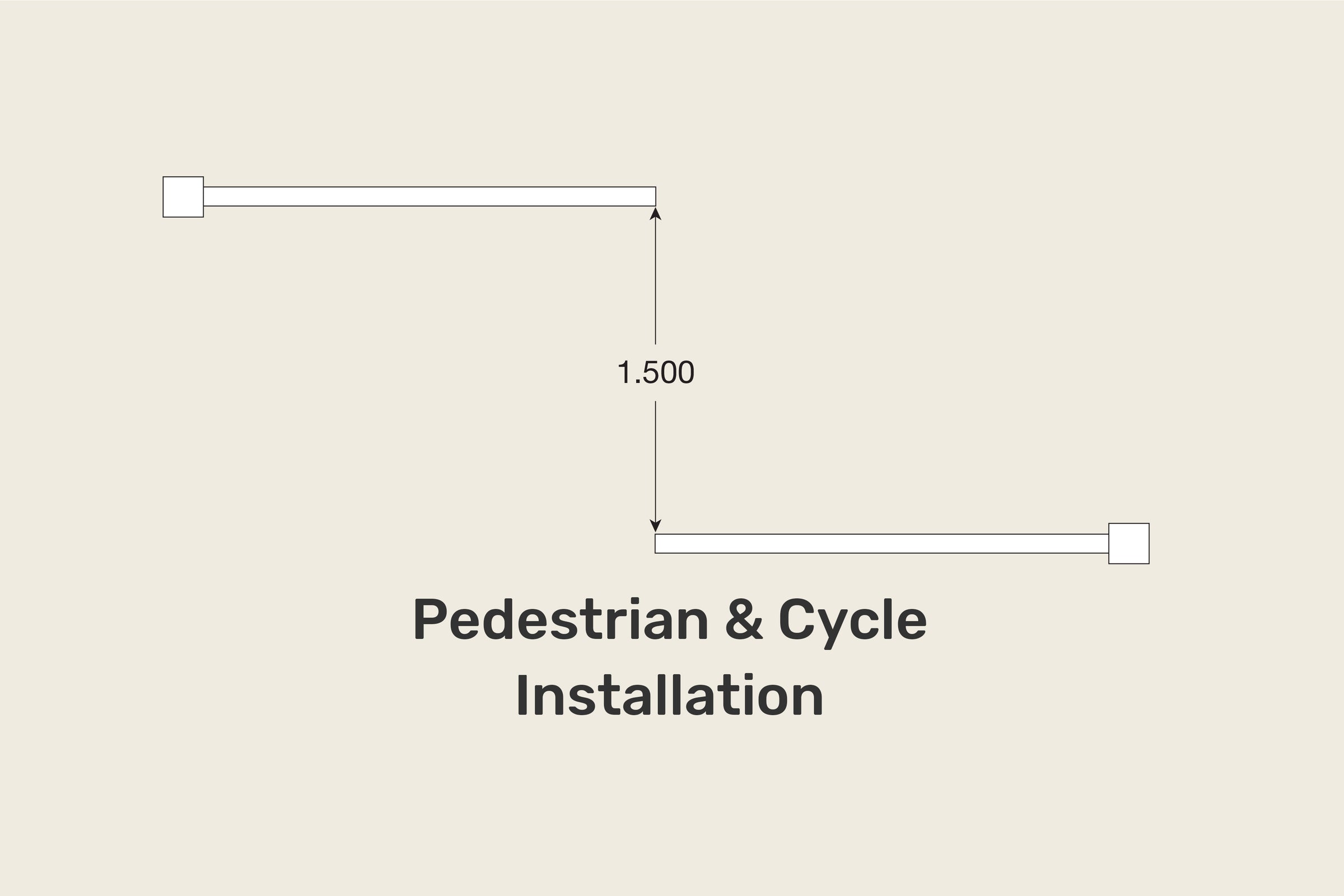

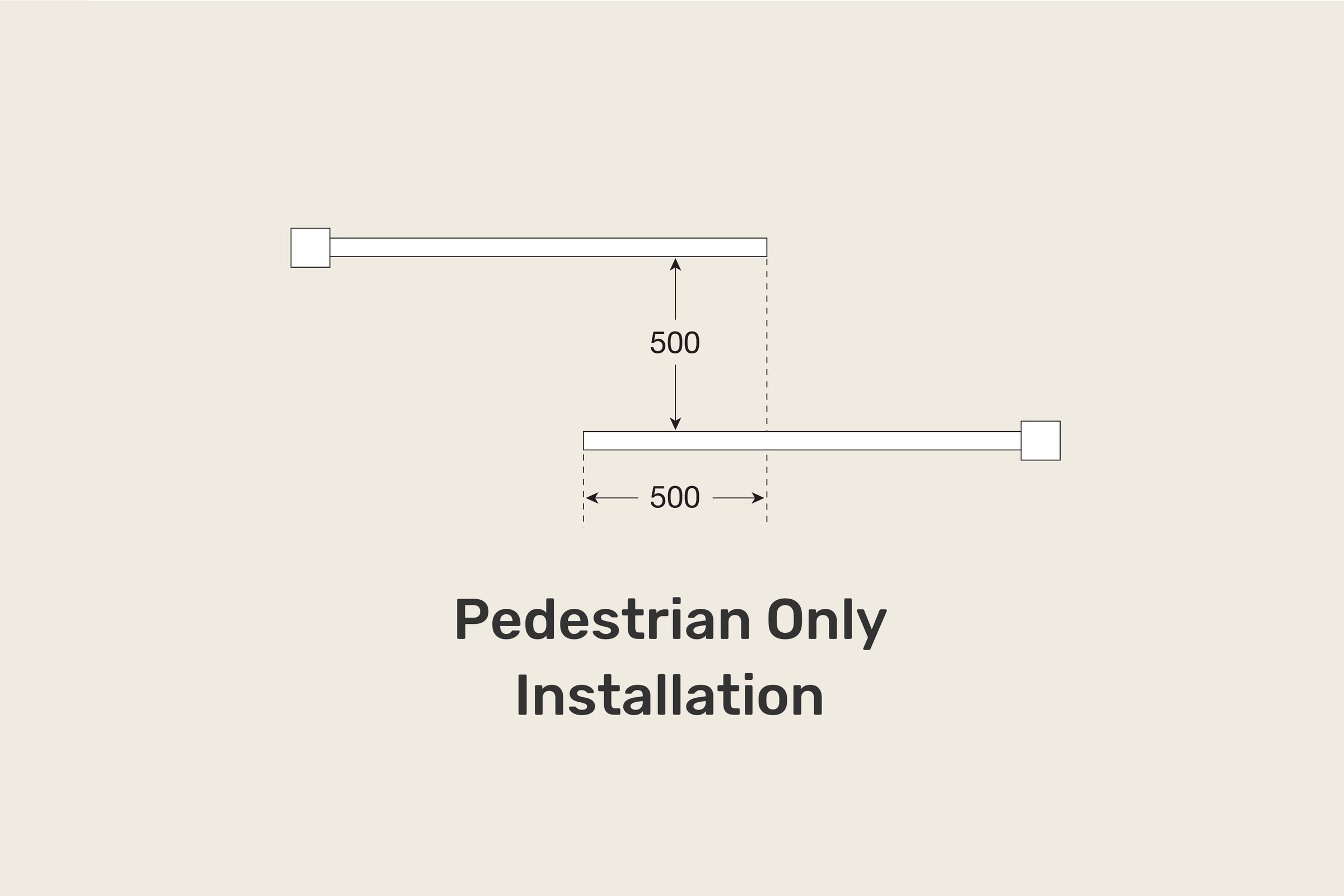

This heavy duty access barrier is supplied as a pair of swing gates that form a road block for cars. Each gate can be offset from the other by either 500mm, with overlap for pedestrian traffic. Alternatively on cycle routes a 1500mm offset with no overlap is recommended.

The locking system is simplistic with a through pin that any off the shelf padlock can be attached to. These gates can be locked open or closed, allowing them to opened for events and maintenance whenever needed.

Heavy Gate Barrier Installed

Key Features:

  • Heavy Duty Construction - Designed to be installed in remote locations.
  • Simple Installation - Requiring small foundations 500mm deep for each support post.
  • Simple Locking Pin- Easy to operate and can be used with commonly available padlocks.
  • Galvanised Steel - Highly rust resistant, with a red and white painted finish.
  • Retains Pedestrian or Cycle Access - Prevents cars but allows walkers and cyclists to proceed through the gate.
  • Widths over 3m have additional telescopic support.
Locking detail of heavy duty barrier

Key Applications

This Barrier is perfect for keeping vehicles out of pedestrian areas. This may be on a private road that has a foot path, or on a riverside route.

It can be easily opend when needed for access by maintenance vehicles carrying out litter picking or other maintenance tasks.

Please see the attached document and images for the appropriate overlap distances for both cycle routes and pedestrian paths.

Heavy barrier Installed in public area

Drive Through Width

This measurement indicates the width that is clear for vehicles to drive through when the gate is open. Please note, the overall length is different and shown in the accompanying table.

It is important to note that the overall length is longer than the drive-through width.

Each gate dim (mm) Max.drive through width (mm) Delivery Weight (kg/ea.) Product Code Despatch time (working days)
1380 1250 75 14420-1250 15 / 20
1880 1750 90 14420-1750 15 / 20
2380 2250 105 14420-2250 15 / 20
2880 2750 120 14420-2750 15 / 20
3380 3250 135 14420-3250 15 / 20
3880 3750 150 14420-3750 15 / 20
Height Barrier Installed

Looking for Car Park Height Barriers?

We have a wide array of car park height barriers to restrict the height of vehicles entering a car park or area.

Compact Barrier

Other Swing Or Barrier Gates

There are more swing and barrier gates to choose from including our compact gate barrier.

Call For More Information Today!

We are here to help with any questions that you may have regarding our swing barrier, or car park barrier systems. Our sales team will be happy to assist you on 01905 794 875. We will help make sure that you get the right barrier for your needs at the right price.
