£49.95 excl. VAT
£59.94inc. VAT
Pack Size: Single
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.

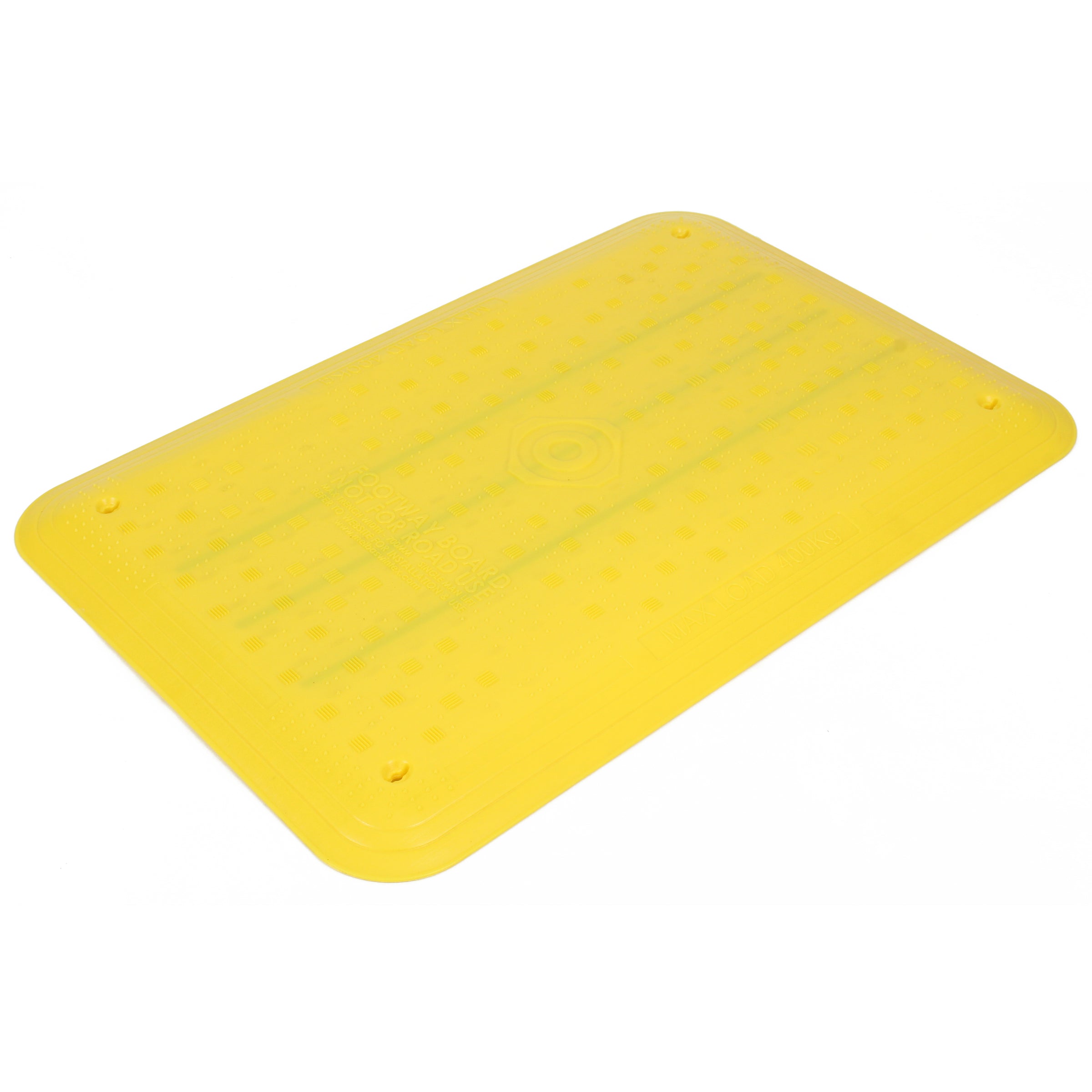

Tuff Trench Pedestrian Trench Cover - New Reinforced Design

TheTuff Trench pedestrian walk board is the first trench cover to be moulded from High-Density Polyethylene, this means it won't splinter or shatter when dropped. Traditional trench covers are made from glass-reinforced plastic (GRP), these are not recyclable and have a tendency to sustain damage if dropped on the corners. The Tuff Trench aims to solve this problem while allowing it to be bolted down using the 4 fixing holes provided.

Designed with utility and highway contractors in mind and manufactured in the UK.

Key Features

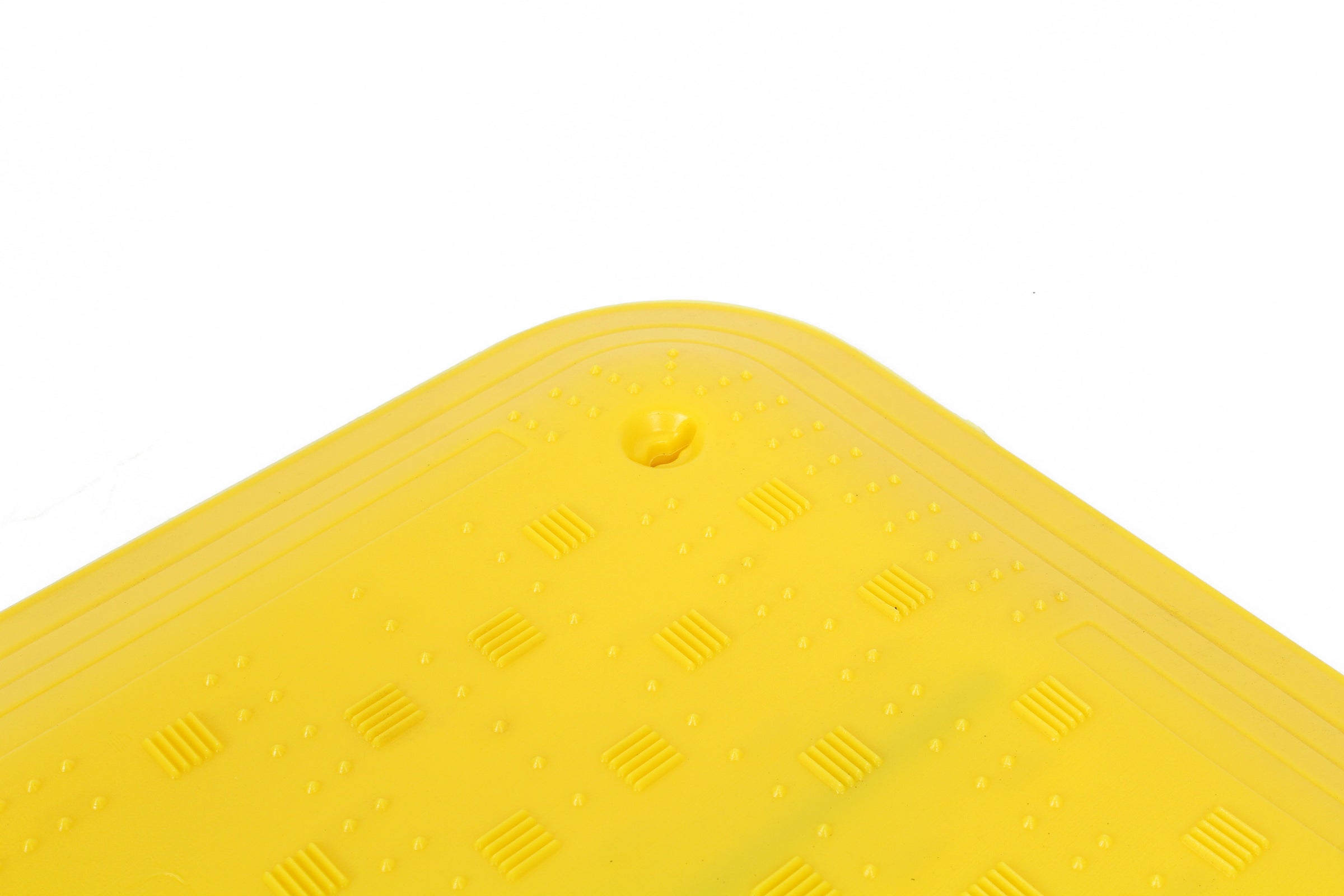

  • 4 Fixing holes to be bolted to the ground (see related products)
  • Fully compliant for pedestrian use
  • Can withstand up to 400kg
  • 700mm maximum trench width
  • 12.8kg Weight - a single man lift

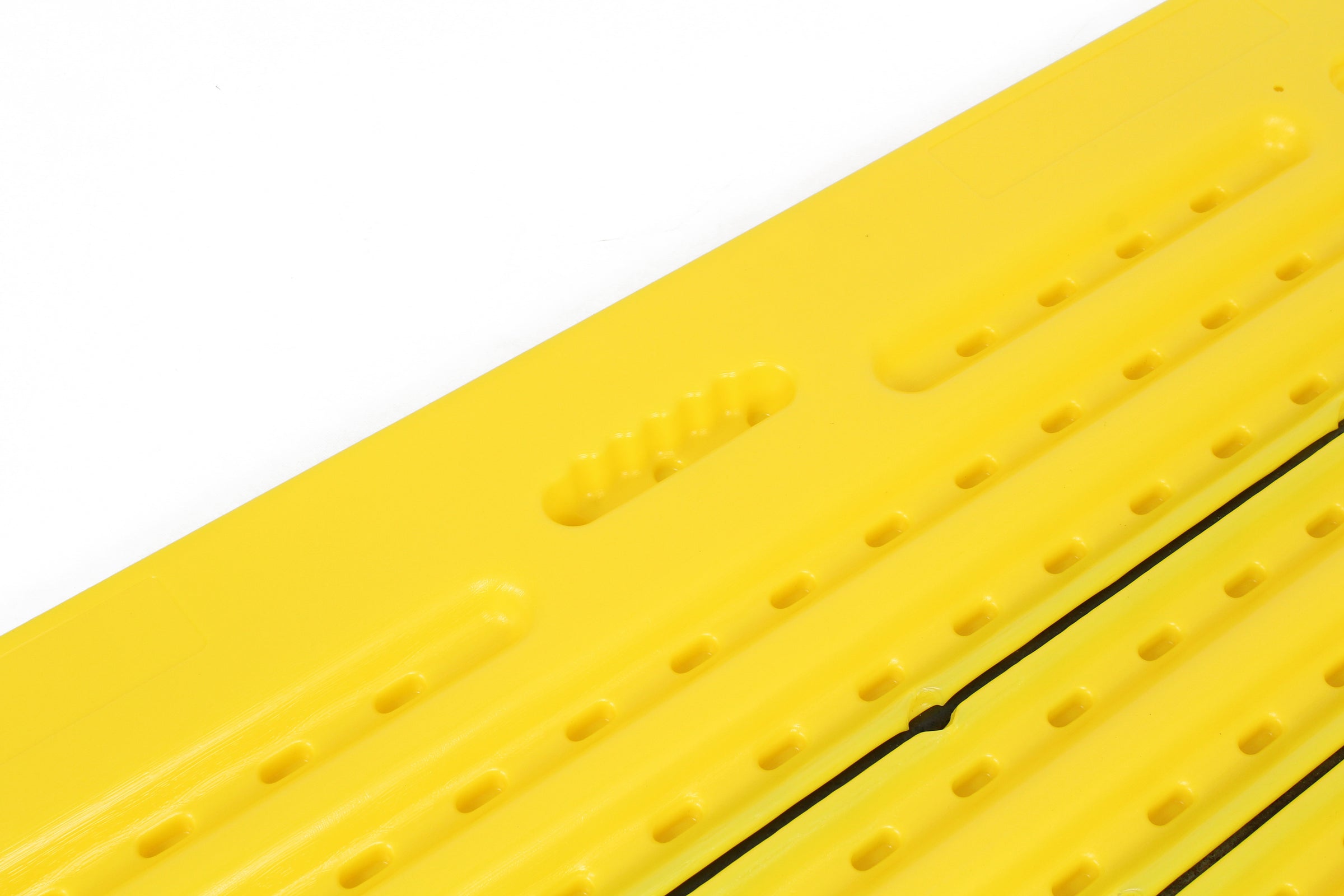

  • Carry handles for easy transport
  • 100% recyclable.
  • Conforms to National Grid T/SP/E/42
  • Conforms to HAUC Advice Note No. 2018/01
  • Conforms to Safety at Street Works & Road Works – A Code of Practice.
  • Conforms to slip resistance of BS 7976: Part 2

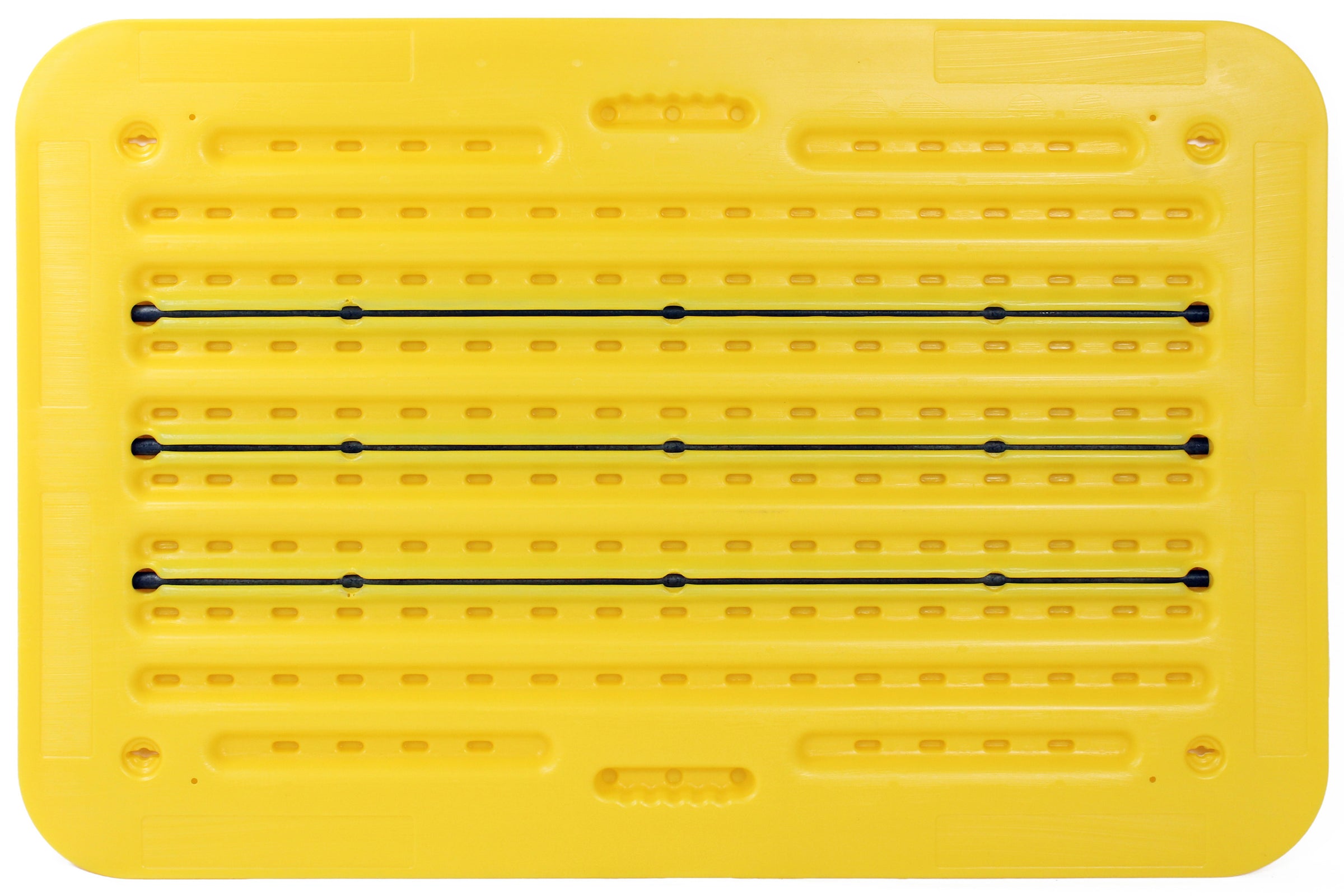

Hawk Tuff Trench with Reinforcing Bars

New Reinforced Design

The new and improved Hawk Tuff Trench cover now includes 3 steel reinforcing bars. These bars keep this trench cover fully compliant with current legislation. HAUC Advice Note No.2018/01 states when A cover is loaded with 400kg of ballast the board should not deflect more than 5% of the maximum allowable trench span, in this case, a 700mm trench.

Testing of the Hawk Tuff Trench over a 700mm trench width without fixing has been carried out loading the cover with more than 800kg without ultimate failure.

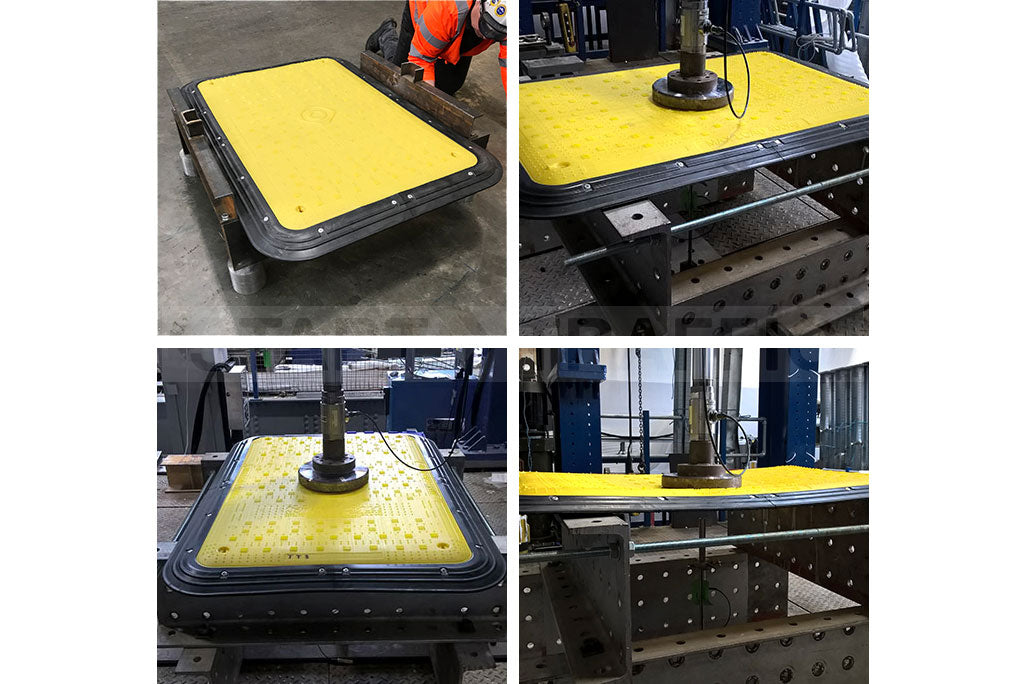

New Improved Reinforced Design Testing

Have Questions About The Tuff Trench Cover?

This is one of the only blow moulded trench covers on the market and is a fantastic product. If however, you do have any questions about the product, please do not hesitate to contact our sales team on 01905 794 875.
