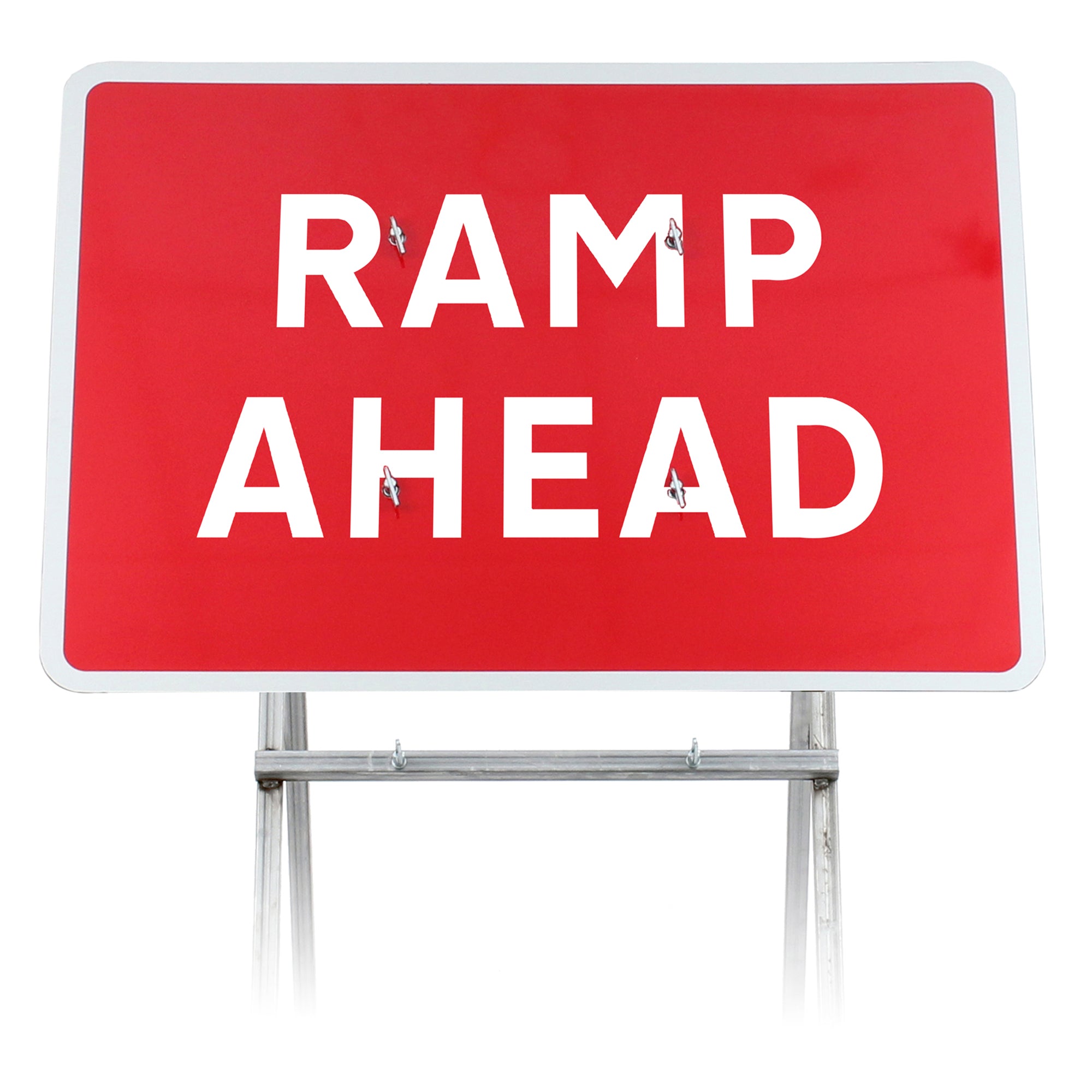

Ramp Ahead Quick Fit Sign Diagram 7010.1 | Quick Fit (Face Only) | 1050x750mm

Ramp Ahead Sign QuickFit EnduraSign Dia 7010.1 | 1050x750mm

Ramp Ahead Quick Fit Sign Diagram 7010.1 | Quick Fit (Face Only) | 1050x750mm

Product code: 15580-P-1050

Start Traffic

View the product details

£22.47 excl. VAT

£26.96inc. VAT

In Stock

Frame Options:

No Frame (Face Only)
Slimline (Steel Frame)
Q-Frame (Plastic)
Endurasign (Plastic)
Enduraframe 1500 (Plastic)
Highway Frame (Plastic)

Don't forget these

Call us for bulk quantities (0)1905 794875
View the product details below to learn more about this product.

£22.47 excl. VAT

£26.96inc. VAT

Top features

300 & 750mm Hole Centres
3mm Plastic Substrate Backing
RA1 Reflectivity Grades

Description

Ramp Ahead Quick Fit Sign Diagram 7010.1 (Frame Not Included)

This ‘Ramp Ahead’ sign is commonly found where road resurfacing is being carried out, it gives road users a clear warning that the road surface may abruptly change in height. This is usually where the existing road surface has been removed and a ramp leads down onto the bare substrate. A second set of signs are usually used at the end of the bare section to warn drivers once more that a ramp leading back up onto the finished road surface is approaching.

These are usually situated on either side of the road warning traffic passing in both directions. We also have this sign face available in several other formats including in;

For guidance on where these signs can and cannot be used please consult the chapter 8 guidelines.

Key features

300 & 750mm Hole Centres

This sign has four holes at 300mm centres and two holes at 750mm centres. Check that your sign frame also has 300mm centres or 750mm centres by measuring vertically and horizontally between the holes. If you need alternative hole centres, give us a call.

3mm Plastic Substrate Backing

This sign features a 3mm backing substrate made of plastic. It is lightweight and durable making it ideal for street works.

RA1 Reflectivity Grades

This sign has RA1 - Advanced Engineer Grade Prismatic reflective material suitable for street works and slower speed limits.

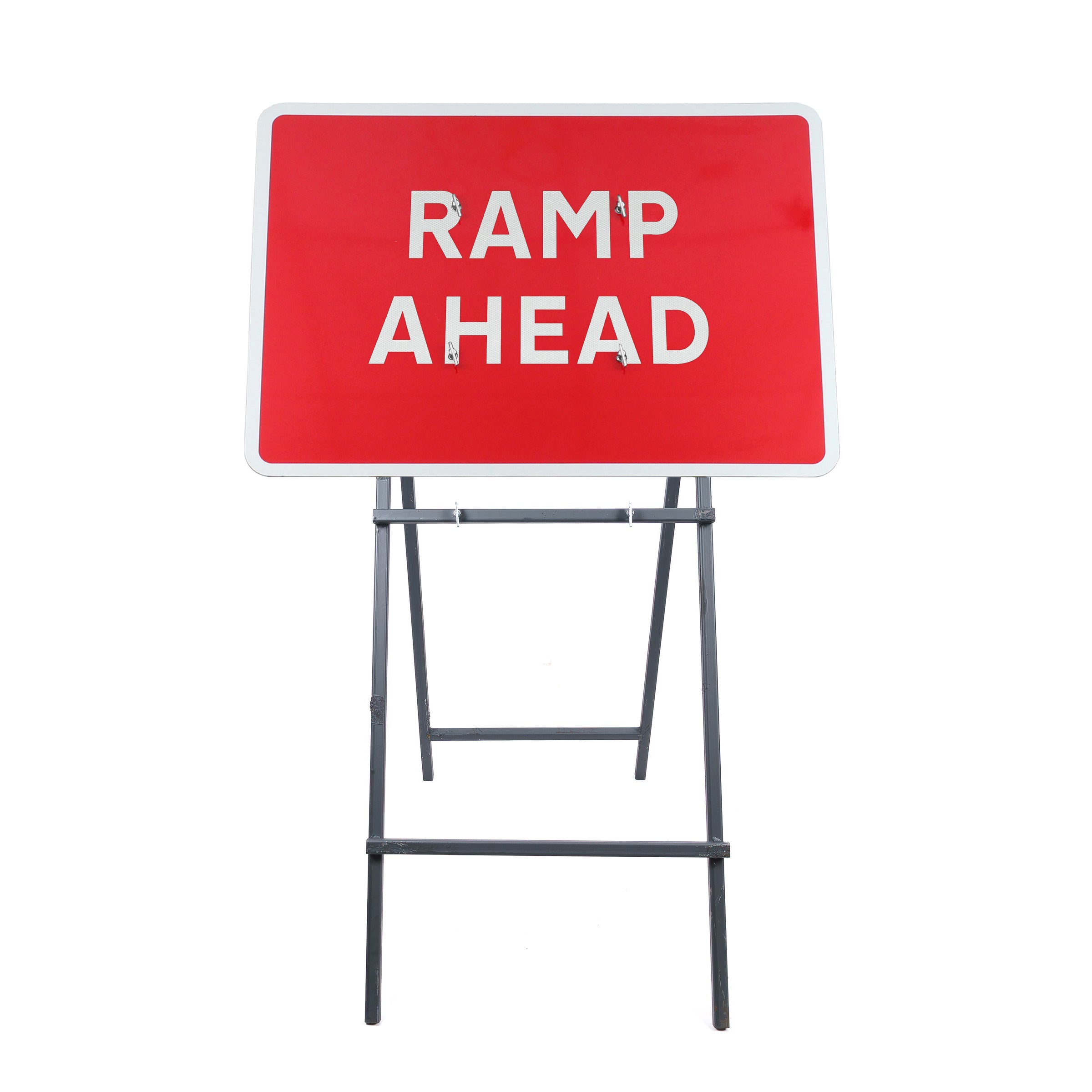

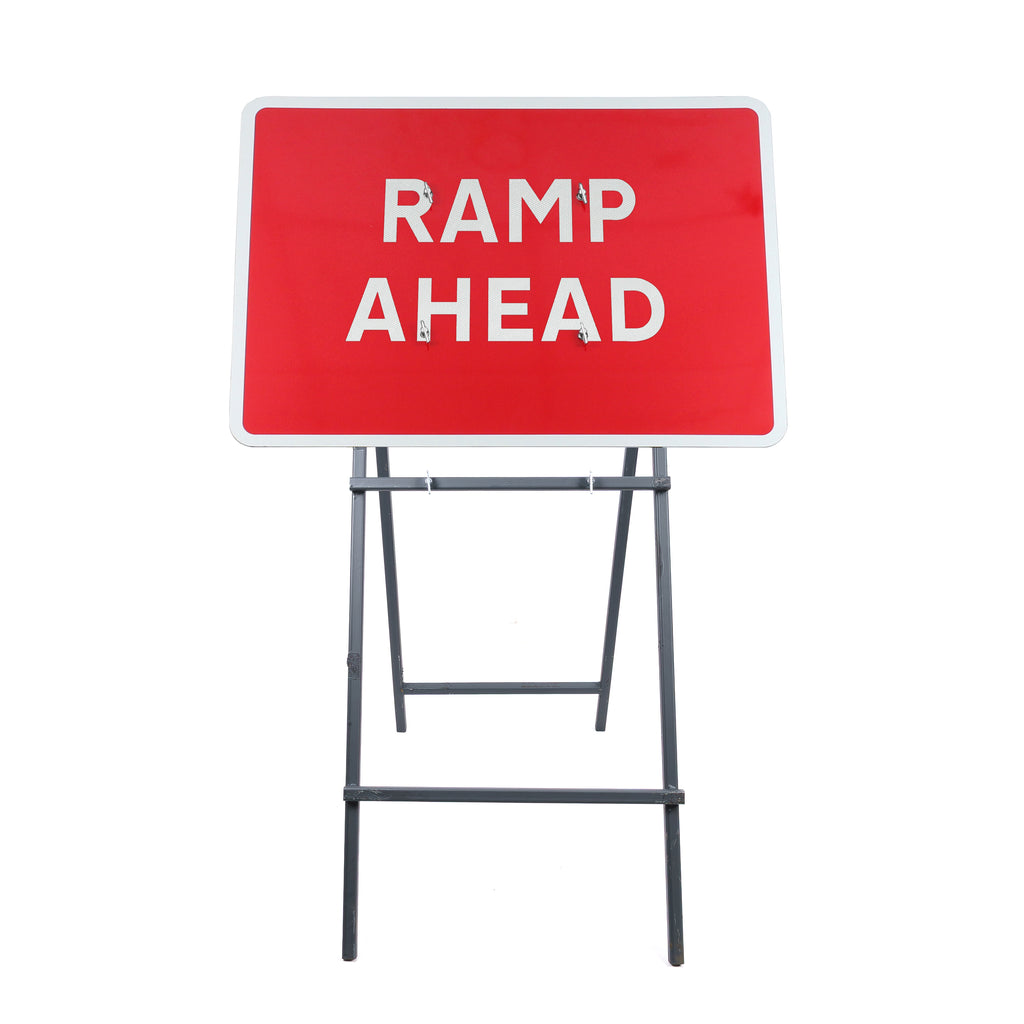

Slimline Frame

Traditional Steel construction, robust and cost-effective.
Painted finish, with 6 antiluce fasteners at 300mm centres.
Total height of 1500mm and a weight of 8.8kg

EnduraSign

Injection moulded plastic frame ideal for streetworks.
Compact form factor with 4 antiluce fasteners at 300mm centres.
Total frame height of 870mm and weight of 2.8kg

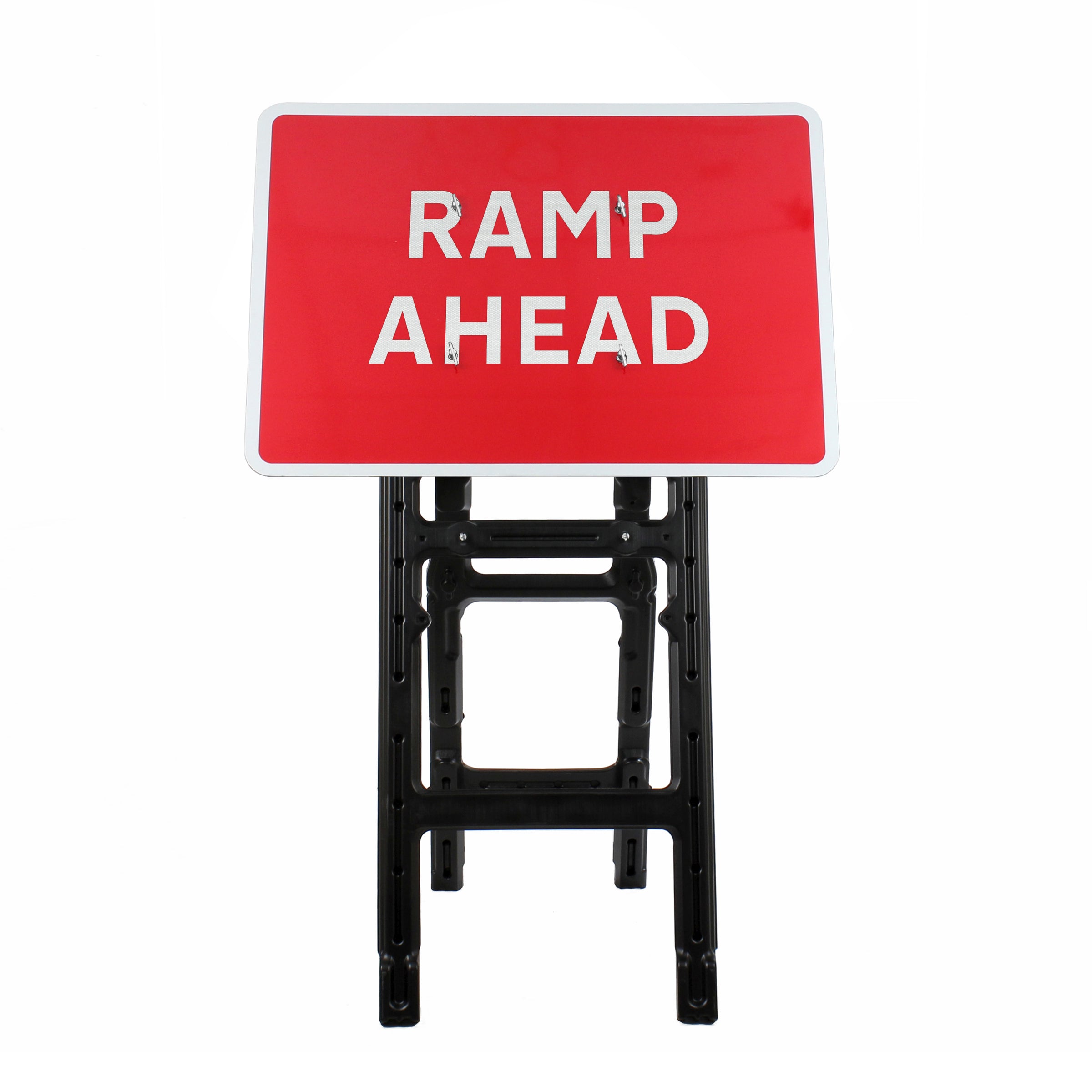

Q-Frame

Blow moulded plastic frame, lightweight & Durable
Black plastic construction, with 6 antiluce fasteners at 300mm centres.
Total frame height of 1400mm, and weight of 4kg

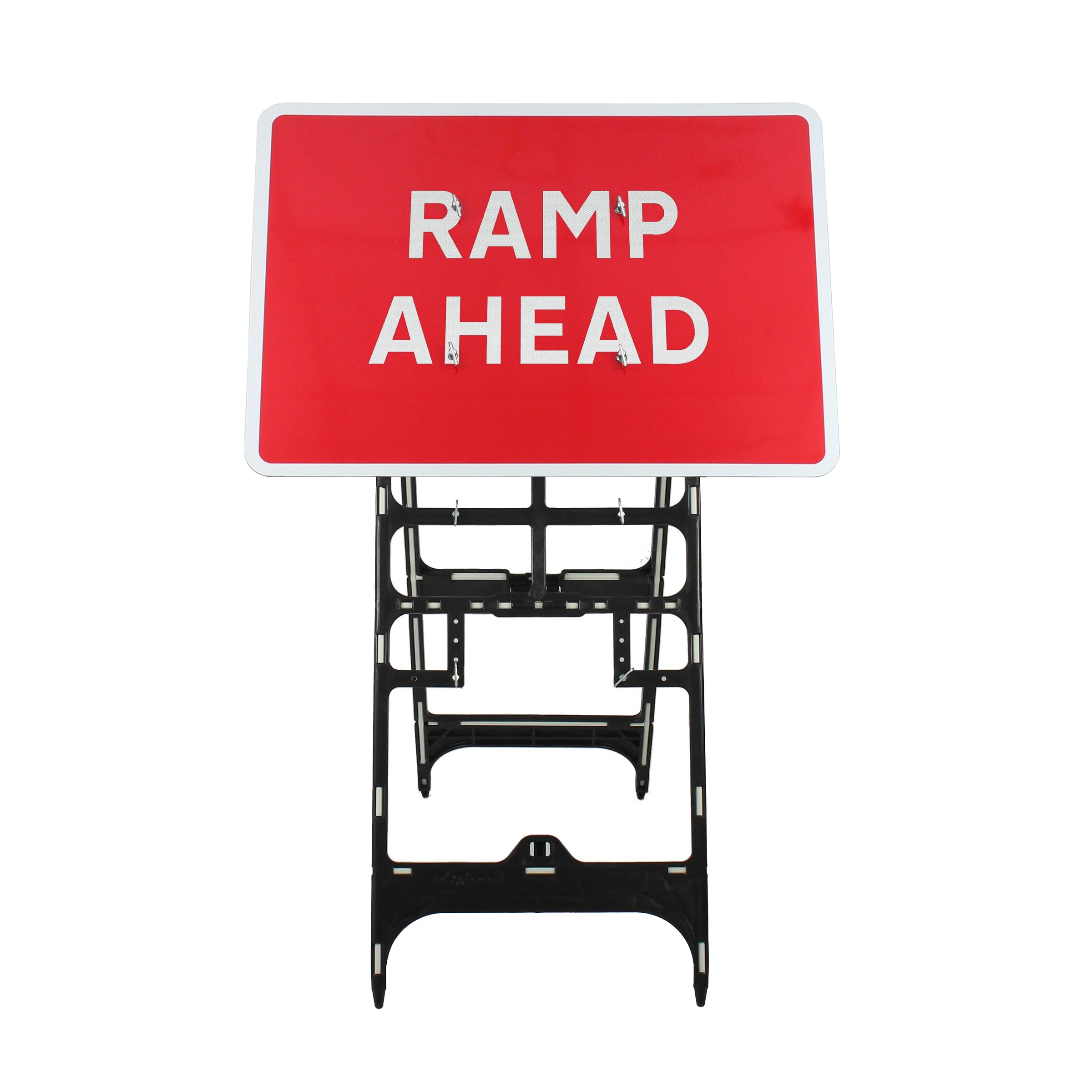

EnduraFrame 1500

Tall fibreglass reinforced frame that is lightweight and durable.
Non-conductive frame with 6 antiluce fasteners at 300mm centres.
Total frame height of 1495mm and weight of 5.65kg

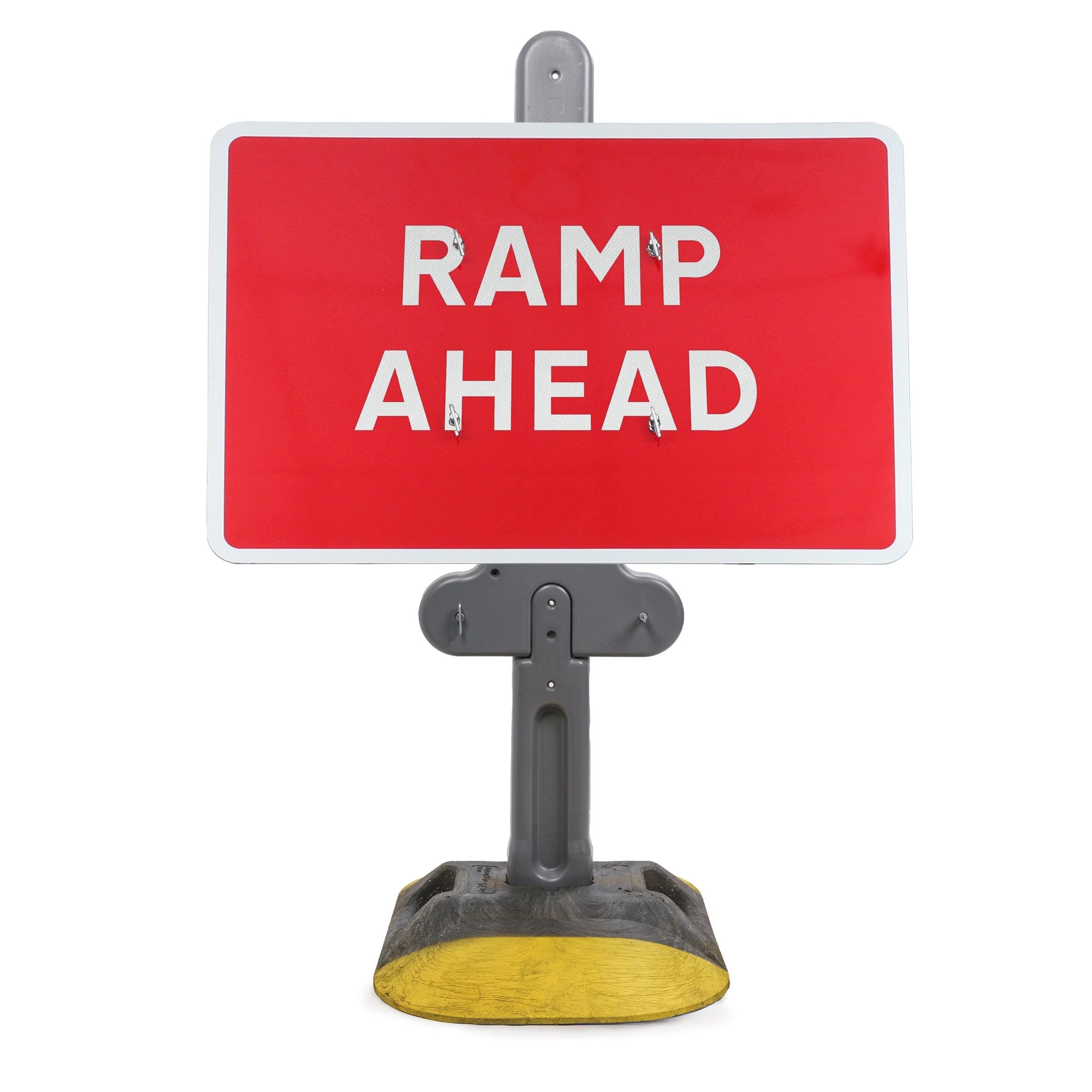

Highway Sign

A fully vertical sign system ideal for urban environments.
Plastic blow moulded construction, with ballast base and 6 antiluce fasteners at 300mm centres.
Total height of frame assembled is 1500mm, weight of 17kg

Not sure which frame is right for you?

Our team are here to help you get exactly the right frame for the job. We offer bespoke powder-coated options as well as bespoke colours in plastic frames. Should you need any advice and guidance, just pick up the phone and speak to our team on 01905 794 875.
