Custom Impact Barrier Curve: Convex
Specification Size guide

  • If you’re looking to order large quantities, call us on (0)1905 794875 for more information.

  • View the product details below to learn more about this product.


This product also works with the following:


Custom Radius Armco Steel Beam - Fabricated To Order

When a run of barriers needs to follow a curve then you will need a custom section of Armco barrier that is specially formed to that curve. We are pleased to be able to offer Armco barrier sections custom-tailored to your requirements, we are able to produce sections of beam with a radius curve of anything between 6m and 50m.

These curved sections can be produced both in a convex and concave format to suit a range of applications. Unfortunately, as these items are custom made to order to ensure a good fit they are not a stocked product, so therefore, will see a slightly longer delivery time.

Curved beams can create a neat finish, perfect for trailing a circular type ramp in a multi-storey car park offering protection for walls and the vehicles travelling in the area. All sections of our custom beams are hot dip galvanised to protect against long term corrosion ensuring a long life span.

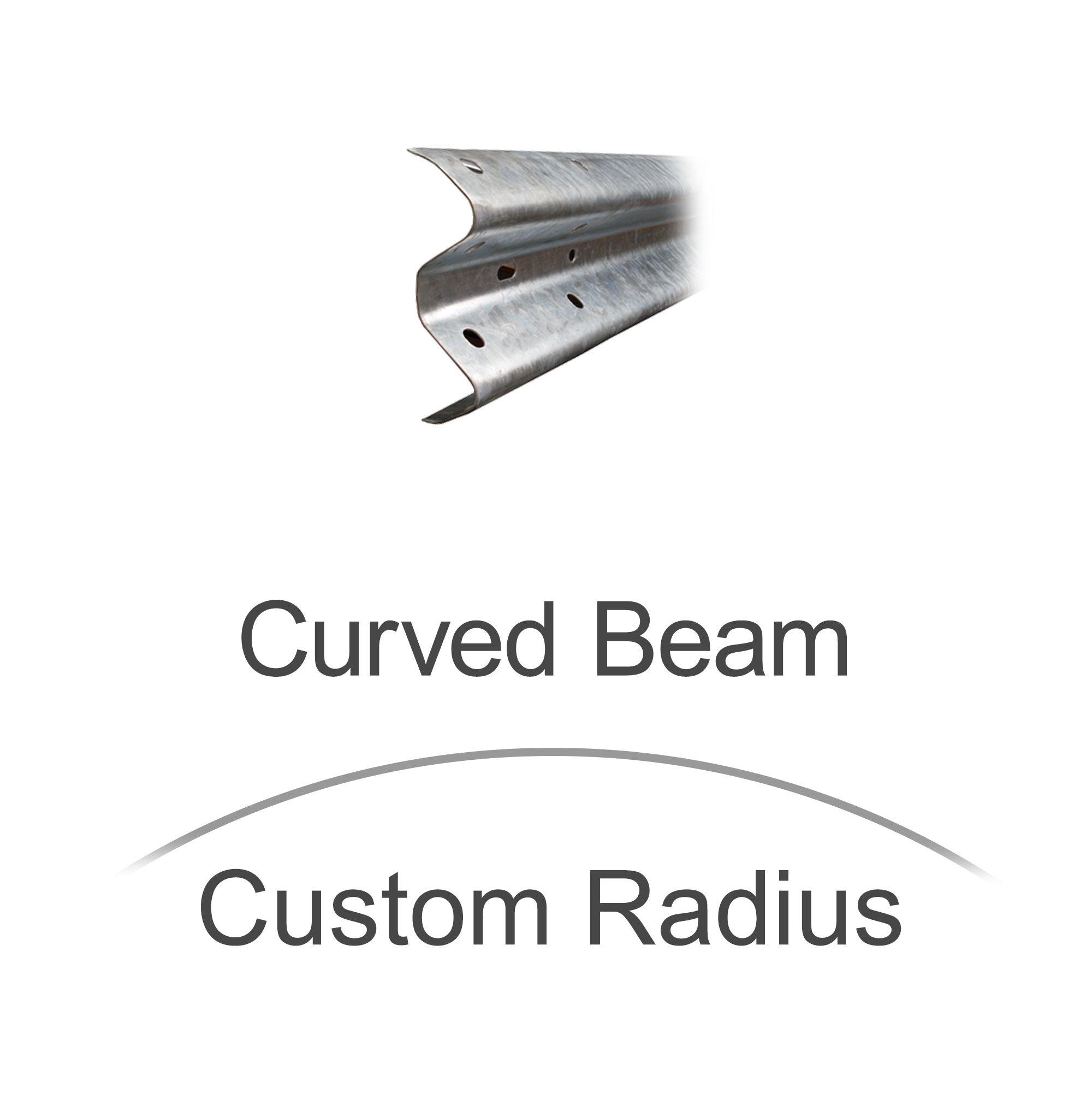

Custom radius armco beam

Key Features:

  • Formed to the radius you require - this ensures that you get a great fit and a high quality finished project.
  • Easy Installation With Consistent Hole Spacing - Good quality control means that holes line up and are easier to install than cheaper alternatives.
  • Hot Dip Galvanised Finish - Prevents corrosion for many years to come.
  • Available In Vibrant Yellow - A powder-coated finish applied over the top of the standard galvanized finish.
  • Suitable For Off-Highway use - Install quickly and easily in car parks, transport depots, distribution hubs, airports, docks and many more locations.
  • Bulk Discounts - Buying a large amount? We can arrange for large order quantity saving you money.
Armco barrier example set-up

Information You Will Require Before Placing Your Order

Before placing an order for custom barrier with a custom radius you will need to know;

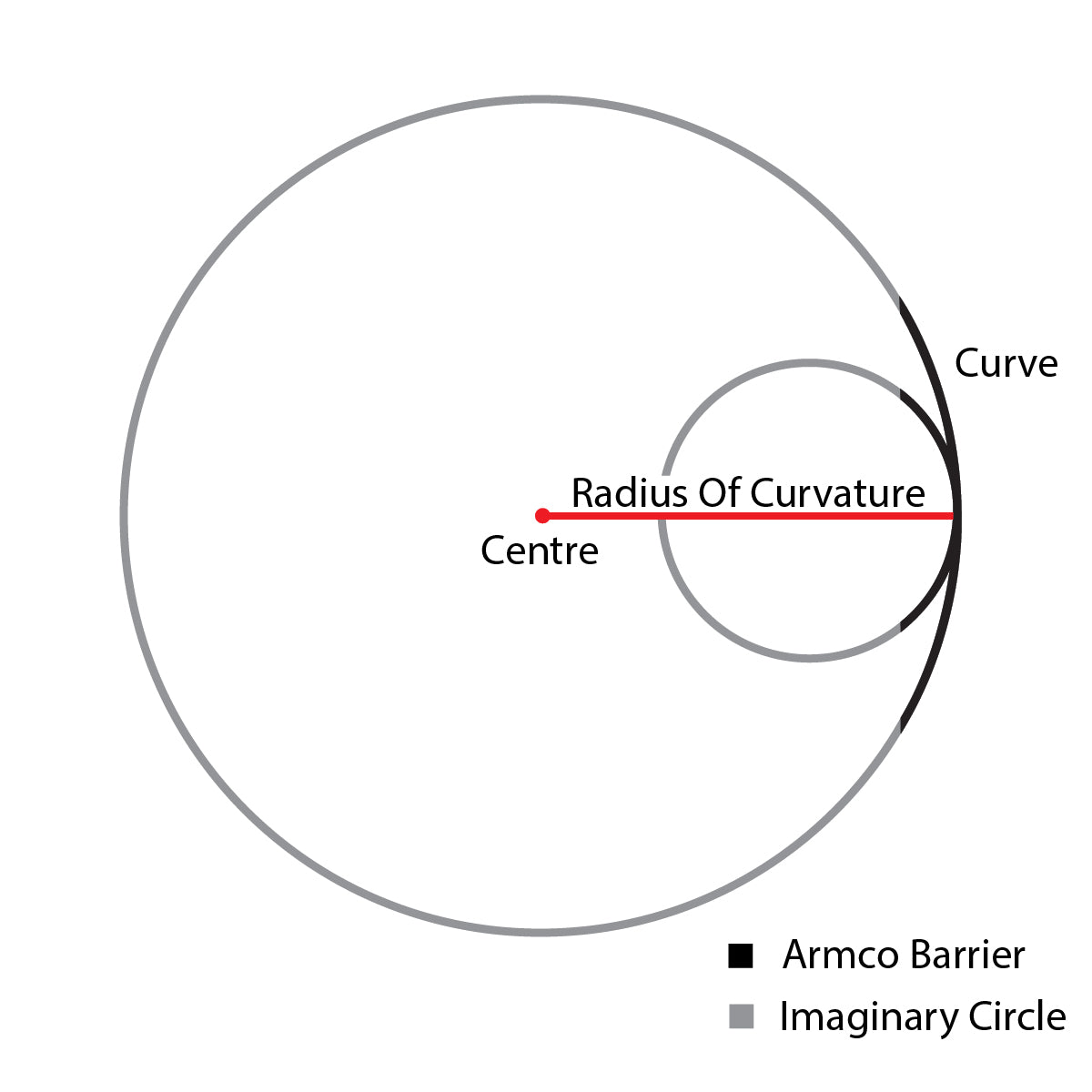

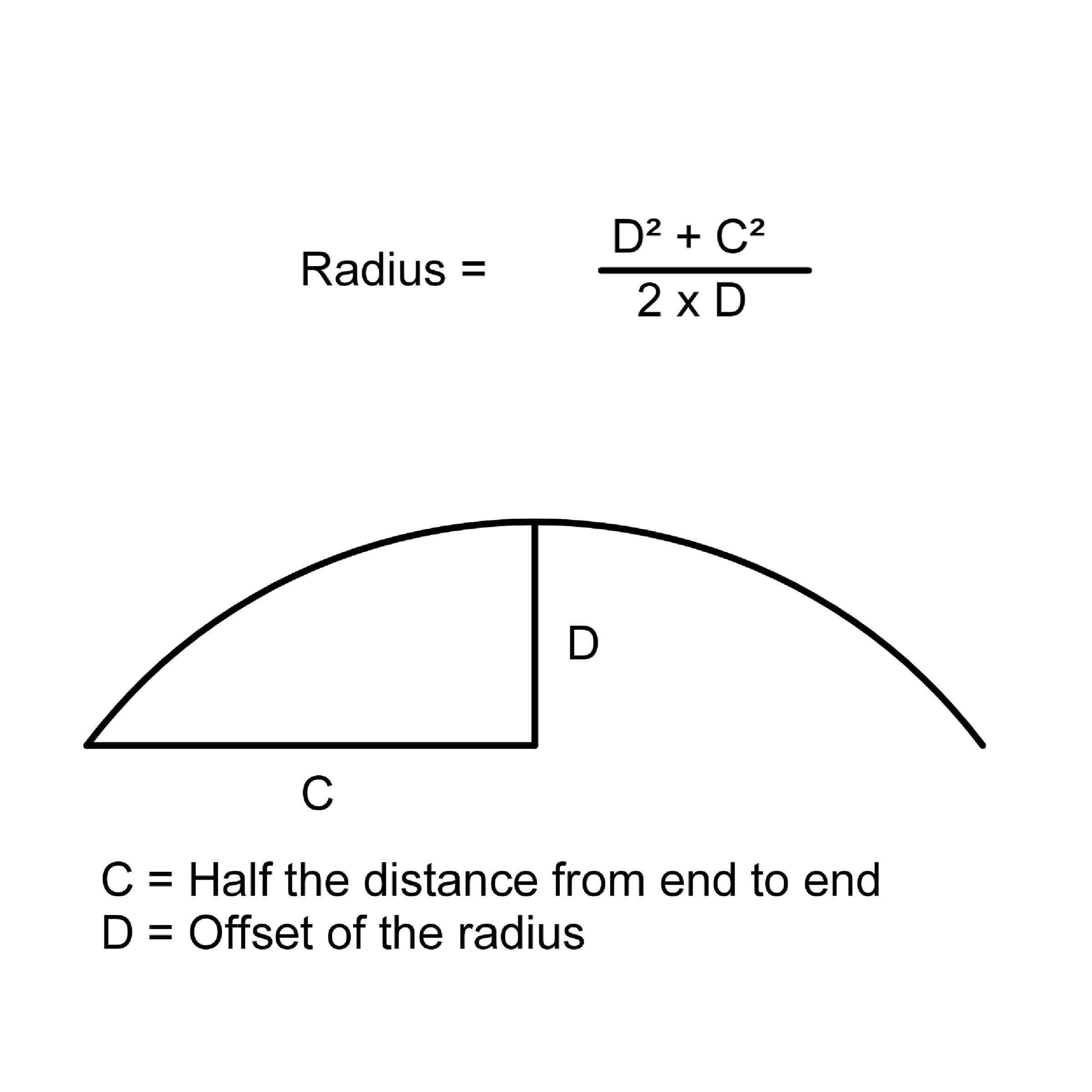

  • The radius of the curve needed - The minimum radius we can accommodate is 6m and the largest is 50m, at which point straight lengths will generally give an indistinguishable result.

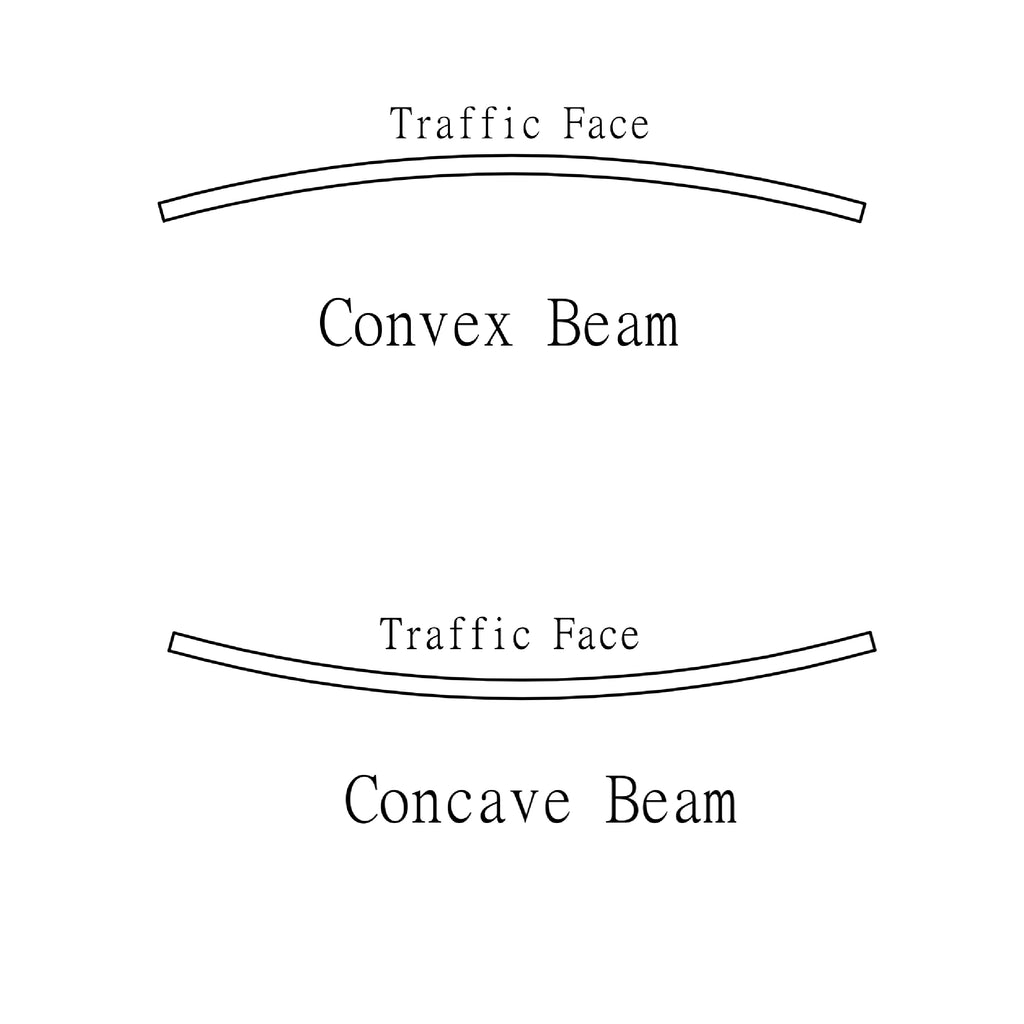

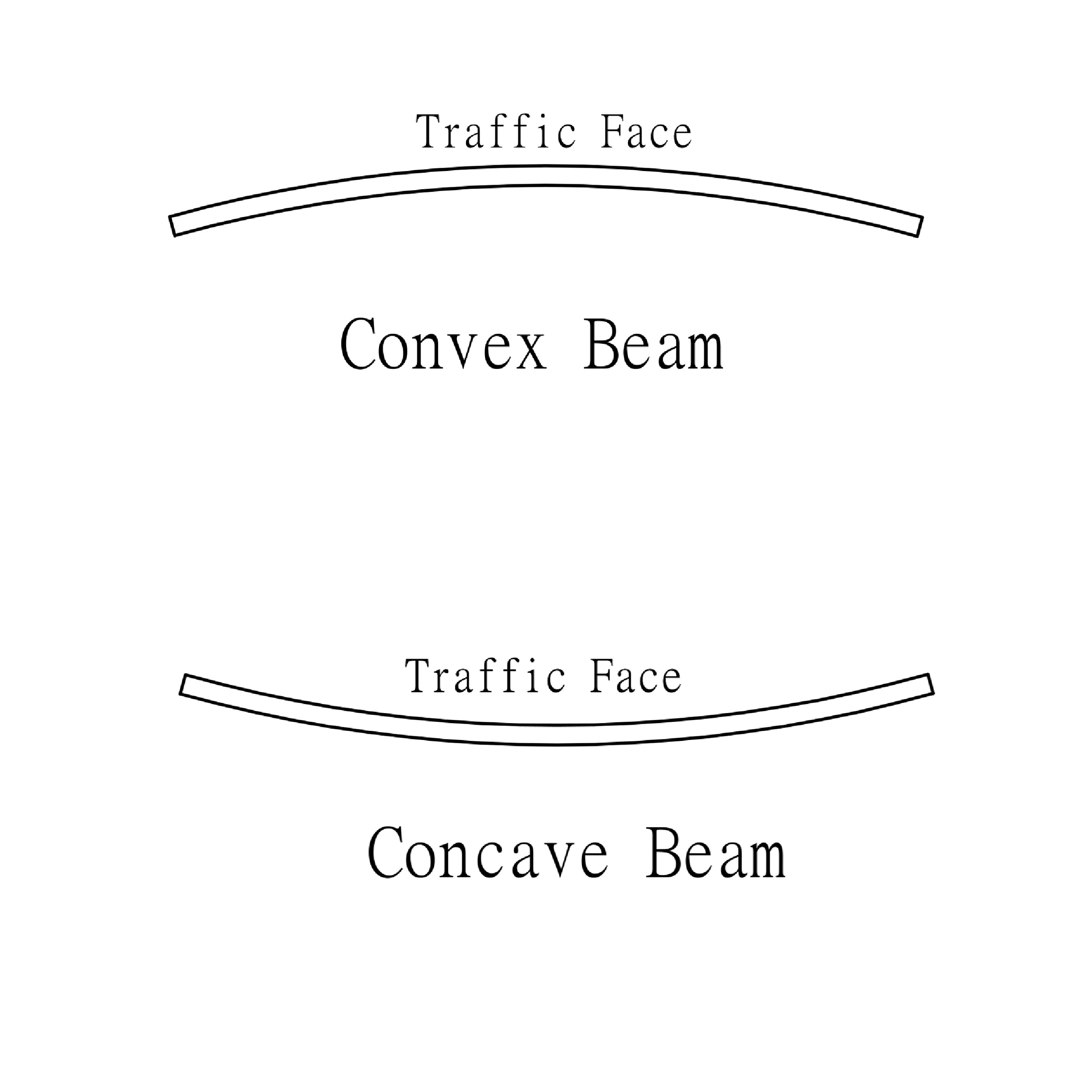

  • Whether the curve is convex or concave - We can provide both types, but we need to know which way the material should be formed so the fixing points are consistent and accessible from the correct side of the beam.

Other Products From Our Armco Range

Open box-beam barrier

Open Box Beam

This is a great alternative offering more flexibility with post locations, yet still uses the same posts as the rest of our Armco range.

Bolt down and cast-in leg types available

Mounting Posts

Choose from a range of mounting posts that allow you to bolt your barriers down without excavations and more.

Yellow plastic fistail end

End Caps

We have a wide range of different end caps for different situations, with plastic end caps to protect pedestrians from edges.

Armco Barrier Driving You Round The Bend?

We are here to help and will happily assist you in finding the right barrier system for your needs, whether that be standard Armco crash barriers, open box beam barrier or temporary chapter 8 pedestrian barriers. Our friendly sales team is here to help on 01905 794 875 during normal working hours.
